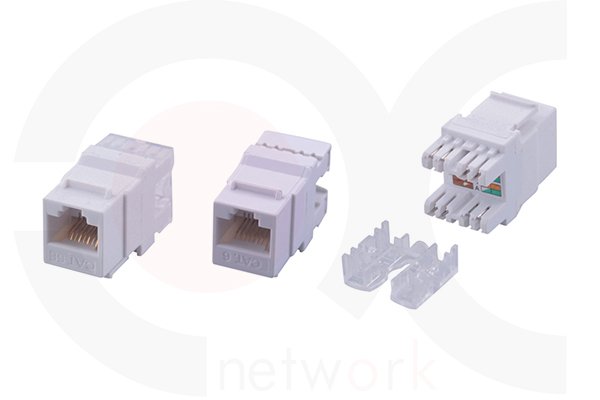

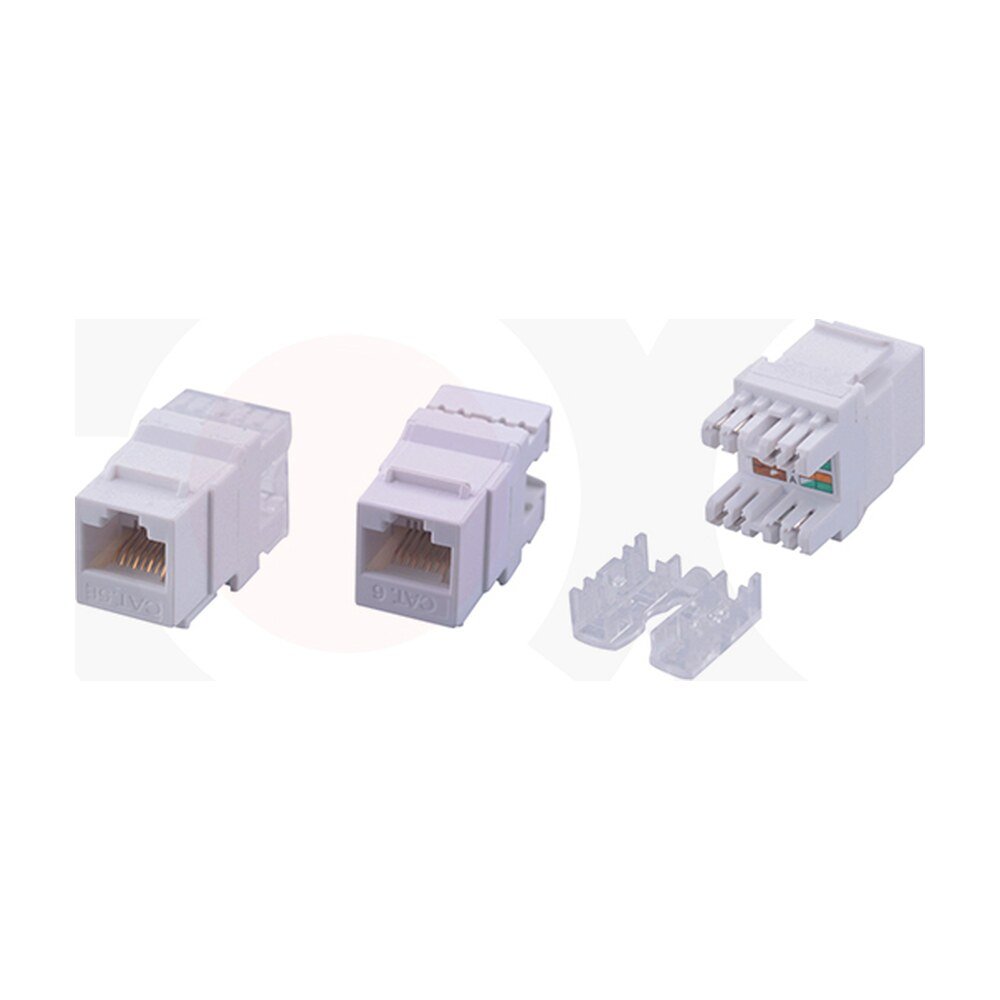

UTP 180 Degree Keystone Jack
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
UTP 180 Degree Keystone Jack
Grade: CAT6A,CAT6,CAT5E
| Current rating | 1.5 A |
|---|---|
| Insulation resistance | ≥ 500 MΩ |
| Contact resistance | ≤ 10 mΩ |
| DC resistance | ≤ 0.1 Ω |
| Volt endurance | DC 1000 V / AC 750 V, 1 min |
| Plug insertion life | ≥ 750 cycles |
| Plug and jack contact force | ≥ 100 g |
| Plug retention force | ≥ 11 lbf |
| Durability | 200 termination cycles |
| Operating temperature | -10 to 60 °C |
| Operating humidity | 10% to 90% RH |
| Storage temperature | -40 to 68 °C |
| Plastic parts | High impact flame retardant, UL 94V-0 rated |
| PCB | FR-4, 1.2 mm |
| Jack wire | 0.35 mm phosphor bronze, gold over nickel plating |
| IDC conductor | 0.5 mm phosphor bronze, tin plating |
| Conductor compatibility | 26 to 23 AWG solid |
| Standards | ANSI/TIA-568-C.2; ISO/IEC 11801:2002/Amd.2:2010; YD/T 926.3-2009; IEC 60603-7; RoHS 2002/95/EC |
| Part Number (SKU) | MR-KJ-1010 |
|---|---|
| Also ordered as | QXKJ-1010 |
| Category | Keystone Jacks |
| Current rating | 1.5 A |
| Insulation resistance | ≥ 500 MΩ |
| Contact resistance | ≤ 10 mΩ |
| DC resistance | ≤ 0.1 Ω |
| Volt endurance | DC 1000 V / AC 750 V, 1 min |
| Plug insertion life | ≥ 750 cycles |
| Plug and jack contact force | ≥ 100 g |
| Plug retention force | ≥ 11 lbf |
| Durability | 200 termination cycles |
| Operating temperature | -10 to 60 °C |
| Operating humidity | 10% to 90% RH |
| Storage temperature | -40 to 68 °C |
| Plastic parts | High impact flame retardant, UL 94V-0 rated |
| PCB | FR-4, 1.2 mm |
| Jack wire | 0.35 mm phosphor bronze, gold over nickel plating |
| IDC conductor | 0.5 mm phosphor bronze, tin plating |
| Conductor compatibility | 26 to 23 AWG solid |
| Standards | ANSI/TIA-568-C.2; ISO/IEC 11801:2002/Amd.2:2010; YD/T 926.3-2009; IEC 60603-7; RoHS 2002/95/EC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
