Part No. MR-LAS0-K-S

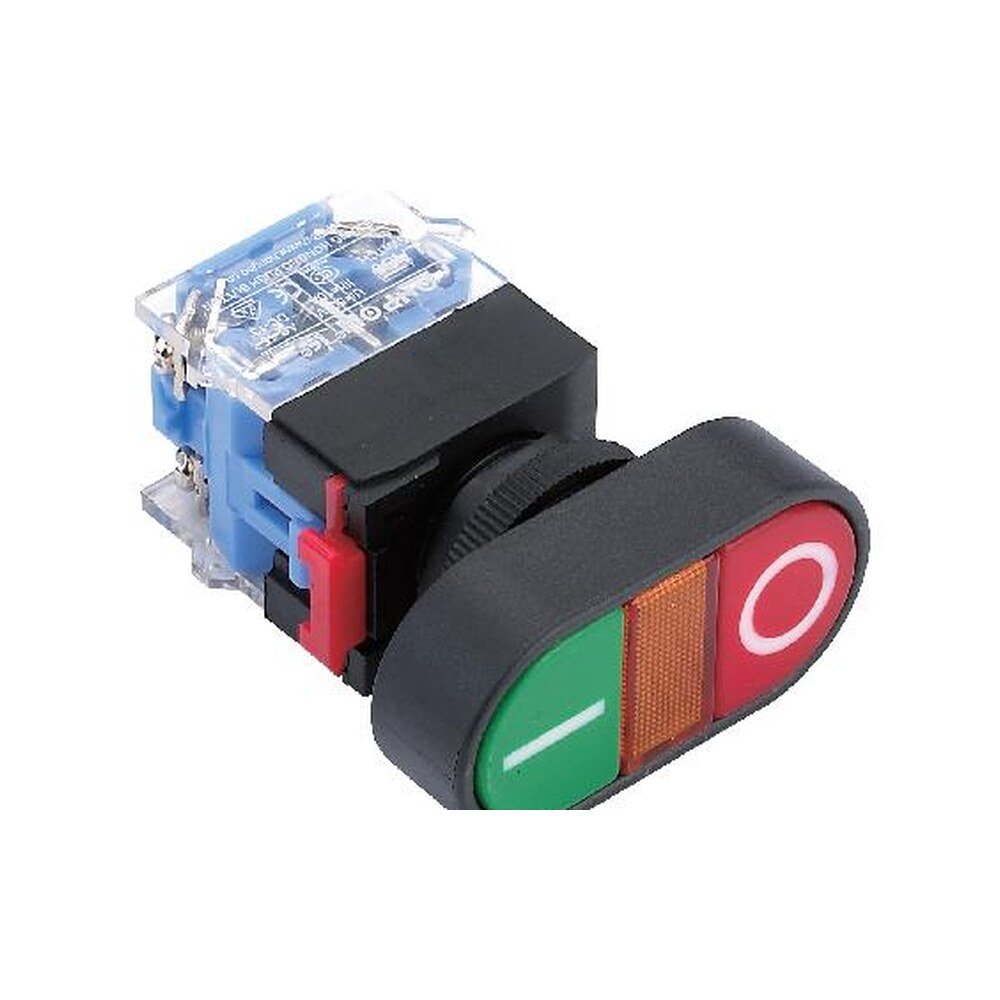

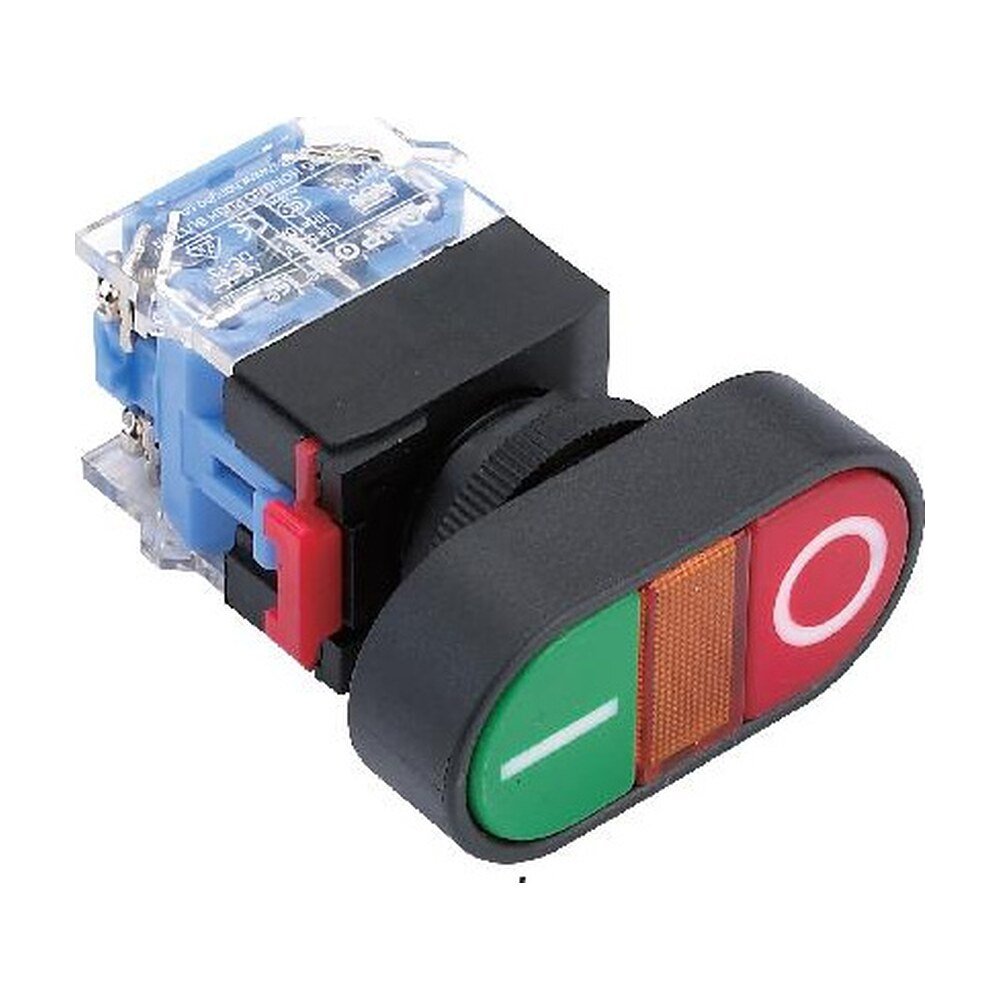

MR-LAS0-K-S 22 mm Double Push Button - I/O, Can Be Illuminated

Please call for pricing and availability

MR-LAS0-K-S - 22 mm Double Push Button - I/O, Can Be Illuminated.

MR-LAS0-K-S 22 mm Double Push Button - I/O, Can Be Illuminated
MR-LAS0-K-S 22 mm Double Push Button - I/O, Can Be Illuminated
Request a quote
Call for Pricing
Value added

Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.

Request a Quote

Send us the quantity you need and we will come back with pricing and a firm lead time.

Stocked items ship on receipt of order. Made-to-order items ship after production.
Need volume, a custom length, or a cross-reference? Talk to our sales account representative.

The MR-LAS0-K-S is a 22 mm double push button with green I and red O caps and a centre lamp that can be lit, with one or two groups of screw-terminal contact blocks rated 10 A at 500 V.

Ordering. The ordering code is MR-LAS0-K-#S-#: each X is replaced by the option you need - contact (11 = 1NO1NC, 10 = 1NO, 01 = 1NC, 20 = 2NO, 02 = 2NC, 22 = 2NO2NC, 40 = 4NO, 04 = 4NC, 31 = 3NO1NC, 13 = 1NO3NC, 30 = 3NO, 03 = 3NC, 21 = 2NO1NC, 12 = 1NO2NC); led voltage (none = Not illuminated, 6V = 6 V, 12V = 12 V, 24V = 24 V, 110V = 110 V, 220V = 220 V). The part numbers are listed below.

Still being confirmed. The terminal count, which contacts each of the two buttons operates and the mechanical life are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.

Please call for pricing and availability.

Part Number (SKU)MR-LAS0-K-S
Also ordered asLAS0-K-S
CategoryPush Button Switches, Switches
Ordering codeMR-LAS0-K-#S-#
SeriesLAS0-K (22 mm, aluminium K-type head)
Rated insulation voltage Ui500 V
Thermal current Ith10 A
Rated operation current, AC-1224 V: 10 A, 110 V: 10 A, 220 V: 6 A
Rated operation current, AC-1524 V: 10 A, 110 V: 6 A, 220 V: 3 A, 380 V: 1.8 A, 500 V: 1.4 A
Rated operation current, DC-1224 V: 8 A, 48 V: 4 A, 110 V: 2.2 A, 220 V: 1.1 A
Rated operation current, DC-1324 V: 4 A, 48 V: 2 A, 110 V: 1.1 A, 220 V: 0.6 A
Minimum load3 V AC/DC, 5 mA
Contact materialSilver alloy
Contact resistance50 mΩ max
Insulation resistance100 MΩ min at 500 V DC
Dielectric strength3000 V AC, 50 Hz, 1 min
Vibration resistance50 Hz, amplitude 1.0 mm
Operating temperature−25 °C to +55 °C, non-freezing
Operating humidity45 % to 85 % RH, non-condensing
ConnectionScrew terminals, wire up to 2 × 1.5 mm², Pin terminal 6.3 × 0.8 mm
Contact structureModular switch blocks, fast-acting or slow-acting, self-cleaning; 2 elements per block, up to 8 elements
StandardsIEC 60947-5-1, GB/T 14048.5
Panel cut-outØ22.5 mm
Panel thickness0.5 mm to 5 mm
Body length behind panel55 mm
Lamp typeLED
LED current20 mA max
LED life40,000 hours
Lamp noteCurrent-limiting resistor built in; AC/DC types use a resistor step-down, AC types a capacitor step-down (50 to 60 Hz)
TypeDouble-position push button (green I / red O), can be illuminated
Bezel29 × 56 mm
Head length14.5 mm
Protection classIP40
AccessoriesProtective cover T35
AvailabilityPlease call for pricing and availability

Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray

Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.

Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.

Contact Micro-Ray Sales

Related Products

MR-GQ12B-10 12 mm Anti-Vandal Push Button - Domed Head, Screw Terminal, Nickel-Plated Brass or Stainless Steel
MR-GQ12B-10 12 mm Anti-Vandal Push Button - Domed Head, Screw Terminal, Nickel-Plated Brass or Stainless Steel
MR-GQ12B-10

MR-GQ12B-10 12 mm Anti-Vandal Push Button - Domed Head, Screw Terminal, Nickel-Plated Brass or Stainless Steel

Call for Pricing
Details
MR-GQ12S-10-J 12 mm Anti-Vandal Push Button - Square Head, Pin Terminal 2 × 0.5 mm, Zinc Aluminium Alloy
MR-GQ12S-10-J 12 mm Anti-Vandal Push Button - Square Head, Pin Terminal 2 × 0.5 mm, Zinc Aluminium Alloy
MR-GQ12S-10-J

MR-GQ12S-10-J 12 mm Anti-Vandal Push Button - Square Head, Pin Terminal 2 × 0.5 mm, Zinc Aluminium Alloy

Call for Pricing
Details
MR-GQ10-K-11E 10 mm Illuminated Metal Push Button - 1NO1NC, Ring LED, Stainless Steel
MR-GQ10-K-11E 10 mm Illuminated Metal Push Button - 1NO1NC, Ring LED, Stainless Steel
MR-GQ10-K-11E

MR-GQ10-K-11E 10 mm Illuminated Metal Push Button - 1NO1NC, Ring LED, Stainless Steel

Call for Pricing
Details

Part numbers in this family

MR-LAS0-K-S is the family. Order by the part number for the option you need.

Part NumberDescription
MR-LAS0-K-11S1NO1NC contact, Not illuminated led voltage
MR-LAS0-K-11S-6V1NO1NC contact, 6 V led voltage
MR-LAS0-K-11S-12V1NO1NC contact, 12 V led voltage
MR-LAS0-K-11S-24V1NO1NC contact, 24 V led voltage
MR-LAS0-K-11S-110V1NO1NC contact, 110 V led voltage
MR-LAS0-K-11S-220V1NO1NC contact, 220 V led voltage
MR-LAS0-K-10S1NO contact, Not illuminated led voltage
MR-LAS0-K-10S-6V1NO contact, 6 V led voltage
MR-LAS0-K-10S-12V1NO contact, 12 V led voltage
MR-LAS0-K-10S-24V1NO contact, 24 V led voltage
MR-LAS0-K-10S-110V1NO contact, 110 V led voltage
MR-LAS0-K-10S-220V1NO contact, 220 V led voltage
MR-LAS0-K-01S1NC contact, Not illuminated led voltage
MR-LAS0-K-01S-6V1NC contact, 6 V led voltage
MR-LAS0-K-01S-12V1NC contact, 12 V led voltage
MR-LAS0-K-01S-24V1NC contact, 24 V led voltage
MR-LAS0-K-01S-110V1NC contact, 110 V led voltage
MR-LAS0-K-01S-220V1NC contact, 220 V led voltage
MR-LAS0-K-20S2NO contact, Not illuminated led voltage
MR-LAS0-K-20S-6V2NO contact, 6 V led voltage
MR-LAS0-K-20S-12V2NO contact, 12 V led voltage
MR-LAS0-K-20S-24V2NO contact, 24 V led voltage
MR-LAS0-K-20S-110V2NO contact, 110 V led voltage
MR-LAS0-K-20S-220V2NO contact, 220 V led voltage
MR-LAS0-K-02S2NC contact, Not illuminated led voltage
MR-LAS0-K-02S-6V2NC contact, 6 V led voltage
MR-LAS0-K-02S-12V2NC contact, 12 V led voltage
MR-LAS0-K-02S-24V2NC contact, 24 V led voltage
MR-LAS0-K-02S-110V2NC contact, 110 V led voltage
MR-LAS0-K-02S-220V2NC contact, 220 V led voltage
MR-LAS0-K-22S2NO2NC contact, Not illuminated led voltage
MR-LAS0-K-22S-6V2NO2NC contact, 6 V led voltage
MR-LAS0-K-22S-12V2NO2NC contact, 12 V led voltage
MR-LAS0-K-22S-24V2NO2NC contact, 24 V led voltage
MR-LAS0-K-22S-110V2NO2NC contact, 110 V led voltage
MR-LAS0-K-22S-220V2NO2NC contact, 220 V led voltage
MR-LAS0-K-40S4NO contact, Not illuminated led voltage
MR-LAS0-K-40S-6V4NO contact, 6 V led voltage
MR-LAS0-K-40S-12V4NO contact, 12 V led voltage
MR-LAS0-K-40S-24V4NO contact, 24 V led voltage
MR-LAS0-K-40S-110V4NO contact, 110 V led voltage
MR-LAS0-K-40S-220V4NO contact, 220 V led voltage
MR-LAS0-K-04S4NC contact, Not illuminated led voltage
MR-LAS0-K-04S-6V4NC contact, 6 V led voltage
MR-LAS0-K-04S-12V4NC contact, 12 V led voltage
MR-LAS0-K-04S-24V4NC contact, 24 V led voltage
MR-LAS0-K-04S-110V4NC contact, 110 V led voltage
MR-LAS0-K-04S-220V4NC contact, 220 V led voltage
MR-LAS0-K-31S3NO1NC contact, Not illuminated led voltage
MR-LAS0-K-31S-6V3NO1NC contact, 6 V led voltage
MR-LAS0-K-31S-12V3NO1NC contact, 12 V led voltage
MR-LAS0-K-31S-24V3NO1NC contact, 24 V led voltage
MR-LAS0-K-31S-110V3NO1NC contact, 110 V led voltage
MR-LAS0-K-31S-220V3NO1NC contact, 220 V led voltage
MR-LAS0-K-13S1NO3NC contact, Not illuminated led voltage
MR-LAS0-K-13S-6V1NO3NC contact, 6 V led voltage
MR-LAS0-K-13S-12V1NO3NC contact, 12 V led voltage
MR-LAS0-K-13S-24V1NO3NC contact, 24 V led voltage
MR-LAS0-K-13S-110V1NO3NC contact, 110 V led voltage
MR-LAS0-K-13S-220V1NO3NC contact, 220 V led voltage
MR-LAS0-K-30S3NO contact, Not illuminated led voltage
MR-LAS0-K-30S-6V3NO contact, 6 V led voltage
MR-LAS0-K-30S-12V3NO contact, 12 V led voltage
MR-LAS0-K-30S-24V3NO contact, 24 V led voltage
MR-LAS0-K-30S-110V3NO contact, 110 V led voltage
MR-LAS0-K-30S-220V3NO contact, 220 V led voltage
MR-LAS0-K-03S3NC contact, Not illuminated led voltage
MR-LAS0-K-03S-6V3NC contact, 6 V led voltage
MR-LAS0-K-03S-12V3NC contact, 12 V led voltage
MR-LAS0-K-03S-24V3NC contact, 24 V led voltage
MR-LAS0-K-03S-110V3NC contact, 110 V led voltage
MR-LAS0-K-03S-220V3NC contact, 220 V led voltage
MR-LAS0-K-21S2NO1NC contact, Not illuminated led voltage
MR-LAS0-K-21S-6V2NO1NC contact, 6 V led voltage
MR-LAS0-K-21S-12V2NO1NC contact, 12 V led voltage
MR-LAS0-K-21S-24V2NO1NC contact, 24 V led voltage
MR-LAS0-K-21S-110V2NO1NC contact, 110 V led voltage
MR-LAS0-K-21S-220V2NO1NC contact, 220 V led voltage
MR-LAS0-K-12S1NO2NC contact, Not illuminated led voltage
MR-LAS0-K-12S-6V1NO2NC contact, 6 V led voltage
MR-LAS0-K-12S-12V1NO2NC contact, 12 V led voltage
MR-LAS0-K-12S-24V1NO2NC contact, 24 V led voltage
MR-LAS0-K-12S-110V1NO2NC contact, 110 V led voltage
MR-LAS0-K-12S-220V1NO2NC contact, 220 V led voltage

Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
