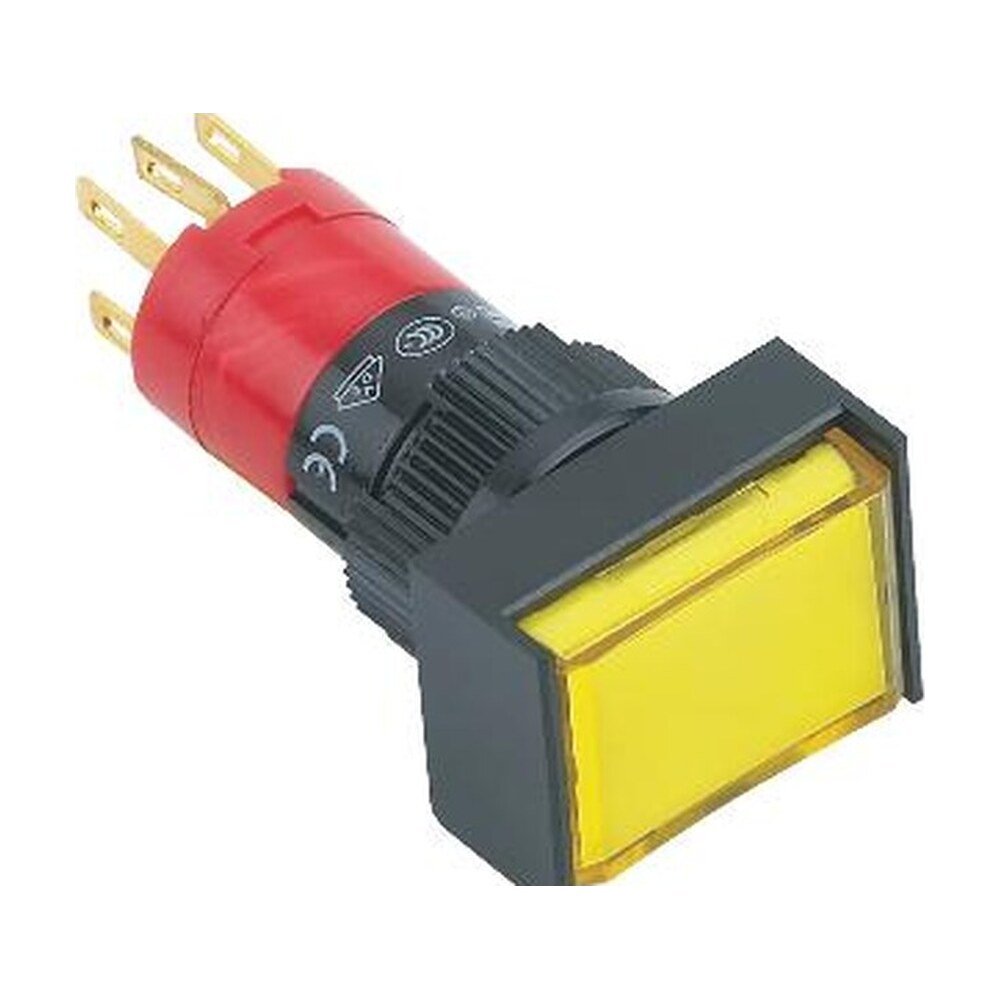

MR-LAS1J-11 - 16 mm Push Button - Rectangular Head, 1NO1NC, Illuminated.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS1J-11 is a 16 mm plastic push button with a rectangular cap that can be lit, a double-break changeover contact rated 5 A thermal current at 250 V, momentary or latching.
Ordering. The ordering code is MR-LAS1J-11X-JC-X-X: each X is replaced by the option you need - operation (none = Momentary, Z = Latching); colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White, N = Colour code N); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 220V = 220 V). The part numbers are listed below.
Still being confirmed. The terminal count, what colour code N denotes, what the JC position in the ordering code denotes and whether the button can be ordered unlit are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1J-11 |
|---|---|
| Also ordered as | LAS1J-11 |
| Category | Push Button Switches, Switches |
| Ordering code | MR-LAS1J-11X-JC-X-X |
| Series | LAS1 (16 mm plastic) |
| Rated insulation voltage Ui | 250 V AC/DC |
| Thermal current Ith | 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 5 A resistive, 3 A inductive, 220 V: 3 A resistive, 2 A inductive |
| Rated operation current, DC | 12 V: 5 A resistive, 2 A inductive, 24 V: 5 A resistive, 2 A inductive, 110 V: 1 A resistive, 0.2 A inductive, 220 V: 0.5 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 2000 V AC 1 min between contact and LED terminals and between poles, 1500 V AC 1 min between terminals of the same pole |
| Vibration resistance | 50 Hz, amplitude 1.2 mm |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Wiring | Wire up to 2 × 0.8 mm diameter, 0.75 mm² copper |
| Protection class | IP40 |
| Standards | IEC 60947-5-1, GB/T 14048.5 |
| Panel cut-out | Ø16 mm (+0.2 / −0) with anti-rotation flat |
| Housing material | Plastic |
| Bezel height | 6 mm max |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less, about 2 mA at 110 V or more |
| LED voltage fluctuation | DC ±10 %, AC ±20 % |
| Lamp note | Internal resistor; 110 V and above needs an external resistor |
| Contact structure | 1NO1NC (double-break, fast action, self-cleaning; 1 to 4 elements) |
| Operation type | Z = latching, no letter = momentary |
| Mechanical life | Momentary 1,000,000, Latching 500,000 operations |
| Electrical life | 50,000 cycles |
| Operating force | 2 N approx (1NO1NC) |
| Operation travel | 3 mm approx |
| Body length behind panel | 36 mm |
| Accessories note | Solder terminal S21, PCB terminal S22 |
| Type | Push button, can be illuminated |
| Head shape | Rectangular |
| Bezel | Bezel 24 × 18 mm |
| Hole spacing | min 18 mm and 24 mm spacing |
| Accessories | Switch guard S02, Sealing cover S09-S1J, Solder terminal S21, PCB terminal S22 |
| Availability | Please call for pricing and availability |
