MR-PS123Z10YSS1 - 12 mm Piezo Push Button - Finger Location, 1NO Pulse, Stainless, IP68.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

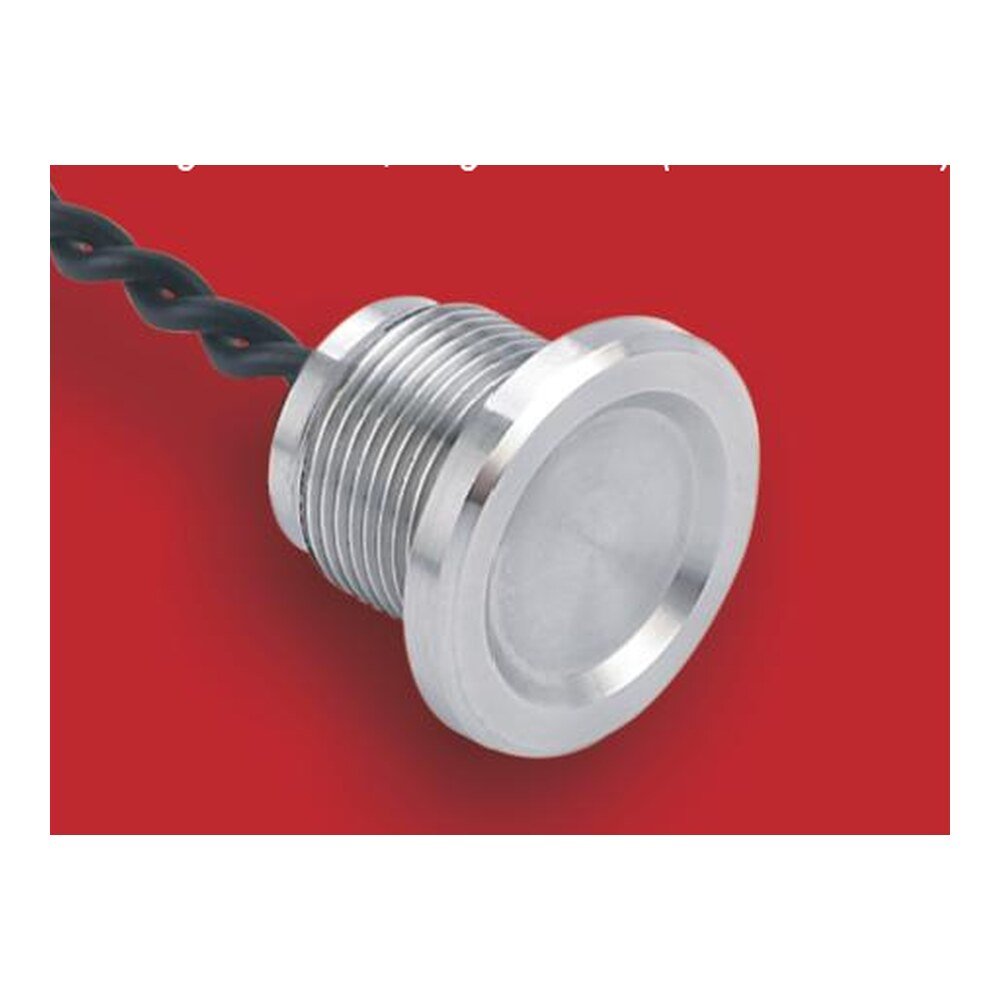

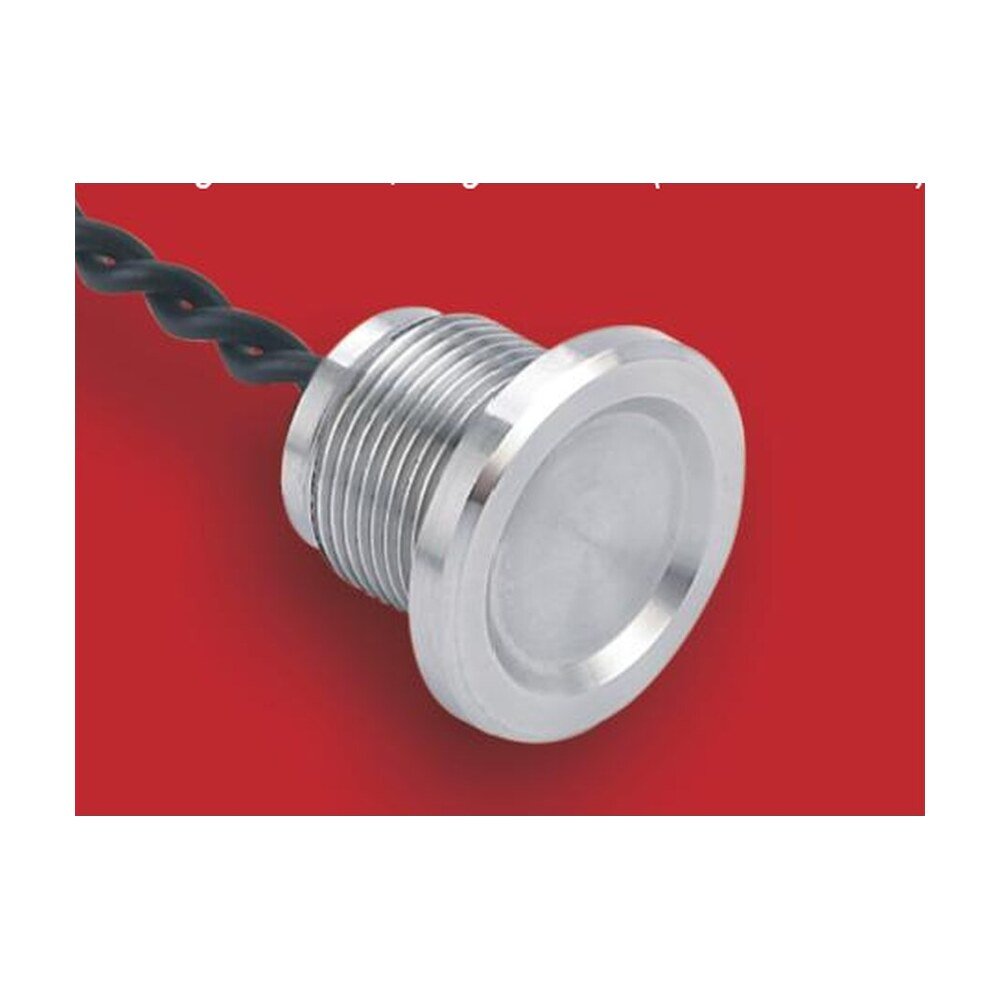

The MR-PS123Z10YSS1 is a 12 mm stainless-steel piezo push button with a finger location, 1NO pulse output, IP68 / IP69K, rated for 50 million operations.
Please call for pricing and availability.
| Part Number (SKU) | MR-PS123Z10YSS1 |
|---|---|
| Also ordered as | PS123Z10YSS1 |
| Category | Push Button Switches, Switches |
| Series | PS piezo push buttons |
| Switch type | Pressure-activated (piezo) switch |
| Switch rating | 200 mA max at 24 V AC/DC |
| Switch resistance ON | 10 Ω max |
| Switch resistance OFF | 5 MΩ min |
| Operating force | 5 N to 10 N |
| Operating life | 50 million cycles |
| LED consumption | Dot 10 mA, ring 20 mA |
| Protection class | IP68 / IP69K |
| Impact rating | IK06 (stainless steel) |
| Vibration resistance | 10 Hz to 500 Hz, 10 g |
| Operating temperature | −40 °C to +75 °C (sudden change not above 20 °C) |
| Terminals | 26 AWG twisted-pair wire leads, 300 mm (other lengths to order) |
| Type | Piezo push button, finger location, not illuminated |
| Electrical function | 1NO pulse |
| Housing material | Stainless steel |
| Mounting hole | Ø12 mm |
| Thread | M12 × 0.75 |
| Bezel | Ø17.1 mm |
| Head length | 2.3 mm |
| Body length behind panel | 10.4 mm plus leads |
| Panel thickness | 0.5 mm to 6 mm |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
