Pin Terminals — nylon-insulated, single crimp, brazed seam.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

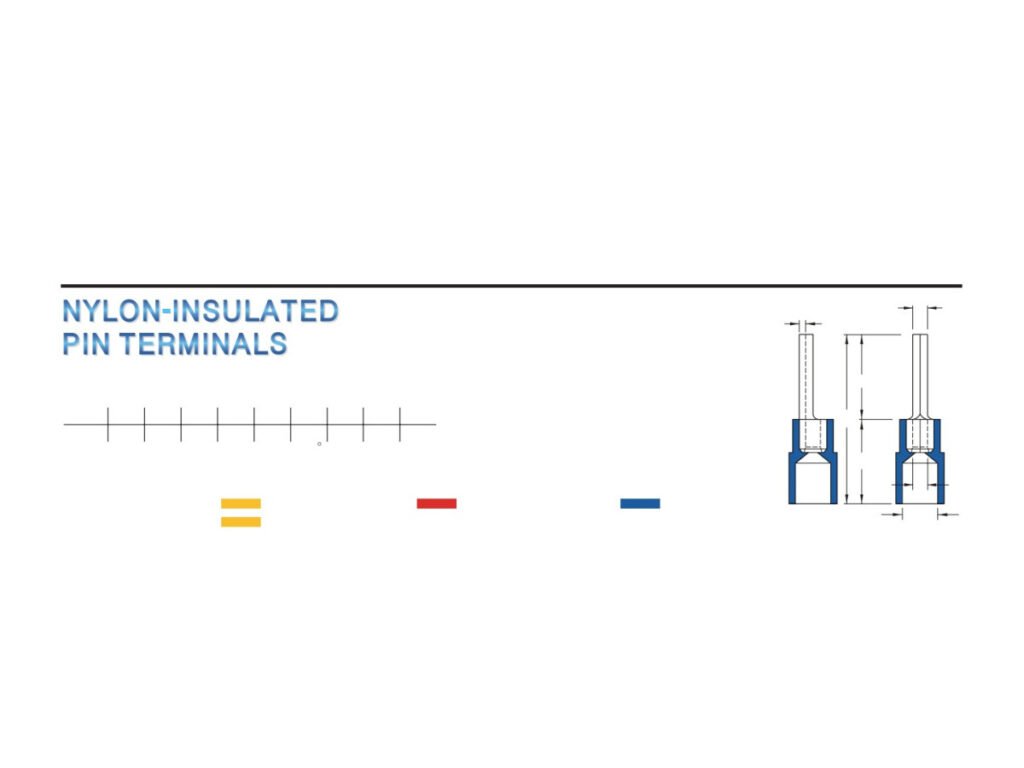

Pin Terminals — nylon-insulated, single crimp, brazed seam. A solid pin end that turns stranded wire into something a clamp or spring terminal can hold without the strands splaying.
| Series | MR-PTNYB |
|---|---|
| Type | Pin Terminals |
| Barrel & insulation | Nylon-insulated, single crimp, brazed seam. |
| Wire range | 1.25 mm² (22-16 AWG) to 70 mm² (2/0 AWG) |
| Sizes | 7 – 25 |
| Part numbers | 46 |
| Availability | Please call for pricing and availability |
| Pricing | Quoted per part and quantity |
Read down to your wire size, across to your size. The number in the box is the part to order.
| Wire size | 7 | 9 | 10 | 12 | 13 | 14 | 16 | 20 | 25 |
|---|---|---|---|---|---|---|---|---|---|
| 1.25 mm² 22-16 AWG | MR-PTNYB1-7 | MR-PTNYB1-9 | MR-PTNYB1-10 | MR-PTNYB1-12 | MR-PTNYB1-13 | MR-PTNYB1-14 | MR-PTNYB1-16 | — | — |
| 2 mm² 16-14 AWG | — | MR-PTNYB2-9 | MR-PTNYB2-10 | MR-PTNYB2-12 | MR-PTNYB2-13 | — | MR-PTNYB2-16 | — | — |
| 5.5 mm² 12-10 AWG | — | — | MR-PTNYB5-10 | — | MR-PTNYB5-13 | — | — | — | — |
| 50 mm² 1 AWG | — | — | — | — | — | — | — | MR-PTNYB50-20 | — |
| 70 mm² 2/0 AWG | — | — | — | — | — | — | — | — | MR-PTNYB70-25 |

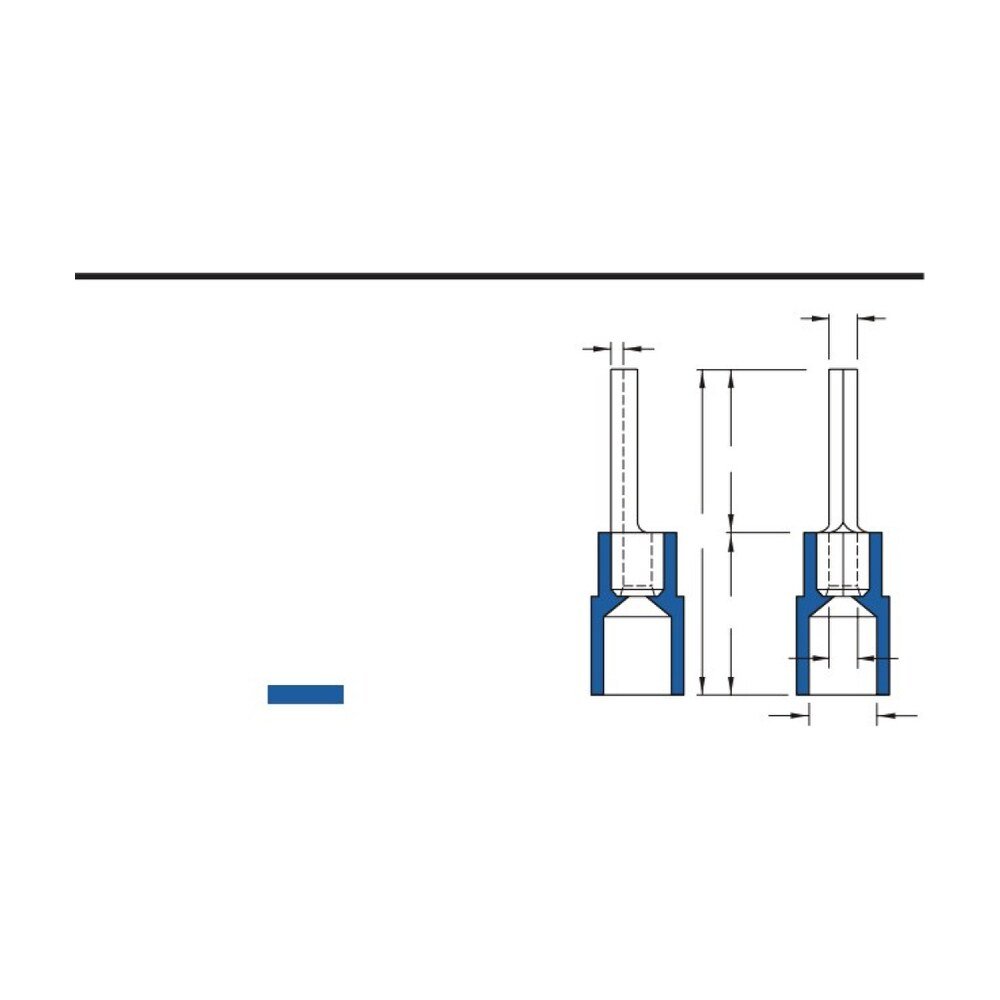

The figure after the dash is the size code used by this series. Exact dimensions, barrel length, packaging quantity and approvals are available for any part number on request.
Right-angle, special-length and other variants within the same series.
| MR-PTNYB1-9-PS | MR-PTNYB1-9-T | MR-PTNYB1-10-PS | MR-PTNYB1-10-T |
| MR-PTNYB1-12-PS | MR-PTNYB1-12-T | MR-PTNYB1-13-PS | MR-PTNYB1-13-T |
| MR-PTNYB1-14-PS | MR-PTNYB1-14-T | MR-PTNYB1-16-PS | MR-PTNYB1-16-T |
| MR-PTNYB2-9-PS | MR-PTNYB2-9-T | MR-PTNYB2-10-PS | MR-PTNYB2-10-T |
| MR-PTNYB2-12-PS | MR-PTNYB2-12-T | MR-PTNYB2-13-PS | MR-PTNYB2-13-T |
| MR-PTNYB2-16-PS | MR-PTNYB2-16-T | MR-PTNYB5-13-PS | MR-PTNYB5-13-T |
| MR-PTNYB10-12 | MR-PTNYB16-13 | MR-PTNYB25-15 | MR-PTNYB35-20 |
| MR-PTNYB95-25 | MR-PTNYB120-27 |
Send us the part number and the quantity you need and we will come back with price and lead time. If you are not sure which part fits, tell us the wire size and the stud or screw size and we will pick it for you. We can also supply to a drawing or a competitor part number if you have one.
| Part Number (SKU) | MR-PTNYB |
|---|---|
| Also ordered as | PTNYB1-7, PTNYB1-9, PTNYB1-9-PS, PTNYB1-9-T, PTNYB1-10, PTNYB1-10-PS, PTNYB1-10-T, PTNYB1-12, PTNYB1-12-PS, PTNYB1-12-T, PTNYB1-13, PTNYB1-13-PS, PTNYB1-13-T, PTNYB1-14, PTNYB1-14-PS, PTNYB1-14-T, PTNYB1-16, PTNYB1-16-PS, PTNYB1-16-T, PTNYB2-9, PTNYB2-9-PS, PTNYB2-9-T, PTNYB2-10, PTNYB2-10-PS and 22 more in the series |
| Category | Hook, Pin and Blade Terminals |
| Series | MR-PTNYB |
| Type | Pin Terminals |
| Barrel & insulation | Nylon-insulated, single crimp, brazed seam. |
| Wire range | 1.25 mm² (22-16 AWG) to 70 mm² (2/0 AWG) |
| Sizes | 7 – 25 |
| Part numbers | 46 |
| Pricing | Quoted per part and quantity |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
