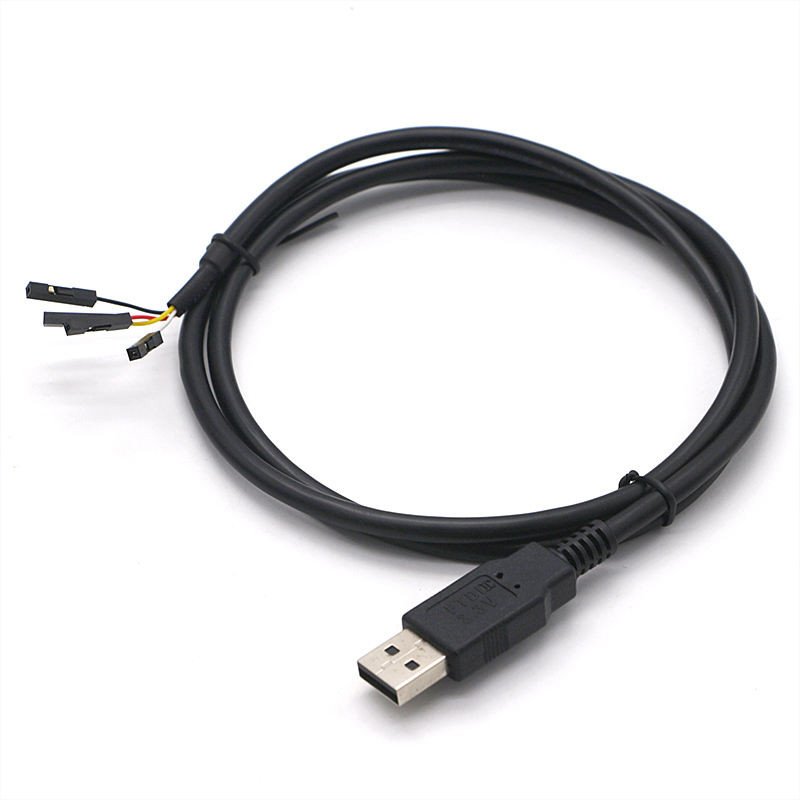

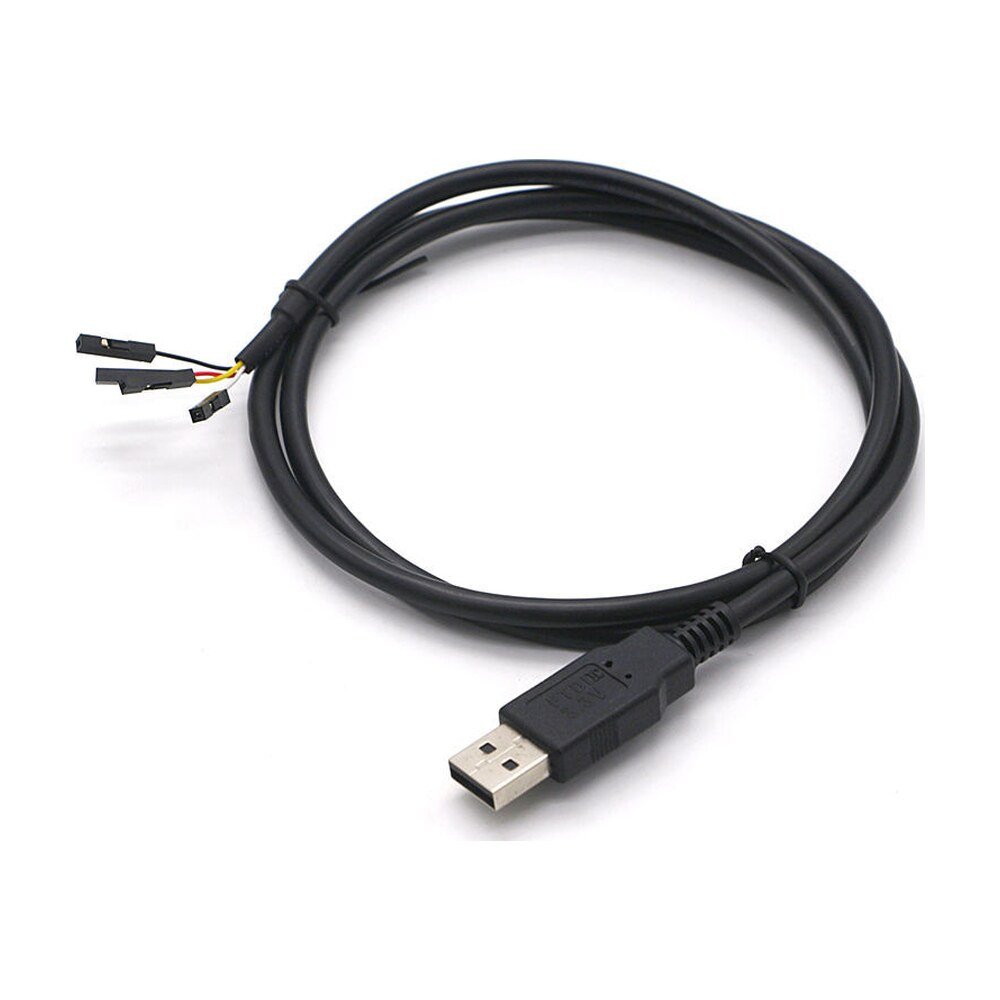

USB to TTL/UART cable, 6-way header. FTDI FT232RL, with CP2102 and PL2303 available to order. 5V, 3.3V or 1.8V logic; VCC, TXD, RXD, GND plus CTS and RTS. For Raspberry Pi, Arduino and MCU console work.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
USB to TTL/UART converter cable on the FTDI FT232RL bridge, terminated in a 6-way header, for Raspberry Pi, Arduino, BeagleBone Black and embedded control systems.
Similar cables from other makers, for reference. These are not stated equivalents - each differs from ours as noted, and the distributor does not publish the bridge chip for any of them.
| Manufacturer | Manufacturer part number | Distributor part number | How it differs from MR-USB-TTL-H6 |
|---|---|---|---|
| FTDI | TTL-232R-5V | 768-1028-ND | 5V only |
| FTDI | TTL-232R-3V3 | 768-1015-ND | 3.3V only |
| FTDI | TTL-232RG-VREG1V8-WE | 768-1070-ND | 1.8V, wire leads not a header |
| Part Number (SKU) | MR-USB-TTL-H6 |
|---|---|
| Pins Available | 4 |
| Also ordered as | Alibaba ref 1600999248838 |
| Category | USB to TTL / UART Cables - FTDI |
| Bridge chip | FTDI FT232RL. CP2102 and PL2303 are available to order - state which you need when requesting a quotation |
| Interface | TTL / UART at 5V, 3.3V or 1.8V logic |

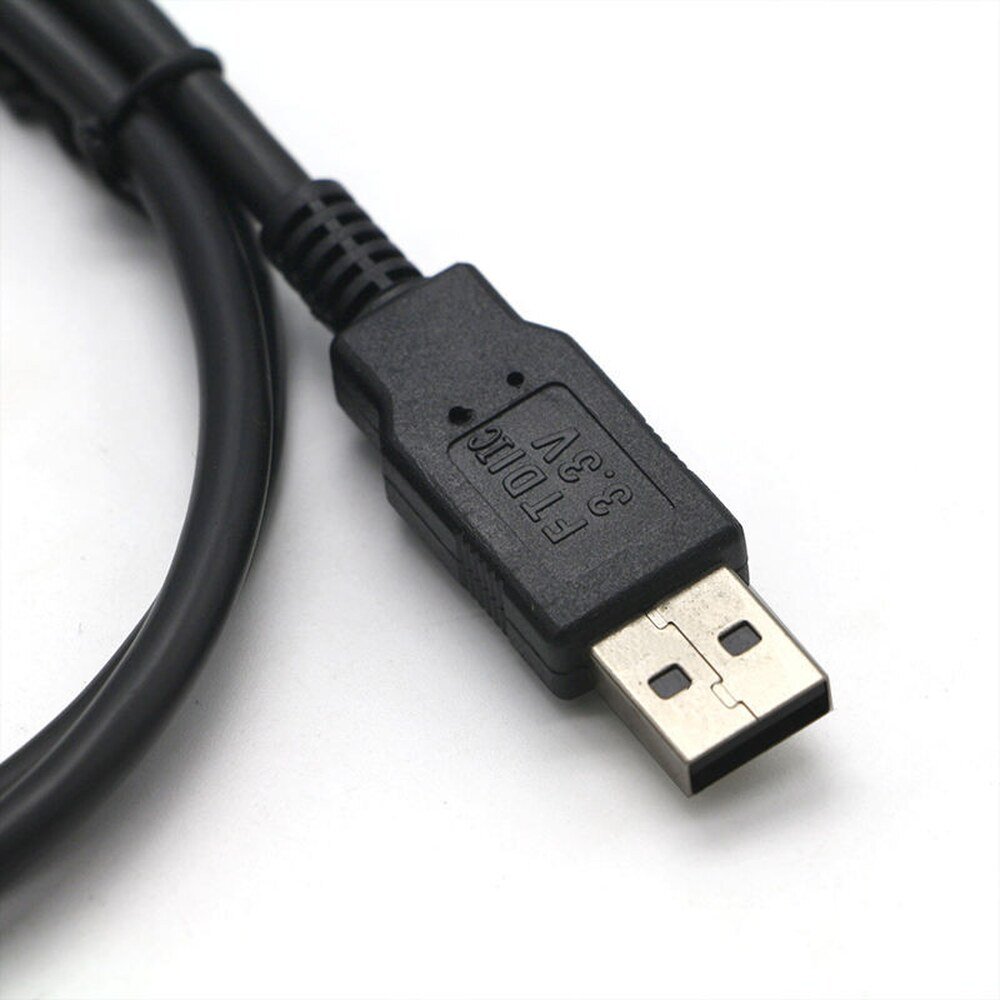

| Connectors | USB 2.0 Type A male to 4-pin or 6-pin debug header |
| Signals | VCC, TXD, RXD, GND; the 6-pin version adds CTS# and RTS# |
| Conductor | tinned copper |
| Shielding | braid |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
