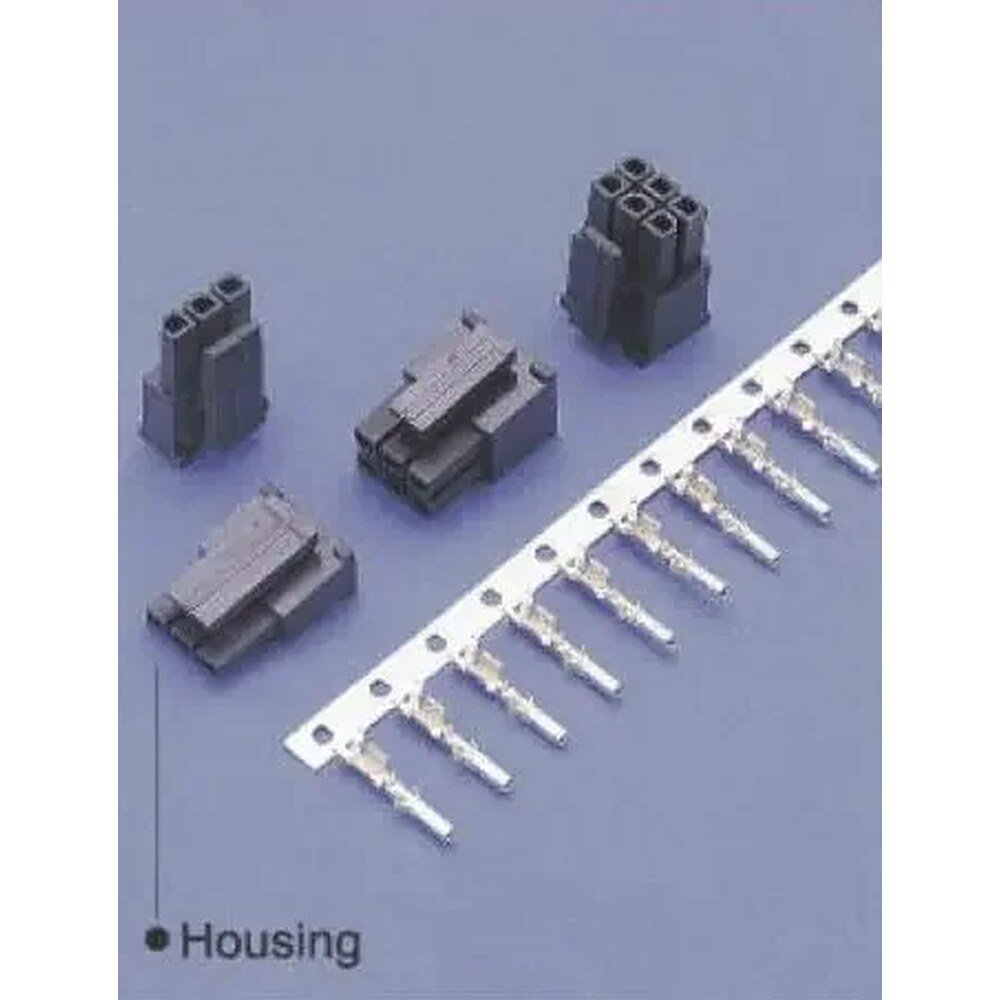

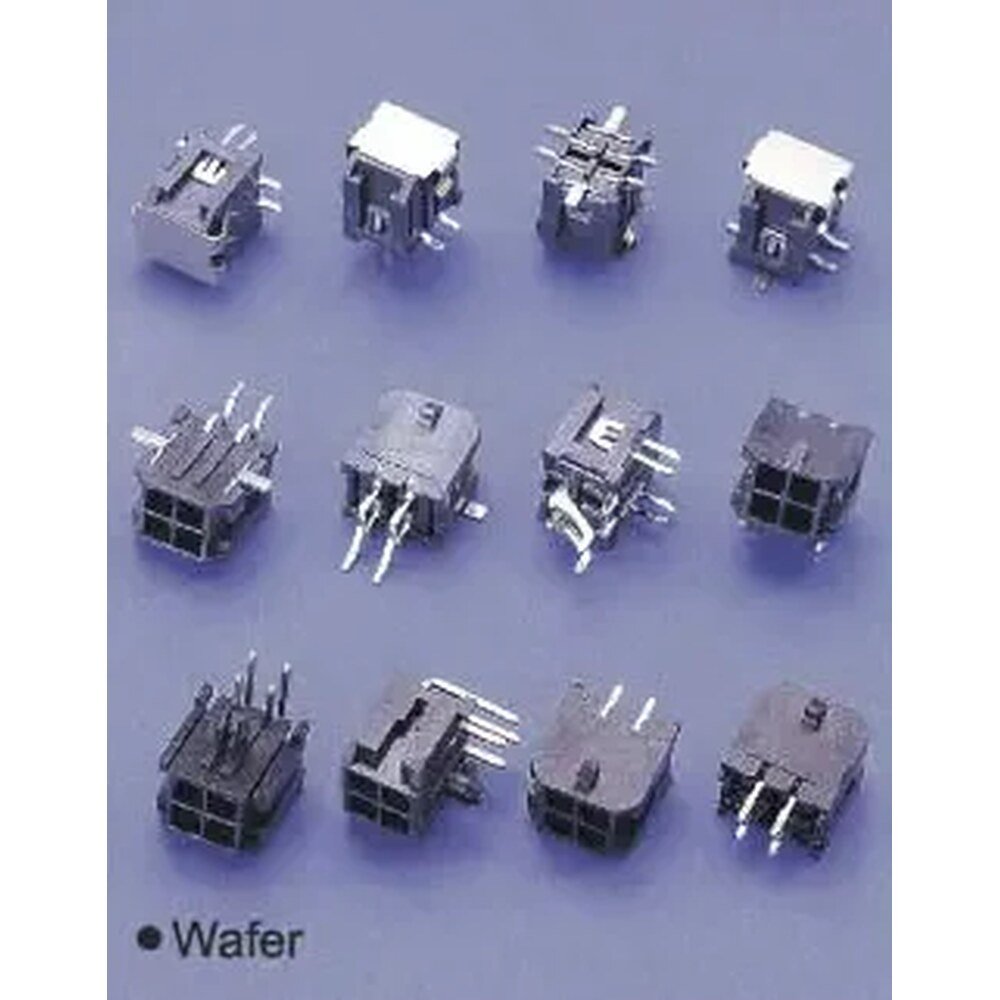

MR-W4230 Series Micro-fit 3.0mm Wafer, Dip, SMT Type PCB Wire To Board, Wire To Wire, Board To Board Connector Black Color. Please call for pricing and availability.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
MR-W4230 Series Micro-fit 3.0mm Wafer, Dip, SMT Type PCB Wire To Board, Wire To Wire, Board To Board Connector Black Color. Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation.
| Micro-Ray series | MR-W4230 |
|---|---|
| Pins available | Please call to confirm |
| Pin Numbers | 1*2-1*12, 2*1-2*12 |
| Functions | 180°, 90°, SMT 180°, SMT 90° |
| Color | Black |
| Packing | Bag And Reel |
| Availability | Please call for pricing and availability |
| Micro-Ray part number | Series |
|---|---|
| MR-W4230-XXPSRTB0N | MR-W4230 |
| MR-W4230-XXPDRTB0N | MR-W4230 |
Where a part number shows X, that position is an option (positions, plating, packing) filled in for your order. We confirm the complete part number on your quotation.
Send the Micro-Ray part number, quantity and any options to sales@micro-ray.com or call 732-892-8799. Please call for pricing and availability.
| Part Number (SKU) | MR-W4230 |
|---|---|
| Also ordered as | W4230 W4230-XXPSRTB0N W4230-XXPDRTB0N |
| Category | Wafers (PCB Headers) |
| Micro-Ray series | MR-W4230 |
| Pins available | Please call to confirm |
| Pin Numbers | 1*2-1*12, 2*1-2*12 |
| Functions | 180°, 90°, SMT 180°, SMT 90° |
| Color | Black |
| Packing | Bag And Reel |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
