Techflex Flexo PET PTN1.25, 1-1/4 in nominal, expands 3/4 in to 1-3/4 in. PET monofilament, -70 to 125 C, UL94 V-0, halogen free. Call for pricing and availability.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

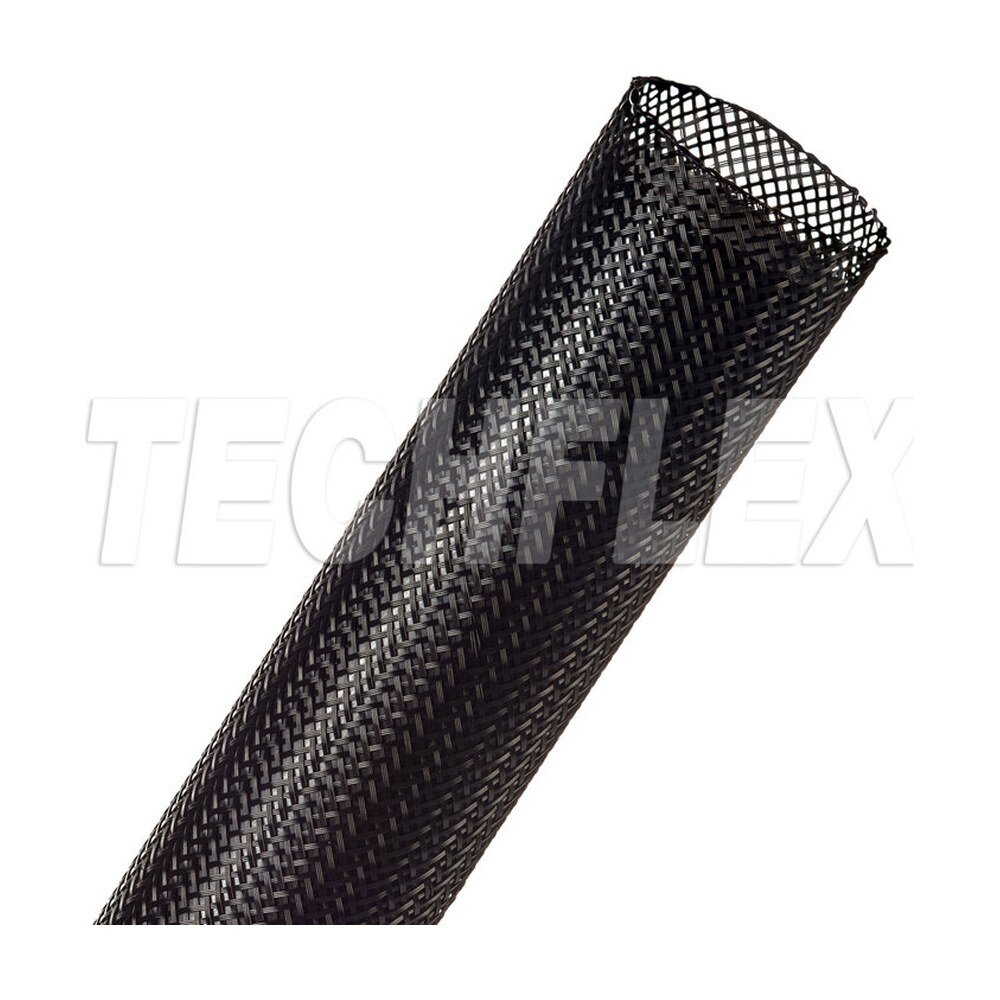

Techflex Flexo PET expandable braided sleeving, nominal size 1-1/4 in, part number PTN1.25. Braided from 0.010 in polyethylene terephthalate monofilament for bundling, routing and abrasion protection of wire and cable. Micro-Ray is an authorized Techflex distributor.
| Nominal size | 1-1/4 in |
| Expansion range | 3/4 in to 1-3/4 in |
| Material | Polyethylene terephthalate (PET), 0.010 in monofilament |
| Operating temperature | −70°C to 125°C continuous (−94°F to 257°F) |
| Melting point | 250°C (482°F) |
| Flammability | UL94 V-0, FAR 25, FMVSS-302 |
| Moisture absorption | 0.1 to 0.2 % (ASTM D-570) |
| Halogen free / RoHS | Yes / Yes |
| Weight | 1.60 lb per 100 ft |
| Standard put-ups | Bulk spool 250 ft, shop spool 50 ft |
Order on the bundle diameter the sleeving has to cover, not on a single dimension — this size closes to 3/4 in and opens to 1-3/4 in. Cut with a hot knife so the braid seals; a cold cut frays.
Techflex publishes more than fifty colour codes for Flexo PET. Give us the colour code with the size, for example PTN1.25BK for black. Please call for pricing and availability.
| Part Number (SKU) | PTN1.25 |
|---|---|
| Category | General Purpose |
| Colour | Black (BK), White (WH), Gray (GY), Platinum Gray (PG), Carbon (CB), Beige (BE), Brown (BR), Red (RD), Orange (OR), Yellow (YL), Green (GN), Blue (BL), Purple (PP), Dark Purple (DP), Clear (CL), Denim (DE), Fire (FI), Camo (CA), Desert Camo (DC), Neon Yellow (NY), Neon Pink (NP), Neon Red (NR), Neon Green (NG), Neon Blue (NB), Nitrox (NX), Patriot (PT), Ogre (OG), Jester (JS), Safety Stripe (SS), Super Hero (SH), Checkered Flag (CF), Snake (SK) |
| Nominal size | 1-1/4 in |
| Expansion range | 3/4 in to 1-3/4 in |
| Material | Polyethylene terephthalate (PET), 0.010 in monofilament |
| Operating temperature | −70°C to 125°C continuous (−94°F to 257°F) |
| Melting point | 250°C (482°F) |
| Flammability | UL94 V-0, FAR 25, FMVSS-302 |
| Moisture absorption | 0.1 to 0.2 % (ASTM D-570) |
| Halogen free / RoHS | Yes / Yes |
| Weight | 1.60 lb per 100 ft |
| Standard put-ups | Bulk spool 250 ft, shop spool 50 ft |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray SalesPTN1.25 is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| PTN1.25BK | Black |
| PTN1.25WH | White |
| PTN1.25GY | Gray |
| PTN1.25PG | Platinum Gray |
| PTN1.25CB | Carbon |
| PTN1.25BE | Beige |
| PTN1.25BR | Brown |
| PTN1.25RD | Red |
| PTN1.25OR | Orange |
| PTN1.25YL | Yellow |
| PTN1.25GN | Green |
| PTN1.25BL | Blue |
| PTN1.25PP | Purple |
| PTN1.25DP | Dark Purple |
| PTN1.25CL | Clear |
| PTN1.25DE | Denim |
| PTN1.25FI | Fire |
| PTN1.25CA | Camo |
| PTN1.25DC | Desert Camo |
| PTN1.25NY | Neon Yellow |
| PTN1.25NP | Neon Pink |
| PTN1.25NR | Neon Red |
| PTN1.25NG | Neon Green |
| PTN1.25NB | Neon Blue |
| PTN1.25NX | Nitrox |
| PTN1.25PT | Patriot |
| PTN1.25OG | Ogre |
| PTN1.25JS | Jester |
| PTN1.25SS | Safety Stripe |
| PTN1.25SH | Super Hero |
| PTN1.25CF | Checkered Flag |
| PTN1.25SK | Snake |
Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
