Techflex Flexo PET PTN2.50, 2-1/2 in nominal, expands 1-3/4 in to 3-5/8 in. PET monofilament, -70 to 125 C, UL94 V-0, halogen free. Call for pricing and availability.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

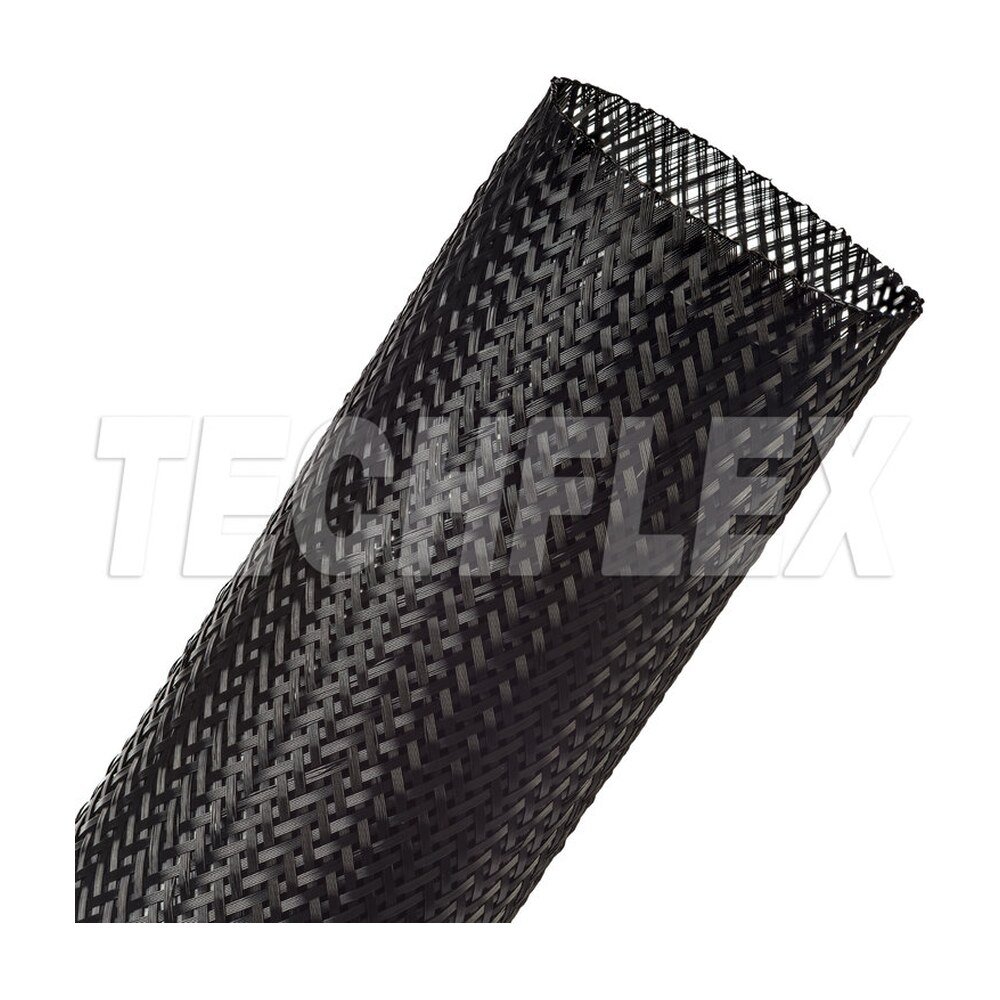

Techflex Flexo PET expandable braided sleeving, nominal size 2-1/2 in, part number PTN2.50. Braided from 0.010 in polyethylene terephthalate monofilament for bundling, routing and abrasion protection of wire and cable. Micro-Ray is an authorized Techflex distributor.
| Nominal size | 2-1/2 in |
| Expansion range | 1-3/4 in to 3-5/8 in |
| Material | Polyethylene terephthalate (PET), 0.010 in monofilament |
| Operating temperature | −70°C to 125°C continuous (−94°F to 257°F) |
| Melting point | 250°C (482°F) |
| Flammability | UL94 V-0, FAR 25, FMVSS-302 |
| Moisture absorption | 0.1 to 0.2 % (ASTM D-570) |
| Halogen free / RoHS | Yes / Yes |
| Weight | 3.80 lb per 100 ft |
| Standard put-ups | Bulk spool 200 ft, shop spool 50 ft |
Order on the bundle diameter the sleeving has to cover, not on a single dimension — this size closes to 1-3/4 in and opens to 3-5/8 in. Cut with a hot knife so the braid seals; a cold cut frays.
Techflex publishes more than fifty colour codes for Flexo PET. Give us the colour code with the size, for example PTN2.50BK for black. Please call for stock check or lead-time.
| Part Number (SKU) | PTN2.50 |
|---|---|
| Category | General Purpose, Techflex Braided Sleeving, Braiding / Tubing |
| colour | Beige, Black, Blue, Brown, Carbon, Clear, Dark Purple, Forest Green, Gray, Green, Highlighter Yellow, Olive Drab, Orange, Platinum Gray, Purple, Red, Shimmer, White, Yellow, Neon Blue Fluorescent, Neon Green, Neon Pink, Neon Red, Neon Yellow, Black/Neon Yellow, Blue/Clear, Checkered Flag, Patriot, Red/Clear, Reggae |
| Nominal size | 2-1/2 in |
| Expansion range | 1-3/4 in to 3-5/8 in |
| Material | Polyethylene terephthalate (PET), 0.010 in monofilament |
| Operating temperature | −70°C to 125°C continuous (−94°F to 257°F) |
| Melting point | 250°C (482°F) |
| Flammability | UL94 V-0, FAR 25, FMVSS-302 |
| Moisture absorption | 0.1 to 0.2 % (ASTM D-570) |
| Halogen free / RoHS | Yes / Yes |
| Weight | 3.80 lb per 100 ft |
| Standard put-ups | Bulk spool 200 ft, shop spool 50 ft |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Parts we build to your requirement ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray SalesPTN2.50 is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| PTN2.50BK | Black |
| PTN2.50WH | White |
| PTN2.50GY | Gray |
| PTN2.50PG | Platinum Gray |
| PTN2.50CB | Carbon |
| PTN2.50BE | Beige |
| PTN2.50BR | Brown |
| PTN2.50RD | Red |
| PTN2.50OR | Orange |
| PTN2.50YL | Yellow |
| PTN2.50GN | Green |
| PTN2.50BL | Blue |
| PTN2.50PP | Purple |
| PTN2.50DP | Dark Purple |
| PTN2.50CL | Clear |
| PTN2.50DE | Denim |
| PTN2.50FI | Fire |
| PTN2.50CA | Camo |
| PTN2.50DC | Desert Camo |
| PTN2.50NY | Neon Yellow |
| PTN2.50NP | Neon Pink |
| PTN2.50NR | Neon Red |
| PTN2.50NG | Neon Green |
| PTN2.50NB | Neon Blue |
| PTN2.50NX | Nitrox |
| PTN2.50PT | Patriot |
| PTN2.50OG | Ogre |
| PTN2.50JS | Jester |
| PTN2.50SS | Safety Stripe |
| PTN2.50SH | Super Hero |
| PTN2.50CF | Checkered Flag |
| PTN2.50SK | Snake |
