Our new Ultra-Slim Long-Reach Tablet & Monitor Mount | Large Tilt features a built-in gas-pneumatic spring design for smooth, easy movement, allowing the tablet or LCD monitor to float from position t
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
No stock, no problem. We build to your requirement and release it as your line calls for it.
Stock to 10 weeks Stock to 10 weeks

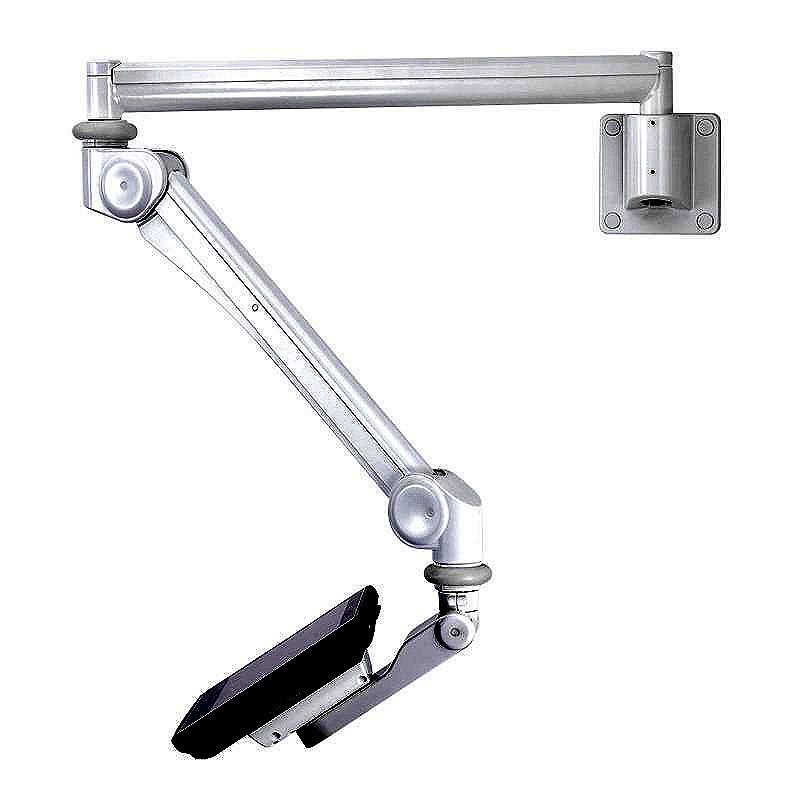

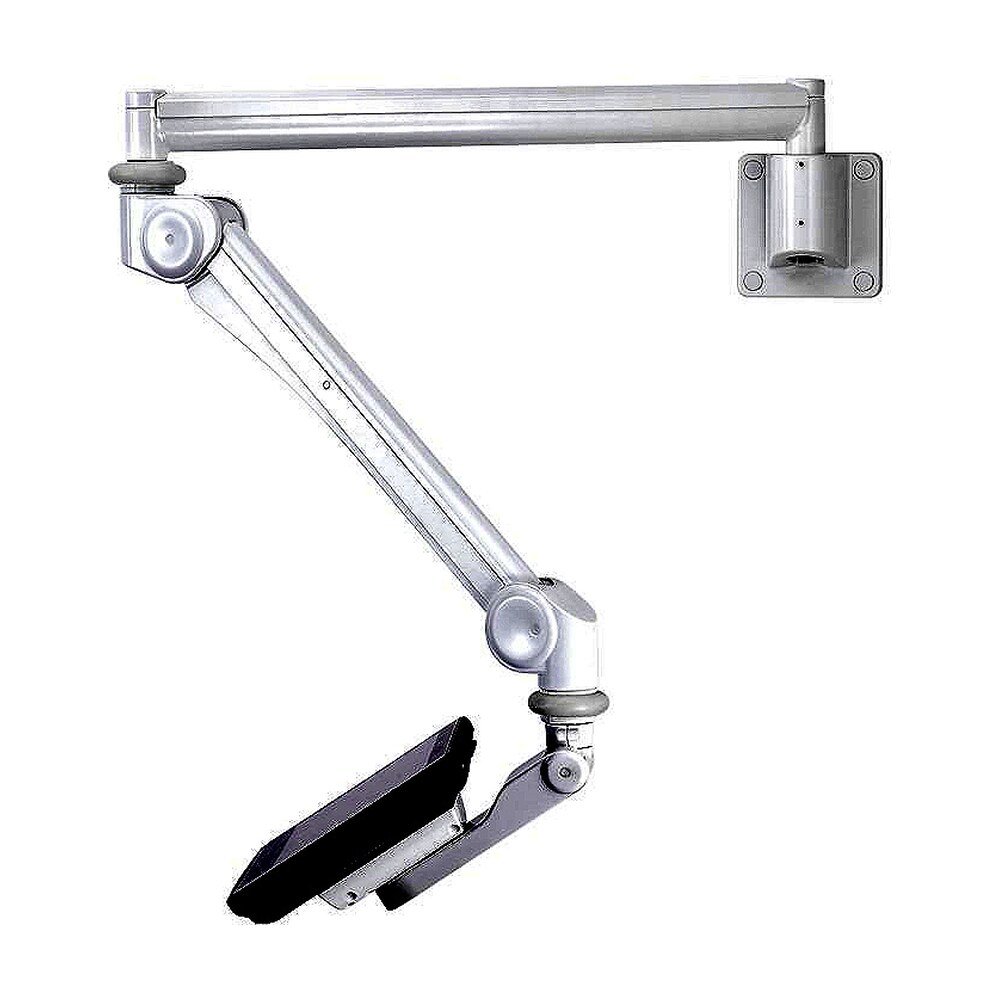

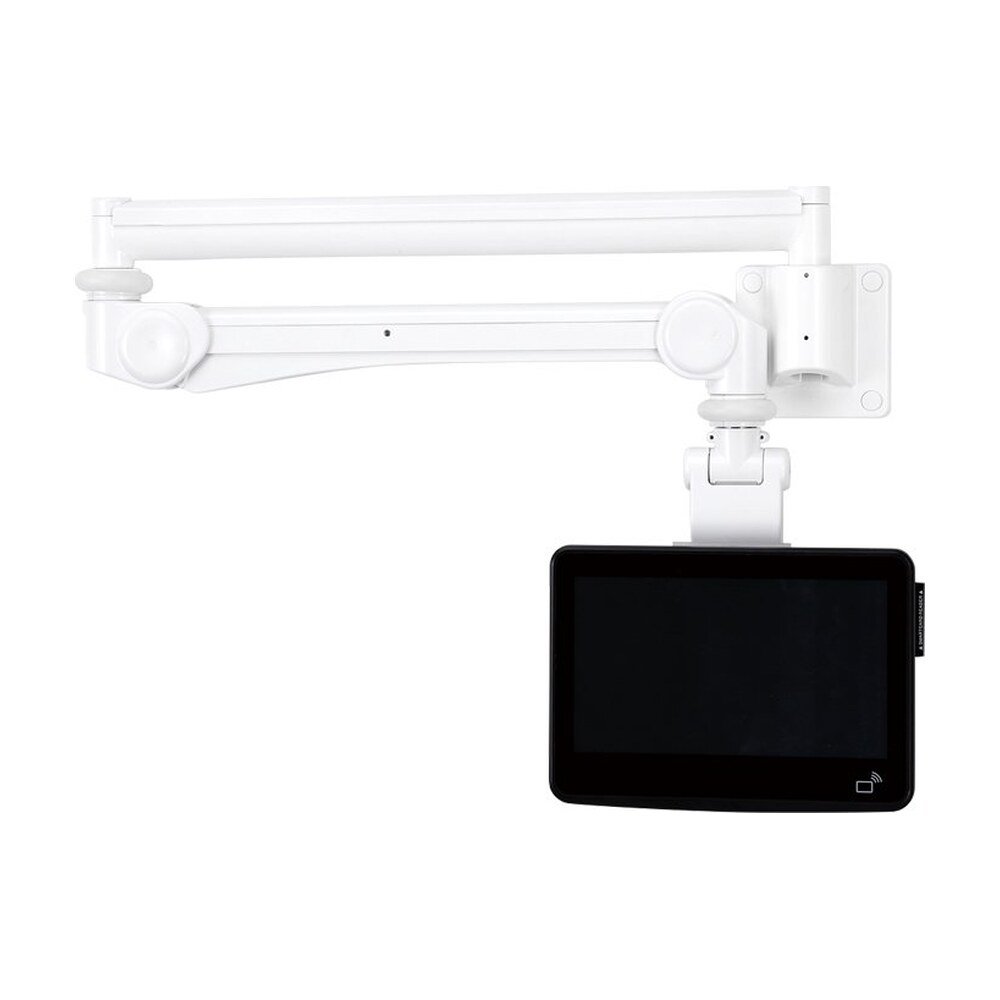

Our new Ultra-Slim Long-Reach Tablet & Monitor Mount | Large Tilt features a built-in gas-pneumatic spring design for smooth, easy movement, allowing the tablet or LCD monitor to float from position to position. This Tablet & LCD wall mount provides a maximum of 45” (114.6cm) straight extension. The articulating arm is a perfect solution if you need to float your tablet or LCD monitor around or above in settings like patient bedsides, dentist offices, hospital rooms, workstations, manufacturing equipment, and assembly lines. The wall mount solution can be rotated 370° at the arm, 370° at the screen end, and 180° at the wall connection for optimal viewing angles. When not in use, the unit can be folded up and out of the way, an excellent space-saving feature for any room. This simple, contemporary-looking, durable arm is made of aluminum alloy with a plastic cover. Its ergonomic, space-saving attributes and modern look make the Tablet & LCD wall mount a practical choice in businesses, offices, doctors’ offices, clinics, dental operatories, hospitals, and factories. Please note that the monitor is not included.Comparison Chart Model # Ceiling Wall Capacity Keyboard Holder Monitor Back Cable Cover Wall Box MW-M123PN ✓ 13.2 lb optional ✓ MW-M23PKN ✓ 13.2 lb ✓ ✓ MW-M123WBN ✓ 13.2 lb optional ✓ ✓ MW-M23WBKN ✓ 13.2 lb ✓ ✓ ✓ MW-M125PN ✓ 26.4 lb optional ✓ MW-M25PKN ✓ 26.4 lb ✓ ✓ MW-M125WBN ✓ 26.4 lb ✓ ✓ MW-M25WBKN ✓ 26.4 lb ✓ ✓ ✓ MW-M16P ✓ 15.4 lb optional ✓ CM-M123N ✓ 13.2 lb optional ✓ N/A CM-M23KN ✓ 13.2 lb ✓ ✓ N/A CM-M125N ✓ 26.4 lb optional ✓ N/A CM-M25KN ✓ 26.4 lb ✓ ✓ N/A LR601 ✓ 6.6 lb N/A ✓ LR701 ✓ 6.6 lb N/A ✓ Notes: MW-M16P and LR701 are vertically adjustable. Video (shows in the sequence of cantilever wall mount with a wall box, with wall plate, ceiling mounts, A-Frame wall mounts)
| Weight Capacity | Supports 2.2 - 6.6 lb (1 - 3 kg) |
|---|---|
| Tilt | 60° / - 60° (display) & 20° / - 50° (arm) |
| Maximum extension | 45" (114.6cm) |

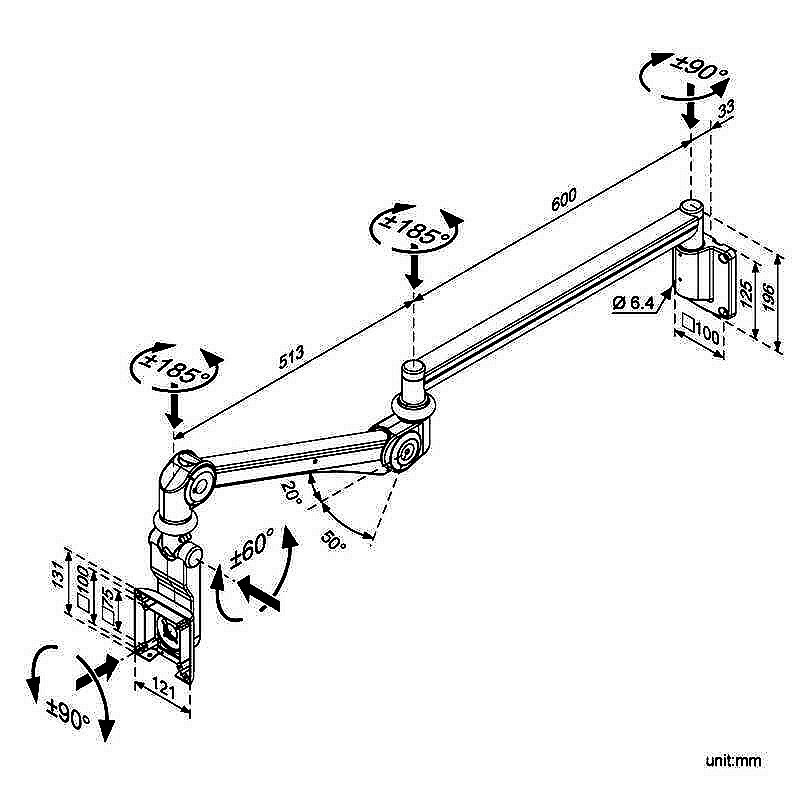

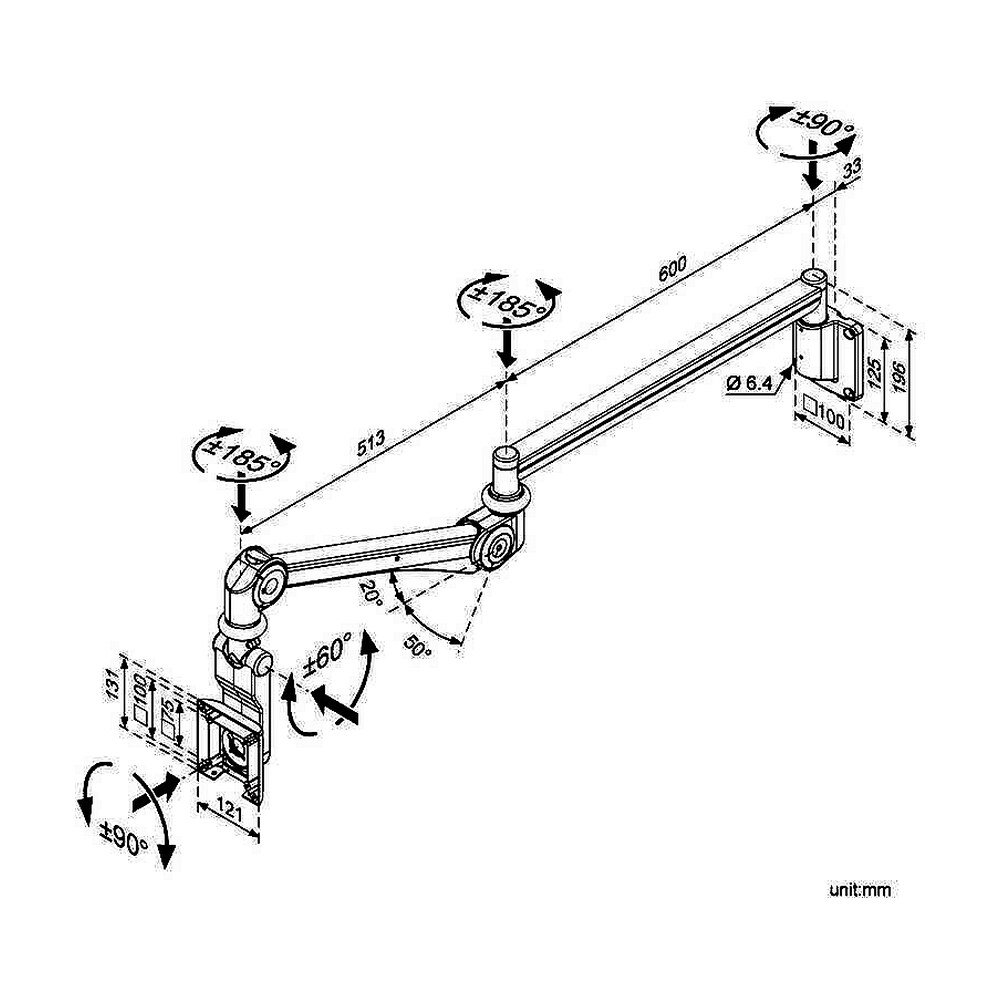

| Rotation | 370° (display); 180° (wall); 90° (Screen) |
| Mounting Pattern | VESA compliant: 75x75 to 100x100; Optional 200x200 |
| Brand | Cotytech |
| Manufacturer part number | LR601 |
| Manufacturer list price | $364.99 |
| Ships from | Drop shipped from California |
| Availability | Stock to 10 weeks |
Specifications as published by the manufacturer for model LR601. Shipping weight and current pricing are being confirmed with the factory.
| Part Number (SKU) | LR601 |
|---|---|
| Category | Medical Monitor Arms, Monitor Mounts & Arms |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
