Home/Products/YM-20 Series Power Connectors/YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
Part No. YM-20-J12SX-02-401

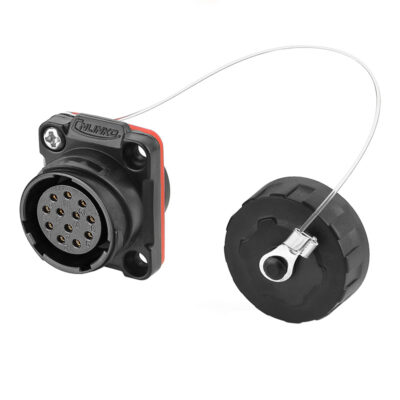

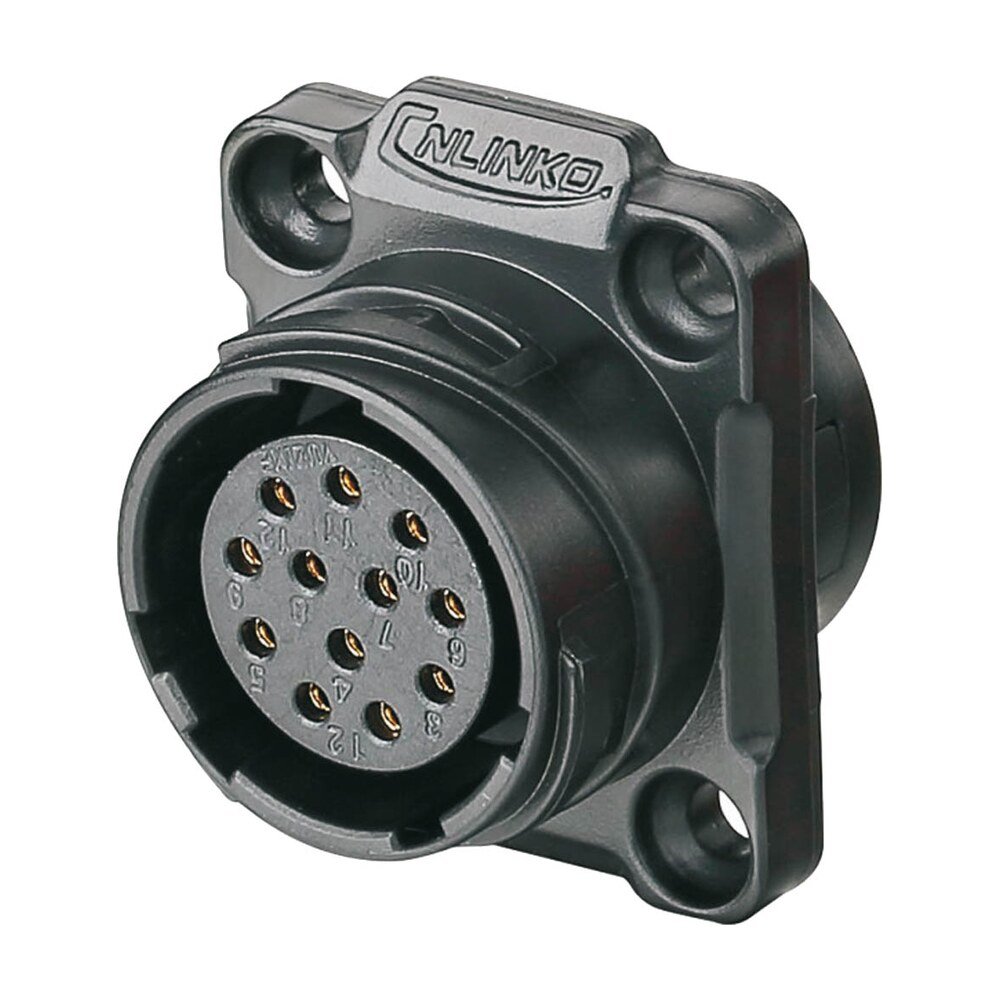

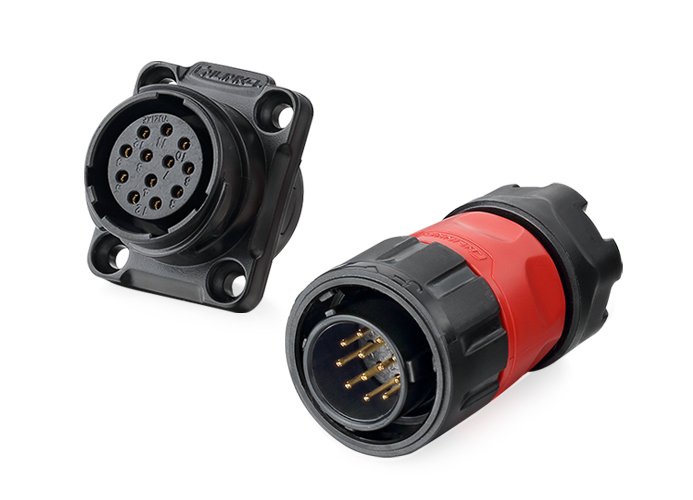

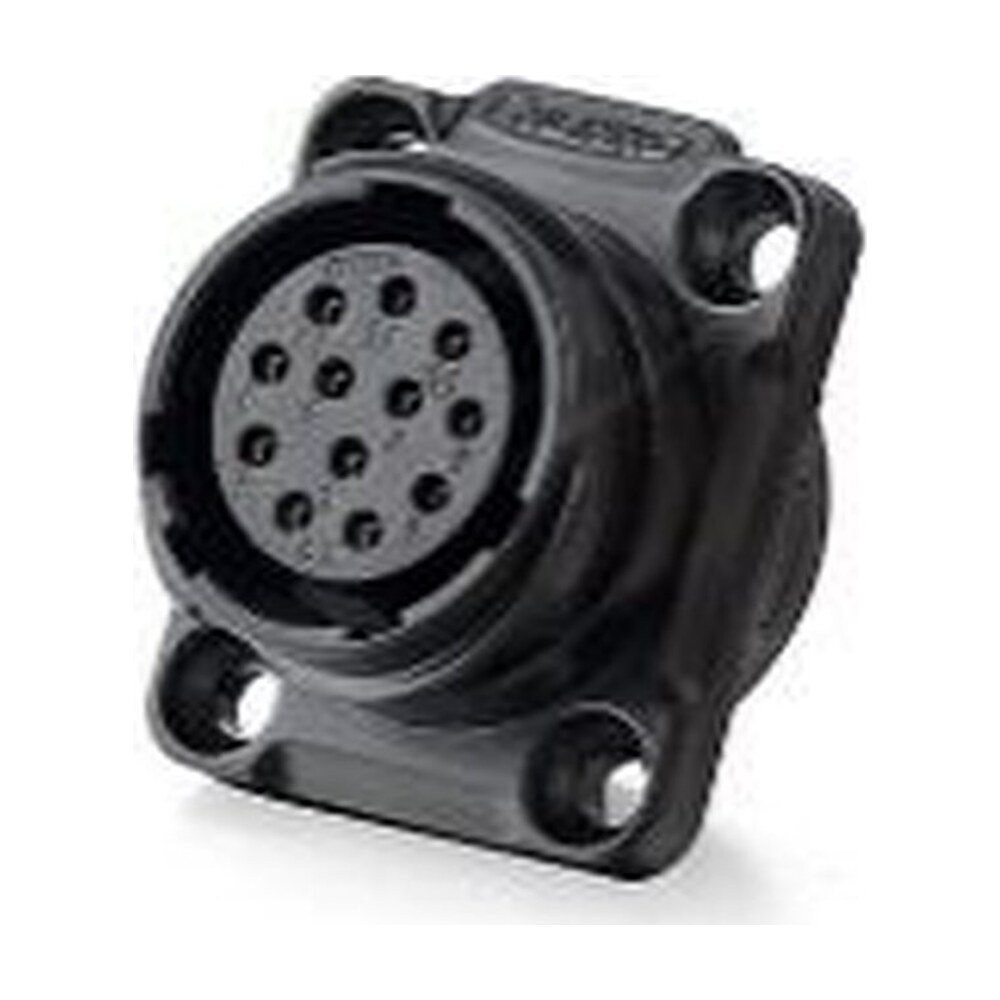

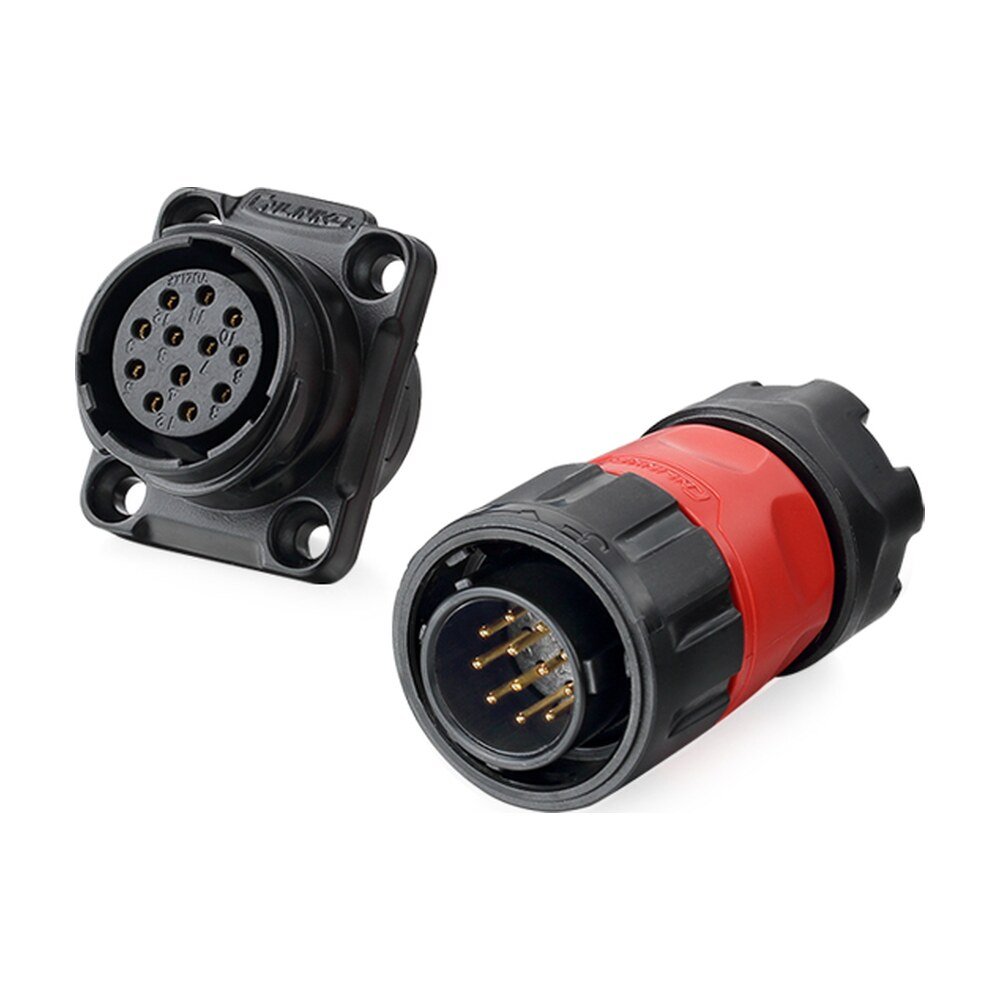

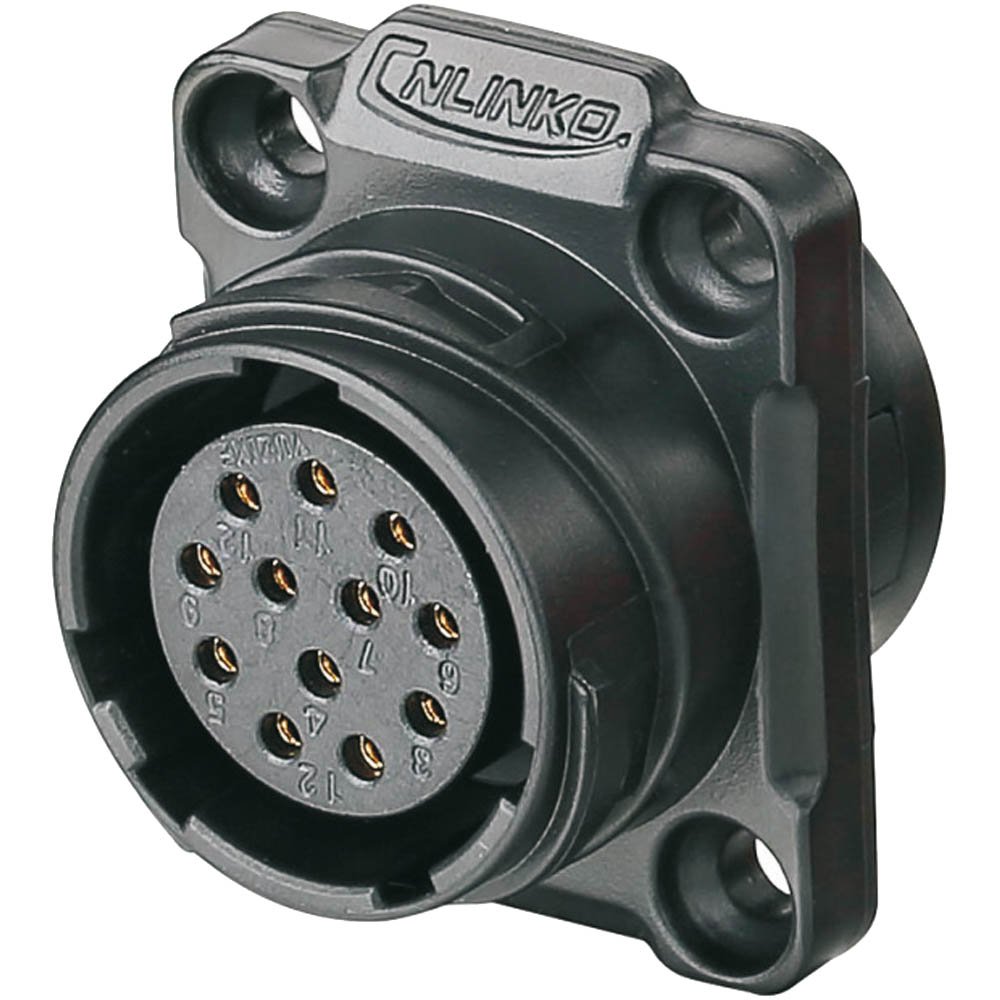

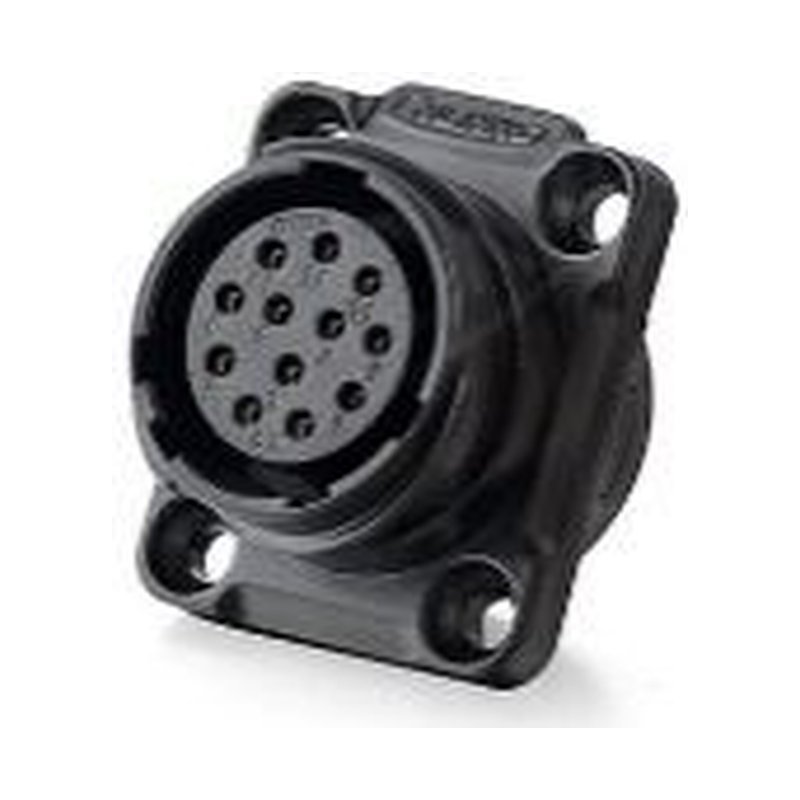

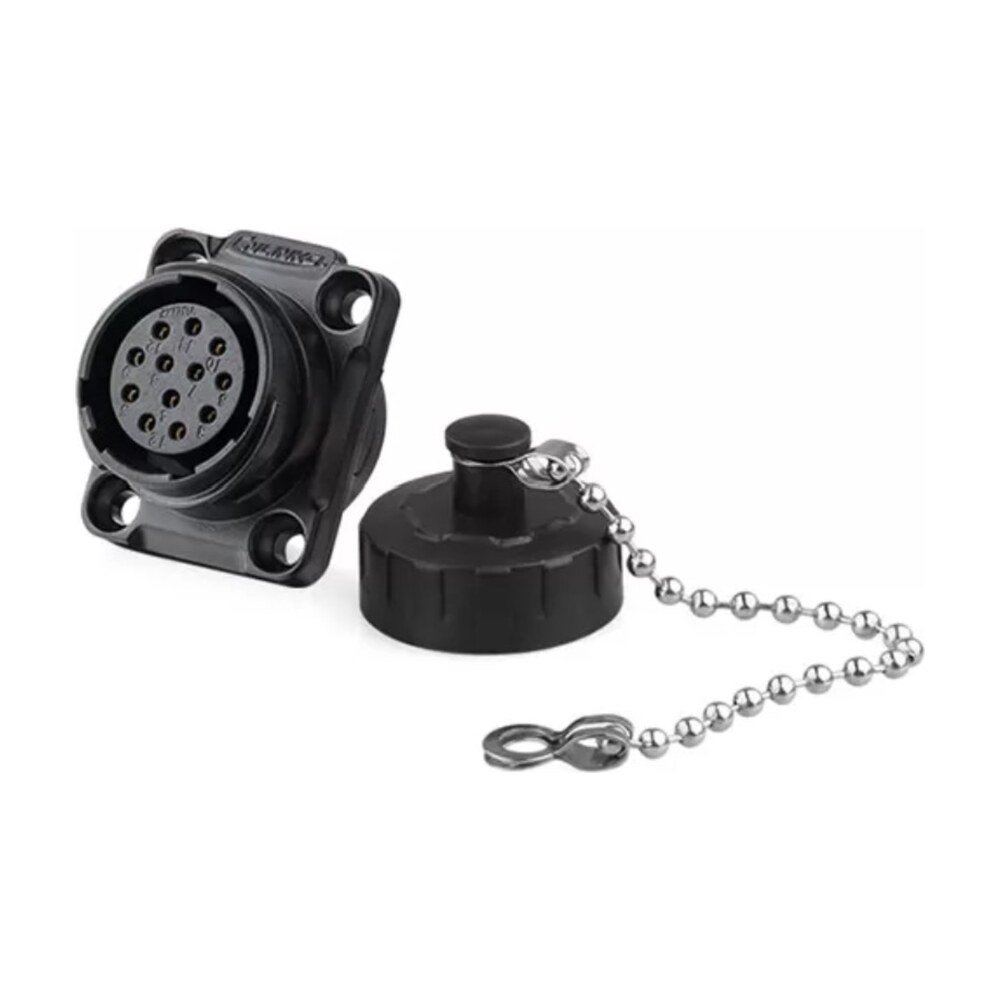

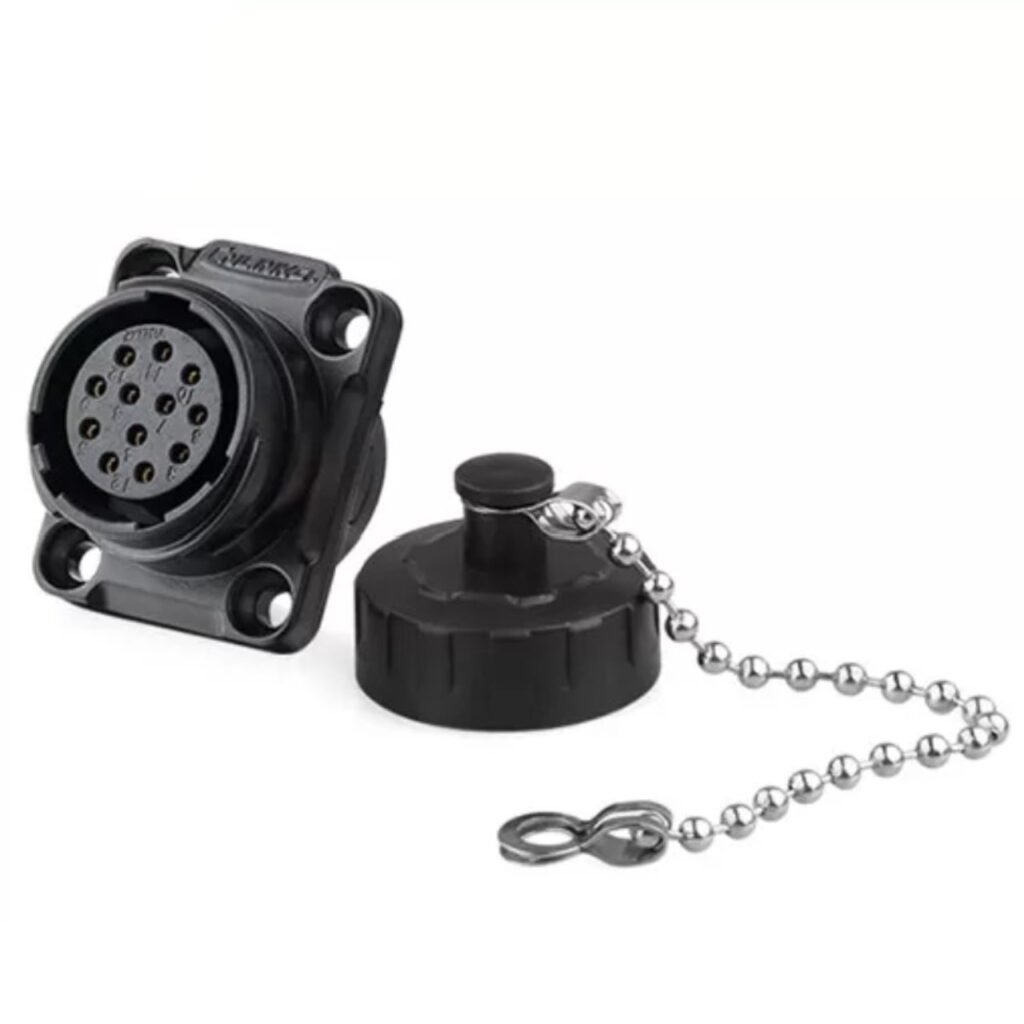

YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector

Stock to 8 weeks

CNLinko YM-20 Series 12-Pin Female panel mount waterproof aviation connector. Rated 5A / 250V AC, IP68 sealing, ≥2000 times mating cycles.

YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
YM-20-J12SX-01-001, 12-Pin Female Panel Mount Waterproof Connector
$7.95
Stocked items ship from our Brick, New Jersey facility. Made-to-order items ship after production.
Need volume, a custom length, or a cross-reference? Talk to our sales account representative.

YM-20-J12SX-01-001

  • Female socket contacts
  • Panel/chassis-mount flange with mounting holes
  • IP68 waterproof sealing
  • High-performance plastic shell, gold-plated copper contacts

Specifications

  • Model- YM-20
  • Pin Count- 12
  • Contacts- Φ1.0mm x 12
  • Wire Gauge- 20-22 AWG (0.34-0.5mm²)
  • Cable Diameter Range- Φ10.0-Φ12.0mm
  • Rated Current- 5A
  • Rated Voltage- 250V AC
  • Withstand Voltage- 1500V AC
  • Contact Resistance- 5.0mΩ
  • Insulation Resistance- ≥500MΩ
  • Ingress Protection- IP68
  • Durability- ≥2000 times
  • Operating Temperature- -25°C to +85°C
  • Wiring Method- Soldering

Specifications sourced from CNLinko's official site (cnlinko.com), verified 2026-08-20.

Part Number (SKU)YM-20-J12SX-02-401
CategoryYM-20 Series Power Connectors
Weight1.6 oz
Dimensions0.94 × 1.04 × 0.94 in
AvailabilityStock to 8 weeks

Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray

Stocked items ship from our Brick, New Jersey facility. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.

Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
