M12 Cables

M12 cables and cordsets – 71 listed. A, D and X coded, male and female, straight and right angle, shielded, 3 to 17 pin, IP67/IP68, plus M12 to RJ45. Please call for pricing and availability.

What is in this range

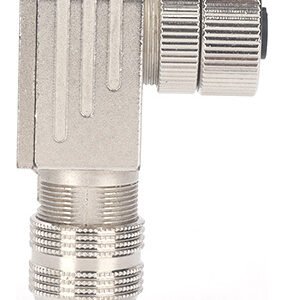

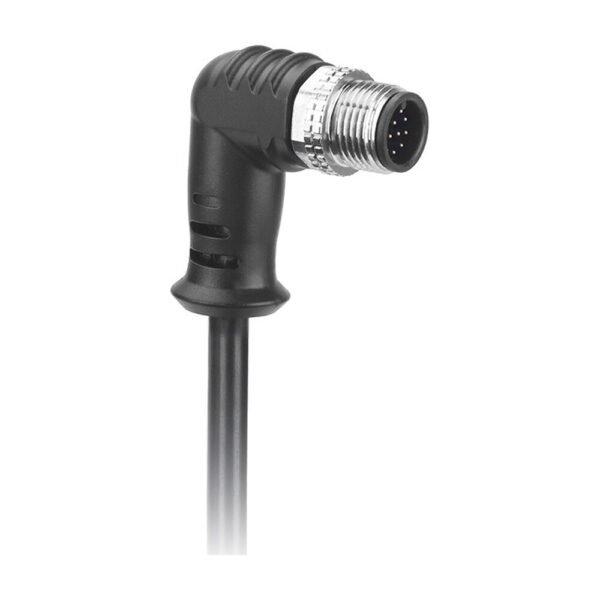

• Overmoulded cordsets – the connector is moulded onto the cable at the factory, straight or right angle, male to female, male to male and female to female, in the MR-YL121xxx and MR-M12-OC series.
• Pigtail leads – one M12 connector moulded to an unterminated cable tail, A coded, shielded or unshielded, for wiring into a terminal block or a panel.
• M12 to RJ45 cables – 27 assemblies in the MR-YL1245xxx series: 4 pin D coded and 8 pin A and X coded, foil shielded, panel mount and in-line, IP67/IP68, for industrial Ethernet and machine vision.

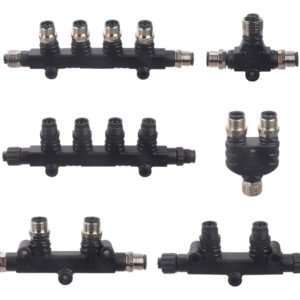

• Sensor and adapter leads – M12 to M8 Y splitters, a Deutsch 9 pin to M12 8 pin lead, and M12 female leads with PNP or NPN LED indication.

Coding and pin counts

• A coded – sensors, actuators and general signal wiring, in 3, 4, 5, 8, 12 and 17 pin.
• D coded – 4 pin, 100 Mbit industrial Ethernet.
• X coded – 8 pin, Gigabit and 10 Gigabit Ethernet.
• S, T, K, L and M coded cables are not listed yet – please call and we will quote them.

Ordering

Tell us the coding, the pin count, male or female at each end, straight or right angle, shielded or unshielded, and the length. Micro-Ray Electronics has been building cable assemblies in Brick, New Jersey since 1984, and we also build M12 assemblies to your own drawing. Please call for pricing and availability.

For loose connectors to build your own cordsets, including M12 A-coded, D-coded and X-coded connectors, see M12 Connectors.
