0032-14XX — Barrier terminal blocks, screw connection, Pitch: 7.62mm, M3, 250V, 10A
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.
Dinkle 0032-14XX — Barrier terminal blocks, Screw connection. Distributed by Micro-Ray Electronics.

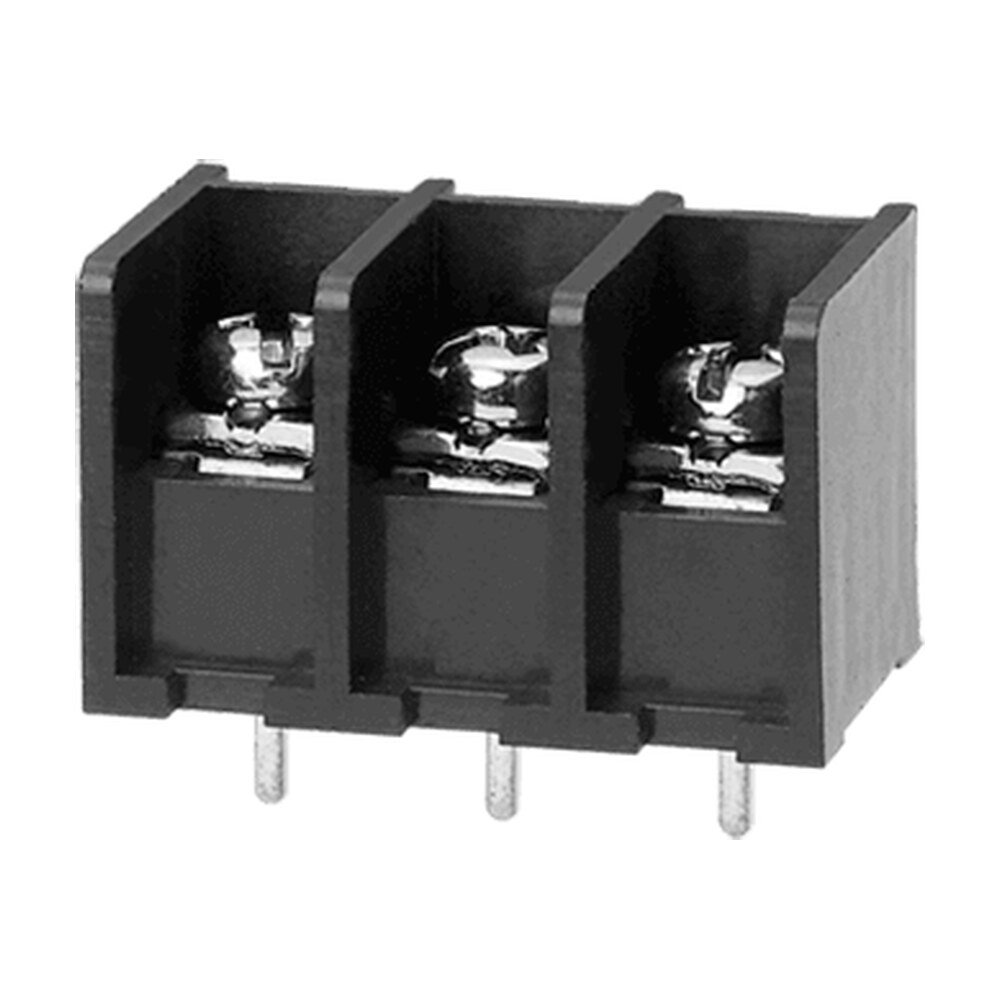

Barrier terminal blocks land wires between insulating barriers on a panel or chassis, keeping adjacent circuits separated and each screw reachable for test and re-termination. They are used throughout machine control, instrumentation, HVAC and appliance wiring.
Barrier terminal blocks, screw connection, Pitch: 7.62mm, M3, 250V, 10A
Published by Dinkle for the 0032-14XX series.
| Category | Single Row |
|---|---|
| Pitch (mm) | 7.62 |
| Color | Black (default) |
| Connection method | Screw connection |
| Type of locking | Without |
| Soldering method | Wave Soldering |
| Length (mm) | 7.62*(P-1)+8.74 |
| Width (mm) | 14.00 |
| Height (mm) | 14.50 |
| Pin demensions (Thickness x Width)(mm) | 0.8x1.0 |
| PCB hole diameter (mm) | 1.5~1.7 |
| Number of positions | 02P~13P |
| Level | Single Row |
| Insulation material | PBT |
|---|---|
| Insulation material group | IIIa |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≥1000MΩ at DC 500V |
| Conductor material | COPPER ALLOY |
| Plating of conductor surface | Tin PLATED |
| Rated voltage (V) | 630 |
|---|---|
| Rated current (A) | 17.5 |
| Rated voltage (II/2)(V) | 630 |
| Rated voltage (III/2) (V) | 630 |
| Rated voltage (III/3)(V) | 400 |
| Rated impulse voltage (II/2)(KV) | 6 |
| Rated impulse voltage (III/2)(KV) | 6 |
| Rated impulse voltage (III/3)(KV) | 6 |
| Conductor cross section solid. min (mm²) | 0.2 |
| Conductor cross section solid.max (mm²) | 1.5 |
| Conductor cross section stranded. min (mm²) | 0.2 |
| Conductor cross section stranded. max (mm²) | 1.5 |
| 2 conductors with same cross section, solid, max (mm²) | 1 |
| 2 conductors with same cross section, stranded, max (mm²) | 1 |
| Screw thread | M3 |
| Slotted screwdriver size (Blade thickness x Width)(mm) | 0.8x4.0 |
| Philips screwdriver size | PH2 |
| Rated torque (N.m) | 0.8 |
| Recommend tightening torque. min (N.m) | 0.5 |
| Recommend tightening torque. max (N.m) | 0.8 |
| Stripping Length (mm) | 8~9 |
| Rated voltage (UL/CUL Group B)(V) | 250 |
|---|---|
| Rated current (UL/CUL Group B)(A) | 10 |
| Min. solid wire connection (AWG) acc. to UL/CUL | 24 |
| Max. solid wire connection AWG acc. to UL/CUL | 14 |
| Min. stranded wire connection AWG acc. to UL/CUL | 24 |
| Max. stranded wire connection AWG acc. to UL/CUL | 14 |
| Back of the hand protection (YES or NO) | YES |
|---|---|
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | 0032-14XX |
|---|---|
| Category | Single Row |
| Block Type | Single Row |
| Connection Method | Screw connection |
| Level | Single Row |
| Number of Positions | 02P~13P |
| Pitch (mm) | 7.62 |
| Rated Voltage (UL) | 250 |
| Rated Current (UL) | 10 |
| Rated Voltage (IEC) | 630 |
| Rated Current (IEC) | 17.5 |
| Stripping Length (mm) | 8~9 |
| Screw Thread | M3 |

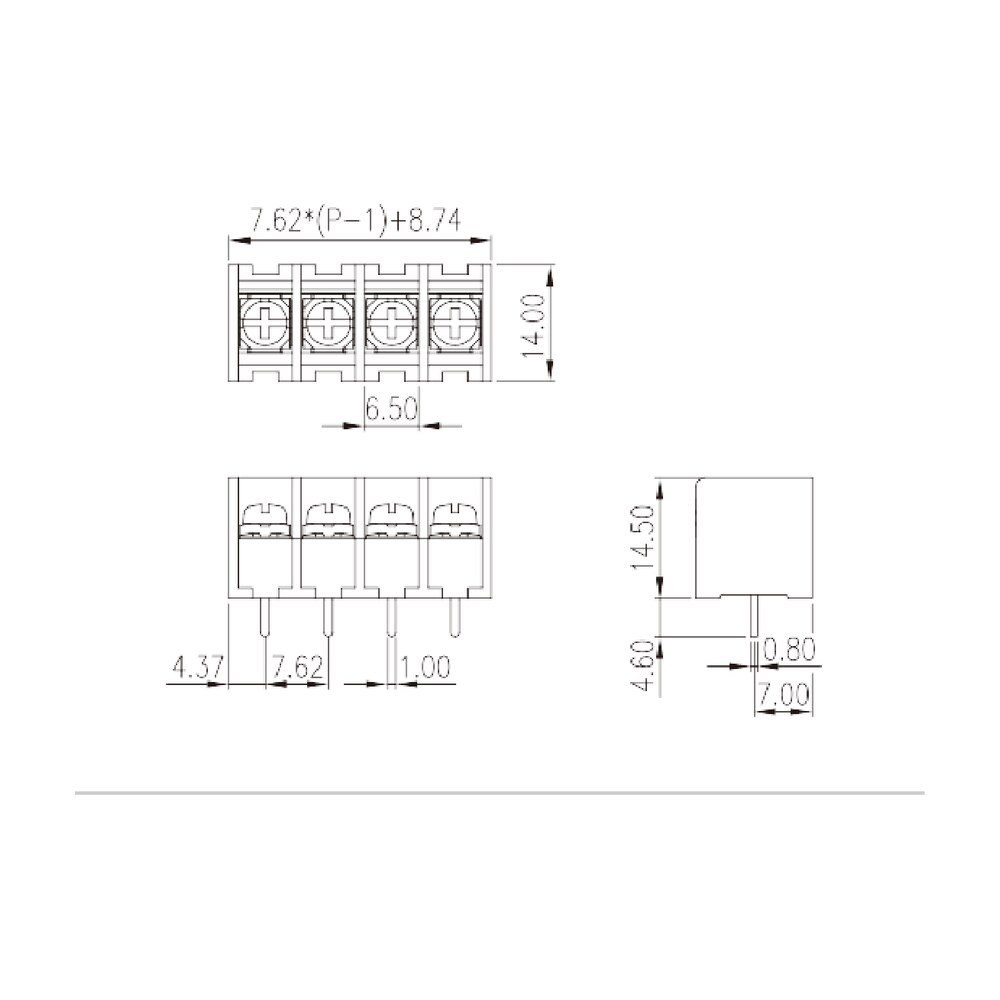

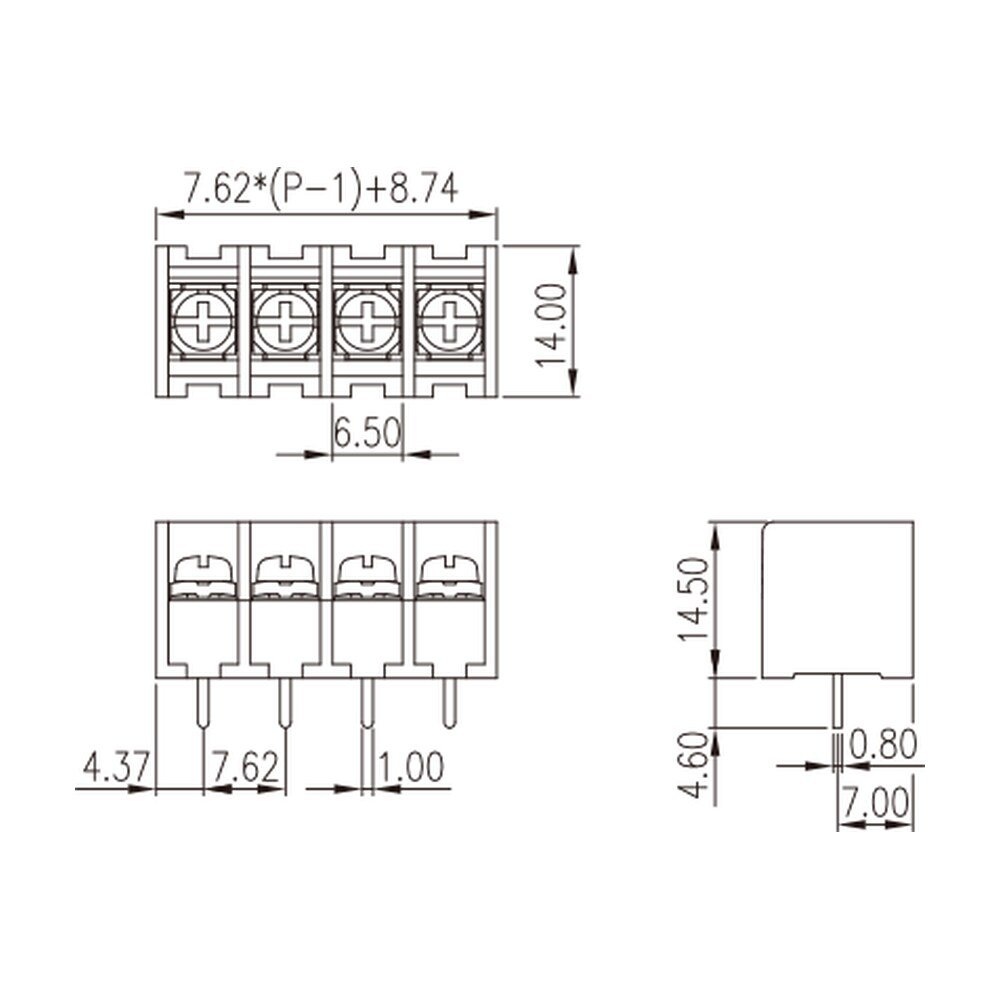

| Length (mm) | 7.62*(P-1)+8.74 |
| Width (mm) | 14.00 |
| Height (mm) | 14.50 |
| Insulation Material | PBT |
| Flame Rating (UL94) | V0 |
| Color | Black (default) |
| Operating Temperature | -40 to 120 °C |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
