Our brand new 55" & above Full Motion TV Wall Mount - Dual Arm MW-8A1VB is a completely full-motion mount for large size TV, with a weight capacity of 200lbs (91kg), featuring +5 / -16 degree tilt, 18
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
In Stock Stock checked daily

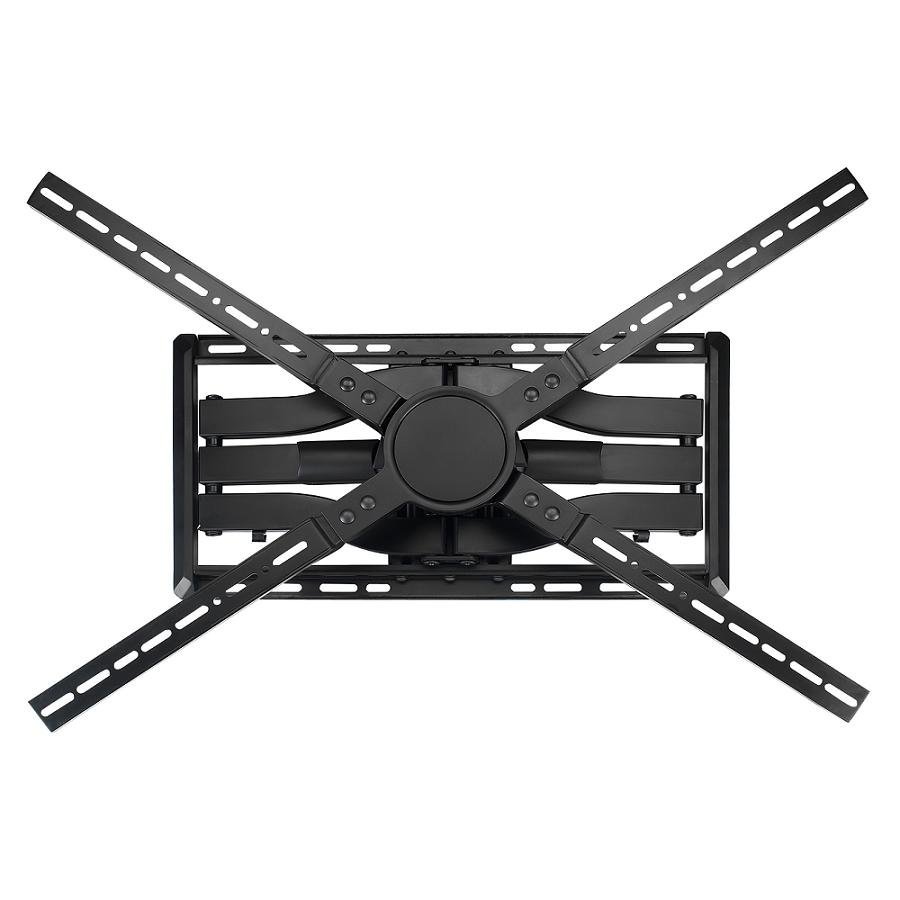

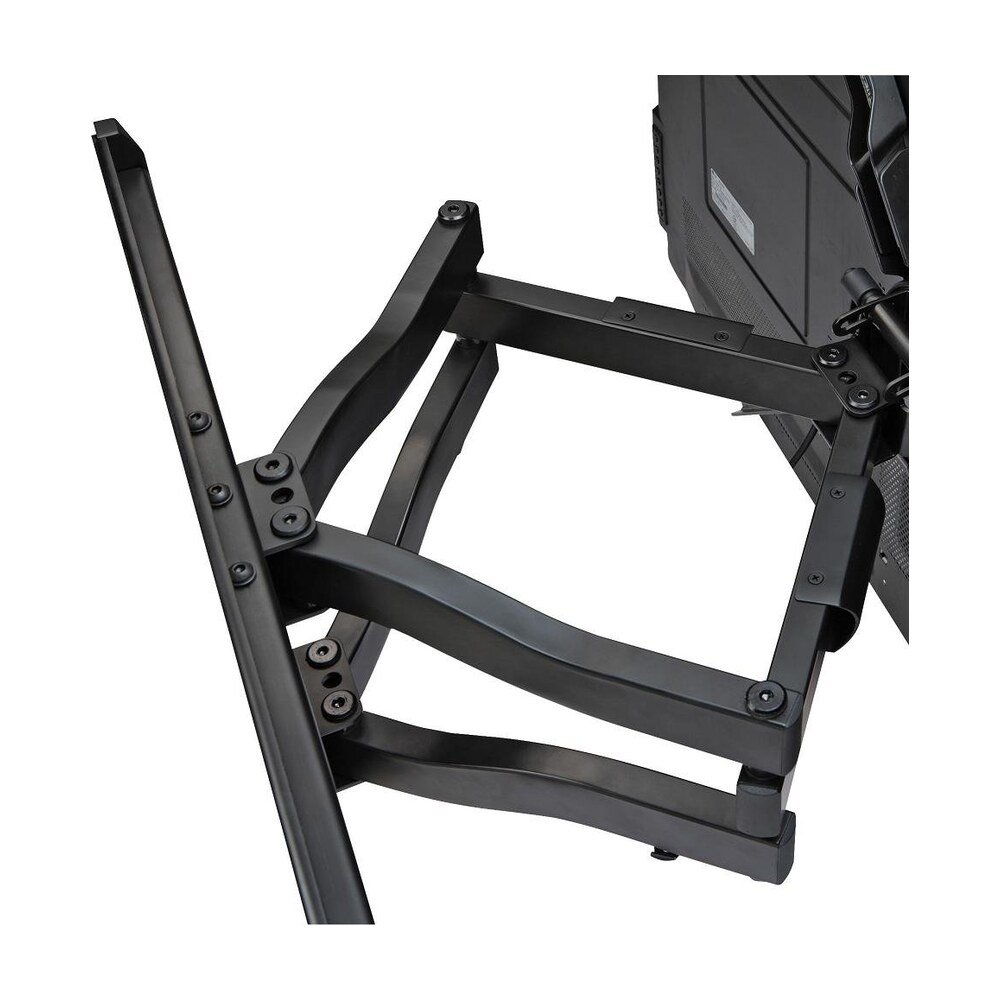

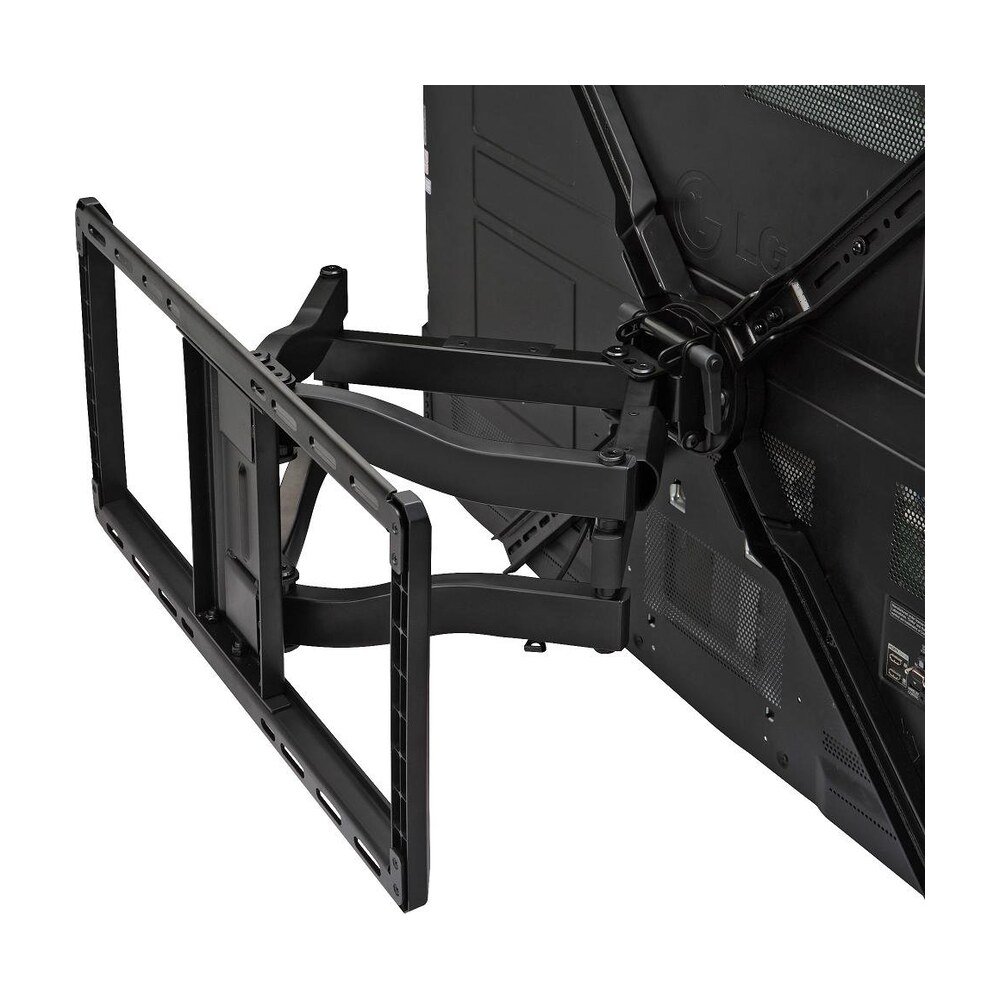

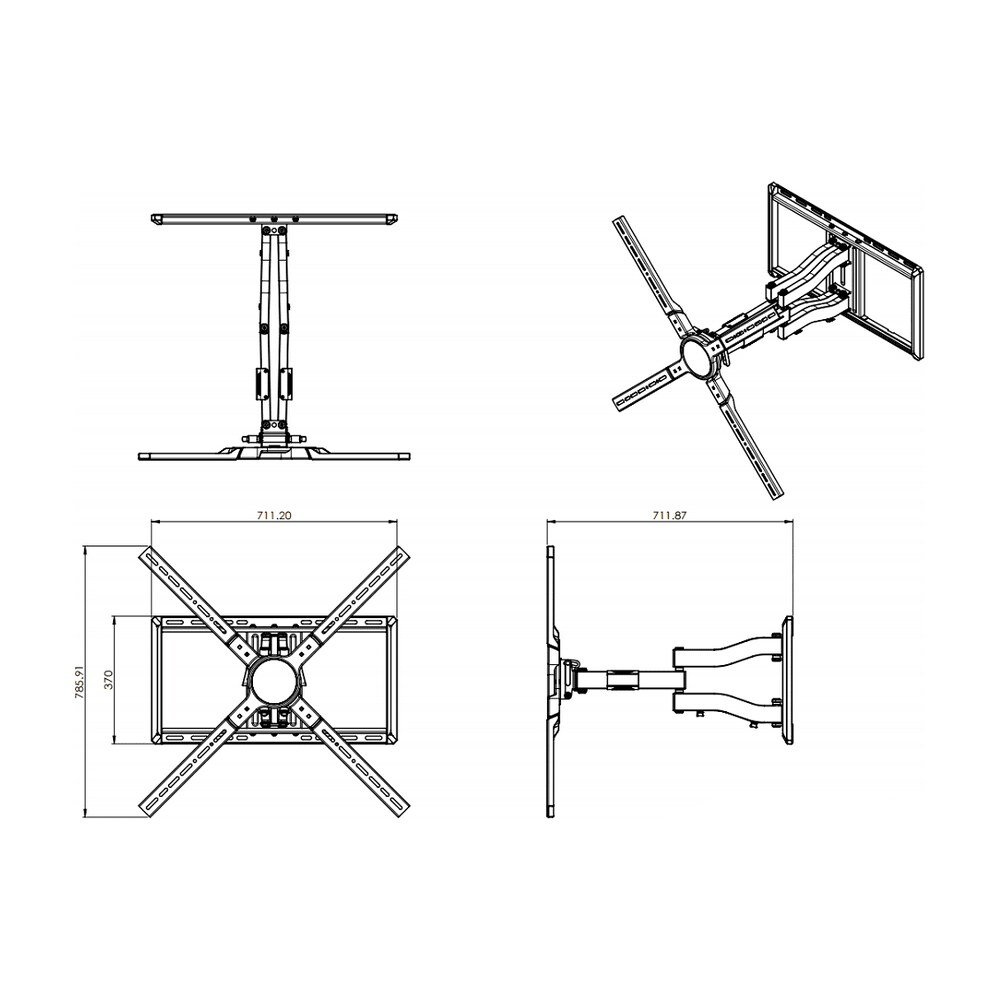

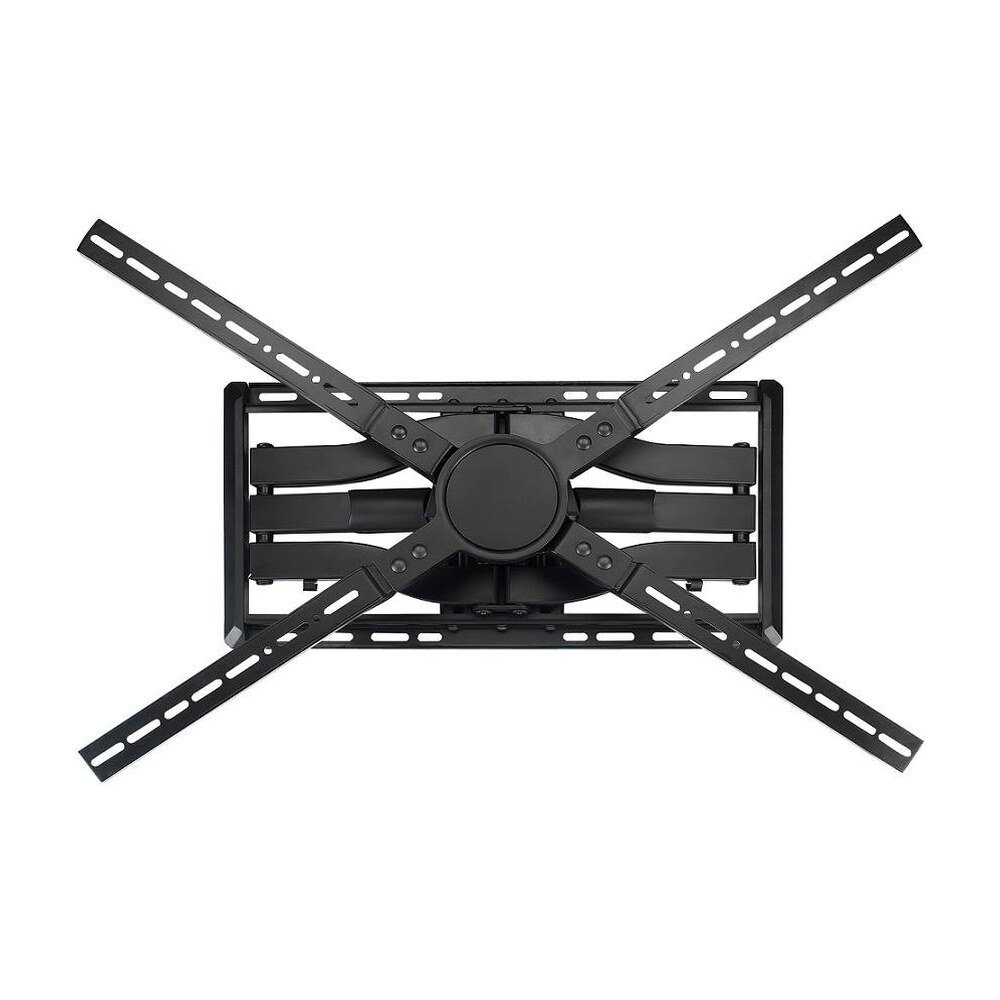

Our brand new 55" & above Full Motion TV Wall Mount - Dual Arm MW-8A1VB is a completely full-motion mount for large size TV, with a weight capacity of 200lbs (91kg), featuring +5 / -16 degree tilt, 180-degree swivel, and 28-inch full extension. This flat screen articulating TV wall mount is our latest breakthrough in flat panel mount design. The TV mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The Cotytech wall mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts, please click here. Mounting Pattern You may usually find mounting patterns dimensions on the technical drawing page of your owner's manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your TV is different, and we are delighted to help you out! More Images
| Fits most | 55" and above Flat Panels, including 98" that is within the weight capacity |
|---|---|
| Weight Capacity | Supports up to 200lbs (91kg) |
| Tilt | +5° / - 16° |
| Swivel | Max 180° |
| Mounting profile | 5.8" (147mm) Depth From Wall |
| Maximum extension | 28" (709mm) |
| Mounts on Studs | Double-Stud |
| Mounting Pattern | Universal & VESA Compliant: 200x200, 800x600, 800x400, and 600x400 |
| Brand | Cotytech |
| Manufacturer part number | MW-8A1VB |
| Ships from | Drop shipped from California |
| Availability | Stock to 10 weeks |
Specifications as published by the manufacturer for model MW-8A1VB. Shipping weight and current pricing are being confirmed with the factory.
| Part Number (SKU) | MW-8A1VB |
|---|---|
| Category | Monitor Mounts & Arms, TV Wall Mounts & Stands |
| Fits most | 55" and above Flat Panels, including 98" that is within the weight capacity |
| Weight Capacity | Supports up to 200lbs (91kg) |
| Tilt | +5° / - 16° |
| Swivel | Max 180° |
| Mounting profile | 5.8" (147mm) Depth From Wall |
| Maximum extension | 28" (709mm) |
| Mounts on Studs | Double-Stud |
| Mounting Pattern | Universal & VESA Compliant: 200x200, 800x600, 800x400, and 600x400 |
| Brand | Cotytech |
| Manufacturer part number | MW-8A1VB |
| Ships from | Drop shipped from California |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
