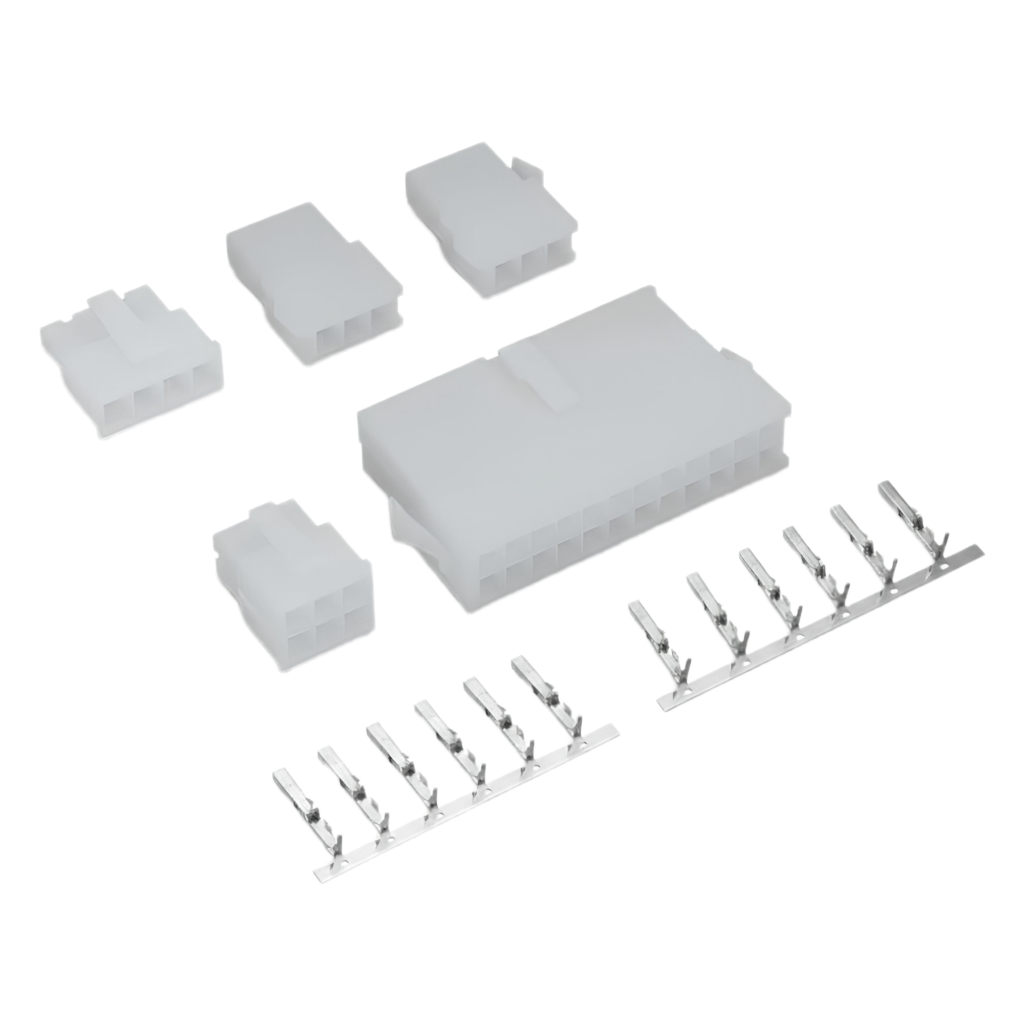

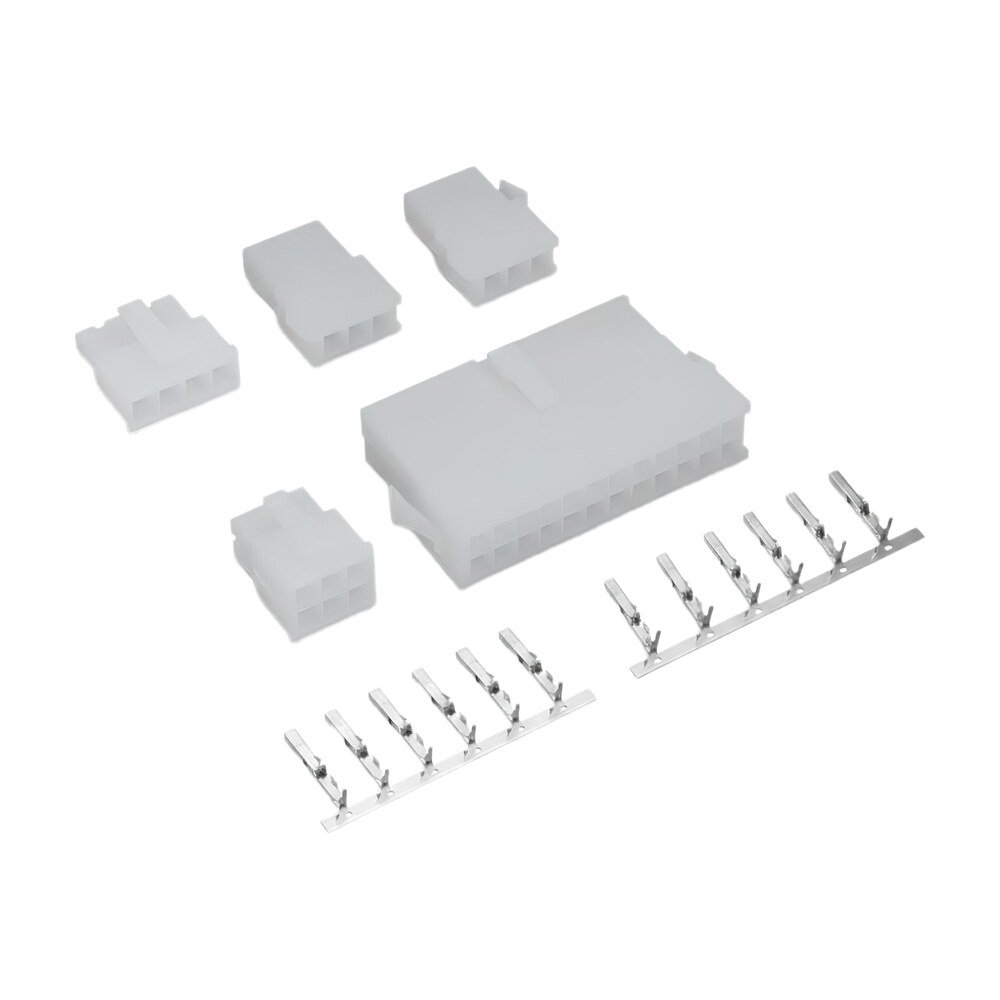

The MR-C4255HF Mini-Fit Jr Series–compatible connector housing provides reliable 4.20 mm power connections with up to 9A and 600V performance. Built for durability and easy assembly, it’s an ideal mid-power solution for OEMs, engineers, and repair professionals.
Please call for Pricing and Availability:
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
 Single Row Housing .pdf |
 Dual Row Housing .pdf |
| Circuits | Flammability | Competitor P/N | Micro-Ray P/N |
|---|---|---|---|
| 2 | 94V-2 | 39012020, 5557-02R | MR-C4255HF-202-N2NA-A |
| 4 | 94V-2 | 39012040, 5557-04R | MR-C4255HF-204-N2NA-A |
| 6 | 94V-2 | 39012060, 5557-06R | MR-C4255HF-206-N2NA-A |
| 8 | 94V-2 | 39012080, 5557-08R | MR-C4255HF-208-N2NA-A |
| 10 | 94V-2 | 39012100, 5557-10R | MR-C4255HF-210-N2NA-A |
| 12 | 94V-2 | 39012120, 5557-12R | MR-C4255HF-212-N2NA-A |
| 14 | 94V-2 | 39012140, 5557-14R | MR-C4255HF-214-N2NA-A |
| 16 | 94V-2 | 39012160, 5557-16R | MR-C4255HF-216-N2NA-A |
| 18 | 94V-2 | 39012180, 5557-18R | MR-C4255HF-218-N2NA-A |
| 20 | 94V-2 | 39012200, 5557-20R | MR-C4255HF-220-N2NA-A |
| 22 | 94V-2 | 39012220, 5557-22R | MR-C4255HF-222-N2NA-A |
| 24 | 94V-2 | 39012240, 5557-24R | MR-C4255HF-224-N2NA-A |
| 2 | 94V-0 | 39012025, 5557-02R-210 | MR-C4255HF-202-N0WH-A |
| 4 | 94V-0 | 39012045, 5557-04R-210 | MR-C4255HF-204-N0WH-A |
| 6 | 94V-0 | 39012065, 5557-06R-210 | MR-C4255HF-206-N0WH-A |
| 8 | 94V-0 | 39012085, 5557-08R-210 | MR-C4255HF-208-N0WH-A |
| 10 | 94V-0 | 39012105, 5557-10R-210 | MR-C4255HF-210-N0WH-A |
| 12 | 94V-0 | 39012125, 5557-12R-210 | MR-C4255HF-212-N0WH-A |
| 14 | 94V-0 | 39012145, 5557-14R-210 | MR-C4255HF-214-N0WH-A |
| 16 | 94V-0 | 39012165, 5557-16R-210 | MR-C4255HF-216-N0WH-A |
| 18 | 94V-0 | 39012185, 5557-18R-210 | MR-C4255HF-218-N0WH-A |
| 20 | 94V-0 | 39012205, 5557-20R-210 | MR-C4255HF-220-N0WH-A |
| 22 | 94V-0 | 39012225, 5557-22R-210 | MR-C4255HF-222-N0WH-A |
| 24 | 94V-0 | 39012245, 5557-24R-210 | MR-C4255HF-224-N0WH-A |
The MR-C4255HF 4.2 mm connector housing is a high-performance, cost-effective solution for mid-power electrical connections. Designed as a Mini-Fit Jr. alternative, it delivers secure terminal retention, reliable mating, and consistent electrical performance for a wide range of applications.
Engineered for wire-to-board and wire-to-wire configurations, this connector supports multiple circuit counts and works with standard Mini-Fit Jr. crimp terminals. Its compact 4.2 mm pitch makes it ideal for power supplies, gaming systems, industrial controls, HVAC equipment, and consumer electronics, offering dense, high-current connectivity in a small footprint.
Optimized for durability and easy assembly, the MR-C4255HF ensures stable performance even in demanding environments, making it a reliable choice for OEMs, repair services, and engineers seeking a dependable Mini-Fit Jr. compatible housing.
Technical Features:
Pitch: 4.20 mm
Current Rating: Up to 9A AC/DC
Voltage Rating: 600V AC/DC
Operating Temperature: –25°C to +85°C
Contact Resistance: ≤10 mΩ
Insulation Resistance: ≥1000 MΩ
Withstanding Voltage: 1500V AC for 1 min
Wire Range: AWG 18–24
This MR-C4255HF connector housing offers high-current performance, reliability, and compact design for a wide range of mid-power applications.
Similar to the referenced part, not a guaranteed drop-in. Please check dimensions, pin-out and ratings against your drawing or the manufacturer data sheet before ordering.
| Part Number (SKU) | MR-C4255HF |
|---|---|
| Category | Cross Reference, Molex Mini-Fit Jr., 4.2mm Mini-Fit Alternative |
| Number of Housing Positions | 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24 |
| Pitch | 4.20 mm |
| Current Rating | Up to 9A AC/DC |
| Voltage Rating | 600V AC/DC |
| Operating Temperature | –25°C to +85°C |
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Withstanding Voltage | 1500V AC for 1 min |
| Wire Range | AWG 18–24 |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
