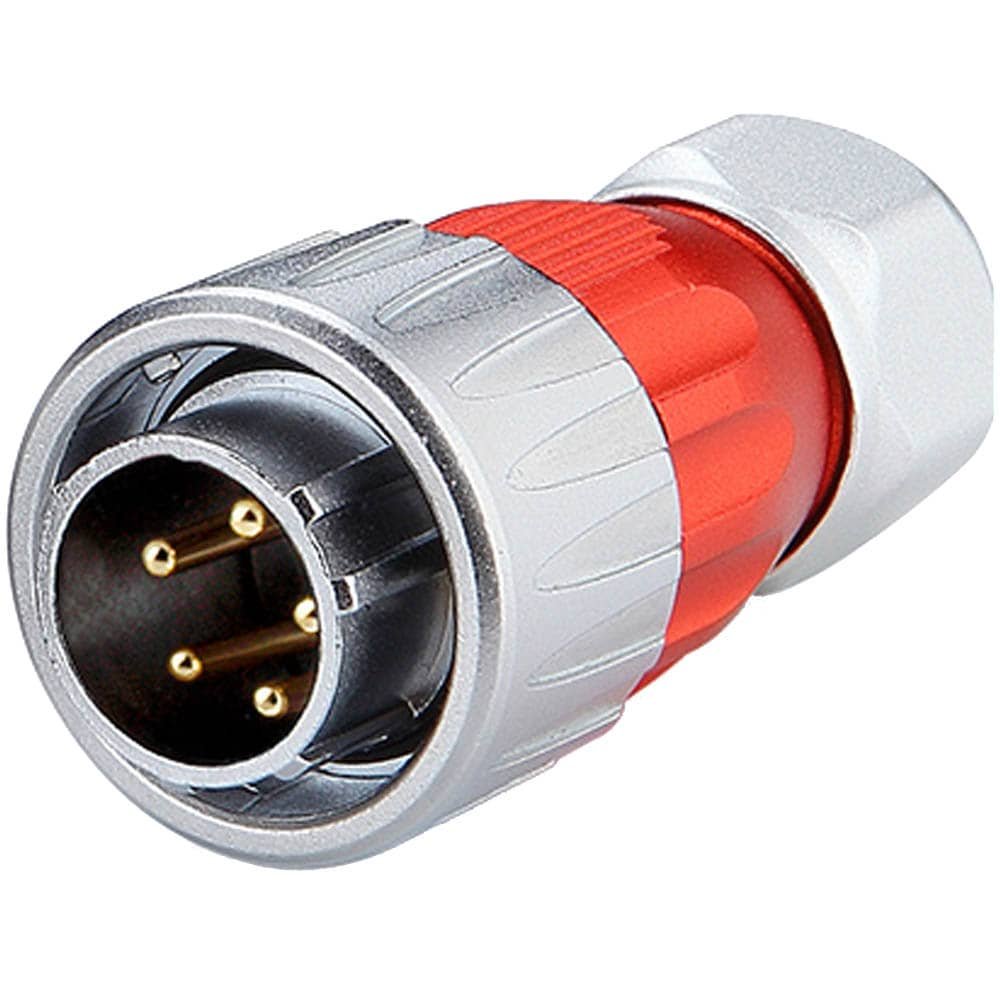

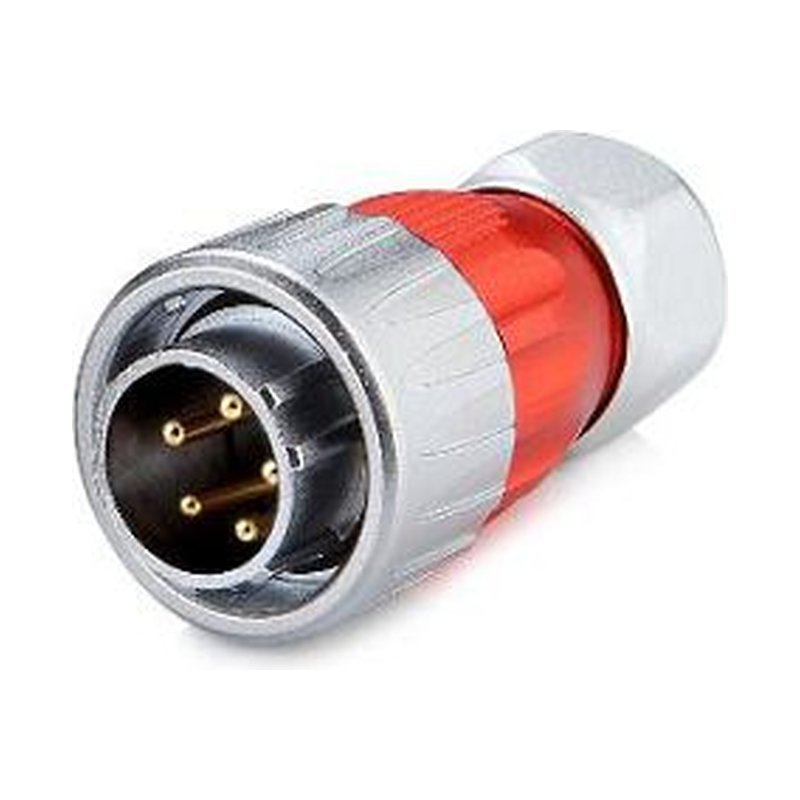

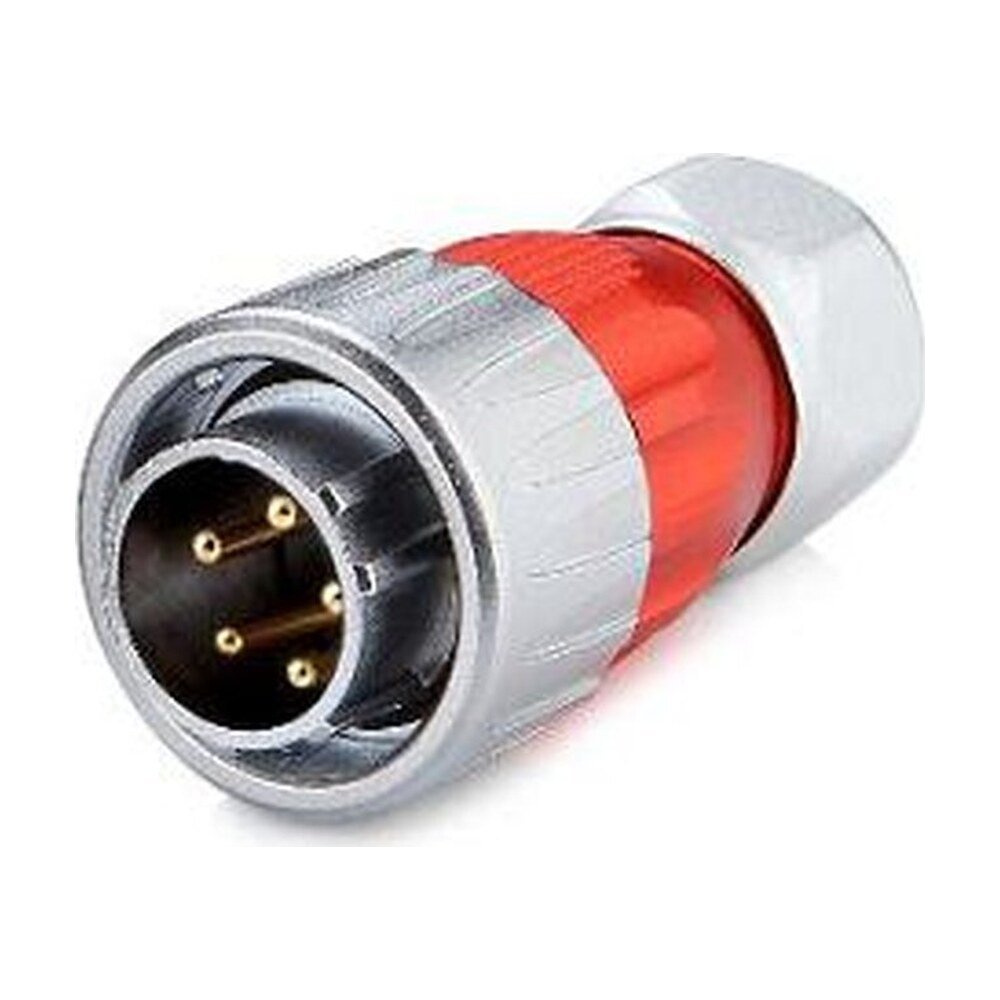

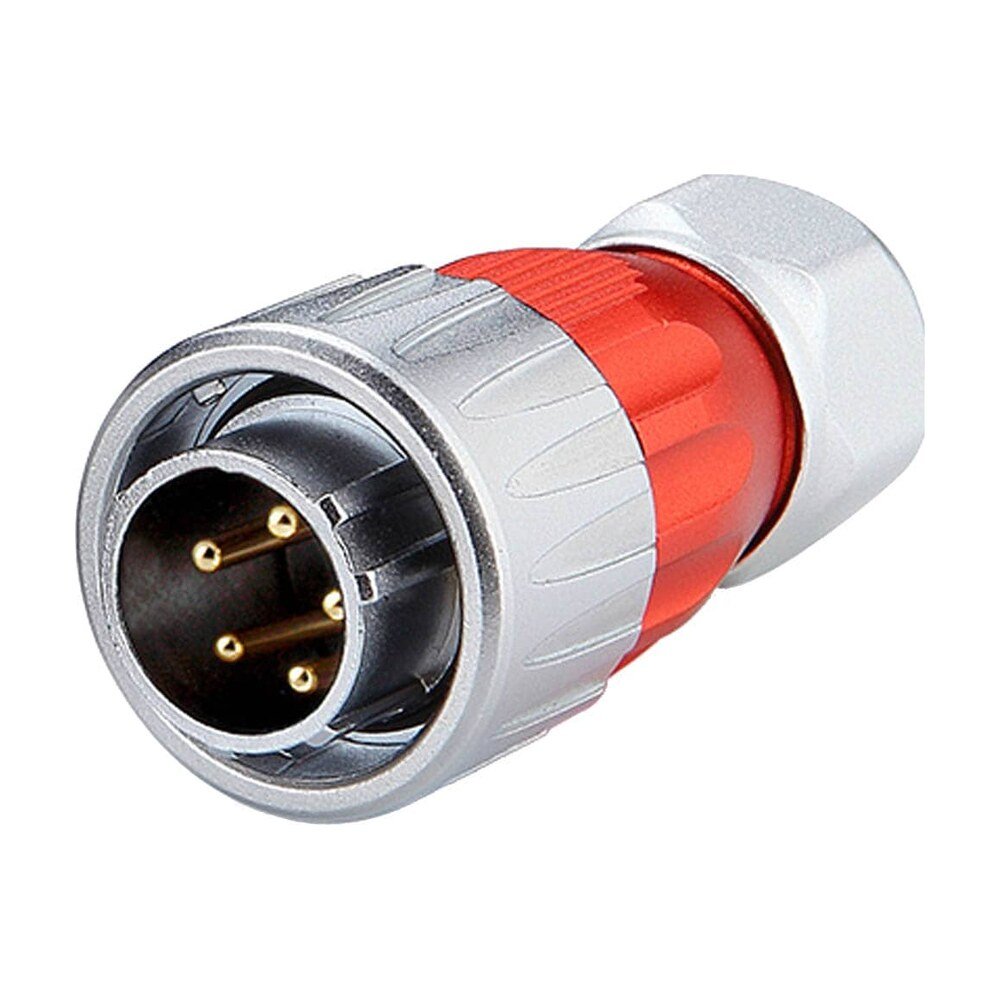

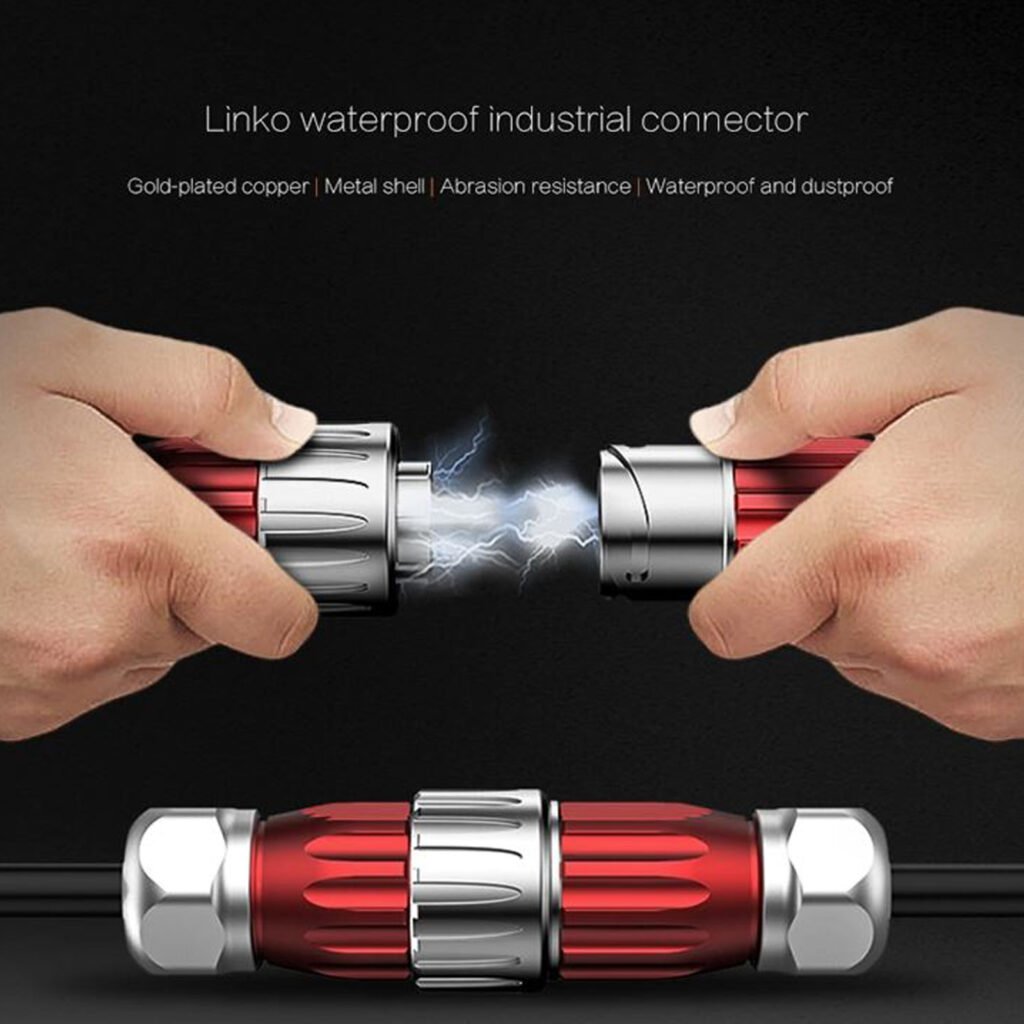

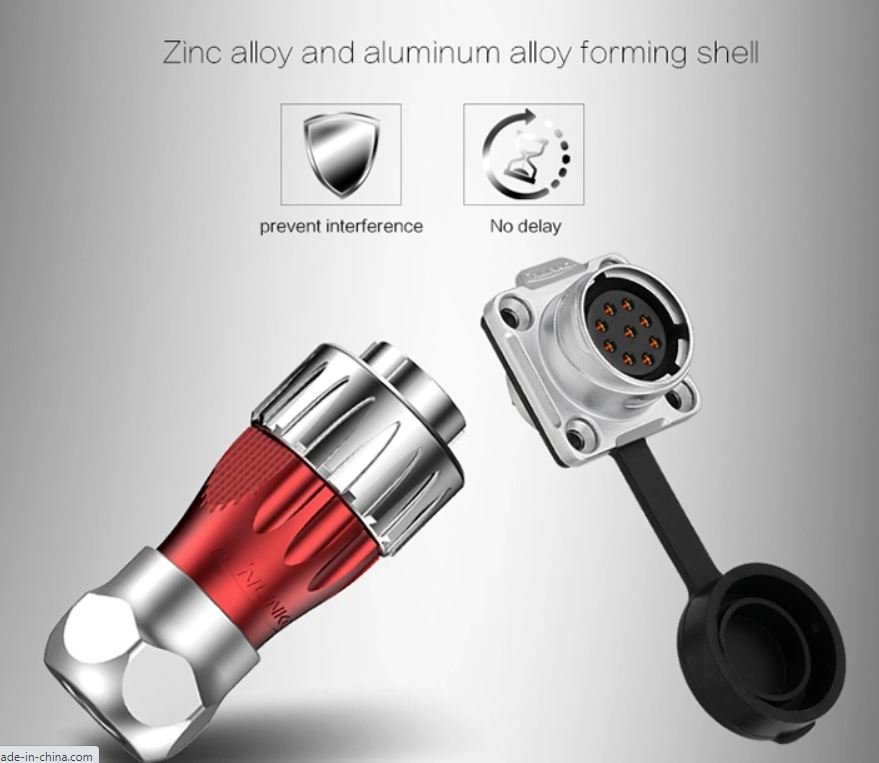

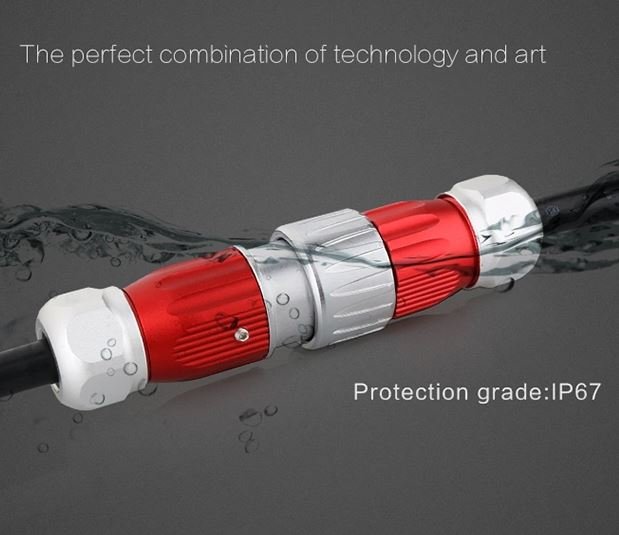

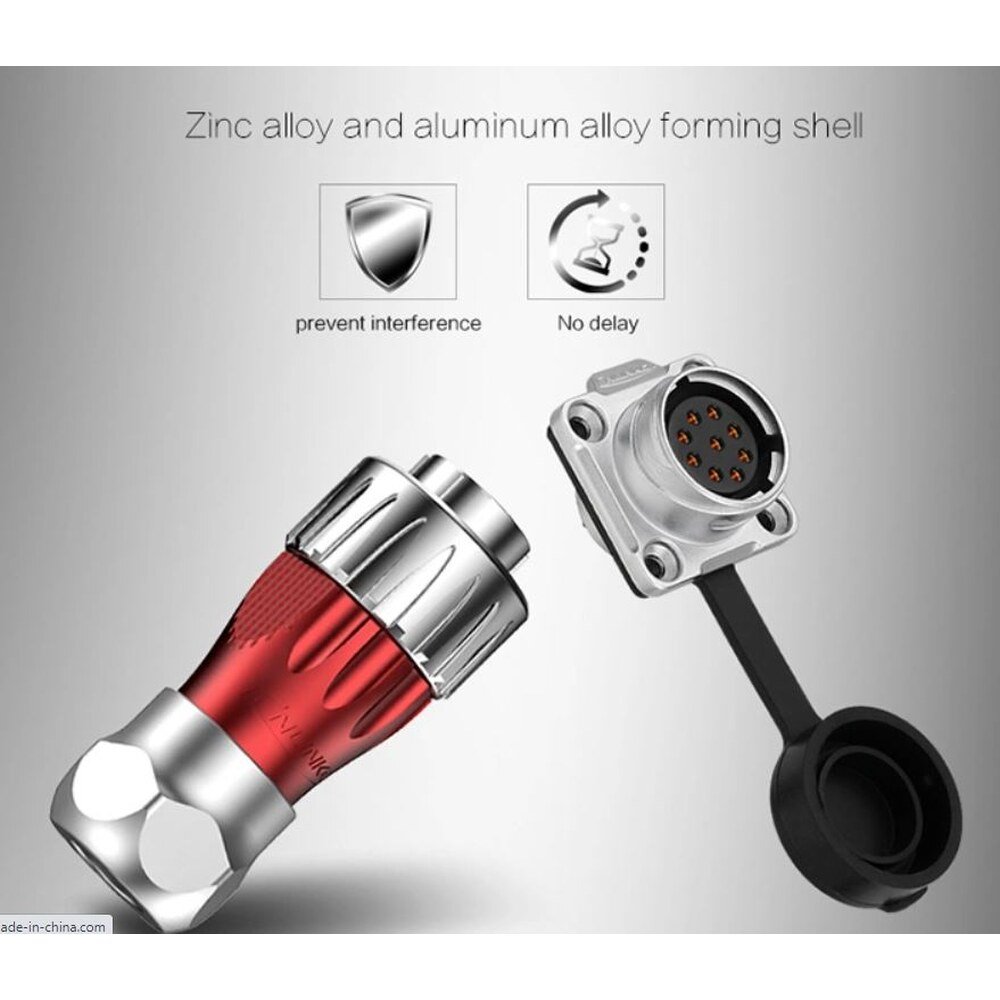

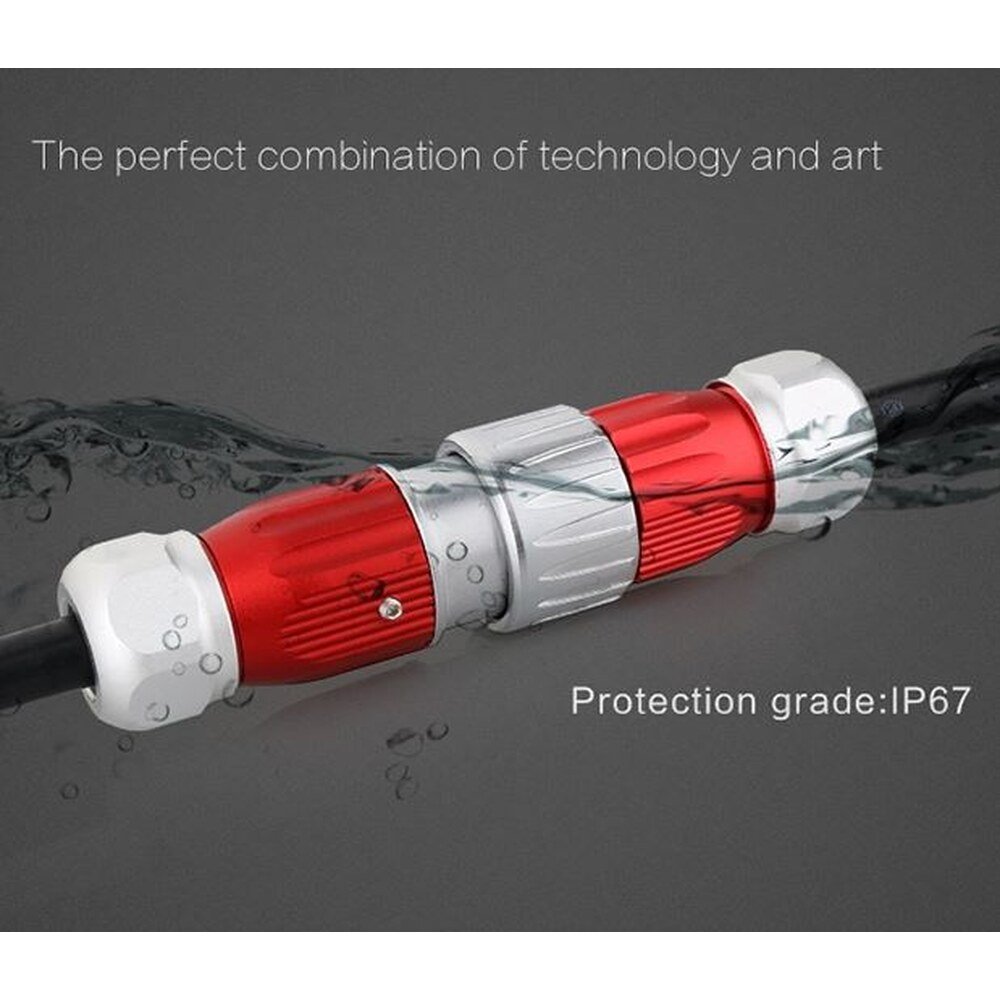

CNLinko DH-20 Series 5-Pin Male cable mount waterproof aviation connector. Rated 10A / 300V AC, IP68 / IPX9K sealing, ≥500 times mating cycles.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
No stock, no problem. We build to your requirement and release it as your line calls for it.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Please call for lead-time - typically Please call for lead-time
DH-20-C05PE-03-001
Specifications
Specifications sourced from CNLinko's official site (cnlinko.com), verified 2026-08-20.
| Part Number (SKU) | DH-20-C05PE-03-001 |
|---|---|
| Pins Available | 5 |
| Category | DH-20 Series |
| Model | DH-20 |
| Pin Count | 5 |
| Contacts | φ1.8mm x 5 |
| Wire Gauge | 16 AWG (1.5mm² max) |
| Cable Diameter Range | Φ9.0-Φ12.0mm |
| Rated Current | 10A |
| Rated Voltage | 300V AC |
| Withstand Voltage | 1500V AC |
| Contact Resistance | 3.0mΩ |
| Insulation Resistance | ≥500MΩ |
| Ingress Protection | IP68 / IPX9K |
| Durability | ≥500 times |
| Max Temperature Rise | 30K |
| Operating Temperature | -40°C to +85°C |
| Wiring Method | Soldering |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
