Old Part Number: DH-20-J03PE-01-001

The Cnlinko DH-20-C03SX-03-401 is a reliable, high-quality 3 pin male socket that is perfect for all your power applications. With its ability to accommodate 14-12 AWG cable and its impressive rating of 500V and 20A, you can rest assured that this socket will provide you with the power you need, exactly when you need it. Whether you’re using it for LED displays or stage lighting equipment, this versatile socket is sure to meet your needs.

You’ll also be pleased to know that the Cnlinko DH-20-C03SX-03-401 is also known as DH-20-C03SX-01-001, so if you ever need to order replacement parts or accessories, you’ll know exactly what to ask for. So why wait? Choose the Cnlinko DH-20-C03SX-03-401 today and experience the power and convenience that you need to get the job done!

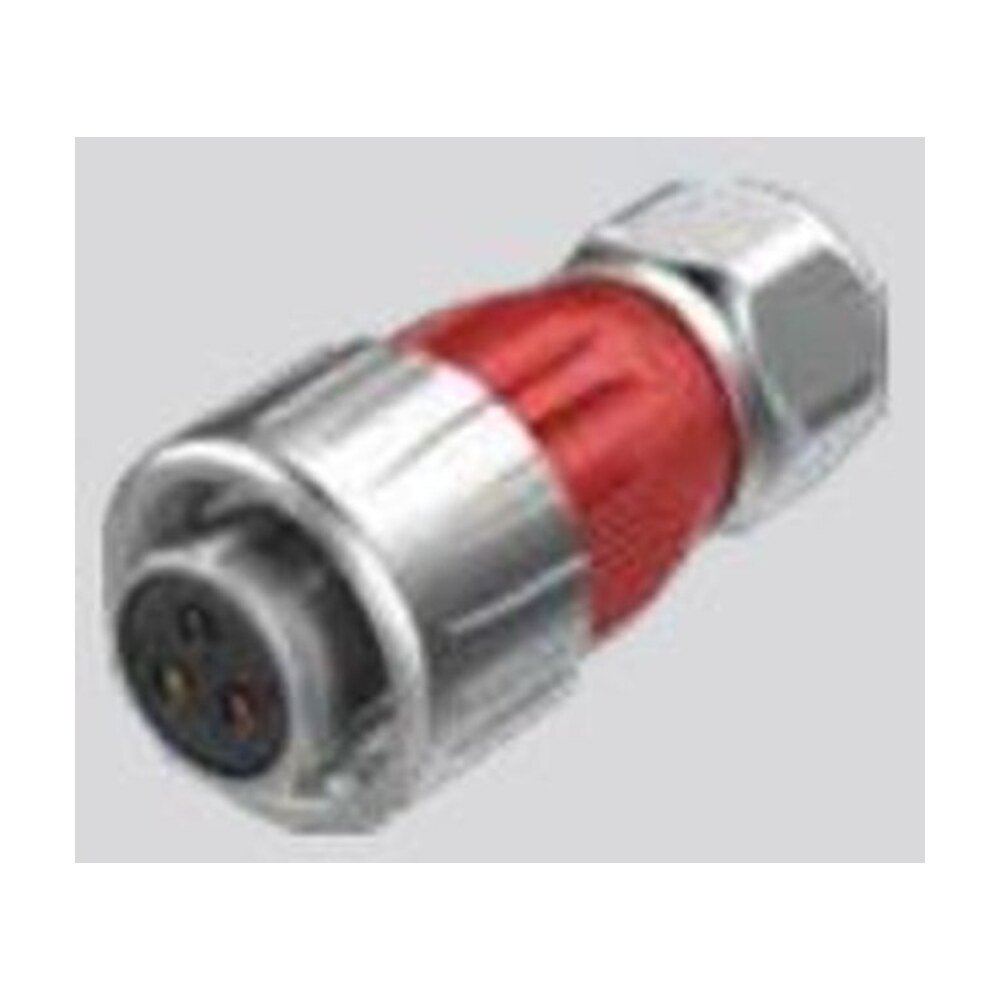

3 pins female plug

  • Metal alloy housing
  • Easy to grip shell
  • Reduces electromagnetic & radio frequency interference
  • Resistant to corrosion
  • Heat & pressure resistant
  • Categorized by red housing color for power applications
  • Waterproof gasket in housing


  • Dimensions- 62.5 mm Length x 29.2 mm Diameter (2.46″ x 1.15″)
  • Number of Pins- 3
  • Wire Gauge- 14-12 AWG
  • Diameter Range- 8-12mm
  • Contact Diameter- 2.7mm
  • Rated Current- 20A
  • Operating Voltage- 500V
  • Contact Resistance- <1mOhm
  • Withstanding Voltage- 2500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- Zinc Alloy
  • Contact Material- Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0
  • Approvals- CE, CCC, RoHS, ISO9001
  • Wiring Mode- Soldering


There are no reviews yet.

Be the first to review “DH-20-J03PE-03-001”

Your email address will not be published. Required fields are marked *

SKU DH-20-J03PE-03-001 Category


Available on backorder

Quantity Discount
Quantity Discount Discounted price
1 - 25 - $15.60
26 - 50 1% $15.44
51 - 75 1.5% $15.37
76 - 100 2% $15.29
Bulk pricing will be applied to package:
