DH-20-C02PE-03-001

DH-20-C02SX-03-401

Old Part Number: DH-20-C02SX–01-001



The Cnlinko DH-20-C02SX-03-401 is a top-of-the-line Chassis Mount male plug that is perfect for power applications. It conveniently accommodates 14-12 AWG cable, so you can rest assured that you’ll be able to use it for a variety of applications. Additionally, it’s rated for 500V and 20A, which makes it perfect for high-voltage equipment like LED displays and stage lighting equipment. This is a high-quality product that’s built to last, and it’s sure to provide you with the performance you need for your next project. What’s more, this socket is also known as Part Number DH-20-C02SX-03-401, so you can rest assured that you’re getting the right product when you make your purchase. Don’t settle for anything less than the best – choose the Cnlinko DH-20-C02SX-03-401 for all your power needs!

Description

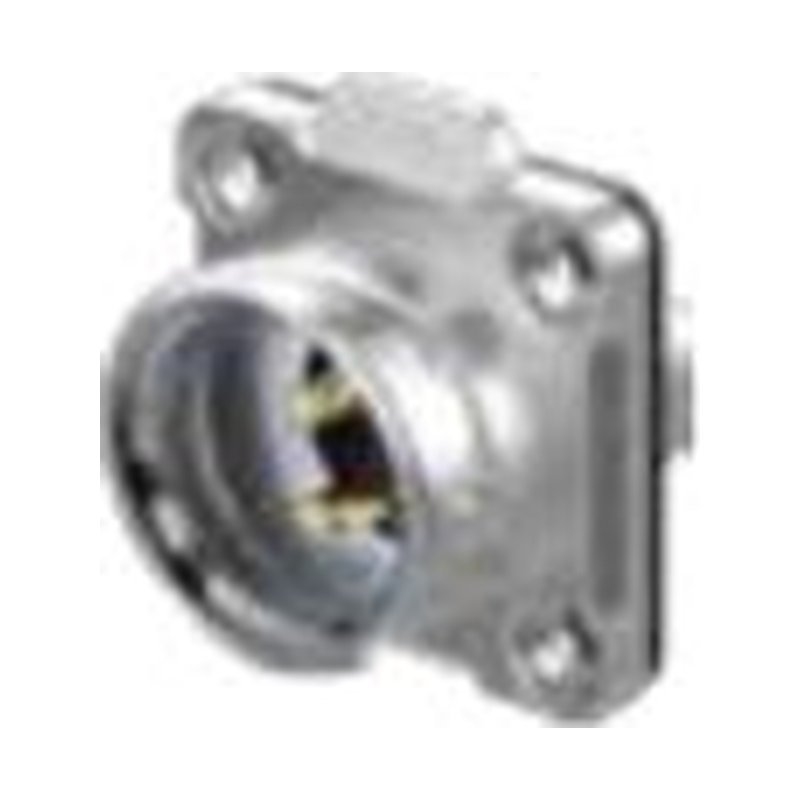

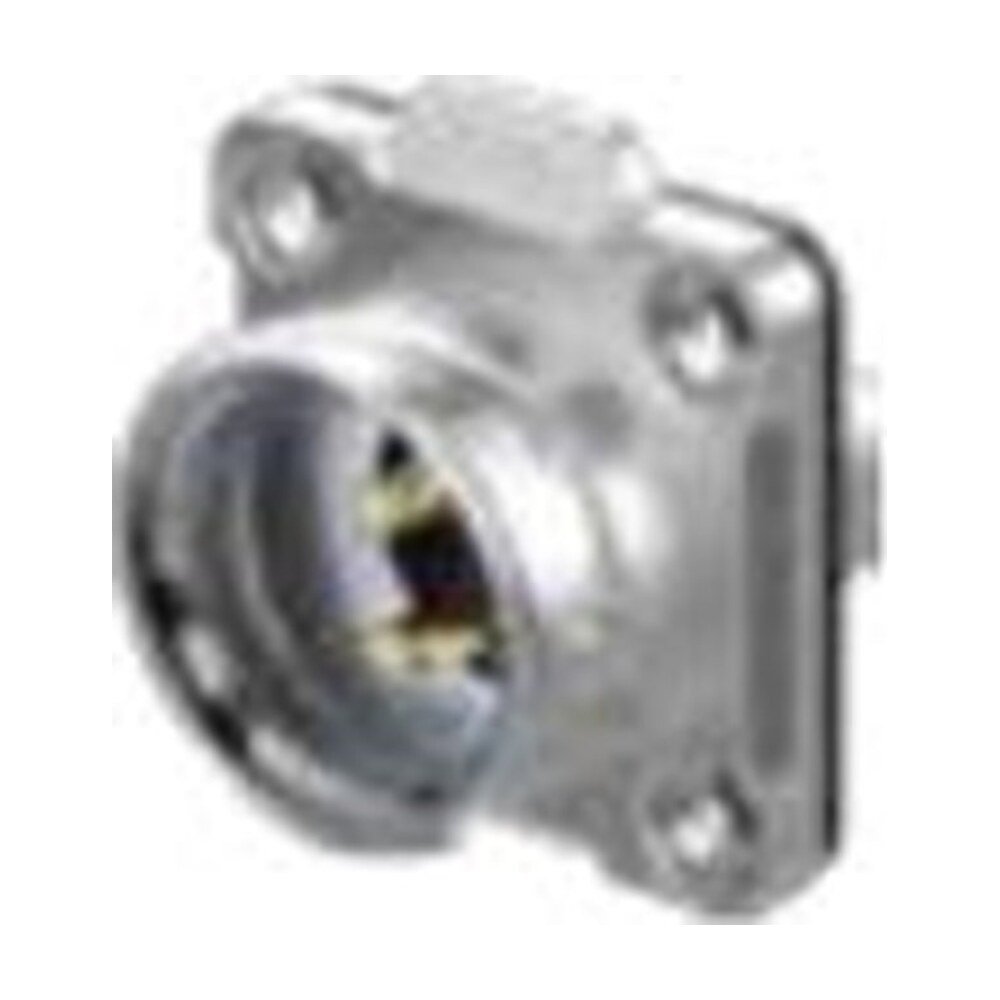

2 pins male socket

The Cnlinko DH-20-C02SX-01-001 is a 2 pin male socket for power applications. Accommodates 14-12 AWG cable. Rated for 500V and 20 A. Ideal for applications such as LED displays and stage lighting equipment.

  • Metal alloy housing
  • Screw tightening design
  • Reduces electromagnetic & radio frequency interference
  • Resistant to corrosion
  • Heat & pressure resistant
  • Includes waterproof cover

Specifications

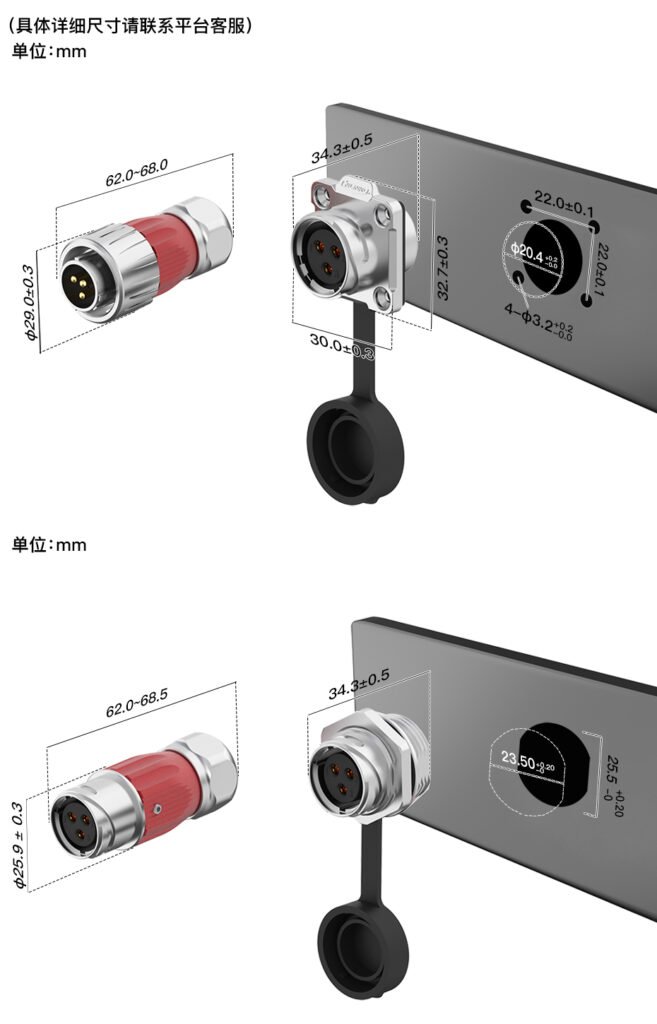

  • Dimensions (without cap)- 30mm x 32.7mm x 30.5mm
  • Number of Pins- 2
  • Wire Gauge- 14-12 AWG
  • Diameter Range- 8-12mm
  • Contact Diameter- 2.7mm
  • Rated Current- 20A
  • Operating Voltage- 500V
  • Contact Resistance- < 1mOhm
  • Withstanding Voltage- 2500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- Zinc Alloy
  • Contact Material- Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0
  • Approvals- CE, CCC, RoHS, ISO9001

Reviews

There are no reviews yet.

Be the first to review “DH-20-C02PE-03-001”

Your email address will not be published. Required fields are marked *

SKU DH-20-C02SX-03-401 Category

$9.57

Available on backorder

Quantity Discount
Quantity Discount Discounted price
1 - 25 - $9.57
26 - 50 1% $9.47
51 - 75 1.5% $9.43
76 - 100 2% $9.38
Bulk pricing will be applied to package:
