DKD35-P003 — Potential collective Terminal Block, Screw Connection / Push-in Design, Width: 19.4mm, M6, 600V, 96A. 600V, 96A, Beige (default).
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.
Dinkle DKD35-P003 — Potential collective Terminal Block, Screw Connection / Push-in Design. Distributed by Micro-Ray Electronics.
DIN rail terminal blocks distribute and land field wiring inside a control panel on a standard 35 mm rail, so circuits can be tested, isolated and re-terminated without cutting into the harness. They are the backbone of the wiring in machine control cabinets, building systems and process skids.

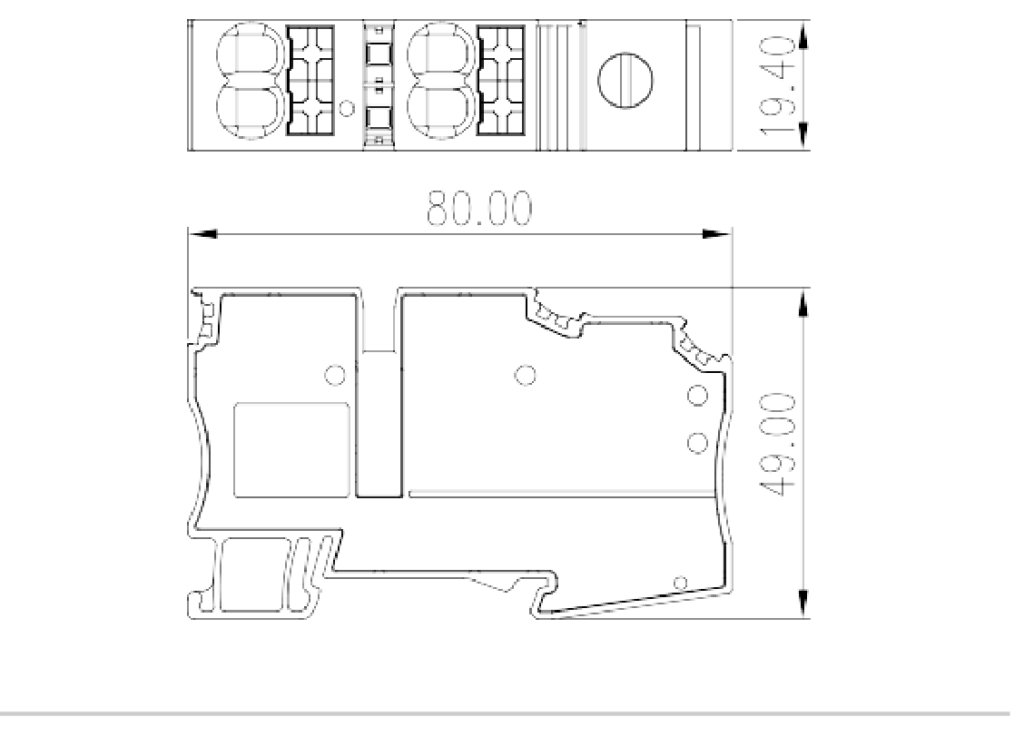

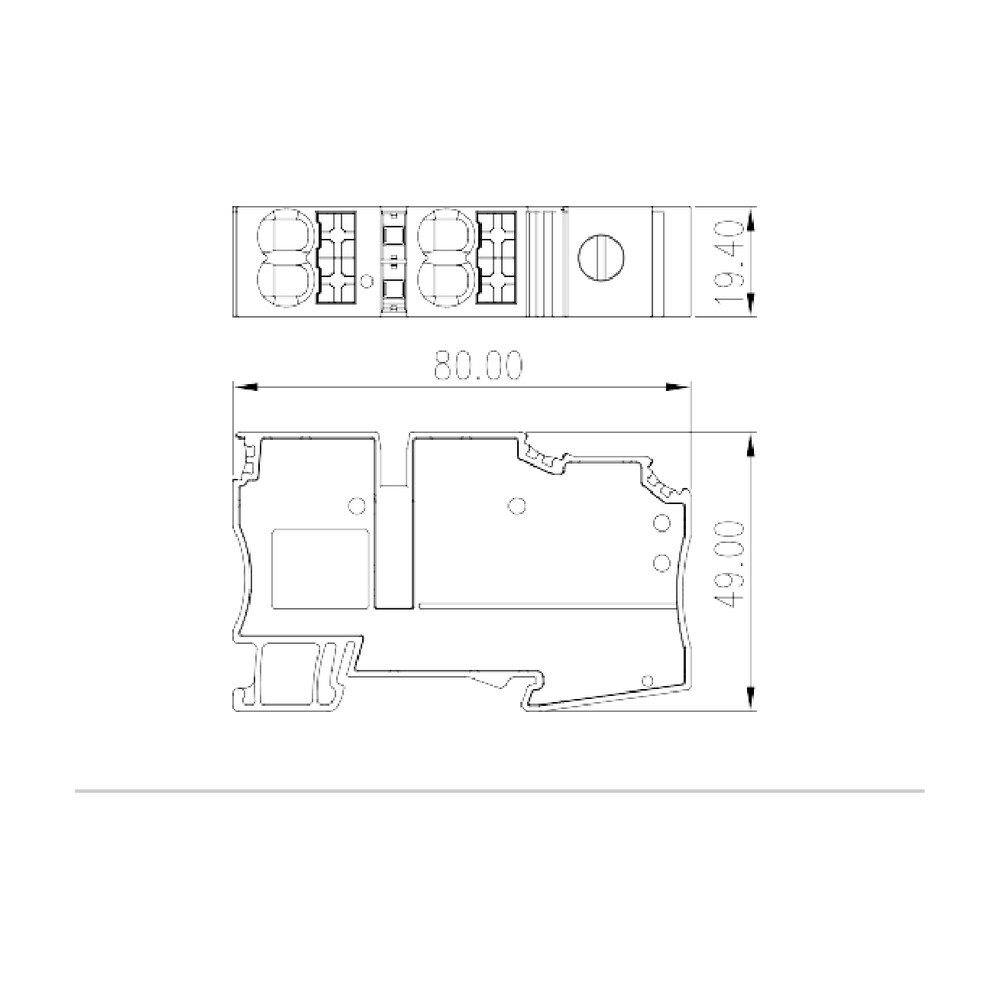

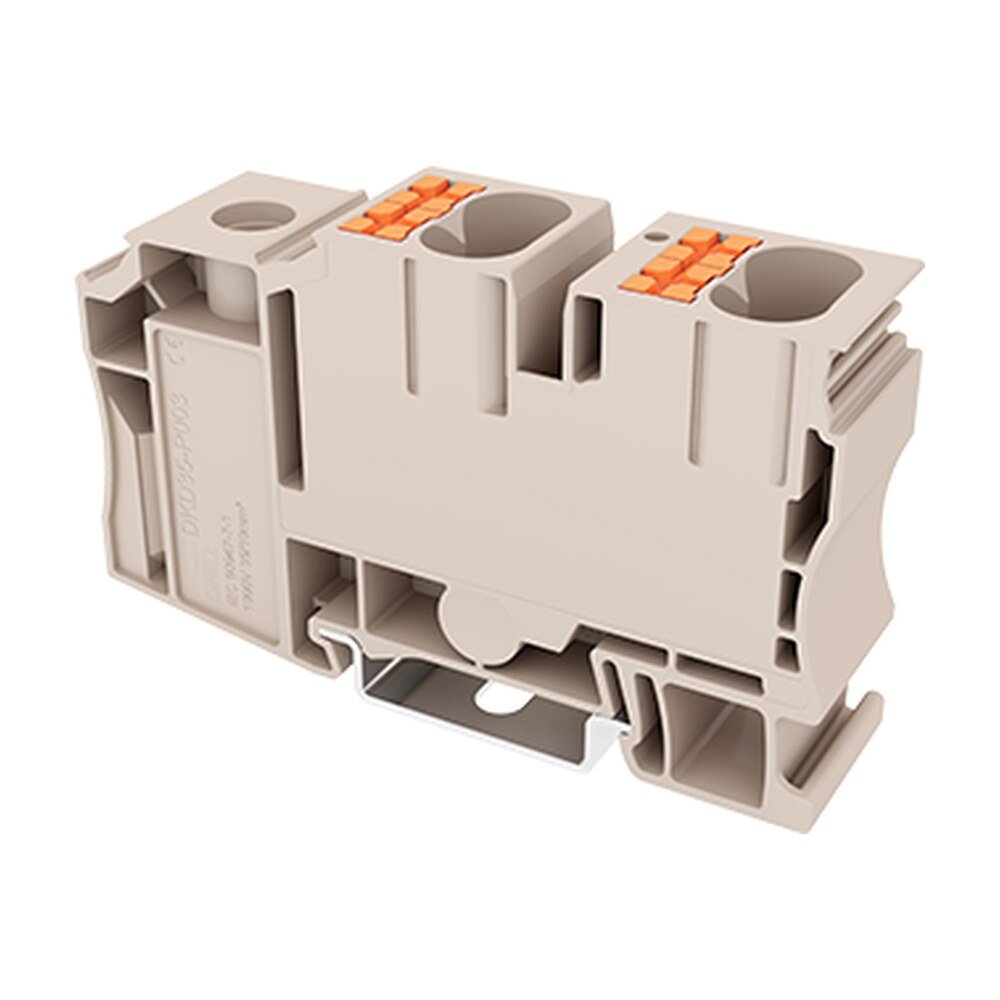

Potential collective Terminal Block, Screw Connection / Push-in Design, Width: 19.4mm, M6, 600V, 96A
Published by Dinkle for the DKD35-P003 series.
| Category | Potential collective Terminal Block |
|---|---|
| Pitch (mm) | 19.4 |
| Color | Beige (default) |
| Connection method | Screw Connection / Push-in Design |
| Length (mm) | 80 |
| Width (mm) | 19.4 |
| Height (mm) | 49 |
| Number of positions | ≧1P |
| Level | Single level |
| Connection points | 5 |
| Insulation material | PA |
|---|---|
| Insulation material group | I |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≥500MΩ at DC 500V |
| Rated voltage (V) | 1000 |
|---|---|
| Rated current (A) | Line Side: 105 / Load Side: 57 |
| Rated voltage (III/3)(V) | 1000 |
| Rated impulse voltage (III/3)(KV) | 8 |
| Conductor cross section solid. min (mm²) | Line Side: 1.5 / Load Side: 0.5 |
| Conductor cross section solid.max (mm²) | Line Side: 50 / Load Side: 16 |
| Conductor cross section stranded. min (mm²) | Line Side: 1.5 / Load Side: 0.5 |
| Conductor cross section stranded. max (mm²) | Line Side: 35 / Load Side: 10 |
| Conductor cross section flexible, with min ferrule without plastic sleeve (mm²) | Line Side: 1.5 / Load Side: 0.5 |
| Conductor cross section flexible, with max ferrule without plastic sleeve (mm²) | Line Side: 35 / Load Side: 10 |
| Conductor cross section flexible, with min ferrule with plastic sleeve (mm²) | Line Side: 1.5 / Load Side: 0.5 |
| Conductor cross section flexible, with max ferrule with plastic sleeve (mm²) | Line Side: 35 / Load Side: 10 |
| 2 conductors with same cross section, solid, min (mm²) | Line Side: 1.5 |
| 2 conductors with same cross section, solid, max (mm²) | Line Side: 16 |
| 2 conductors with same cross section, stranded, min (mm²) | Line Side: 1.5 |
| 2 conductors with same cross section, stranded, max (mm²) | Line Side: 10 |
| 2 conductors with same cross section flexible, with min ferrule without plastic sleeve (mm²) | Line Side: 1.5 |
| 2 conductors with same cross section flexible, with max ferrule without plastic sleeve (mm²) | Line Side: 10 |
| 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²) | Line Side: 1.5 / Load Side: 1.5 |
| 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²) | Line Side: 10 / Load Side: 4 |
| Screw thread | Line Side:M6 |
| Slotted screwdriver size (Blade thickness x Width)(mm) | 1X5.5 |
| Recommend tightening torque. min (N.m) | Line Side:4 |
| Recommend tightening torque. max (N.m) | Line Side:6 |
| Stripping Length (mm) | Line Side: 12~13/ Load Side:17~18 |
| Mounting rail | TS-35 |
| End cover plate required | NO |
| Grounding connections | NO |
| Rated voltage (UL/CUL Group B)(V) | 600 |
|---|---|
| Rated current (UL/CUL Group B)(A) | 96（Line） 55（Load） |
| Rated voltage (UL/CUL Group C)(V) | 600 |
| Rated current (UL/CUL Group C)(A) | 96（Line） 55（Load） |
| Rated voltage (UL/CUL Group D)(V) | 600 |
| Rated current (UL/CUL Group D)(A) | 5 |
| Min. solid wire connection (AWG) acc. to UL/CUL | 12（Line Side） 20（Load Side） |
| Max. solid wire connection AWG acc. to UL/CUL | 1/0（Line Side） 6（Load Side） |
| Min. stranded wire connection AWG acc. to UL/CUL | 12（Line Side） 20（Load Side） |
| Max. stranded wire connection AWG acc. to UL/CUL | 1/0（Line Side） 6（Load Side） |
| Back of the hand protection (YES or NO) | YES |
|---|---|
| Finger protection (YES or NO) | NO |
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
| Wire Range (Group B)(AWG) | Line Side：12~1/0 / Load Side：20~6 |
|---|---|
| Rated voltage (Group B)(V) | 600 |
| Rated current (Group B)(A) | Line Side：96 / Load Side：55 |
| Wire Range (Group C)(AWG) | Line Side：12~1/0 / Load Side：20~6 |
| Rated voltage (Group C)(V) | 600 |
| Rated current (Group C)(A) | Line Side：96 / Load Side：55 |
| Wire Range (Group D)(AWG) | Line Side：12~1/0 / Load Side：20~6 |
| Rated voltage (Group D)(V) | 600 |
| Rated current (Group D)(A) | 5 |
| Wire Range (Group B)(AWG) | Line Side：12~1/0 / Load Side：20~6 |
|---|---|
| Rated voltage (Group B)(V) | 600 |
| Rated current (Group B)(A) | Line Side：96 / Load Side：55 |
| Wire Range (Group C)(AWG) | Line Side：12~1/0 / Load Side：20~6 |
| Rated voltage (Group C)(V) | 600 |
| Rated current (Group C)(A) | Line Side：96 / Load Side：55 |
| Wire Ranget (Group D)(AWG) | Line Side：12~1/0 / Load Side：20~6 |
| Rated voltage (Group D)(V) | 600 |
| Rated current (Group D)(A) | 5 |
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | DKD35-P003 |
|---|---|
| Category | Push-in Design |
| Block Type | Potential collective Terminal Block |
| Connection Method | Screw Connection / Push-in Design |
| Level | Single level |
| Connection Points | 5 |
| Number of Positions | ≧1P |
| Pitch (mm) | 19.4 |
| Rated Voltage (UL) | 600 |
| Rated Current (UL) | Line Side：96 / Load Side：55 |
| Wire Range (UL) | Line Side：12~1/0 / Load Side：20~6 |
| Rated Voltage (IEC) | 1000 |
| Rated Current (IEC) | Line Side: 105 / Load Side: 57 |
| Stripping Length (mm) | Line Side: 12~13/ Load Side:17~18 |
| Screw Thread | Line Side:M6 |
| Mounting Rail | TS-35 |
| Length (mm) | 80 |
| Width (mm) | 19.4 |
| Height (mm) | 49 |
| Insulation Material | PA |
| Flame Rating (UL94) | V0 |
| Color | Beige (default) |
| Operating Temperature | -40 to 120 °C |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
