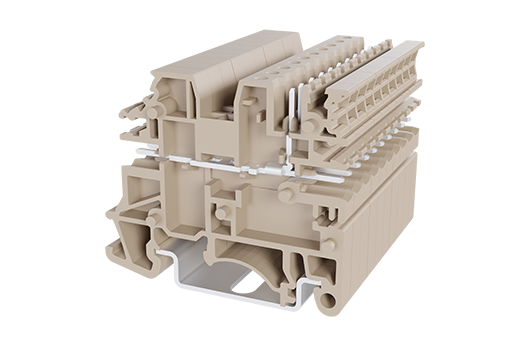

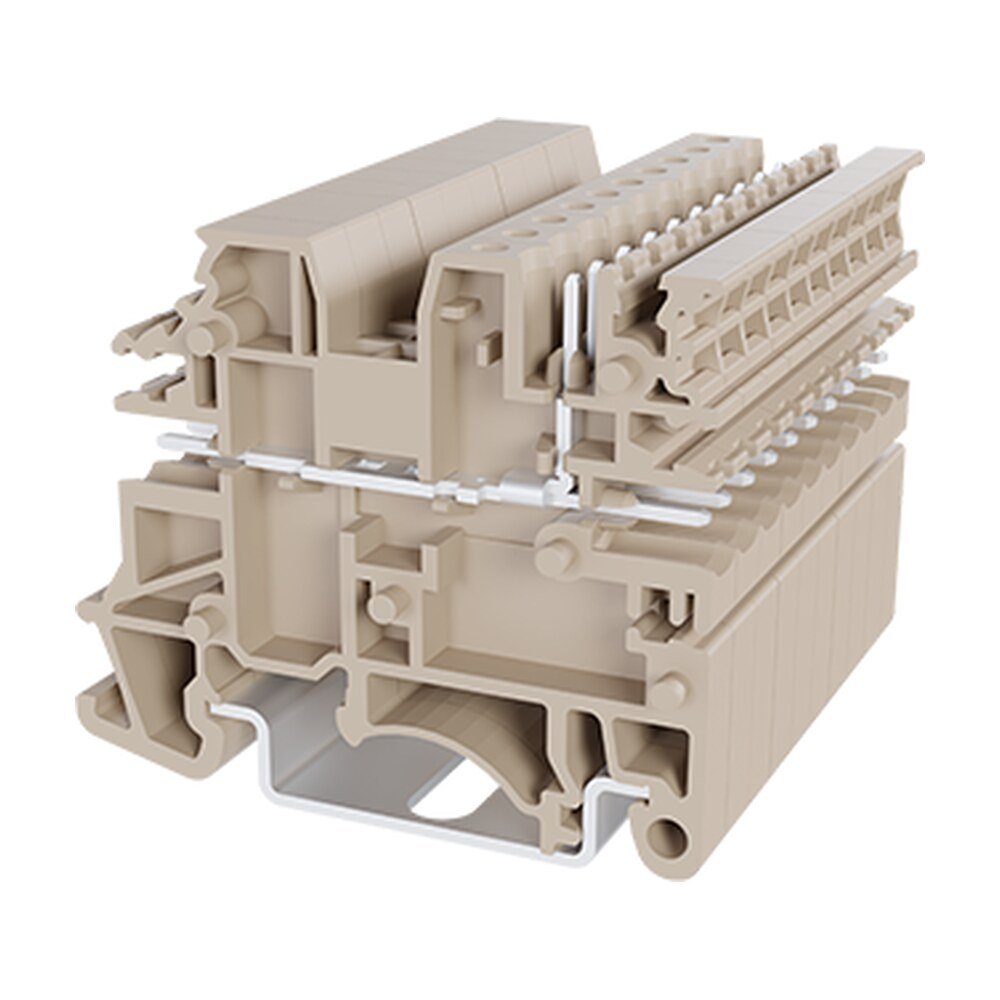

DKES1.5N3 — Plug-in Connection Terminal Block , Width：5.08mm, 300V, 15A. 300V, 15A, Beige (default).
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.
Dinkle DKES1.5N3 — Plug-in Connection Terminal Block. Distributed by Micro-Ray Electronics.
DIN rail terminal blocks distribute and land field wiring inside a control panel on a standard 35 mm rail, so circuits can be tested, isolated and re-terminated without cutting into the harness. They are the backbone of the wiring in machine control cabinets, building systems and process skids.
Plug-in Connection Terminal Block , Width：5.08mm, 300V, 15A
Published by Dinkle for the DKES1.5N3 series.
| Category | Plug-in Connection Terminal Block |
|---|---|
| Color | Beige (default) |
| Connection method | Screw Connection |
| Type of locking | Rail mounting |
| Length (mm) | 50.6 |
| Width (mm) | 5.08 |
| Height (mm) | 42.5 |
| Number of positions | ≥1P |
| Level | Single level |
| Connection points | 3 |
| Insulation material | PA |
|---|---|
| Insulation material group | I |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≥500MΩ at DC 500V |
| Plating of conductor surface | Tin PLATED |
| Rated voltage (V) | 250 |
|---|---|
| Rated current (A) | 24 |
| Rated voltage (III/3)(V) | 250 |
| Rated impulse voltage (II/2)(KV) | 24 |
| Mounting rail | TS-35N/TS-35/15N |
| End cover plate required | YES |
| Grounding connections | NO |
| Rated voltage (UL/CUL Group B)(V) | 300 |
|---|---|
| Rated current (UL/CUL Group B)(A) | 15 |
| Rated voltage (UL/CUL Group C)(V) | 300 |
| Rated current (UL/CUL Group C)(A) | 15 |
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | DKES1.5N3 |
|---|---|
| Category | Screw Connection |
| Block Type | Plug-in Connection Terminal Block |
| Connection Method | Screw Connection |
| Type of Locking | Rail mounting |
| Level | Single level |
| Connection Points | 3 |
| Number of Positions | ≥1P |
| Rated Voltage (UL) | 300 |
| Rated Current (UL) | 15 |
| Rated Voltage (IEC) | 250 |
| Rated Current (IEC) | 24 |
| Mounting Rail | TS-35N/TS-35/15N |
| Length (mm) | 50.6 |
| Width (mm) | 5.08 |
| Height (mm) | 42.5 |
| Insulation Material | PA |
| Flame Rating (UL94) | V0 |
| Color | Beige (default) |
| Insulation material group | I |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≥500MΩ at DC 500V |
| Plating of conductor surface | Tin PLATED |
| Rated voltage (V) | 250 |
| Rated current (A) | 24 |
| Rated voltage (III/3)(V) | 250 |
| Rated impulse voltage (II/2)(KV) | 24 |
| End cover plate required | YES |
| Grounding connections | NO |
| Rated voltage (UL/CUL Group B)(V) | 300 |
| Rated current (UL/CUL Group B)(A) | 15 |
| Rated voltage (UL/CUL Group C)(V) | 300 |
| Rated current (UL/CUL Group C)(A) | 15 |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
