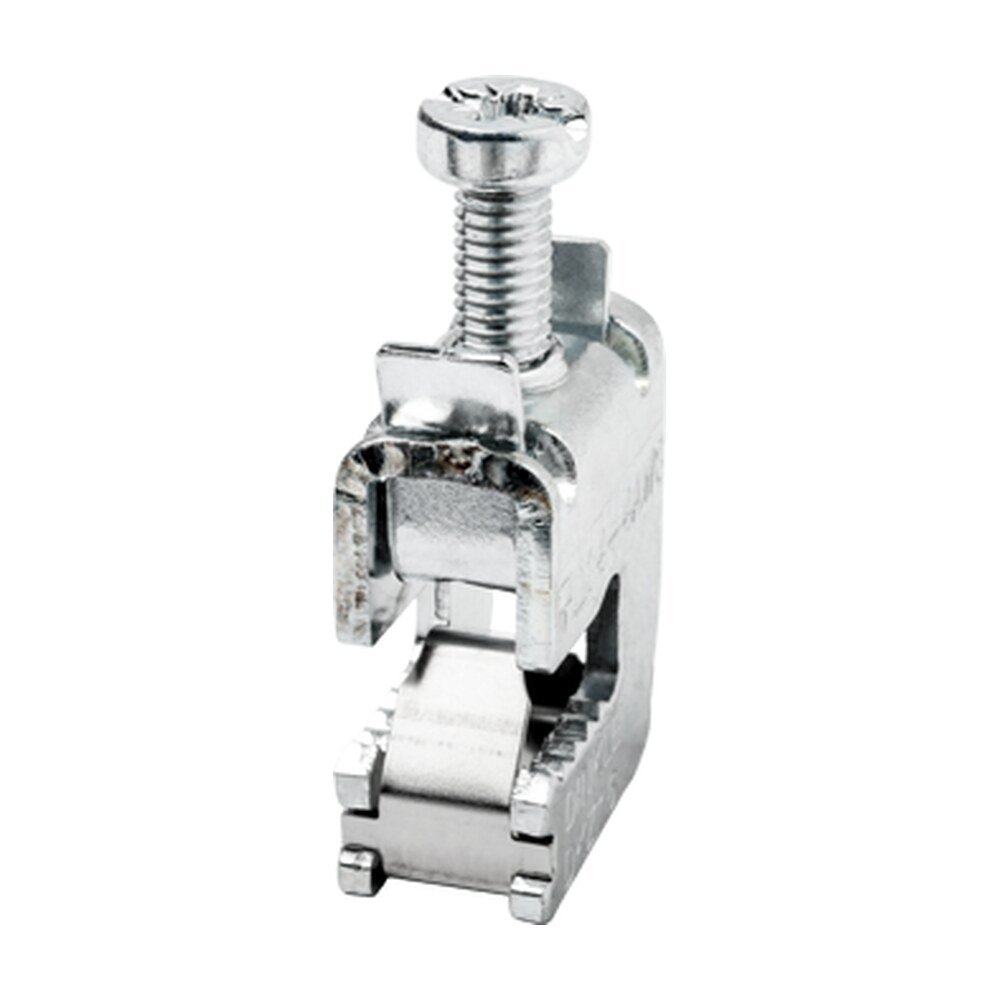

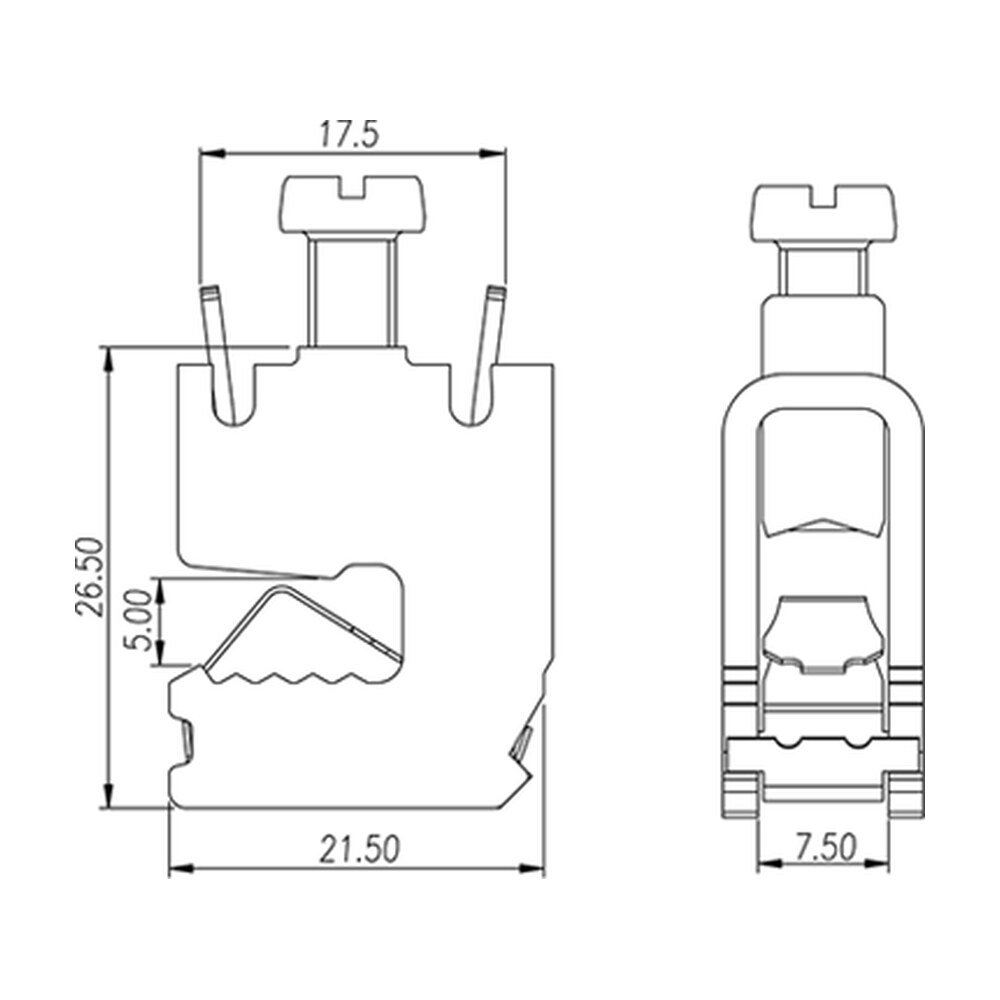

DKZ16 — DIN Rail terminal blocks, Busbar terminal blocks, M5. M5, Steel.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.
Dinkle DKZ16 — DIN Rail terminal blocks, Busbar terminal blocks. Distributed by Micro-Ray Electronics.
DIN rail terminal blocks distribute and land field wiring inside a control panel on a standard 35 mm rail, so circuits can be tested, isolated and re-terminated without cutting into the harness. They are the backbone of the wiring in machine control cabinets, building systems and process skids.

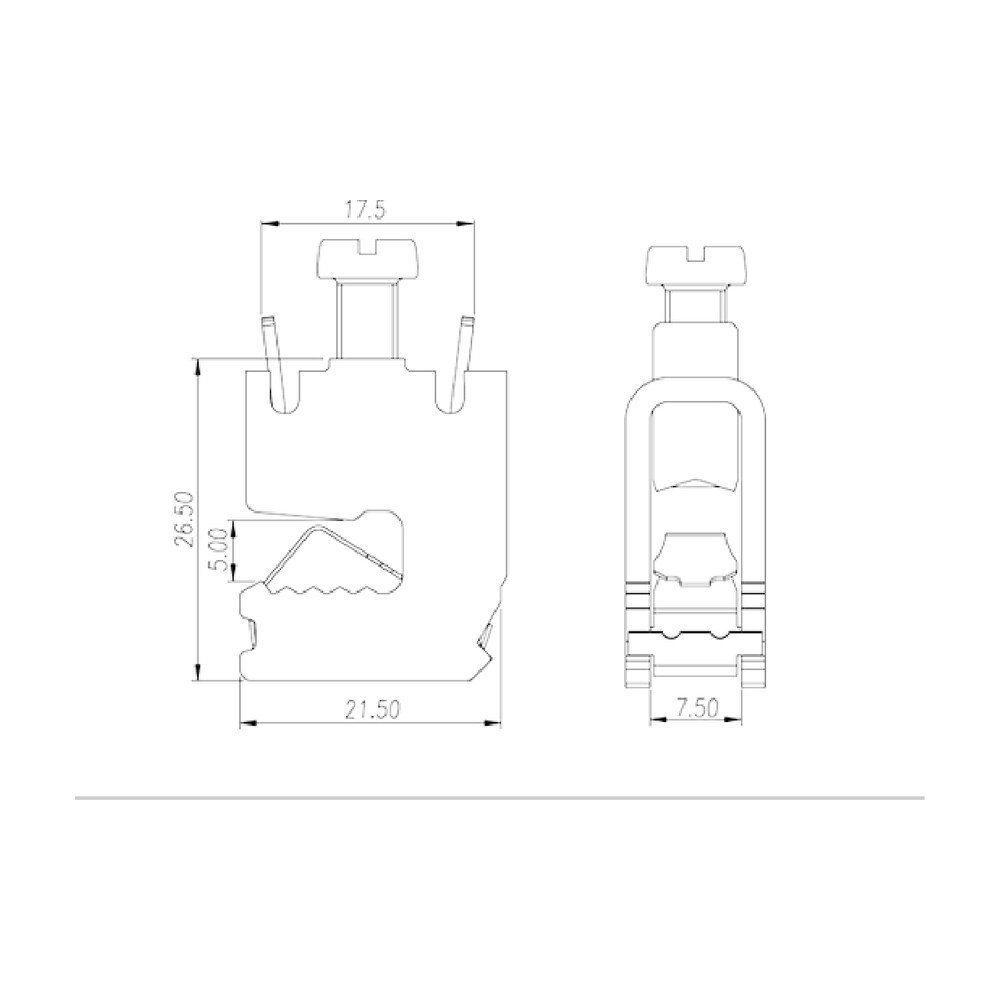

DIN Rail terminal blocks, Busbar terminal blocks, M5
Published by Dinkle for the DKZ16 series.
| Connection method | Screw connection |
|---|---|
| Type of locking | Busbar mounting |
| Connection points | 1 |
| Conductor cross section solid. min (mm²) | 1.5 |
|---|---|
| Conductor cross section solid.max (mm²) | 16 |
| Conductor cross section stranded. min (mm²) | 1.5 |
| Conductor cross section stranded. max (mm²) | 16 |
| Screw thread | M5 |
| Slotted screwdriver size (Blade thickness x Width)(mm) | 1.0x5.5 |
| Philips screwdriver size | PH2 |
| Recommend tightening torque. min (N.m) | 2 |
| Recommend tightening torque. max (N.m) | 4 |
| End cover plate required | NO |
| Grounding connections | NO |
| Min. solid wire connection (AWG) acc. to UL/CUL | 14 |
|---|---|
| Max. solid wire connection AWG acc. to UL/CUL | 4 |
| Min. stranded wire connection AWG acc. to UL/CUL | 14 |
| Max. stranded wire connection AWG acc. to UL/CUL | 4 |
| Back of the hand protection (YES or NO) | NO |
|---|---|
| Finger protection (YES or NO) | NO |
| Wire Range (Group B)(AWG) | 14~4 |
|---|
| Wire Range (Group B)(AWG) | 14~4 |
|---|
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | DKZ16 |
|---|---|
| Category | Busbar Terminal Blocks |
| Connection Method | Screw connection |
| Type of Locking | Busbar mounting |
| Connection Points | 1 |
| Wire Range (UL) | 14~4 |
| Screw Thread | M5 |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray SalesSend us your part number, drawing, or a description of what you need. A real person on our team will get back to you.
