DKZ4E — DIN Rail terminal blocks, Busbar terminal blocks, M4. M4, Steel.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.

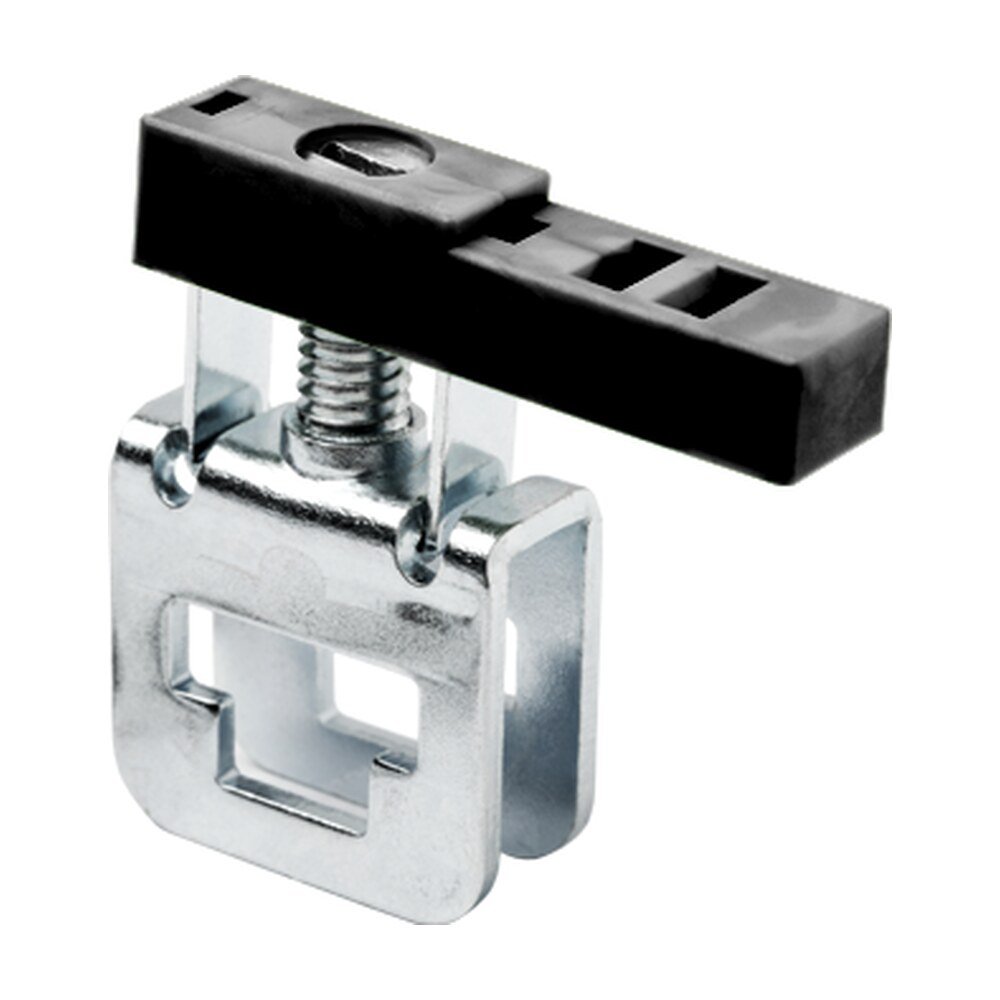

Dinkle DKZ4E — DIN Rail terminal blocks, Busbar terminal blocks. Distributed by Micro-Ray Electronics.
DIN rail terminal blocks distribute and land field wiring inside a control panel on a standard 35 mm rail, so circuits can be tested, isolated and re-terminated without cutting into the harness. They are the backbone of the wiring in machine control cabinets, building systems and process skids.
DIN Rail terminal blocks, Busbar terminal blocks, M4
Published by Dinkle for the DKZ4E series.
| Color | Black (default) |
|---|---|
| Connection method | Screw connection |
| Type of locking | Busbar mounting |
| Connection points | 1 |
| Insulation material | PA |
|---|---|
| Insulation material group | I |
| Flame retardant rating , compliant with UL94 | V2 |
| Conductor cross section solid. min (mm²) | 0.5 |
|---|---|
| Conductor cross section solid.max (mm²) | 6 |
| Conductor cross section stranded. min (mm²) | 0.5 |
| Conductor cross section stranded. max (mm²) | 6 |
| Screw thread | M4 |
| Slotted screwdriver size (Blade thickness x Width)(mm) | 1.0x5.5 |
| Philips screwdriver size | PH2 |
| Recommend tightening torque. min (N.m) | 1.2 |
| Recommend tightening torque. max (N.m) | 2.4 |
| End cover plate required | NO |
| Grounding connections | NO |
| Min. solid wire connection (AWG) acc. to UL/CUL | 20 |
|---|---|
| Max. solid wire connection AWG acc. to UL/CUL | 10 |
| Min. stranded wire connection AWG acc. to UL/CUL | 20 |
| Max. stranded wire connection AWG acc. to UL/CUL | 10 |
| Back of the hand protection (YES or NO) | NO |
|---|---|
| Finger protection (YES or NO) | NO |
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | DKZ4E |
|---|---|
| Category | Busbar Terminal Blocks |
| Connection Method | Screw connection |
| Type of Locking | Busbar mounting |
| Connection Points | 1 |
| Screw Thread | M4 |
| Insulation Material | PA |
| Flame Rating (UL94) | V2 |
| Color | Black (default) |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
