DPD6-P001 — Potential distributors Terminal Block, Push-in Design, Width: 8.3mm, 300V, 25A. 300V, 25A, Beige (default).
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Dinkle DPD6-P001 — Potential distributors Terminal Block, Push-in Design. Distributed by Micro-Ray Electronics.
DIN rail terminal blocks distribute and land field wiring inside a control panel on a standard 35 mm rail, so circuits can be tested, isolated and re-terminated without cutting into the harness. They are the backbone of the wiring in machine control cabinets, building systems and process skids.

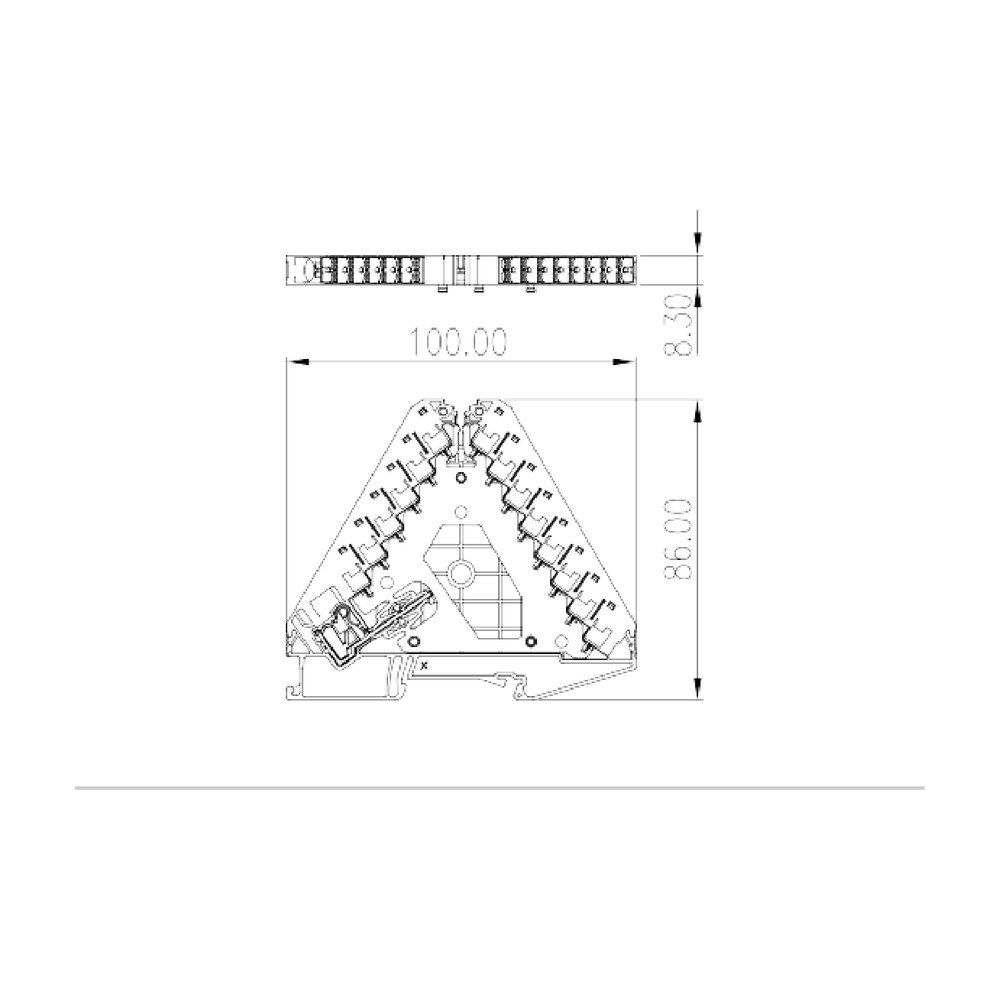

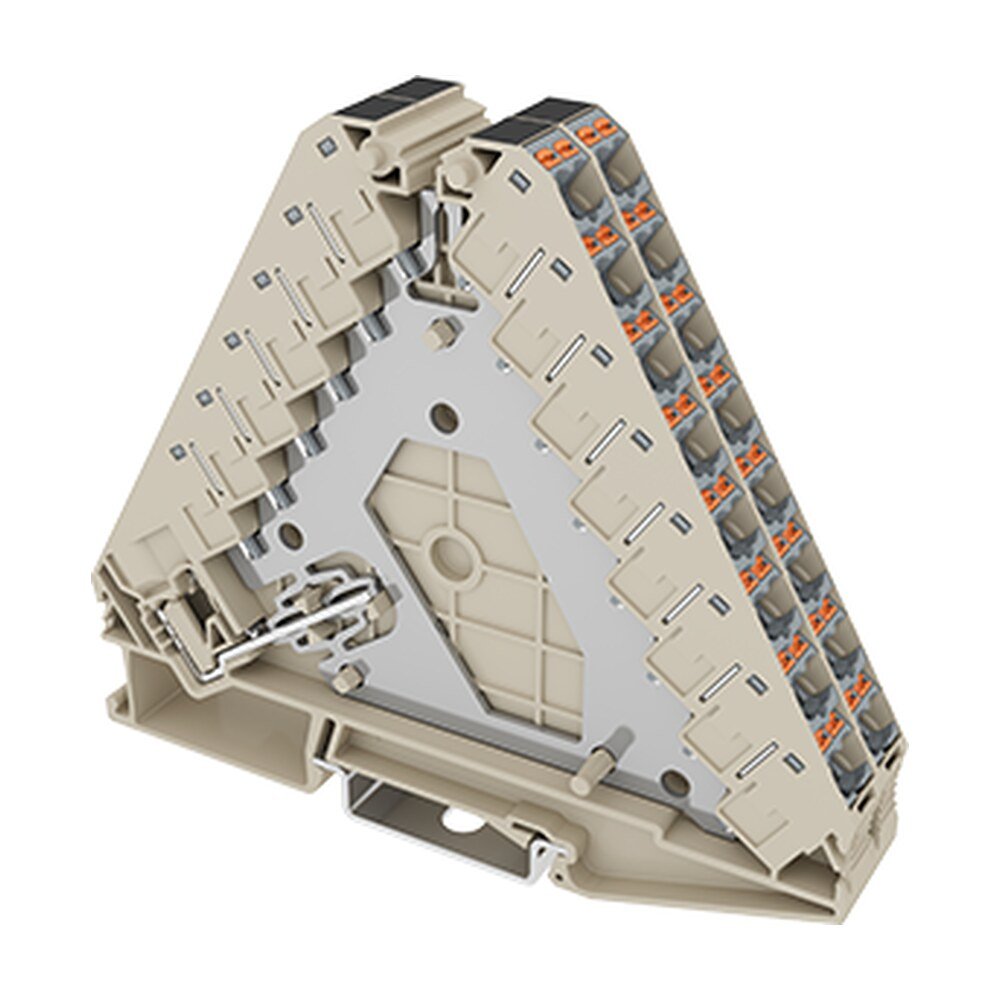

Potential distributors Terminal Block, Push-in Design, Width: 8.3mm, 300V, 25A
Published by Dinkle for the DPD6-P001 series.
| Category | Potential distributors Terminal Block |
|---|---|
| Color | Beige (default) |
| Connection method | Push-in Design |
| Length (mm) | 100 |
| Width (mm) | 8.3 |
| Height (mm) | 86 |
| Level | Eight level |
| Connection points | 29 |
| Insulation material | PA |
|---|---|
| Insulation material group | I |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≥500MΩ at DC 500V |
| Rated voltage (V) | Line Side：250 Load Side：250 |
|---|---|
| Rated current (A) | Line Side：32 Load Side：17.5 |
| Rated voltage (III/3)(V) | Line Side：250 Load Side：250 |
| Rated impulse voltage (III/3)(KV) | Line Side：4 Load Side：4 |
| Conductor cross section solid. min (mm²) | Line Side：0.2 Load Side：0.14 |
| Conductor cross section solid.max (mm²) | Line Side：6 Load Side：2.5 |
| Conductor cross section stranded. min (mm²) | Line Side：0.2 Load Side：0.14 |
| Conductor cross section stranded. max (mm²) | Line Side：6 Load Side：2.5 |
| Conductor cross section flexible, with min ferrule without plastic sleeve (mm²) | Line Side：0.25 Load Side：0.25 |
| Conductor cross section flexible, with max ferrule without plastic sleeve (mm²) | Line Side：6 Load Side：1.5 |
| Conductor cross section flexible, with min ferrule with plastic sleeve (mm²) | Line Side：0.25 Load Side：0.25 |
| Conductor cross section flexible, with max ferrule with plastic sleeve (mm²) | Line Side：6 Load Side：1.5 |
| Stripping Length (mm) | Line Side：14~15 Load Side：10~11 |
| Mounting rail | TS-35 |
| End cover plate required | YES |
| Grounding connections | NO |
| Rated voltage (UL/CUL Group B)(V) | Line Side：300 Load Side：300 |
|---|---|
| Rated current (UL/CUL Group B)(A) | Line Side：25 Load Side：15 |
| Rated voltage (UL/CUL Group D)(V) | Line Side：300 Load Side：300 |
| Rated current (UL/CUL Group D)(A) | Line Side：25 Load Side：15 |
| Min. solid wire connection (AWG) acc. to UL/CUL | Line Side：24 Load Side：26 |
| Max. solid wire connection AWG acc. to UL/CUL | Line Side：10 Load Side：14 |
| Back of the hand protection (YES or NO) | YES |
|---|---|
| Finger protection (YES or NO) | YES |
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
| Wire Range (Group B)(AWG) | Line Side：24-10 Load Side：26-14 |
|---|---|
| Rated voltage (Group B)(V) | Line Side：300 Load Side：300 |
| Rated current (Group B)(A) | Line Side：25 Load Side：15 |
| Wire Range (Group D)(AWG) | Line Side：24-10 Load Side：26-14 |
| Rated voltage (Group D)(V) | Line Side：300 Load Side：300 |
| Rated current (Group D)(A) | Line Side：10 Load Side：10 |
| Wire Range (Group B)(AWG) | Line Side：24-10 Load Side：26-14 |
|---|---|
| Rated voltage (Group B)(V) | Line Side：300 Load Side：300 |
| Rated current (Group B)(A) | Line Side：25 Load Side：15 |
| Wire Ranget (Group D)(AWG) | Line Side：24-10 Load Side：26-14 |
| Rated voltage (Group D)(V) | Line Side：300 Load Side：300 |
| Rated current (Group D)(A) | Line Side：10 Load Side：10 |
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | DPD6-P001 |
|---|---|
| Conductors Available | 4 |
| Category | Push-in Design |
| Block Type | Potential distributors Terminal Block |
| Connection Method | Push-in Design |
| Level | Eight level |
| Connection Points | 29 |
| Rated Voltage (UL) | Line Side: 300 Load Side: 300 |
| Rated Current (UL) | Line Side: 25 Load Side: 15 |
| Wire Range (UL) | Line Side: 24-10 Load Side: 26-14 |
| Rated Voltage (IEC) | Line Side: 250 Load Side: 250 |
| Rated Current (IEC) | Line Side: 32 Load Side: 17.5 |
| Stripping Length (mm) | Line Side: 14~15 Load Side: 10~11 |
| Mounting Rail | TS-35 |
| Length (mm) | 100 |
| Width (mm) | 8.3 |
| Height (mm) | 86 |
| Insulation Material | PA |
| Flame Rating (UL94) | V0 |
| Color | Beige (default) |
| Operating Temperature | -40 to 120 °C |
| Insulation material group | I |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≥500MΩ at DC 500V |
| Rated voltage (V) | Line Side: 250 Load Side: 250 |
| Rated current (A) | Line Side: 32 Load Side: 17.5 |
| Rated voltage (III/3)(V) | Line Side: 250 Load Side: 250 |
| Rated impulse voltage (III/3)(KV) | Line Side: 4 Load Side: 4 |
| Conductor cross section solid. min (mm²) | Line Side: 0.2 Load Side: 0.14 |
| Conductor cross section solid.max (mm²) | Line Side: 6 Load Side: 2.5 |
| Conductor cross section stranded. min (mm²) | Line Side: 0.2 Load Side: 0.14 |
| Conductor cross section stranded. max (mm²) | Line Side: 6 Load Side: 2.5 |
| End cover plate required | YES |
| Grounding connections | NO |
| Rated voltage (UL/CUL Group B)(V) | Line Side: 300 Load Side: 300 |
| Rated current (UL/CUL Group B)(A) | Line Side: 25 Load Side: 15 |
| Rated voltage (UL/CUL Group D)(V) | Line Side: 300 Load Side: 300 |
| Rated current (UL/CUL Group D)(A) | Line Side: 25 Load Side: 15 |
| Min. solid wire connection (AWG) acc. to UL/CUL | Line Side: 24 Load Side: 26 |
| Max. solid wire connection AWG acc. to UL/CUL | Line Side: 10 Load Side: 14 |
| Back of the hand protection (YES or NO) | YES |
| Finger protection (YES or NO) | YES |
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
| Wire Range (Group B)(AWG) | Line Side: 24-10 Load Side: 26-14 |
| Rated voltage (Group B)(V) | Line Side: 300 Load Side: 300 |
| Rated current (Group B)(A) | Line Side: 25 Load Side: 15 |
| Wire Range (Group D)(AWG) | Line Side: 24-10 Load Side: 26-14 |
| Rated voltage (Group D)(V) | Line Side: 300 Load Side: 300 |
| Rated current (Group D)(A) | Line Side: 10 Load Side: 10 |
| Wire Ranget (Group D)(AWG) | Line Side: 24-10 Load Side: 26-14 |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
