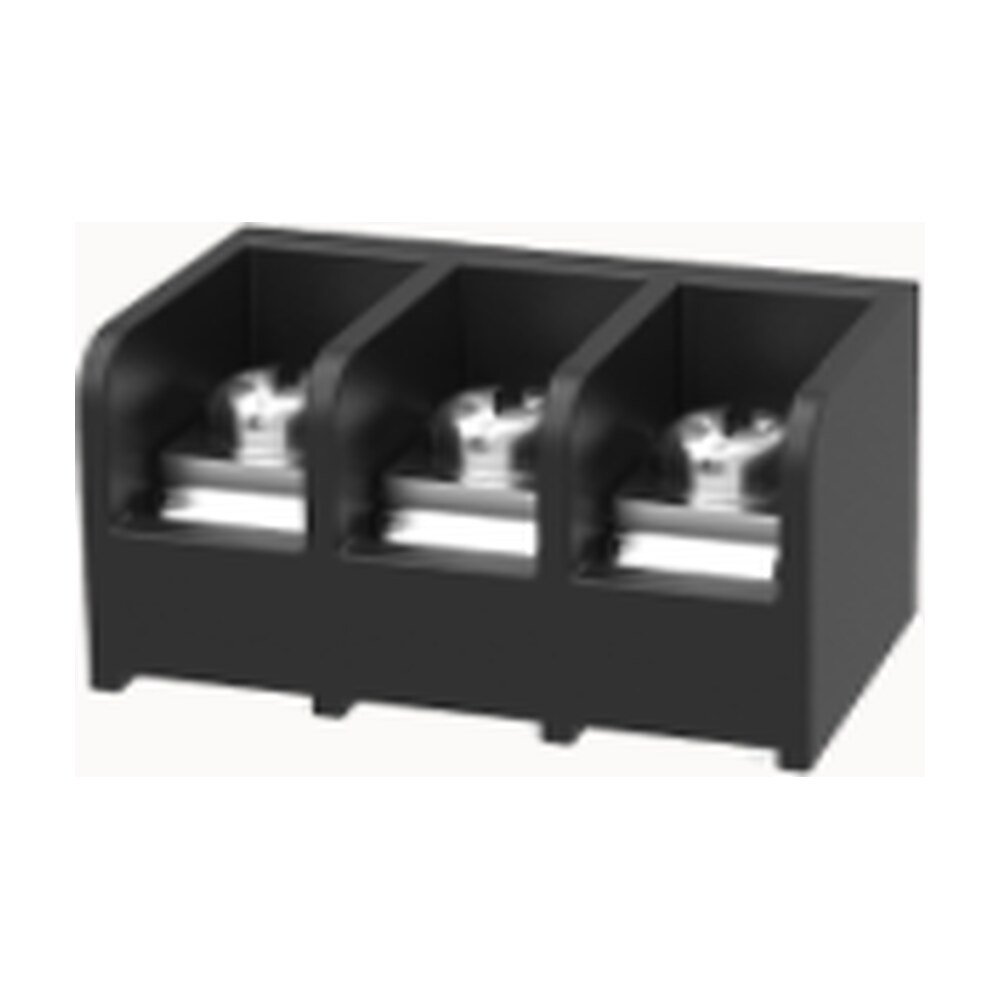

Barrier Block with 3 positions on a 8.25mm pitch and screw termination, rated 20A at 300V.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.
MR-DG36S-B-03P-13-00A(H) is a Micro-Ray DG36S series euro-style pluggable terminal block (Barrier Blocks) with 3 positions, a 8.25mm pitch, screw termination.
Cross-references to Phoenix Contact DINKLE:DT-39-B01W DECA:T42-BS11. Phoenix Contact is a trademark of its owner; Micro-Ray is not affiliated with or endorsed by Phoenix Contact.
| Series | DG36S |
|---|---|
| Type | Barrier Blocks |
| Pitch | 8.25mm |
| Positions | 3 |
| Levels | 1 |
| Positions per Level | 3 |
| Termination | Screw |
| Mounting | Through Hole |
| Current (UL) | 20A |
| Voltage (UL) | 300V |
| Current (IEC) | 32A |
| Wire Range (AWG) | 22~12AWG |
| Screw Size | M3 |
| Screw Torque | 0.5N.m |
| Operating Temperature | -40℃~105℃ |
| Housing Material | PA66 |
| Contact Material | Copper alloy |
| Contact Finish | Tin |
| Flammability Rating | UL94V-0 |
| Colour | Black |
| Part Number (SKU) | MR-DG36S-B-03P-13-00A(H) |
|---|---|
| Category | Barrier Blocks |
| Series | DG36S |
| Type | Barrier Blocks |
| Pitch | 8.25mm |
| Positions | 3 |
| Levels | 1 |
| Positions per Level | 3 |
| Termination | Screw |
| Mounting | Through Hole |
| Current (UL) | 20A |
| Voltage (UL) | 300V |
| Current (IEC) | 32A |
| Wire Range (AWG) | 22~12AWG |
| Screw Size | M3 |
| Screw Torque | 0.5N.m |
| Operating Temperature | -40℃~105℃ |
| Housing Material | PA66 |
| Contact Material | Copper alloy |
| Contact Finish | Tin |
| Flammability Rating | UL94V-0 |
| Colour | Black |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
