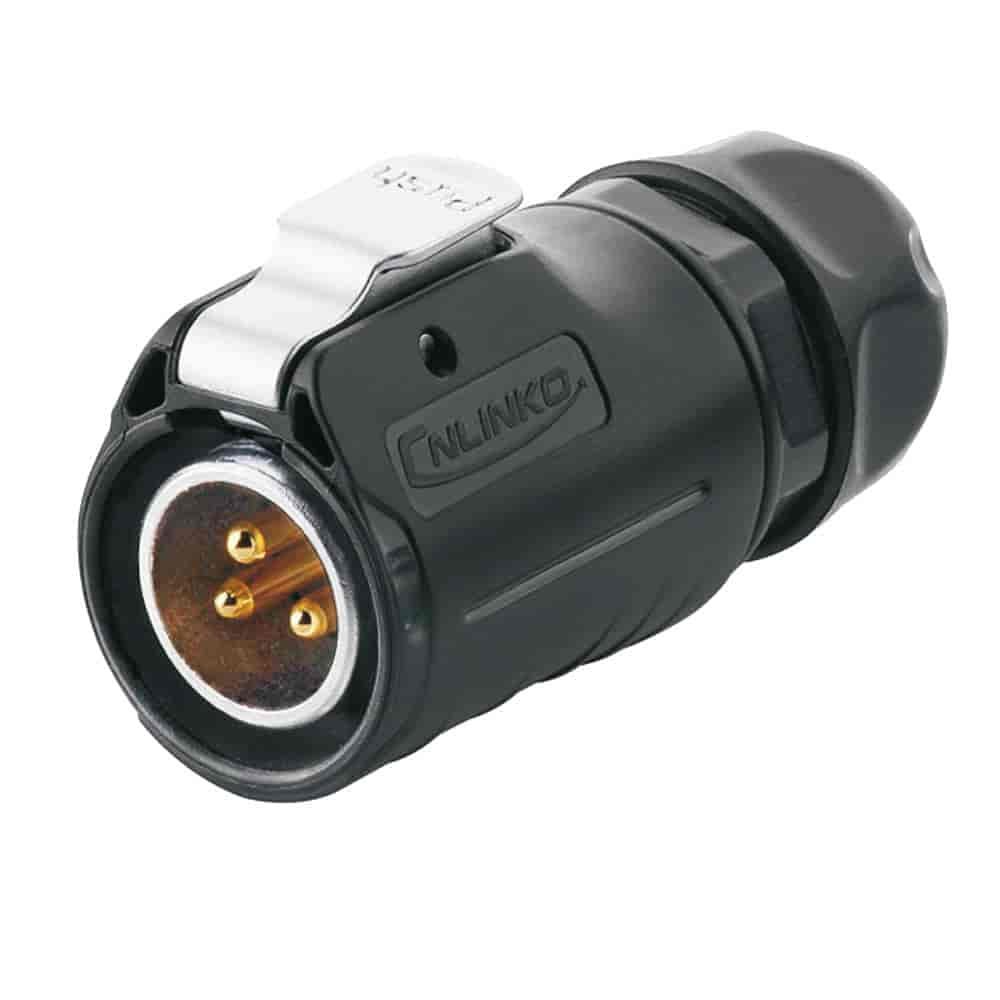

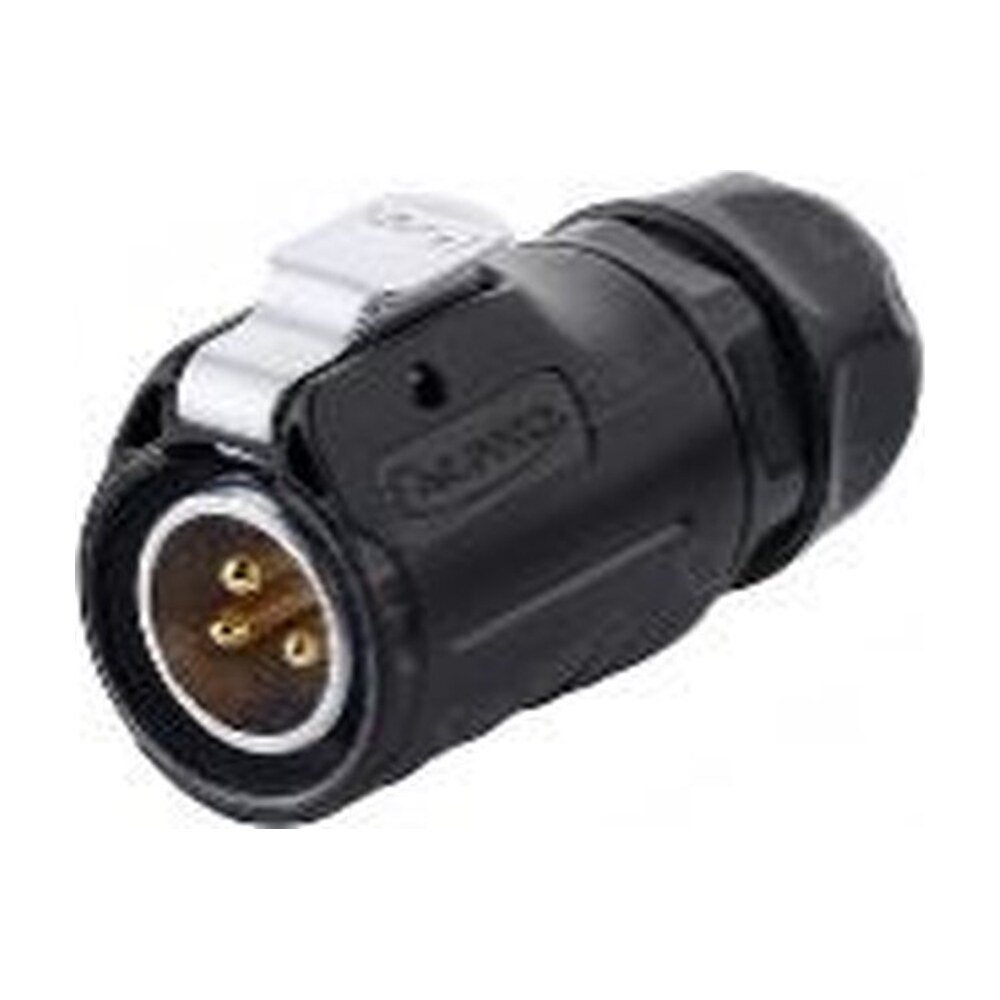

CNLinko LP-20 Series 3-Pin Male cable mount waterproof aviation connector. Rated 20A / 500V AC, IP68 / IPX9K sealing, ≥2000 times mating cycles.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
No stock, no problem. We build to your requirement and release it as your line calls for it.
Made to Order - typically 8-10 weeks
LP-20-C03PE-01-022
Specifications
Specifications sourced from CNLinko's official site (cnlinko.com), verified 2026-08-20.
| Part Number (SKU) | LP-20-C03PE-01-022 |
|---|---|
| Category | LP-20 Series |
| Weight | 0.2 lbs |
| Dimensions | 2.56 × 1.38 in |
| Model | LP-20 |
| Pin Count | 3 |
| Contacts | φ2.7mm x 3 |
| Wire Gauge | 12 AWG (2.5mm² max) |
| Cable Diameter Range | Φ10.0-Φ12.0mm |
| Rated Current | 20A |
| Rated Voltage | 500V AC |
| Withstand Voltage | 2000V AC |
| Contact Resistance | 1.0mΩ |
| Insulation Resistance | ≥500MΩ |
| Ingress Protection | IP68 / IPX9K |
| Durability | ≥2000 times |
| Operating Temperature | -25°C to +85°C (Plastic) / -40°C to +85°C (Metal) |
| Wiring Method | Soldering |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
