Part No. MR-M12-X8-17RJ

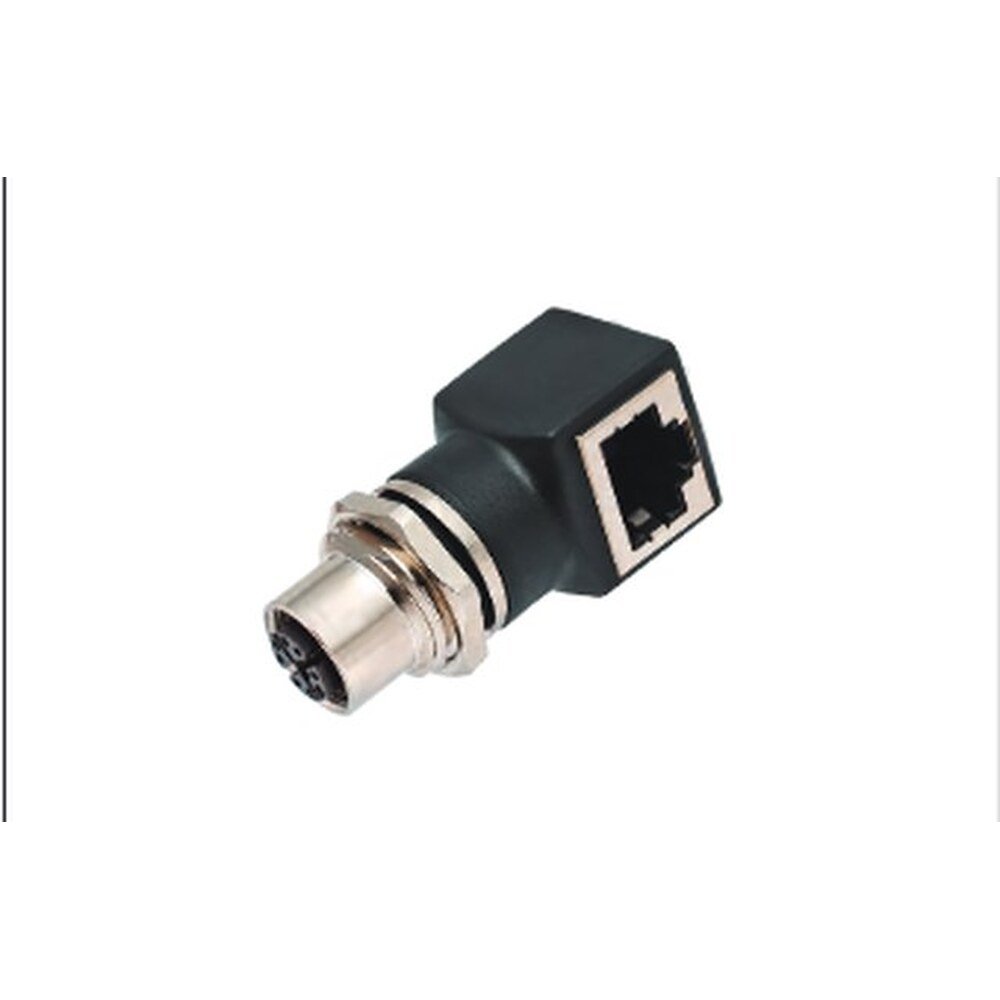

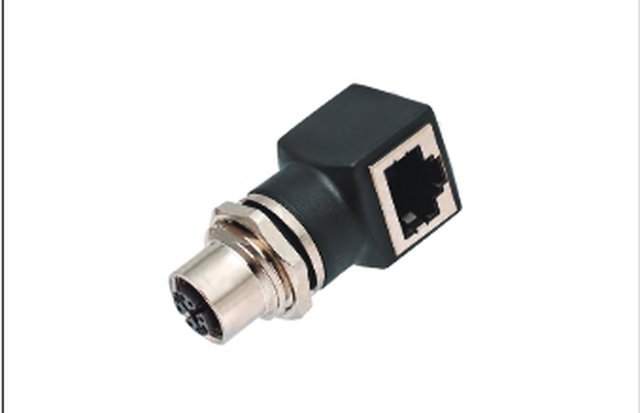

M12 8-Pin X-Coded Female to RJ45 Adapter, 90 Degree Angled, Screw M16x1.5

Made to Order - typically 8-10 weeks

M12 to RJ45 90° Angled Adapter — converts an M12 8-pin X-coded connection to standard RJ45 Ethernet through a 90-degree body that keeps the RJ45 cable flat against the panel.

M12 side: 8-Pin, X-Coding, Female
RJ45 side: standard 8P8C Ethernet jack
Body style: 90° angled
Coupling: M16 x 1.5 union nut

M12 8-Pin X-Coded Female to RJ45 Adapter, 90 Degree Angled, Screw M16x1.5

PDFProduct Drawing

Call for Pricing

Made to Order typically 8-10 weeks

Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales

This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.

Stocked items ship from our Brick, New Jersey facility. Made-to-order items ship after production.

Need volume, a custom length, or a cross-reference? Talk to our sales account representative.

Key Features

M12 x 1 mating interface, IEC 61076-2-109 style X-coded, wired straight-through to RJ45
90° body reduces clearance needed behind the panel for the RJ45 cable
M16 x 1.5 union nut for a secure cable-side coupling
Rated up to 60V, 0.5A per contact, 26-24 AWG (0.14-0.25mm²) wire range
Engineered to IP67 sealing when fully mated, consistent with the M12 circular connector standard
Keyed X-coding orientation prevents mismating with A/B/C/D-coded M12 connectors

Applications

Bridging standard Ethernet equipment to M12 industrial field wiring in space-constrained cabinets
Panel or cabinet feedthroughs between IT and OT network segments
Machine vision and sensor networks requiring Gigabit+ throughput

Made to order. Dimensions in technical drawing are nominal; contact us to confirm for critical-fit applications.

Part Number (SKU)	MR-M12-X8-17RJ
Category	M12 Series A, B, C, D Coded Connectors and Cables
Availability	Made to Order
Typical Lead Time	8-10 weeks

Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray

PDF MR-M12-X8-17RJ - Product DrawingOpens in a new tab

Stocked items ship from our Brick, New Jersey facility. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.

Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
