Single port shielded RJ45 jack with resistor and capacitor termination and bi-colour LEDs, side entry PCB jack.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Single port shielded RJ45 jack with resistor and capacitor termination and bi-colour LEDs, side entry PCB jack.
| Ports | 1 |
|---|---|
| Positions / contacts | 8P8C |
| Termination | R and C termination |
| LEDs | Yes - LED1 green / orange bi-colour, LED2 yellow |
| Signal pins | 6 |
| LED pins | 4 |
| Shielding | Shielded, 0.20 mm nickel plated copper alloy; top, bottom, left and right panel grounds |
| Contacts | 0.35 mm phosphor bronze, hard gold plated |
| Housing | PBT UL94V-0, black |
| Cavity | Conforms to FCC Rules Part 68 Subpart F |
| Mounting | THT right angle, side entry, tab up |
| Availability | Please call for pricing and availability |

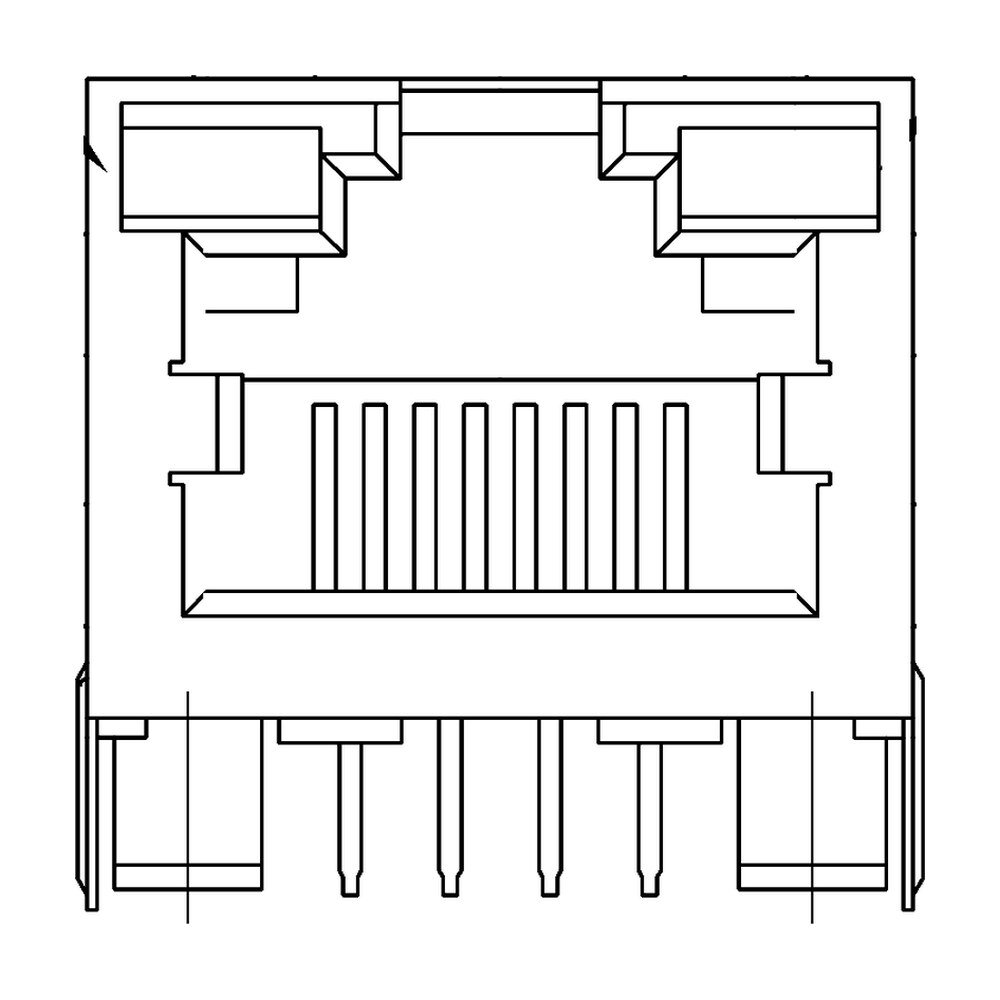

Specifications are taken from the Micro-Ray drawing for this part. Dimensions in millimetres.
| Part Number (SKU) | MR-9770 |
|---|---|
| Also ordered as | 9770-861X-S3L6T6-C |
| Category | RJ45 Jacks with Magnetics |
| Ports | 1 |
| Positions / contacts | 8P8C |
| Termination | R and C termination |
| LEDs | Yes - LED1 green / orange bi-colour, LED2 yellow |
| Signal pins | 6 |
| LED pins | 4 |
| Shielding | Shielded, 0.20 mm nickel plated copper alloy; top, bottom, left and right panel grounds |
| Contacts | 0.35 mm phosphor bronze, hard gold plated |
| Housing | PBT UL94V-0, black |
| Cavity | Conforms to FCC Rules Part 68 Subpart F |
| Mounting | THT right angle, side entry, tab up |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
