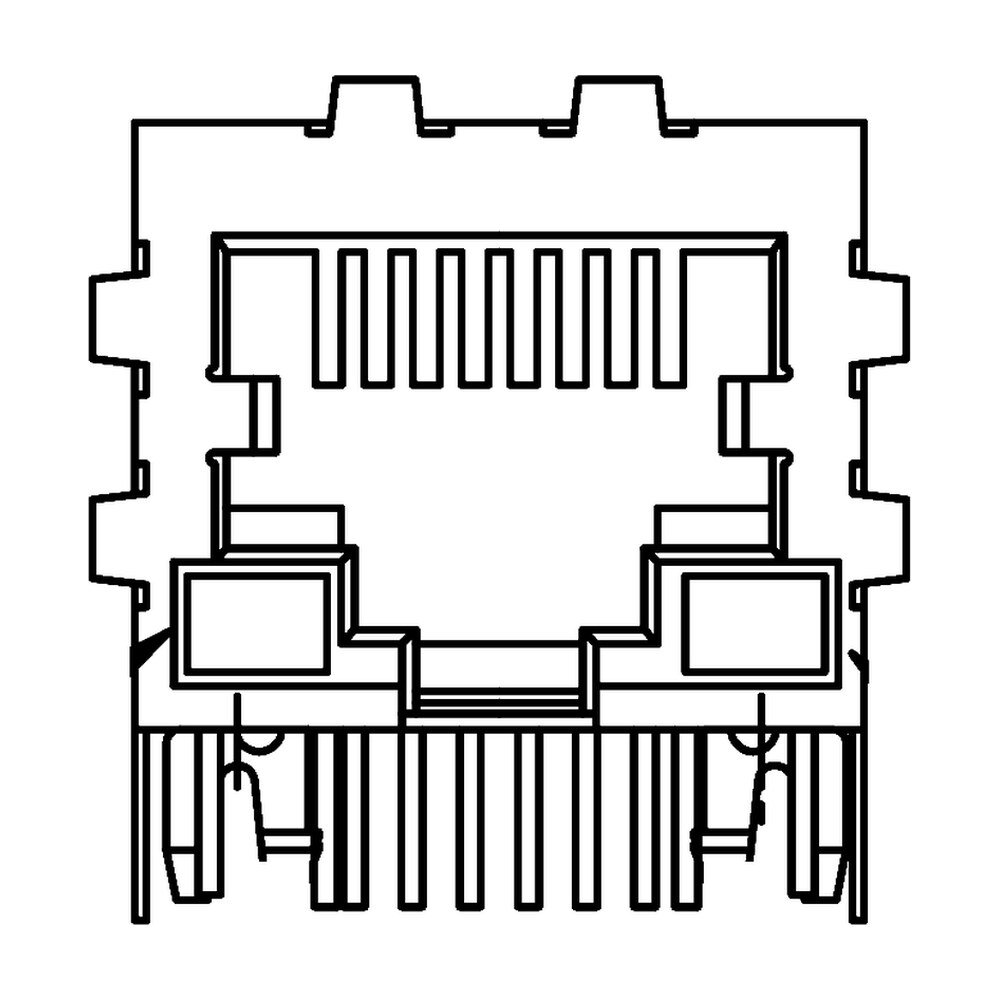

Single port shielded RJ45 jack with an integrated transformer and two LEDs, side entry PCB jack. LED1 green, LED2 yellow.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Single port shielded RJ45 jack with an integrated transformer and two LEDs, side entry PCB jack. LED1 green, LED2 yellow.
| Ports | 1 |
|---|---|
| Positions / contacts | 8P8C |
| Integrated magnetics | Yes |
| LEDs | Yes - LED1 green, LED2 yellow |
| Body size | 15.9 W x 21.2 D x 13.6 H |
| Signal pins | 8 |
| LED pins | 4 |
| Shielding | Shielded, 0.25 mm nickel plated copper alloy; left, right and top panel grounds optional |
| Mounting | THT right angle, side entry |
| Turns ratio | 1CT:1CT +/-3% |
| Open circuit inductance | 350 uH min at 100 kHz, 0.1 V, 8 mA DC bias |
| Insertion loss | -1.0 dB max, 1-100 MHz |
| Return loss | -20 dB min 1-30 MHz; -15 dB min 30-60 MHz |
| Crosstalk | -30 dB min, 1-100 MHz |
| Hipot | 1.5 kV rms |
| Availability | Please call for pricing and availability |
Specifications are taken from the Micro-Ray drawing for this part. Dimensions in millimetres.
| Part Number (SKU) | MR-9799-L1 |
|---|---|
| Also ordered as | 9799-882X-130D-L1TX-A |
| Category | RJ45 Jacks with Magnetics |
| Dimensions | 0.835 × 0.626 × 0.535 in |
| Ports | 1 |
| Positions / contacts | 8P8C |
| Integrated magnetics | Yes |
| LEDs | Yes - LED1 green, LED2 yellow |
| Body size | 15.9 W x 21.2 D x 13.6 H |
| Signal pins | 8 |
| LED pins | 4 |
| Shielding | Shielded, 0.25 mm nickel plated copper alloy; left, right and top panel grounds optional |
| Mounting | THT right angle, side entry |
| Turns ratio | 1CT:1CT +/-3% |
| Open circuit inductance | 350 uH min at 100 kHz, 0.1 V, 8 mA DC bias |
| Insertion loss | -1.0 dB max, 1-100 MHz |
| Return loss | -20 dB min 1-30 MHz; -15 dB min 30-60 MHz |
| Crosstalk | -30 dB min, 1-100 MHz |
| Hipot | 1.5 kV rms |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
