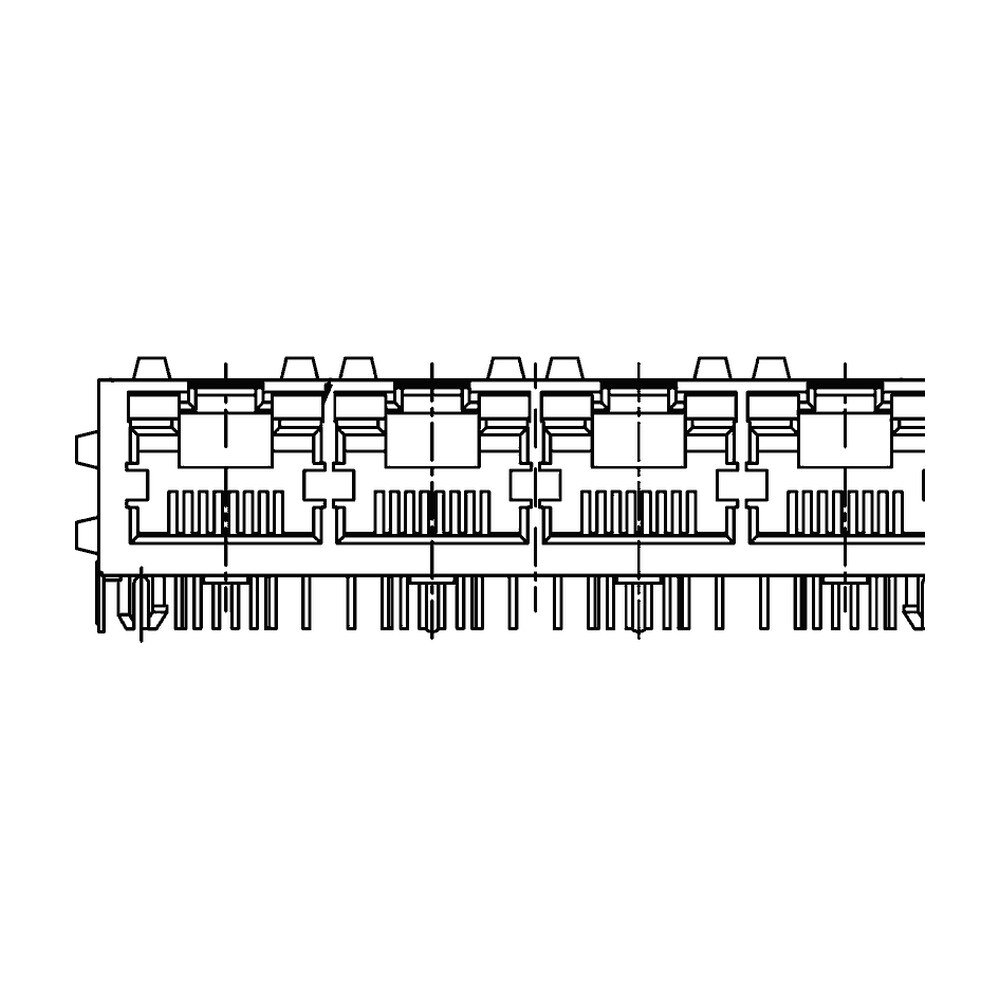

Four port ganged RJ45 jack with an integrated transformer and LEDs, DIP type, side entry.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Four port ganged RJ45 jack with an integrated transformer and LEDs, DIP type, side entry.
| Ports | 4 (1 x 4 ganged) |
|---|---|
| Positions / contacts | 8P8C |
| Integrated magnetics | Yes |
| LEDs | Yes - LED1 and LED2 per port, optional |
| Overall width | 59.10 mm |
| Port span | 53.34 mm |
| Port centres | 13.97 mm |
| Signal pins | 32 |
| LED pins | 16 |
| Shielding | Shielded, 0.20 mm nickel plated copper alloy; panel grounds optional all four sides |
| Mounting | THT DIP, side entry |
| Turns ratio | 1CT:1CT +/-3% |
| Open circuit inductance | 350 uH min at 100 kHz, 0.1 V, 8 mA DC bias |
| Insertion loss | -1.0 dB max, 1-100 MHz |
| Return loss | -20 dB min 1-30 MHz; -15 dB min 30-60 MHz |
| Crosstalk | -30 dB min, 1-100 MHz |
| Hipot | 1.5 kV rms |
| Availability | Please call for pricing and availability |
Specifications are taken from the Micro-Ray drawing for this part. Dimensions in millimetres.
| Part Number (SKU) | MR-9801 |
|---|---|
| Ports Available | 4 |
| Also ordered as | 9801-881X-442D-LXTX |
| Category | RJ45 Jacks with Magnetics |
| Ports | 4 (1 x 4 ganged) |
| Positions / contacts | 8P8C |
| Integrated magnetics | Yes |
| LEDs | Yes - LED1 and LED2 per port, optional |
| Overall width | 59.10 mm |
| Port span | 53.34 mm |
| Port centres | 13.97 mm |
| Signal pins | 32 |
| LED pins | 16 |
| Shielding | Shielded, 0.20 mm nickel plated copper alloy; panel grounds optional all four sides |
| Mounting | THT DIP, side entry |
| Turns ratio | 1CT:1CT +/-3% |
| Open circuit inductance | 350 uH min at 100 kHz, 0.1 V, 8 mA DC bias |
| Insertion loss | -1.0 dB max, 1-100 MHz |
| Return loss | -20 dB min 1-30 MHz; -15 dB min 30-60 MHz |
| Crosstalk | -30 dB min, 1-100 MHz |
| Hipot | 1.5 kV rms |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Parts we build to your requirement ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
