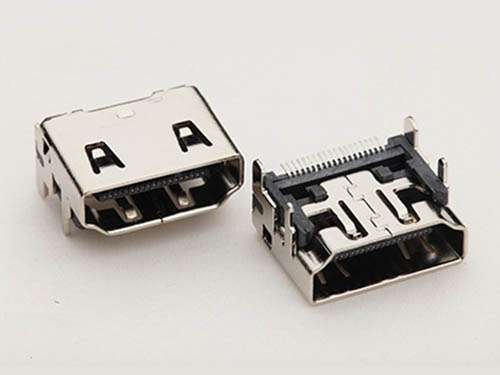

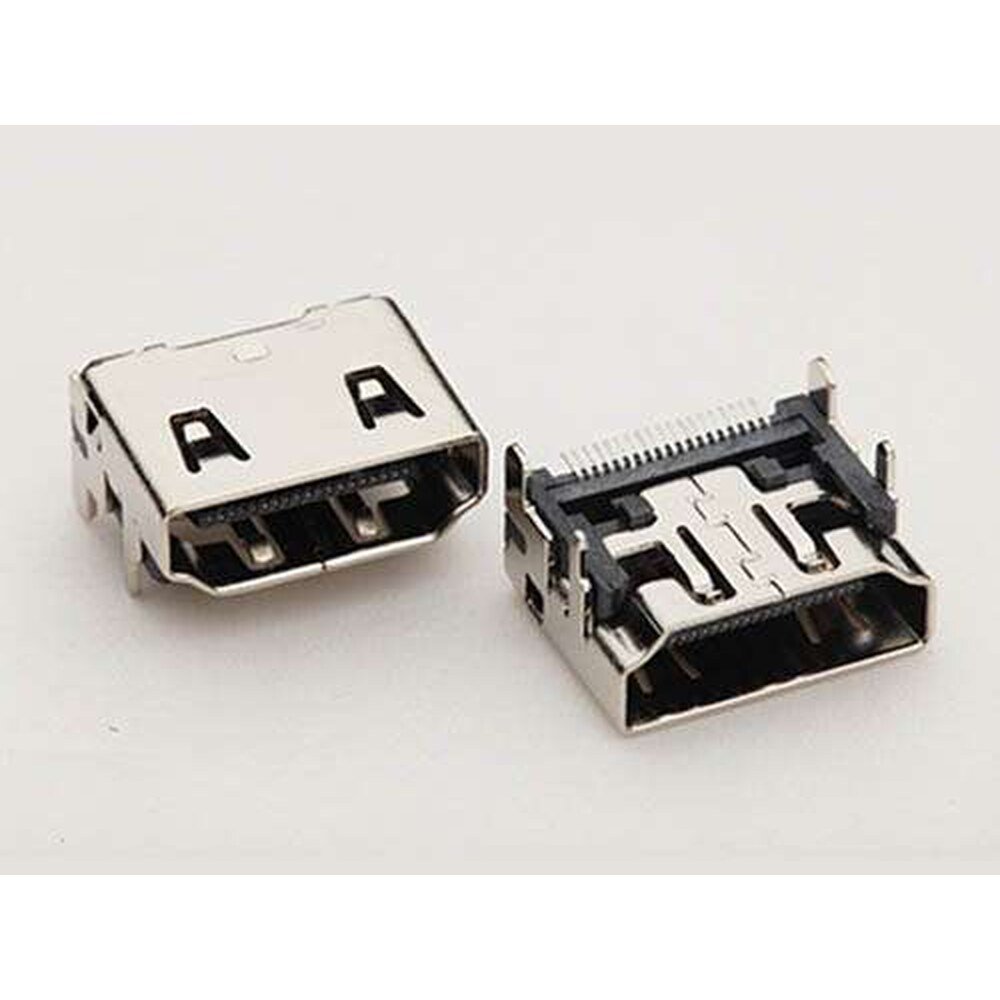

The MR-A111928-H-XX-R is an HDMI socket with a nickel-plated shell.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
No stock, no problem. We build to your requirement and release it as your line calls for it.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-A111928-H-XX-R is an HDMI socket with a nickel-plated shell.
HDMI is the 19-position interface used to carry uncompressed digital video and audio between source and display equipment. It appears in professional AV and broadcast hardware, digital signage, medical and industrial displays, kiosks, test equipment and control-room systems — anywhere a screen has to be driven from a separate box.
Micro-Ray supplies HDMI sockets in both surface-mount and through-hole versions, so the same interface can be carried across different board processes.
Shell plating affects contact resistance at the shield and how the connector holds up to repeated mating; the nickel-plated version is specified where that matters. The alternative plating is available under a related part number.
Dimensional detail and the recommended footprint are shown on the product drawing.
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| HDMI version | HDMI 1.4 |
|---|---|
| Connector type | A-Type |
| Mounting | On-board SMT type |
| Terminal type | SMT |
| Shell foot type | DIP |
| Shell material | SPCC OR Copper alloy |
| On-board height (mm) | 6.18 |
| Shell foot length (mm) | 2.25 |
| Total length (mm) | 11.87 |
| Centre height (mm) | 3.41 |
| Rating | 0.5A/40V |
| PCB reference thickness (mm) | 2 |
| Packing | REEL |
| Pieces per reel/tray | 300 |
| Pieces per box | 3000 |
| Gold plating available | 15u" |
| MOQ (Kpcs) | 30 |
| Part Number (SKU) | MR-A111928-H-XX-R |
|---|---|
| Positions Available | 19 |
| Also ordered as | A111928-E(FH)-XX-R |
| Category | HDMI Connector Sockets, (SMT) Surface mount, (DIP) Through Hole HDMI Jacks |
| Connector Type | Type A |
| HDMI Version | HDMI 1.4 |
| Mounting Style | On-board horizontal (right-angle) |
| Termination | Surface mount (SMT) |
| Shell Foot Type | Through-hole (DIP) |
| Shell Material | SPCC cold-rolled steel or copper alloy |
| Contact Gold Plating (available) | 15 µin |
| Voltage / Current Rating | 0.5 A / 40 V |
| On-Board Height | 6.18 mm |
| Shell Foot Length | 2.25 mm |
| Overall Length | 11.87 mm |
| Center Height | 3.41 mm |
| Reference PCB Thickness | 2 mm |
| Packing | Reel |
| Minimum Packing Quantity | 300 pcs per reel |
| Quantity per Carton | 3,000 pcs |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
