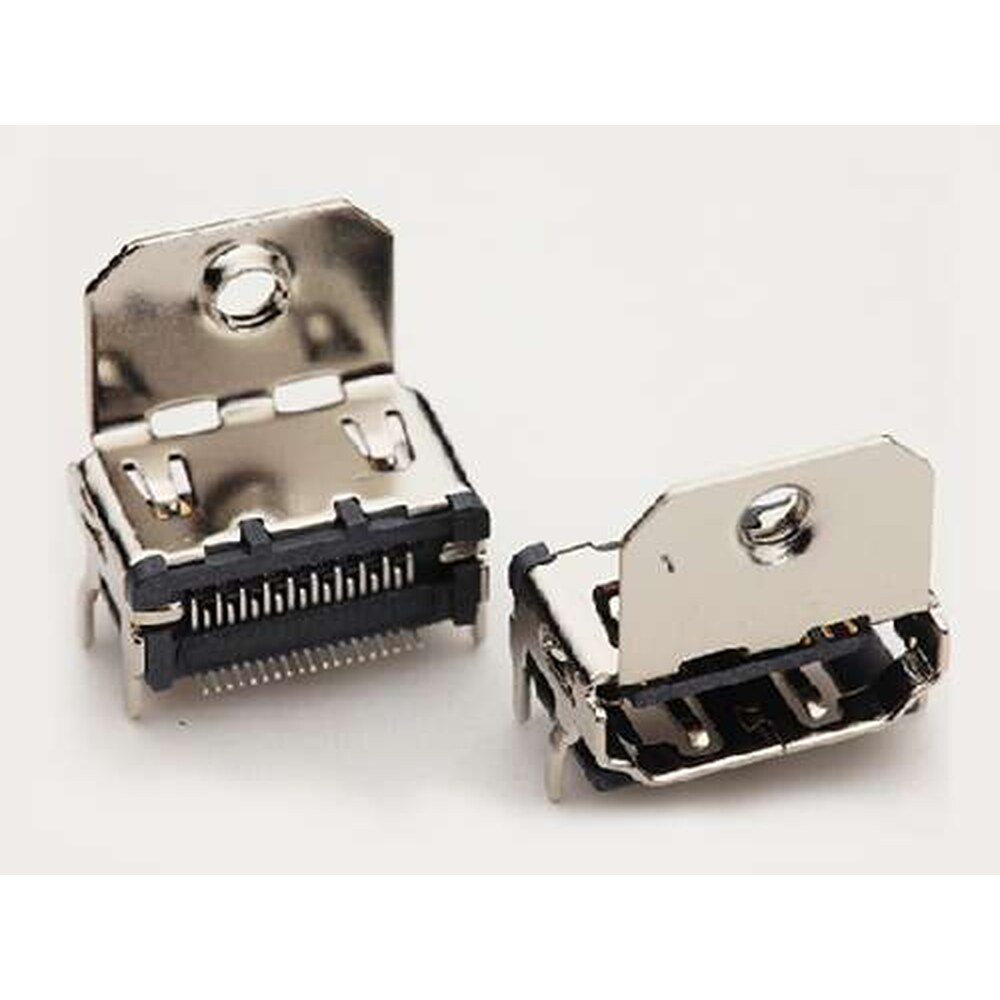

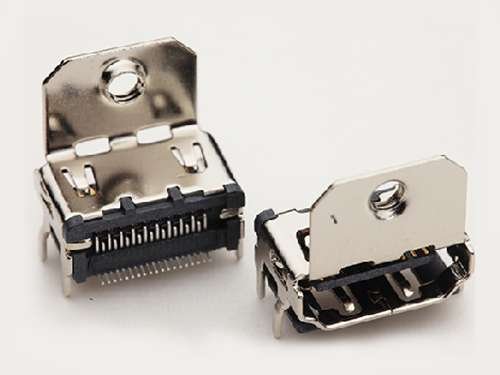

MR-A1119E1-D-XX-T - HDMI Socket, 19 Pin, Through-Hole (DIP), Panel Mount. HDMI Type A, 19 position.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
No stock, no problem. We build to your requirement and release it as your line calls for it.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-A1119E1-D-XX-T is an hDMI Socket, 19 Pin, Through-Hole (DIP), Panel Mount.
HDMI Type A is the 19-position interface used to carry uncompressed digital video and audio on a single cable between source and display equipment. It is the connector found on displays, projectors, capture cards, set-top boxes, media players and broadcast and professional AV hardware.
Through-hole mounting suits panel work and hand assembly, and gives a mechanically stronger joint than a surface-mount footprint where the connector takes repeated plugging.

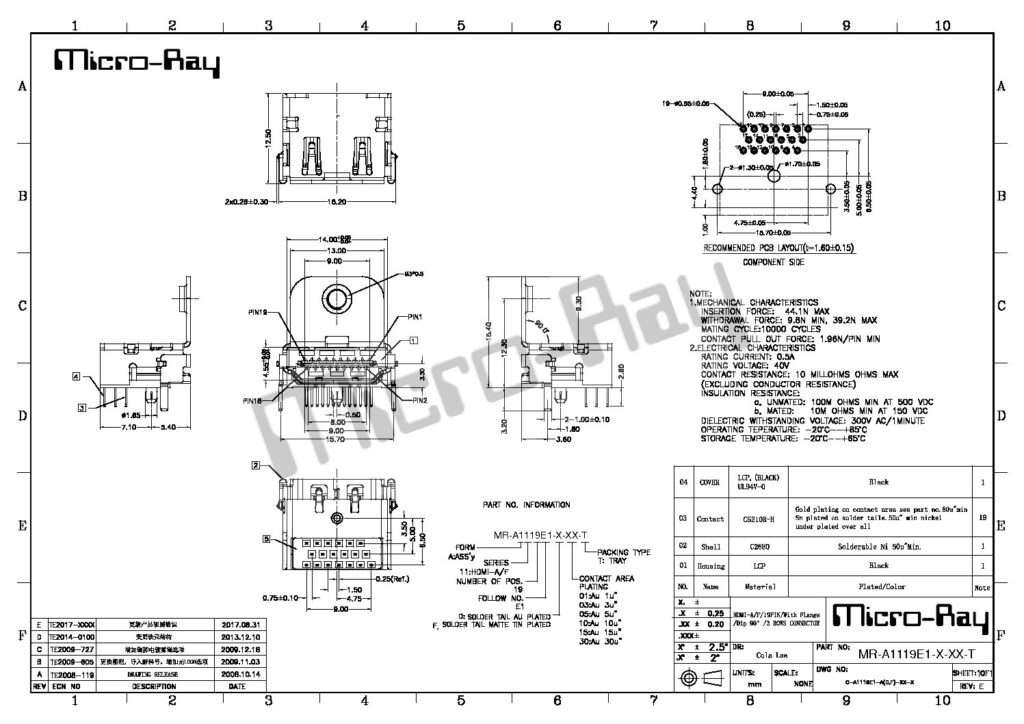

Specification
Please call for pricing and availability.
| HDMI version | HDMI 1.4 |
|---|---|
| Connector type | A-Type |
| Mounting | On-board SMT type (with screw hole) |
| Terminal type | DIP |
| Shell foot type | DIP |
| Shell material | Copper alloy |
| On-board height (mm) | 15.4 |
| Shell foot length (mm) | 3.2 |
| Total length (mm) | 12.5 |
| Centre height (mm) | 3.3 |
| Rating | 0.5A/40V |
| PCB reference thickness (mm) | 2 |
| Packing | TRAY |
| Pieces per reel/tray | 60 |
| Pieces per box | 1200 |
| Gold plating available | 1u" |
| MOQ (Kpcs) | 30 |
| Part Number (SKU) | MR-A1119E1-D-XX-T |
|---|---|
| Pins Available | 19 |
| Also ordered as | A1119E1-A(D, F)-XX-T |
| Category | HDMI Connector Sockets, (SMT) Surface mount, (DIP) Through Hole HDMI Jacks |
| Connector Type | Type A |
| HDMI Version | HDMI 1.4 |
| Mounting Style | On-board horizontal (right-angle), with screw holes |
| Termination | Through-hole (DIP) |
| Shell Foot Type | Through-hole (DIP) |
| Shell Material | Copper alloy |
| Contact Gold Plating (available) | 1 µin |
| Voltage / Current Rating | 0.5 A / 40 V |
| On-Board Height | 15.4 mm |
| Shell Foot Length | 3.2 mm |
| Overall Length | 12.5 mm |
| Center Height | 3.3 mm |
| Reference PCB Thickness | 2 mm |
| Packing | Tray |
| Minimum Packing Quantity | 60 pcs per tray |
| Quantity per Carton | 1,200 pcs |
| Connector | HDMI Type A socket |
| Circuits | 19 |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
