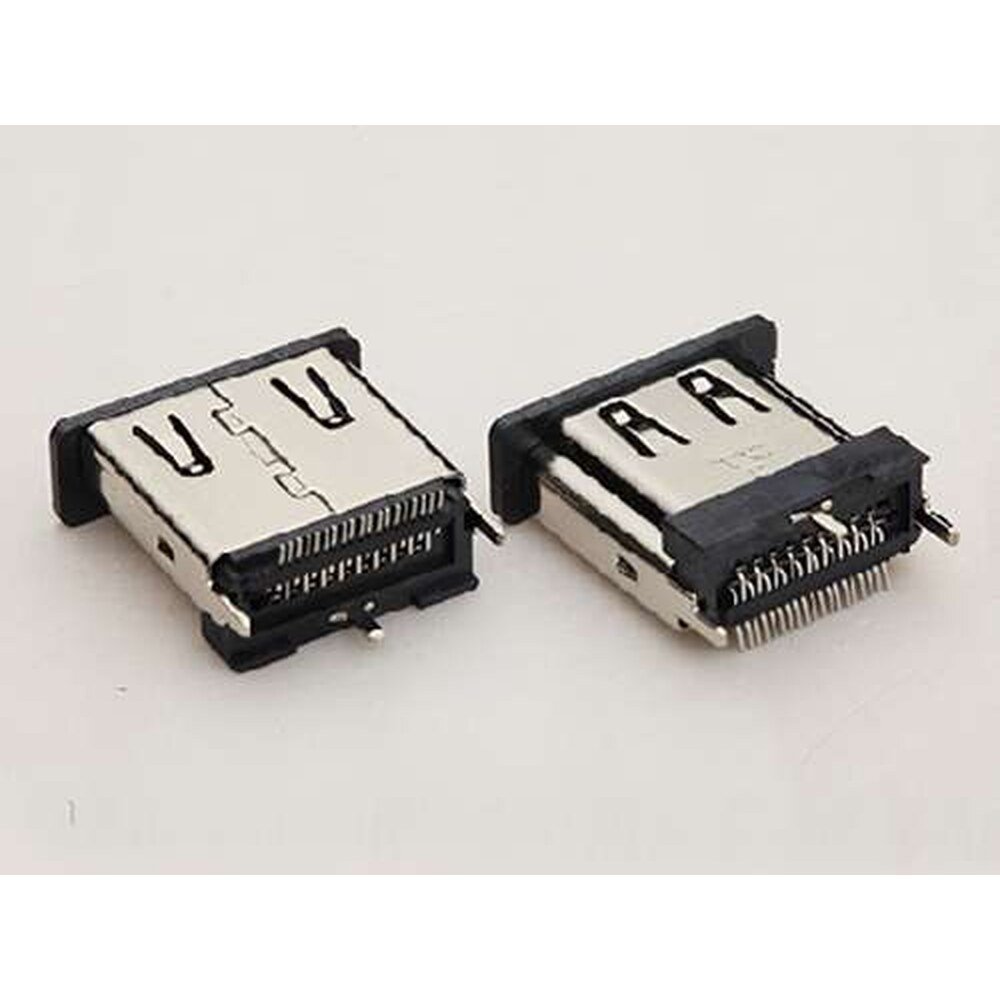

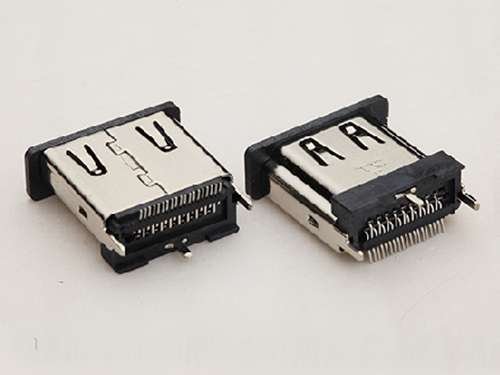

MR-A111947-F-03-R - HDMI Type A receptacle, 19 position.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-A111947-F-03-R is an HDMI Type A receptacle with the standard 19-position contact layout.
HDMI Type A is the 19-position interface that carries uncompressed digital video and audio on one cable between source and display equipment - displays, projectors, capture cards, set-top boxes, media players and professional AV hardware.
Specification
Mechanical detail. Mounting style, orientation, flange and packaging for this part are confirmed against the drawing at the time of quotation. Ask us and we will send it with the quote.
Please call for stock check or lead-time.
| HDMI version | HDMI 1.4 |
|---|---|
| Connector type | A-Type |
| Mounting | Vertial |
| Terminal type | SMT |
| Shell foot type | DIP |
| Shell material | Copper alloy |
| On-board height (mm) | 15 |
| Shell foot length (mm) | 1.9 |
| Total length (mm) | 16.9 |
| Rating | 0.5A/40V |
| PCB reference thickness (mm) | 1.6 |
| Packing | REEL |
| Pieces per reel/tray | 200 |
| Pieces per box | 1600 |
| Gold plating available | 3u"/15u" |
| MOQ (Kpcs) | 30 |
| Part Number (SKU) | MR-A111947-F-03-R |
|---|---|
| Pins Available | 19 |
| Also ordered as | A111947-F-XX-R |
| Category | HDMI Connector Sockets, (SMT) Surface mount, (DIP) Through Hole HDMI Jacks |
| Connector Type | Type A |
| HDMI Version | HDMI 1.4 |
| Mounting Style | Vertical (upright) |
| Termination | Surface mount (SMT) |
| Shell Foot Type | Through-hole (DIP) |
| Shell Material | Copper alloy |
| Contact Gold Plating | 3 µin |
| Voltage / Current Rating | 0.5 A / 40 V |
| On-Board Height | 15 mm |
| Shell Foot Length | 1.9 mm |
| Overall Length | 16.9 mm |
| Reference PCB Thickness | 1.6 mm |
| Packing | Reel |
| Minimum Packing Quantity | 200 pcs per reel |
| Quantity per Carton | 1,600 pcs |
| Connector | HDMI Type A receptacle |
| Circuits | 19 |
| Series | MR-A111947 |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
