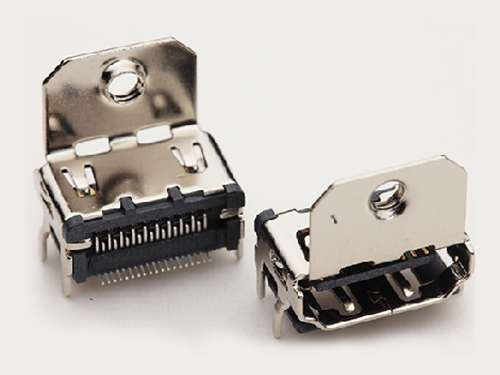

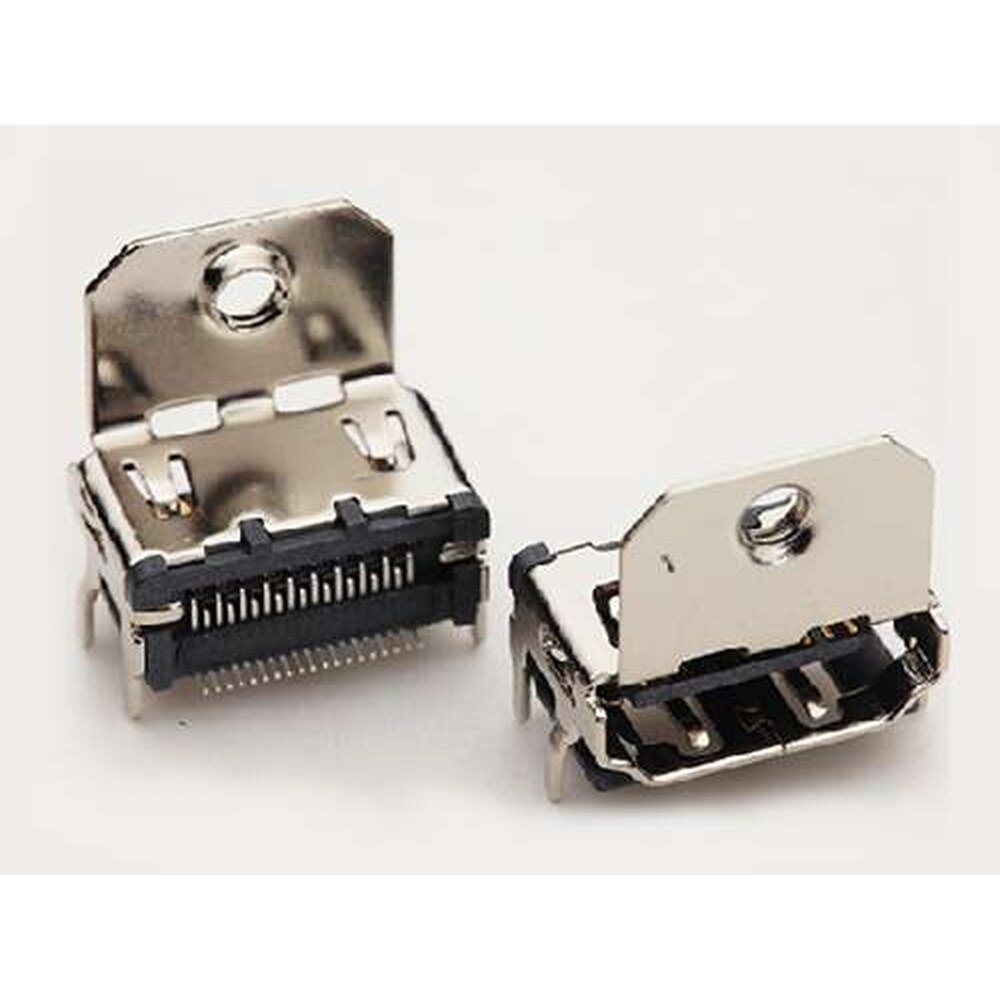

MR-A111989-9-15-T - HDMI Type A receptacle, 19 position.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
No stock, no problem. We build to your requirement and release it as your line calls for it.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-A111989-9-15-T is an HDMI Type A receptacle with the standard 19-position contact layout.
HDMI Type A is the 19-position interface that carries uncompressed digital video and audio on one cable between source and display equipment - displays, projectors, capture cards, set-top boxes, media players and professional AV hardware.
Specification
Mechanical detail. Mounting style, orientation, flange and packaging for this part are confirmed against the drawing at the time of quotation. Ask us and we will send it with the quote.
Please call for pricing and availability.
| HDMI version | HDMI 1.4 |
|---|---|
| Connector type | A-Type |
| Mounting | On-board SMT type (with screw hole) |
| Terminal type | SMT |
| Shell foot type | DIP |
| Shell material | Copper alloy |
| On-board height (mm) | 15.63 |
| Shell foot length (mm) | 1.95 |
| Total length (mm) | 10.1 |
| Centre height (mm) | 3.41 |
| Rating | 0.5A/40V |
| PCB reference thickness (mm) | 1.6 |
| Packing | TRAY |
| Pieces per reel/tray | 60 |
| Pieces per box | 1200 |
| Gold plating available | 15u" |
| MOQ (Kpcs) | 30 |
| Part Number (SKU) | MR-A111989-9-15-T |
|---|---|
| Pins Available | 19 |
| Also ordered as | A111989-9-XX-T |
| Category | HDMI Connector Sockets, (SMT) Surface mount, (DIP) Through Hole HDMI Jacks |
| Connector Type | Type A |
| HDMI Version | HDMI 1.4 |
| Mounting Style | On-board horizontal (right-angle), with screw holes |
| Termination | Surface mount (SMT) |
| Shell Foot Type | Through-hole (DIP) |
| Shell Material | Copper alloy |
| Contact Gold Plating | 15 µin |
| Voltage / Current Rating | 0.5 A / 40 V |
| On-Board Height | 15.63 mm |
| Shell Foot Length | 1.95 mm |
| Overall Length | 10.1 mm |
| Center Height | 3.41 mm |
| Reference PCB Thickness | 1.6 mm |
| Packing | Tray |
| Minimum Packing Quantity | 60 pcs per tray |
| Quantity per Carton | 1,200 pcs |
| Connector | HDMI Type A receptacle |
| Circuits | 19 |
| Series | MR-A111989 |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |
