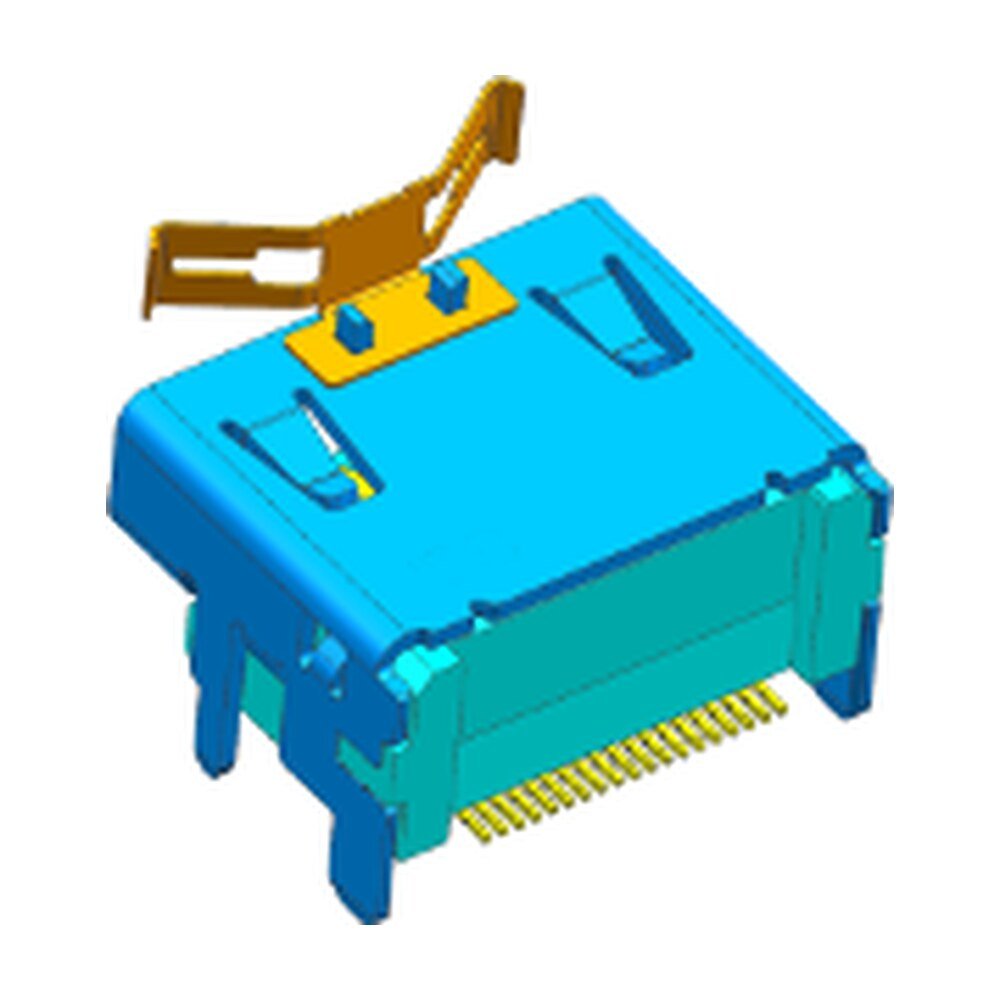

MR-A111922-3-XX-T - HDMI Receptacle, 19 Pin, with Top Front Grounding Spring. HDMI Type A, 19 position.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
No stock, no problem. We build to your requirement and release it as your line calls for it.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-A111922-3-XX-T is an hDMI Receptacle, 19 Pin, with Top Front Grounding Spring.
HDMI Type A is the 19-position interface used to carry uncompressed digital video and audio on a single cable between source and display equipment. It is the connector found on displays, projectors, capture cards, set-top boxes, media players and broadcast and professional AV hardware.
The top front grounding spring bears on the mating plug shell as it enters, holding the shield connection before the signal contacts engage.
Specification
Please call for pricing and availability.
| HDMI version | HDMI 1.4 |
|---|---|
| Connector type | A-Type |
| Mounting | On-board SMT type (with shrapnel) |
| Terminal type | SMT |
| Shell foot type | DIP |
| Shell material | Copper alloy |
| On-board height (mm) | 8.98 |
| Shell foot length (mm) | 1.95 |
| Total length (mm) | 13.55 |
| Centre height (mm) | 3.41 |
| Rating | 0.5A/40V |
| PCB reference thickness (mm) | 1.6 |
| Packing | REEL |
| Pieces per reel/tray | 350 |
| Pieces per box | 2800 |
| Gold plating available | 3u"/15u" |
| MOQ (Kpcs) | 30 |
| Part Number (SKU) | MR-A111922-3-XX-T |
|---|---|
| Pins Available | 19 |
| Also ordered as | A111922-2(3)-XX-R |
| Category | HDMI Connector Sockets, (SMT) Surface mount, (DIP) Through Hole HDMI Jacks |
| Connector Type | Type A |
| HDMI Version | HDMI 1.4 |
| Mounting Style | On-board horizontal (right-angle), with grounding spring |
| Termination | Surface mount (SMT) |
| Shell Foot Type | Through-hole (DIP) |
| Shell Material | Copper alloy |
| Contact Gold Plating (available) | 3 or 15 µin |
| Voltage / Current Rating | 0.5 A / 40 V |
| On-Board Height | 8.98 mm |
| Shell Foot Length | 1.95 mm |
| Overall Length | 13.55 mm |
| Center Height | 3.41 mm |
| Reference PCB Thickness | 1.6 mm |
| Packing | Reel |
| Minimum Packing Quantity | 350 pcs per reel |
| Quantity per Carton | 2,800 pcs |
| Connector | HDMI Type A receptacle |
| Circuits | 19 |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for lead-time |

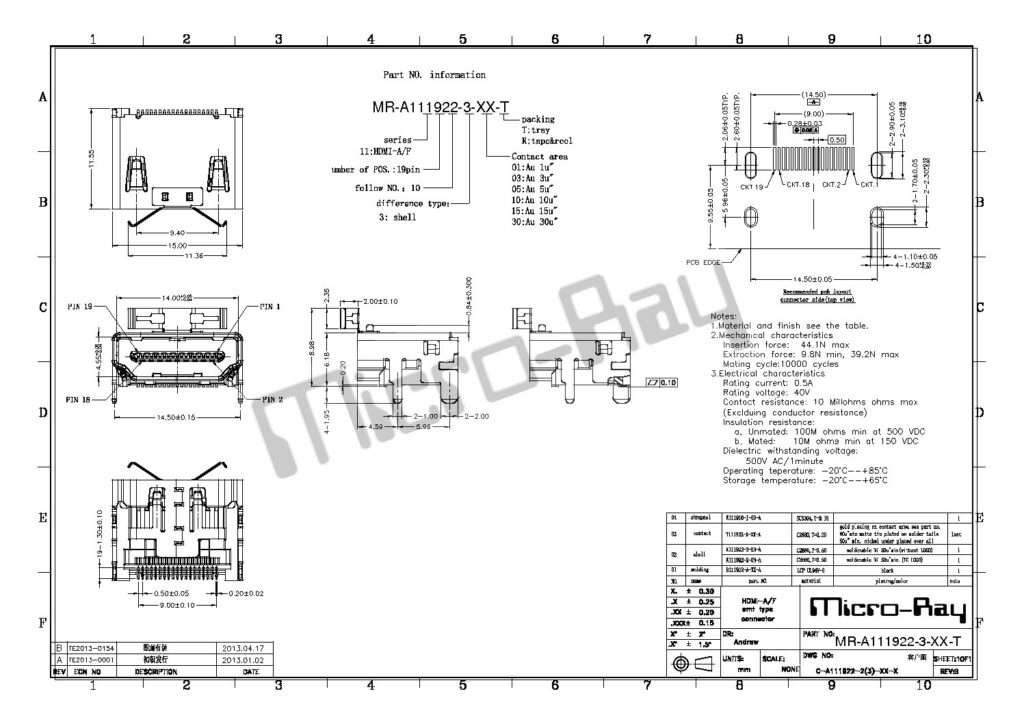

Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
