Part No. MR-A2004

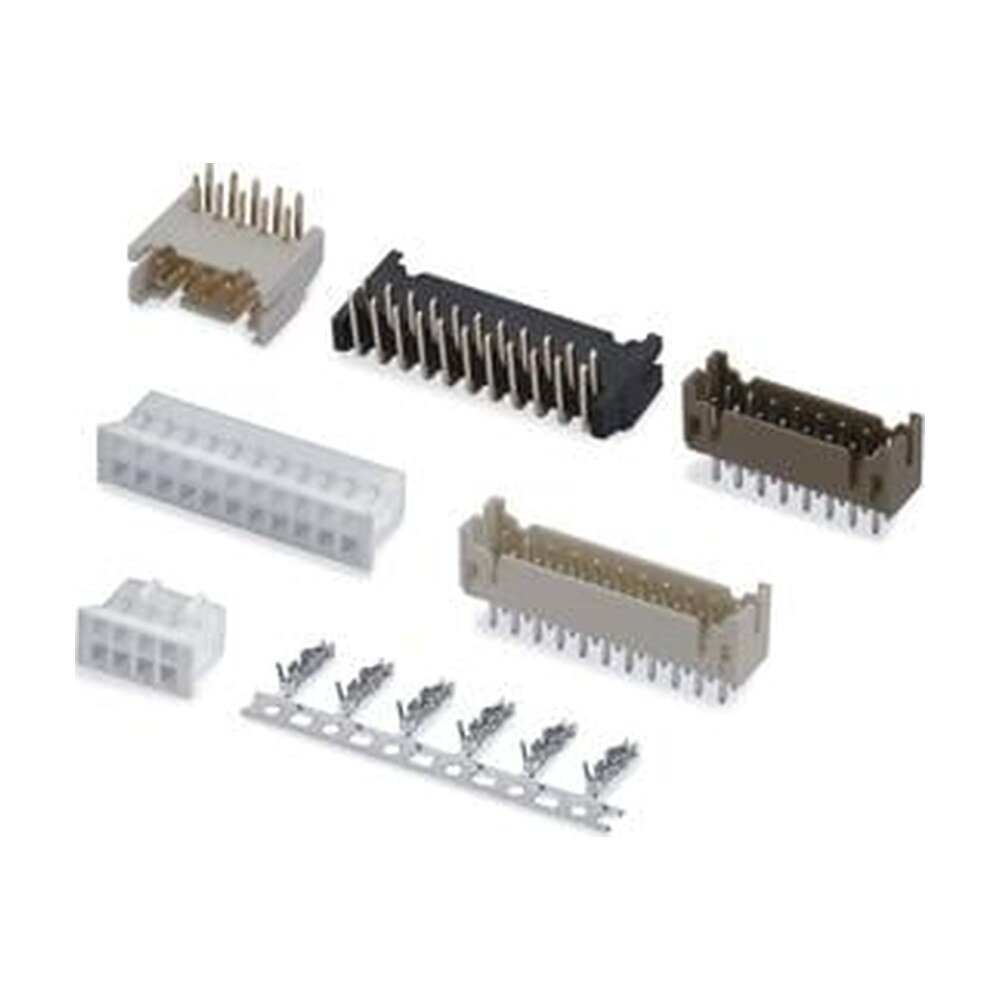

JST PHD Equivalent Wire-to-Board Connector MR-A2004 (2.00mm Pitch)

Name: JST PHD Equivalent Wire-to-Board Connector MR-A2004 (2.00mm Pitch)
Brand: Micro-Ray Electronics
SKU: MR-A2004

Made to Order - typically 8-10 weeks

Micro-Ray MR-A2004 2.00mm Pitch Wire-to-Board Connector – a form-, fit- and function-equivalent replacement for the JST PHD series, with 43 cross-referenced part numbers.

PDFProduct Drawing

Call for Pricing

Made to Order typically 8-10 weeks

Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales

Request a Quote

This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.

Stocked items ship from our Brick, New Jersey facility. Made-to-order items ship after production.

Need volume, a custom length, or a cross-reference? Talk to our sales account representative.

The Micro-Ray MR-A2004 2.00mm Pitch Wire-to-Board Connector is a form-, fit- and function-equivalent replacement for the JST PHD series.

All 43 part numbers cross-reference directly — see the full JST PHD cross reference. Built to Micro-Ray quality standards for reliable signal and power transmission.

Features & Benefits:

JST PHD Equivalent – Direct replacement, 43 cross-referenced part numbers
2.00mm Pitch – Precision-matched footprint
Micro-Ray Quality – Precision-made for consistent performance

Applications:

Wire-to-board interconnects
PCB assemblies

Part Number (SKU)	MR-A2004
Category	2.00mm Pitch JST-equivalent, JST PHD
Availability	Made to Order
Typical Lead Time	8-10 weeks

Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray

Part numbers and JST cross-reference

Micro-Ray part numbers with their JST equivalents (JST JST PHD series). These are equivalent parts, not JST product. JST part numbers are shown for cross-reference only.

Open the full JST PHD cross-reference page ›

MR-A2004H series (8–34 circuits)

Circuits	Micro-Ray P/N	JST P/N
8	MR-A2004H-208-N0NA-A	PHDR-08VS
10	MR-A2004H-210-N0NA-A	PHDR-10VS
12	MR-A2004H-212-N0NA-A	PHDR-12VS
14	MR-A2004H-214-N0NA-A	PHDR-14VS
16	MR-A2004H-216-N0NA-A	PHDR-16VS
18	MR-A2004H-218-N0NA-A	PHDR-18VS
20	MR-A2004H-220-N0NA-A	PHDR-20VS
22	MR-A2004H-222-N0NA-A	PHDR-22VS
24	MR-A2004H-224-N0NA-A	PHDR-24VS
26	MR-A2004H-226-N0NA-A	PHDR-26VS
28	MR-A2004H-228-N0NA-A	PHDR-28VS
30	MR-A2004H-230-N0NA-A	PHDR-30VS
32	MR-A2004H-232-N0NA-A	PHDR-32VS
34	MR-A2004H-234-N0NA-A	PHDR-34VS
Terminal	MR-A2004TF-PT1A / A2004TF-PT1B	SPHD-002T-P0.5 / SPHD-001T-P0.5

MR-A2004WV series (8–34 circuits)

Circuits	Micro-Ray P/N	JST P/N
8	MR-A2004WV-208-N0BKT	B8B-PHDSS
10	MR-A2004WV-210-N0BKT	B10B-PHDSS
12	MR-A2004WV-212-N0BKT	B12B-PHDSS
14	MR-A2004WV-214-N0BKT	B14B-PHDSS
16	MR-A2004WV-216-N0BKT	B16B-PHDSS
18	MR-A2004WV-218-N0BKT	B18B-PHDSS
20	MR-A2004WV-220-N0BKT	B20B-PHDSS
22	MR-A2004WV-222-N0BKT	B22B-PHDSS
24	MR-A2004WV-224-N0BKT	B24B-PHDSS
26	MR-A2004WV-226-N0BKT	B26B-PHDSS
28	MR-A2004WV-228-N0BKT	B28B-PHDSS
30	MR-A2004WV-230-N0BKT	B30B-PHDSS
32	MR-A2004WV-232-N0BKT	B32B-PHDSS
34	MR-A2004WV-234-N0BKT	B34B-PHDSS

MR-A2004WR series (8–34 circuits)

Circuits	Micro-Ray P/N	JST P/N
8	MR-A2004WR-208-N0BKT	S8B-PHDSS
10	MR-A2004WR-210-N0BKT	S10B-PHDSS
12	MR-A2004WR-212-N0BKT	S12B-PHDSS
14	MR-A2004WR-214-N0BKT	S14B-PHDSS
16	MR-A2004WR-216-N0BKT	S16B-PHDSS
18	MR-A2004WR-218-N0BKT	S18B-PHDSS
20	MR-A2004WR-220-N0BKT	S20B-PHDSS
22	MR-A2004WR-222-N0BKT	S22B-PHDSS
24	MR-A2004WR-224-N0BKT	S24B-PHDSS
26	MR-A2004WR-226-N0BKT	S26B-PHDSS
28	MR-A2004WR-228-N0BKT	S28B-PHDSS
30	MR-A2004WR-230-N0BKT	S30B-PHDSS
32	MR-A2004WR-232-N0BKT	S32B-PHDSS
34	MR-A2004WR-234-N0BKT	S34B-PHDSS

PDF MR-A2004 - Product DrawingOpens in a new tab

Stocked items ship from our Brick, New Jersey facility. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.

Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.

Contact Micro-Ray Sales
