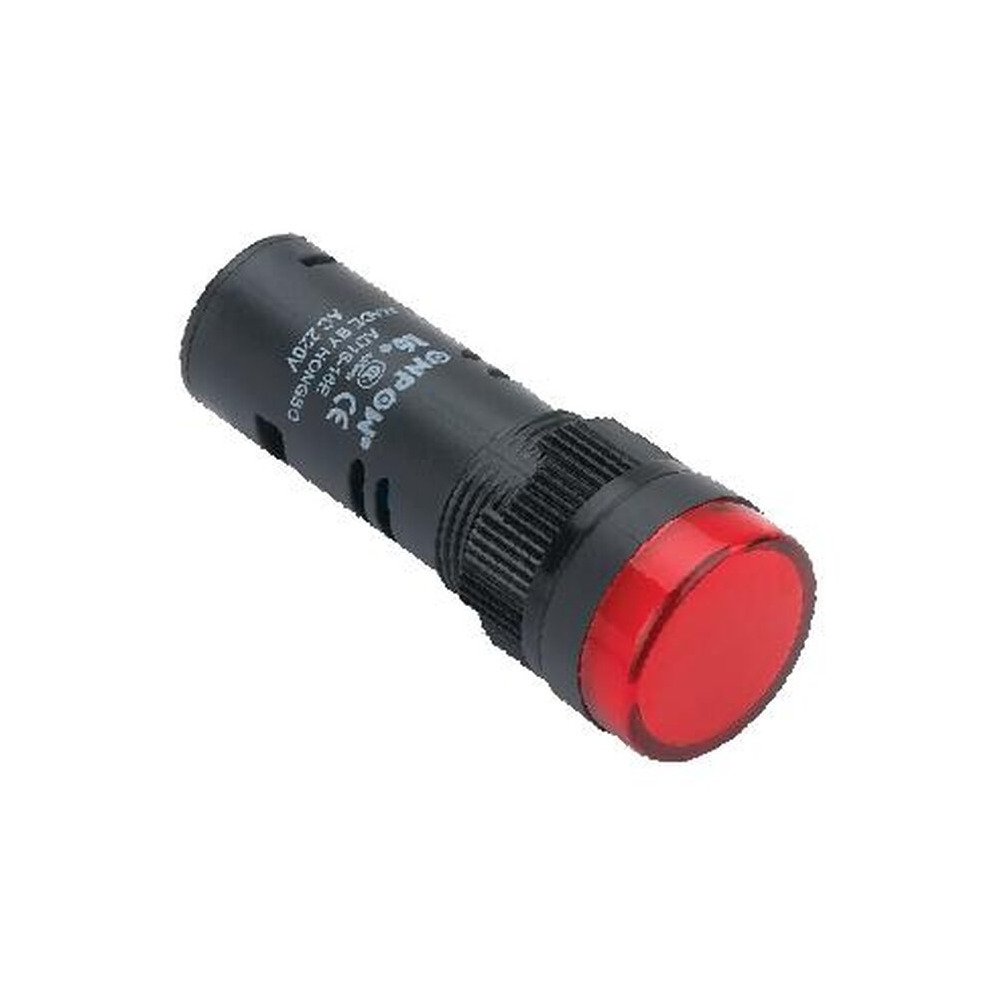

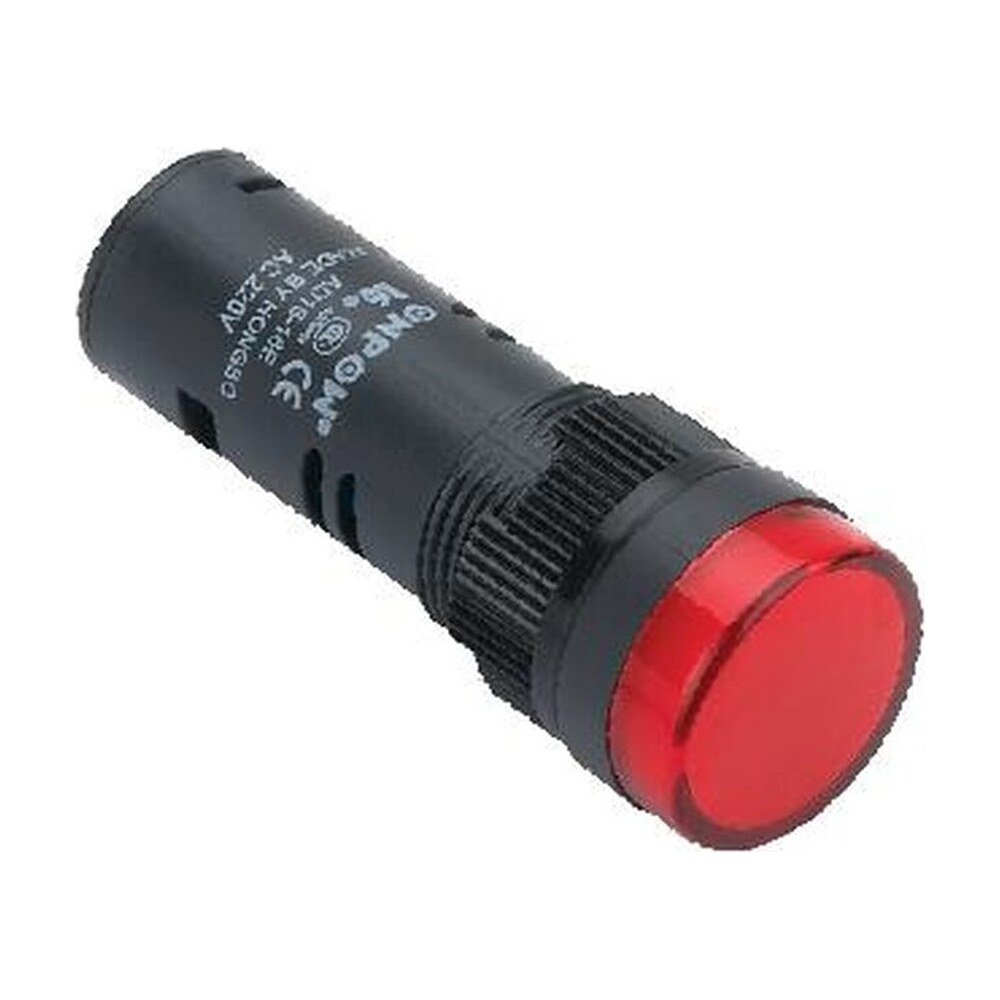

MR-AD16-16E - ×16 mm Pilot Indicator - Screw Terminals, Shock-Proof.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-AD16-16E is a 16 mm LED pilot indicator with a polycarbonate lens and screw terminals, AC/DC or AC.
Ordering. The ordering code is MR-AD16-16E-X-X: each X is replaced by the option you need - led colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White); voltage (6V = AC/DC 6 V, 12V = AC/DC 12 V, 24V = AC/DC 24 V, 110V = AC/DC 110 V, 220V = AC/DC 220 V, 380V = AC/DC 380 V, AC110V = AC 110 V, AC220V = AC 220 V, AC380V = AC 380 V). The part numbers are listed below.
Still being confirmed. The protection class is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-AD16-16E |
|---|---|
| Also ordered as | AD16-16E |
| Category | Indicator Lights, Switches |
| Ordering code | MR-AD16-16E-X-X |
| Series | AD16 pilot indicators |
| Type | Pilot indicator, LED |
| Operating environment | −25 °C to +55 °C, altitude below 2000 m |
| Lamp type | LED |
| LED life | 40,000 hours min |
| Voltage fluctuation | ±20 % (110 V and above) |
| Rated impulse withstand voltage | 2.5 kV (AC RMS), 1 min |
| Frequency (AC) | 50 Hz to 60 Hz |
| Rated current | 20 mA max |
| Brightness | 100 cd/m² min |
| Comparative tracking index | CTI 100 min |
| Insulation resistance | 5 MΩ (Ui up to 60 V), 50 MΩ (60 V to 660 V) |
| AC frequency | AC types 50 Hz to 60 Hz only |
| Anti-interference type | Starting voltage 35 V to 45 V; higher starting voltage to order |
| Circuit | Built-in resistor on AC/DC types; capacitor on AC types |
| Connection note | Use a 2.5 × 0.8 mm plug with protective cover where possible; if soldering, iron below 30 W and within 3 s |
| Lens material | High-strength polycarbonate |
| Mounting hole | Ø16 mm |
| Bezel | Ø19 mm |
| Panel thickness | 5 mm max |
| Head length | 9.3 mm |
| Body length behind panel | 39.2 mm |
| Terminals | Screw terminals; Anti-electric-shock terminal structure |
| Availability | Please call for pricing and availability |
