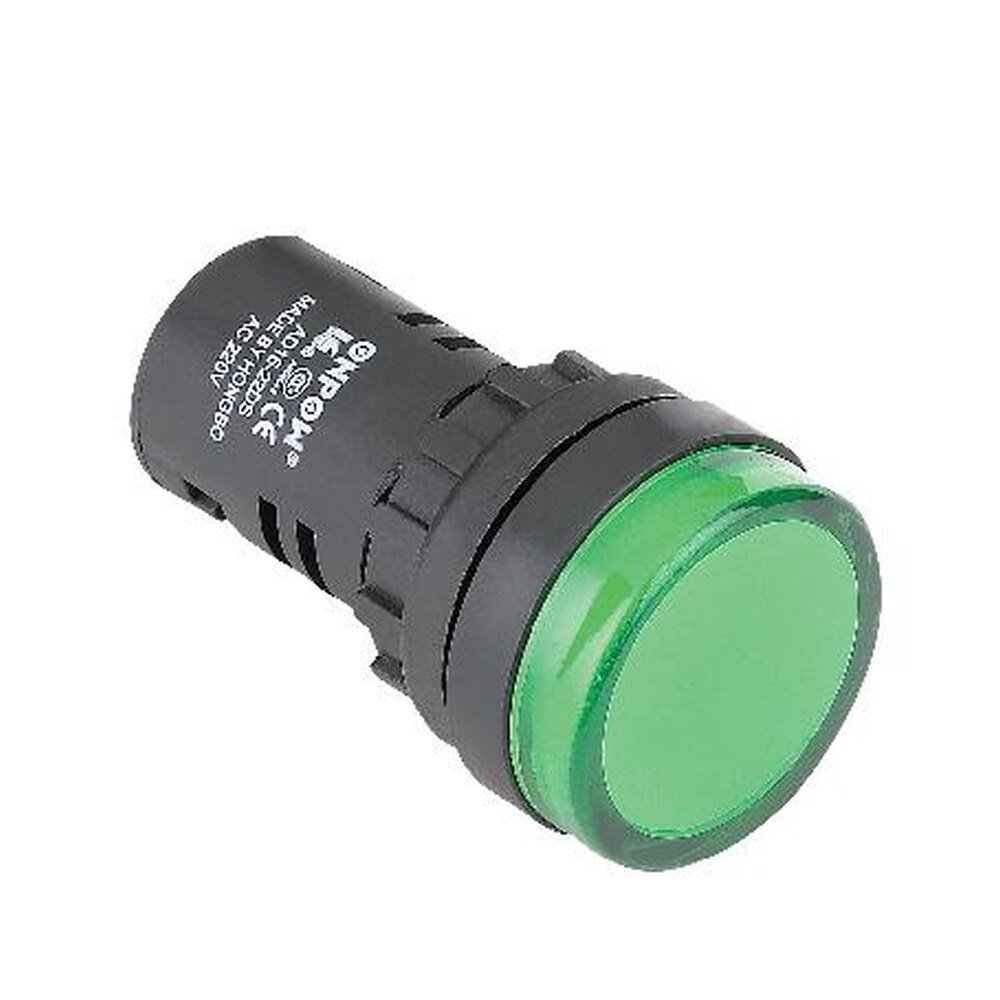

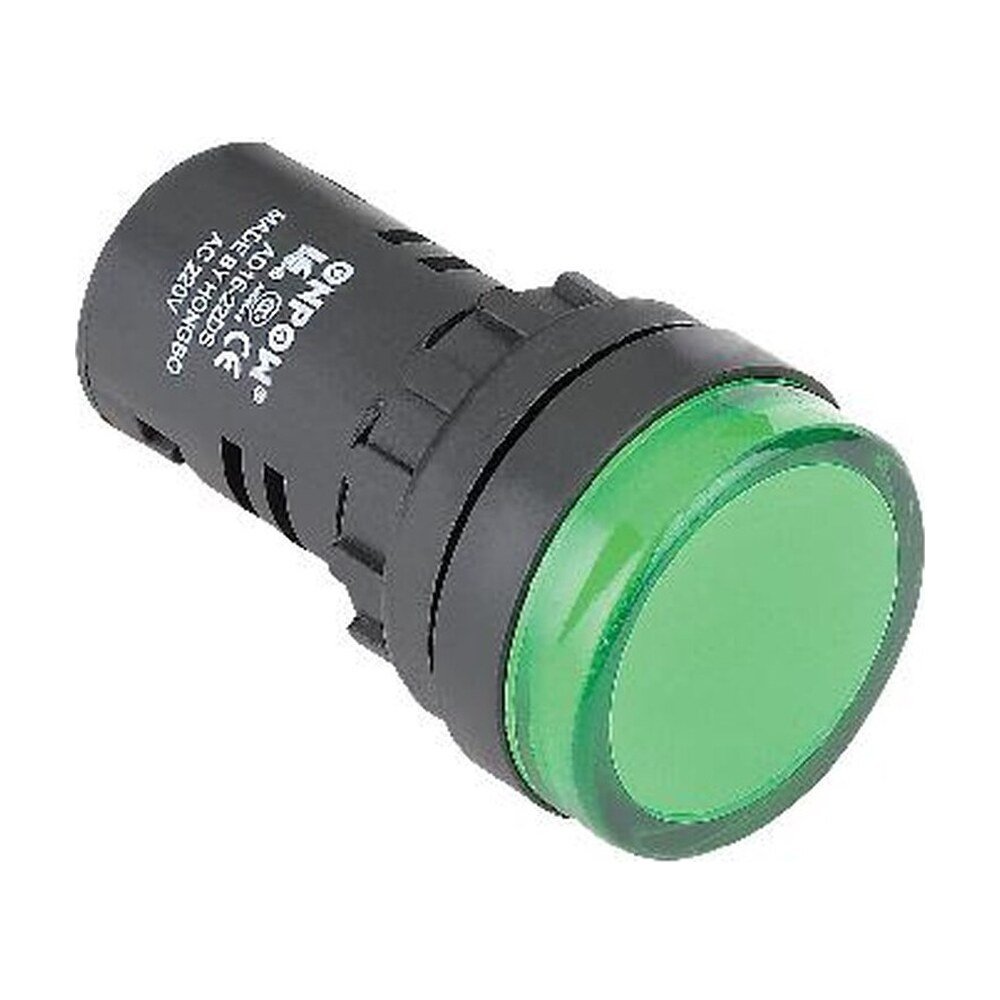

MR-AD16-22DS - ×22 mm Pilot Indicator - Short Type, IP65 Option.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-AD16-22DS is a short-bodied 22 mm LED pilot indicator with a polycarbonate lens and shock-proof screw terminals, AC/DC or AC.
Ordering. The ordering code is MR-AD16-22DS-X-X-X: each X is replaced by the option you need - led colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White); voltage (6V = AC/DC 6 V, 12V = AC/DC 12 V, 24V = AC/DC 24 V, 110V = AC/DC 110 V, 220V = AC/DC 220 V, 380V = AC/DC 380 V, AC110V = AC 110 V, AC220V = AC 220 V, AC380V = AC 380 V); protection (none = IP40, P = IP65). The part numbers are listed below.
Please call for pricing and availability.
| Part Number (SKU) | MR-AD16-22DS |
|---|---|
| Also ordered as | AD16-22DS |
| Category | Indicator Lights, Switches |
| Ordering code | MR-AD16-22DS-X-X-X |
| Series | AD16 pilot indicators |
| Type | Pilot indicator, LED |
| Operating environment | −25 °C to +55 °C, altitude below 2000 m |
| Lamp type | LED |
| LED life | 40,000 hours min |
| Voltage fluctuation | ±20 % (110 V and above) |
| Rated impulse withstand voltage | 2.5 kV (AC RMS), 1 min |
| Frequency (AC) | 50 Hz to 60 Hz |
| Rated current | 20 mA max |
| Brightness | 100 cd/m² min |
| Comparative tracking index | CTI 100 min |
| Insulation resistance | 5 MΩ (Ui up to 60 V), 50 MΩ (60 V to 660 V) |
| AC frequency | AC types 50 Hz to 60 Hz only |
| Anti-interference type | Starting voltage 35 V to 45 V; higher starting voltage to order |
| Circuit | Built-in resistor on AC/DC types; capacitor on AC types |
| Connection note | Use a 2.5 × 0.8 mm plug with protective cover where possible; if soldering, iron below 30 W and within 3 s |
| Lens material | High-strength polycarbonate |
| Mounting hole | Ø22 mm (also fits a 25 mm hole) |
| Bezel | Ø29 mm |
| Panel thickness | 6 mm max |
| Head length | 13.2 mm |
| Body length behind panel | 38.4 mm |
| Terminals | Screw terminals; anti-electric-shock structure |
| Protection class | IP40 standard, IP65 to order (P) |
| Availability | Please call for pricing and availability |
