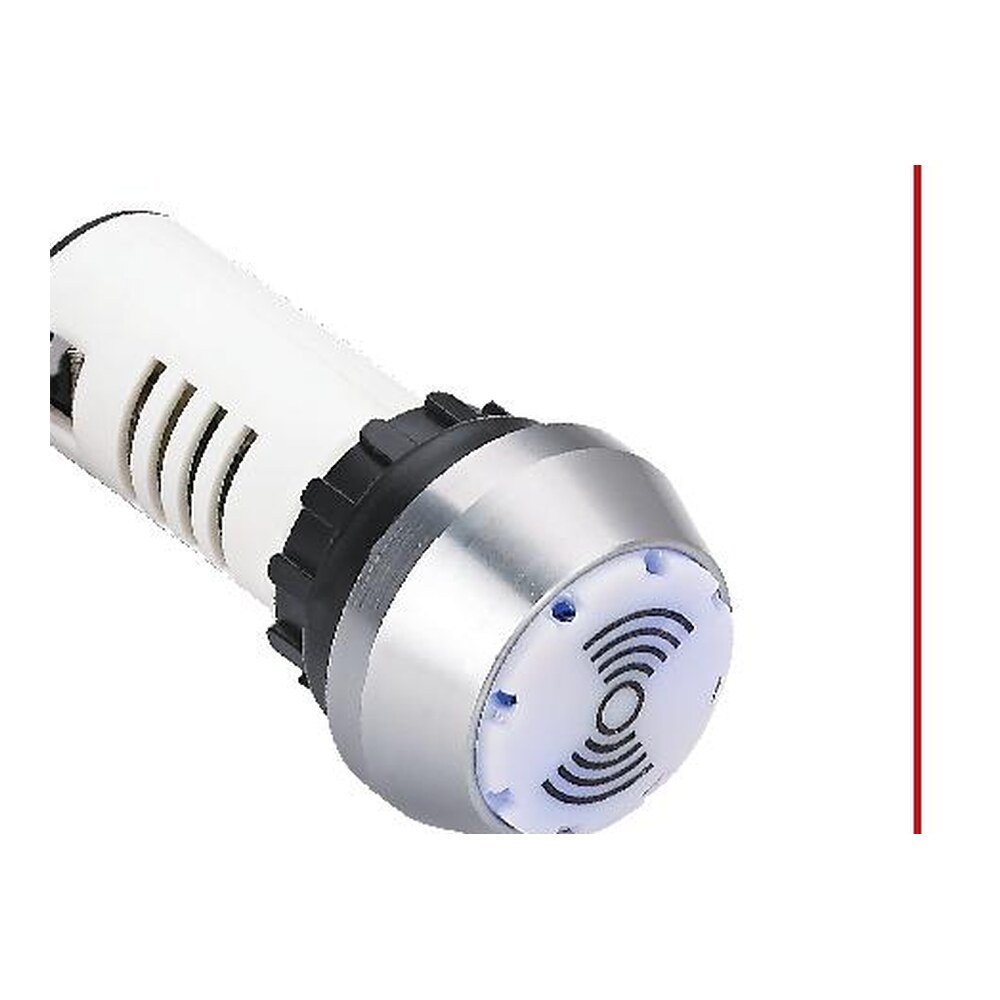

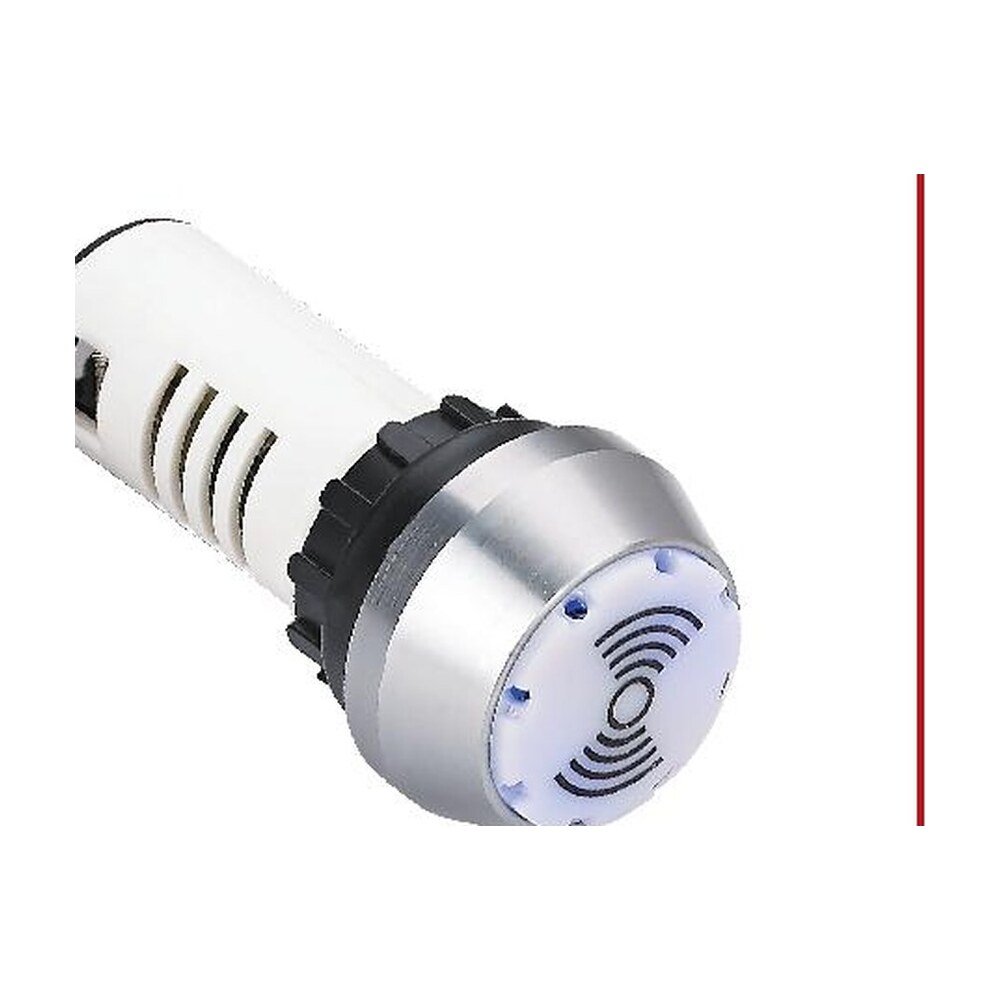

MR-AD16-22GQ-M - ×22 mm Buzzer - Metal Frame, Continuous Sound.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-AD16-22GQ-M is a continuous buzzer in a metal frame for a 22 mm hole, 80 dB at 10 cm.
Ordering. The ordering code is MR-AD16-22GQ-M-X: each X is replaced by the option you need - voltage (12V = AC/DC 12 V, 24V = AC/DC 24 V, AC110V = AC 110 V, AC220V = AC 220 V, AC380V = AC 380 V). The part numbers are listed below.
Please call for pricing and availability.
| Part Number (SKU) | MR-AD16-22GQ-M |
|---|---|
| Also ordered as | AD16-22GQ-M |
| Category | Switches |
| Ordering code | MR-AD16-22GQ-M-X |
| Series | AD16 pilot indicators |
| Type | Continuous buzzer, metal frame |
| Operating environment | −25 °C to +55 °C, altitude below 2000 m |
| Lamp type | LED |
| LED life | 40,000 hours min |
| Voltage fluctuation | ±20 % (110 V and above) |
| Rated impulse withstand voltage | 2.5 kV (AC RMS), 1 min |
| Frequency (AC) | 50 Hz to 60 Hz |
| Rated current | 20 mA max |
| Brightness | 100 cd/m² min |
| Comparative tracking index | CTI 100 min |
| Insulation resistance | 5 MΩ (Ui up to 60 V), 50 MΩ (60 V to 660 V) |
| Mounting hole | Ø22 mm (also fits a 25 mm hole) |
| Bezel | Ø31.5 mm metal frame |
| Panel thickness | 6 mm max |
| Head length | 15 mm |
| Body length behind panel | 50 mm |
| Terminals | Screw terminals; anti-electric-shock structure |
| Buzzer volume | 80 dB min at 10 cm |
| Current | 35 mA max |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-AD16-22GQ-M is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-AD16-22GQ-M-12V | AC/DC 12 V voltage |
| MR-AD16-22GQ-M-24V | AC/DC 24 V voltage |
| MR-AD16-22GQ-M-AC110V | AC 110 V voltage |
| MR-AD16-22GQ-M-AC220V | AC 220 V voltage |
| MR-AD16-22GQ-M-AC380V | AC 380 V voltage |
Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
