MR-BXA - Push Button Box, 1 Hole 22 mm, IP65.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

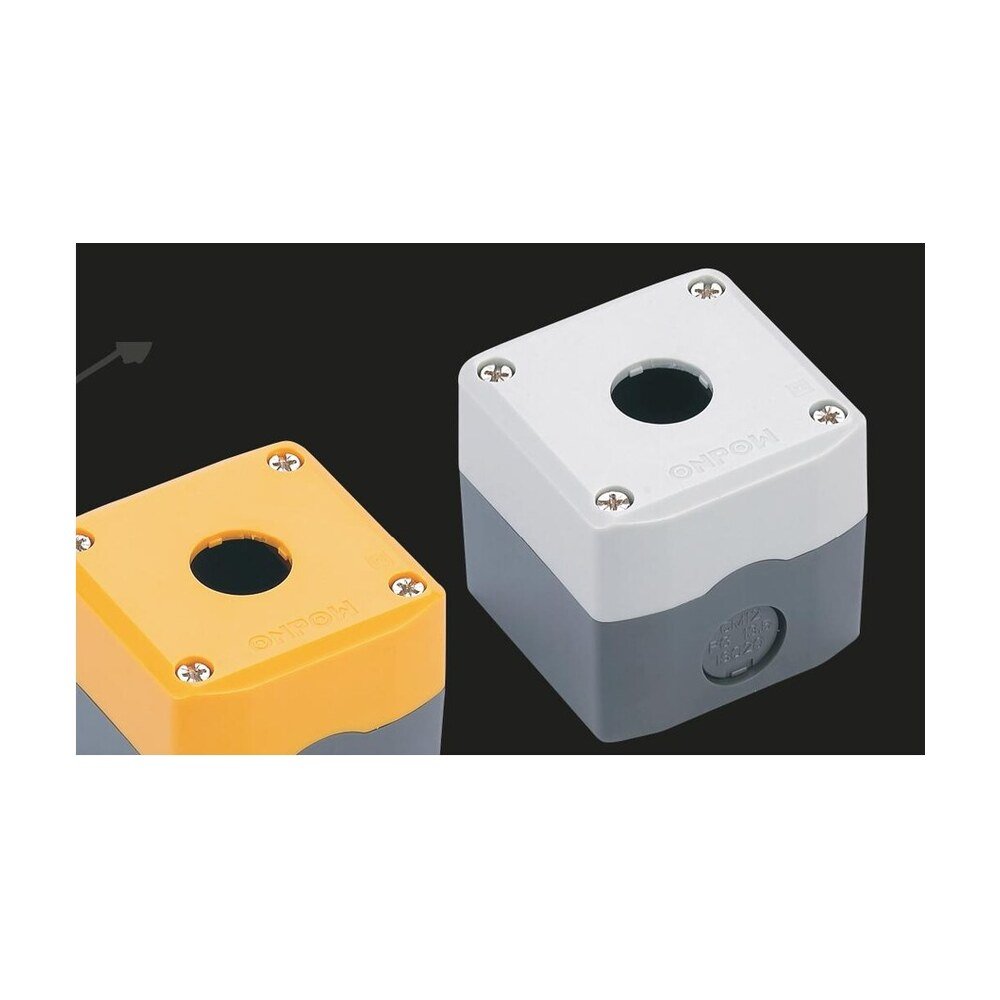

The MR-BXA is an IP65 single-hole control box for any 22 mm push button, selector or emergency stop, with a white or yellow cover.
Ordering. The ordering code is MR-BXA-1/22/X: each X is replaced by the option you need - cover colour (W = White, Y = Yellow). The part numbers are listed below.
Please call for pricing and availability.
| Part Number (SKU) | MR-BXA |
|---|---|
| Also ordered as | BXA |
| Category | Push Button Enclosures, Switches |
| Ordering code | MR-BXA-1/22/X |
| Series | BXA push button boxes |
| Type | Single-hole control box for 22 mm push buttons, selectors and e-stops |
| Protection class | IP65 |
| Resistance | Dust, oil, weak acid and weak alkali |
| Holes | 1 Ø22 mm (drawn Ø22.4 mm) |
| Size | 70 mm × 70 mm × 65 mm |
| Cable entry | Knock-out marked M12 / PG13.5 / ISO20 |
| Base fixing | 54 mm centres |
| Typical use | Power transmission, distribution and lighting control; petroleum, chemical and metallurgy plants |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-BXA is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-BWA-1/22/X | White cover colour |
| MR-BYA-1/22/X | Yellow cover colour |
Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
