MR-DCRS - Digital Code Rotary Switch, 7, 12 or 24 Positions, IP65.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

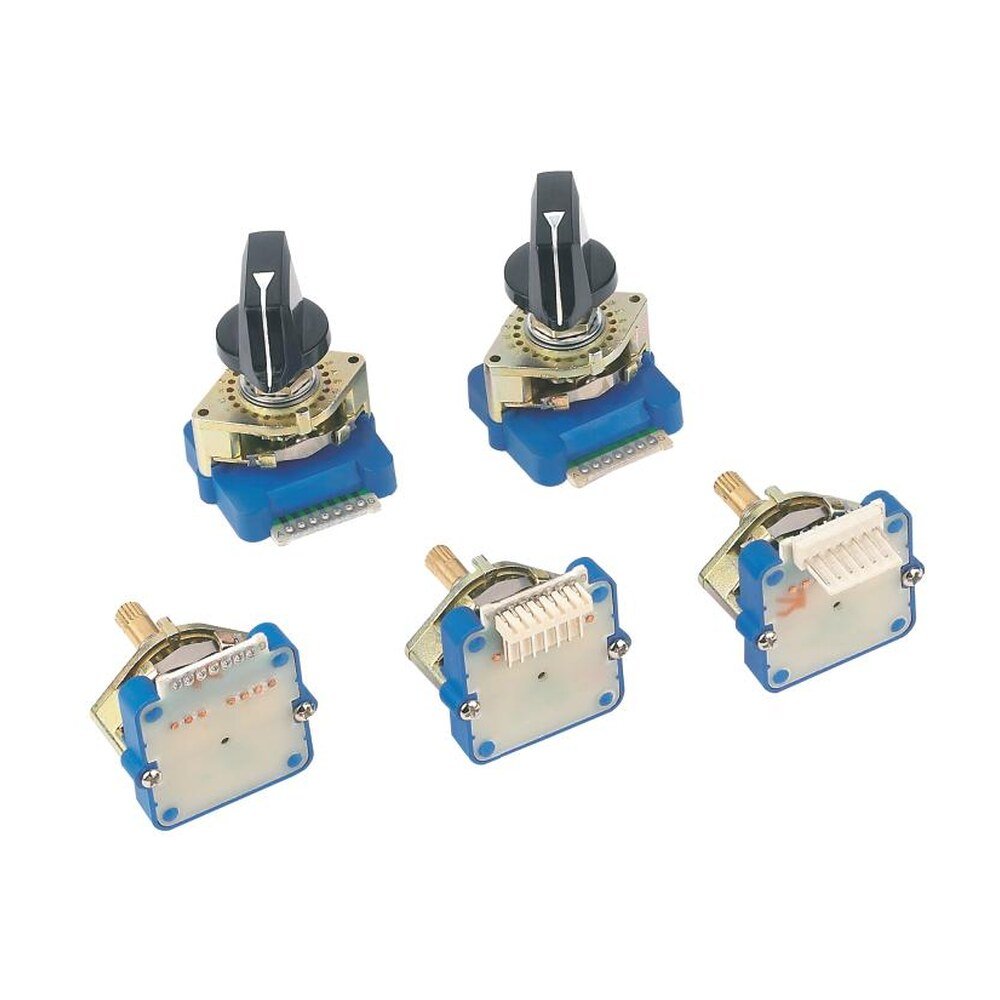

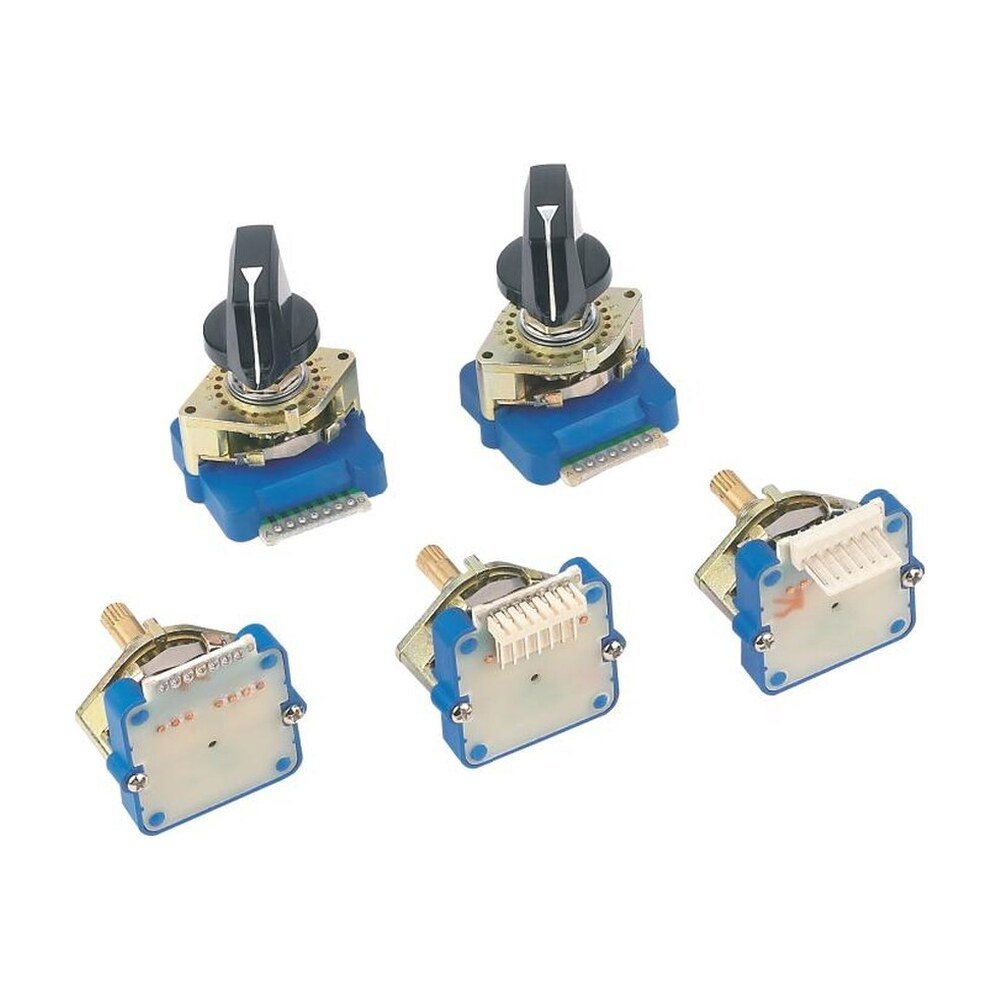

The MR-DCRS is a sealed digital code rotary switch with point-to-point, binary or Gray-code output on 7, 12 or 24 positions, IP65, for CNC panel selection.
Ordering. The ordering code is MR-DCRS-X-X: each X is replaced by the option you need - coding (00N-0/6 = Point-to-point, 30° steps, 7 positions (0 to 6), 01N-0/11 = Binary, 30° steps, 12 positions (0 to 11), 02N-0/11 = Binary complementary, 30° steps, 12 positions (0 to 11), 01J-0/23 = Binary, 15° steps, 24 positions (0 to 23), 02J-0/23 = Binary complementary, 15° steps, 24 positions (0 to 23), 03J-0/23 = Gray code, 15° steps, 24 positions (0 to 23), 04J-0/23 = Gray complementary, 15° steps, 24 positions (0 to 23)); connection (none = No connector, CS = Vertical connector, CB = Horizontal (level) connector). The part numbers are listed below.
Please call for stock check or lead-time.
| Part Number (SKU) | MR-DCRS |
|---|---|
| Also ordered as | DCRS |
| Category | Selector Switches, Switches |
| Ordering code | MR-DCRS-X-X |
| Series | DCRS digital code rotary switches |
| Type | Coded-output rotary switch, fully sealed |
| Rating | 5 V DC 0.25 A, 25 V AC 0.5 A, 50 V AC 0.05 A |
| Contacts | Double-slide gold-clad |
| Insulation resistance | ≥500 MΩ |
| Dielectric strength | 250 V AC between terminals; 1500 V AC between terminals and frame |
| Protection class | IP65 |
| Shaft strength | 3 N·m |
| Operating life | 50,000 operations |
| Operating temperature | −20 °C to +70 °C |
| Storage temperature | −40 °C to +70 °C |
| Start / end positions | Set by fixing screws; the code gives start/end (full range shown; other ranges to order) |
| Terminals | A (1), F (2), B (4), E (8), C (PARITY), G (INHIBIT), D (COMMON); point-to-point type uses A to G as positions 0 to 6 |
| Shaft | Ø6 mm |
| Bushing | M9 × 0.75 |
| Panel cut-out | Ø9.2 mm plus Ø3.1 mm locating hole 12 mm from centre |
| Body | 32 mm × 38.1 mm |
| Terminal pitch | 2.54 mm |
| Typical use | CNC panel selection of mode, axis, rate and speed percentage |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
