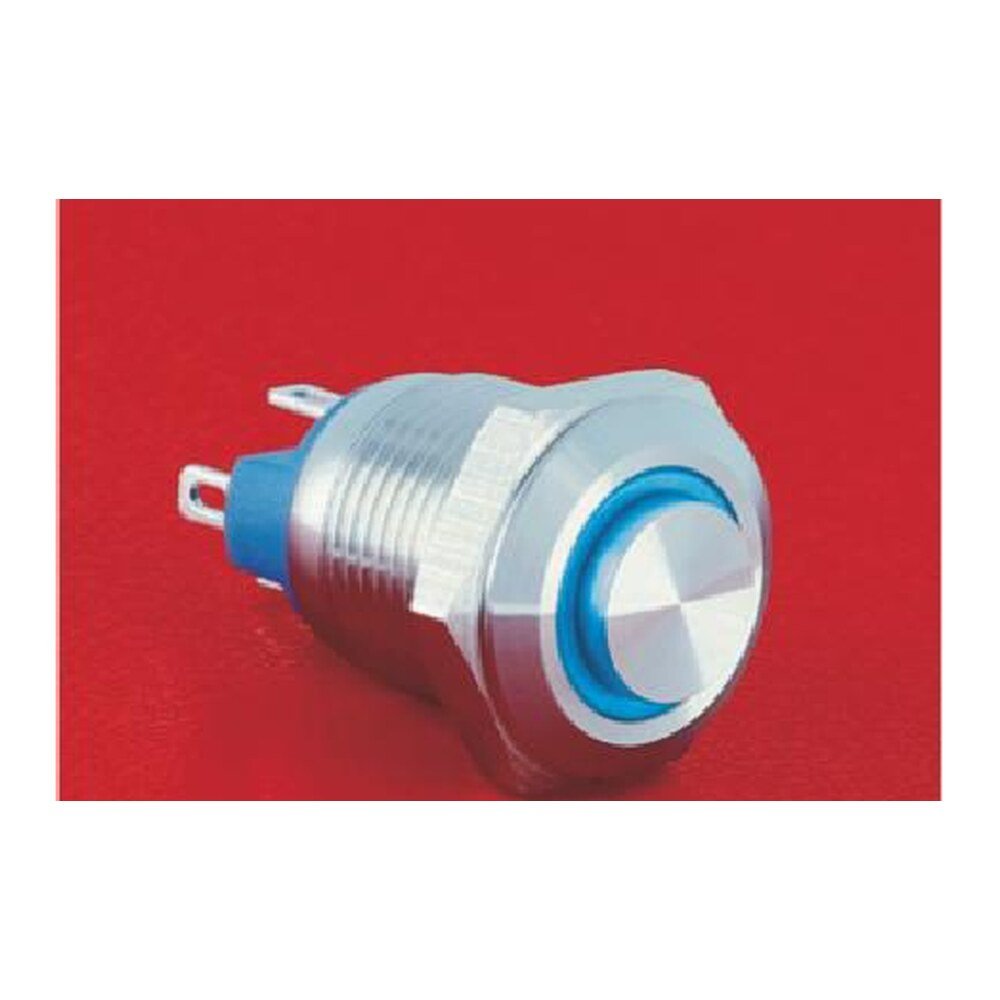

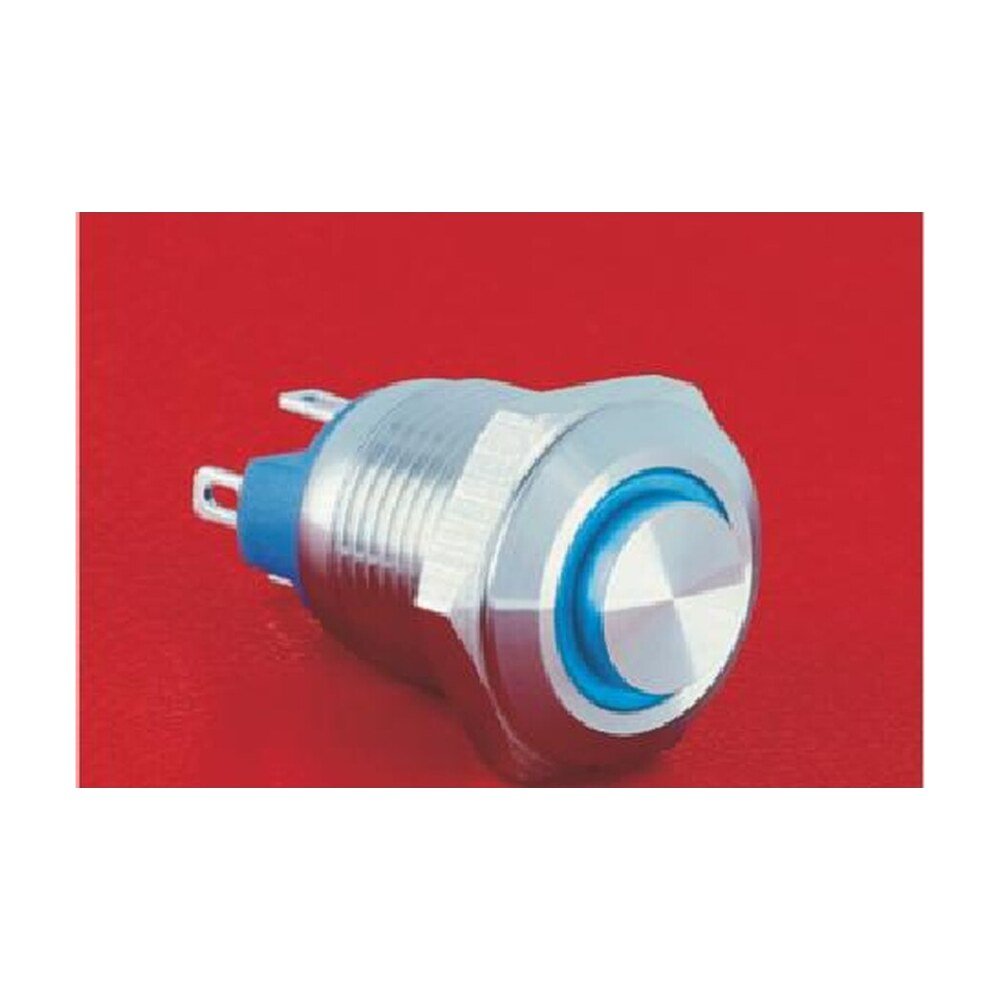

MR-GQ12-AH-10E - 12 mm Anti-Vandal Push Button - High Round Head, Ring Illuminated, 1NO.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-GQ12-AH-10E is a 12 mm anti-vandal push button from the GQ12-A range with a raised, high round head: a single normally-open momentary contact rated 2 A at 36 V DC, sealed to IP65 and mounting in a Ø12 mm panel hole on an M12 × 0.75 thread.
Ordering. The ordering code is MR-GQ12-AH-10E-J-X-X-X: each X is replaced by the option you need - led colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White); led voltage (6V = 6 V DC, 12V = 12 V DC, 24V = 24 V DC); housing (C = Brass, chrome plated, S = Stainless steel). The part numbers are listed below.
Still being confirmed. The terminal count is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-GQ12-AH-10E |
|---|---|
| Also ordered as | GQ12-AH-10E |
| Category | Push Button Switches, Switches |
| Ordering code | MR-GQ12-AH-10E-J-X-X-X |
| Series | GQ12-A |
| Contact structure | 1NO |
| Operation type | Momentary |
| Switch rating | 2 A at 36 V DC |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Mechanical life | 500,000 cycles |
| Electrical life | 200,000 cycles |
| Operation travel | 1.5 mm approx |
| Operating force | 1.5 N approx |
| Nut torque | 0.3 Nm approx |
| Base material | PA |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP65 (IP67 can be customised), IK07 |
| Standard | EN 61058-1:2018, CE marked (certificate UDEM/M.2021.206.C62197) |
| Panel cut-out | Ø12 mm |
| Mounting | M12 × 0.75 threaded bush |
| Bezel diameter | Ø14 mm |
| Bezel height | 6 mm max |
| Termination | Solder tab (wiring patch) 2 × 0.5 mm |
| Head shape | H = high round |
| Illuminated type | E = ring illuminated |
| Body length behind panel | 19 mm |
| Ring width | 0.8 mm |
| Accessory | Sealing cover M12-12H |
| LED colour | R red, G green, Y yellow, B blue, W white |
| LED voltage | 6 V, 12 V, 24 V (built-in resistor) |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less |
| LED voltage fluctuation | DC ±10 % |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-GQ12-AH-10E is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-GQ12-AH-10E-J-R-6V-C | Red led colour, 6 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-R-6V-S | Red led colour, 6 v dc led voltage, stainless steel housing |
| MR-GQ12-AH-10E-J-R-12V-C | Red led colour, 12 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-R-12V-S | Red led colour, 12 v dc led voltage, stainless steel housing |
| MR-GQ12-AH-10E-J-R-24V-C | Red led colour, 24 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-R-24V-S | Red led colour, 24 v dc led voltage, stainless steel housing |
| MR-GQ12-AH-10E-J-G-6V-C | Green led colour, 6 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-G-6V-S | Green led colour, 6 v dc led voltage, stainless steel housing |
| MR-GQ12-AH-10E-J-G-12V-C | Green led colour, 12 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-G-12V-S | Green led colour, 12 v dc led voltage, stainless steel housing |
| MR-GQ12-AH-10E-J-G-24V-C | Green led colour, 24 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-G-24V-S | Green led colour, 24 v dc led voltage, stainless steel housing |
| MR-GQ12-AH-10E-J-Y-6V-C | Yellow led colour, 6 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-Y-6V-S | Yellow led colour, 6 v dc led voltage, stainless steel housing |
| MR-GQ12-AH-10E-J-Y-12V-C | Yellow led colour, 12 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-Y-12V-S | Yellow led colour, 12 v dc led voltage, stainless steel housing |
| MR-GQ12-AH-10E-J-Y-24V-C | Yellow led colour, 24 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-Y-24V-S | Yellow led colour, 24 v dc led voltage, stainless steel housing |
| MR-GQ12-AH-10E-J-B-6V-C | Blue led colour, 6 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-B-6V-S | Blue led colour, 6 v dc led voltage, stainless steel housing |
| MR-GQ12-AH-10E-J-B-12V-C | Blue led colour, 12 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-B-12V-S | Blue led colour, 12 v dc led voltage, stainless steel housing |
| MR-GQ12-AH-10E-J-B-24V-C | Blue led colour, 24 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-B-24V-S | Blue led colour, 24 v dc led voltage, stainless steel housing |
| MR-GQ12-AH-10E-J-W-6V-C | White led colour, 6 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-W-6V-S | White led colour, 6 v dc led voltage, stainless steel housing |
| MR-GQ12-AH-10E-J-W-12V-C | White led colour, 12 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-W-12V-S | White led colour, 12 v dc led voltage, stainless steel housing |
| MR-GQ12-AH-10E-J-W-24V-C | White led colour, 24 v dc led voltage, brass, chrome plated housing |
| MR-GQ12-AH-10E-J-W-24V-S | White led colour, 24 v dc led voltage, stainless steel housing |
Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
