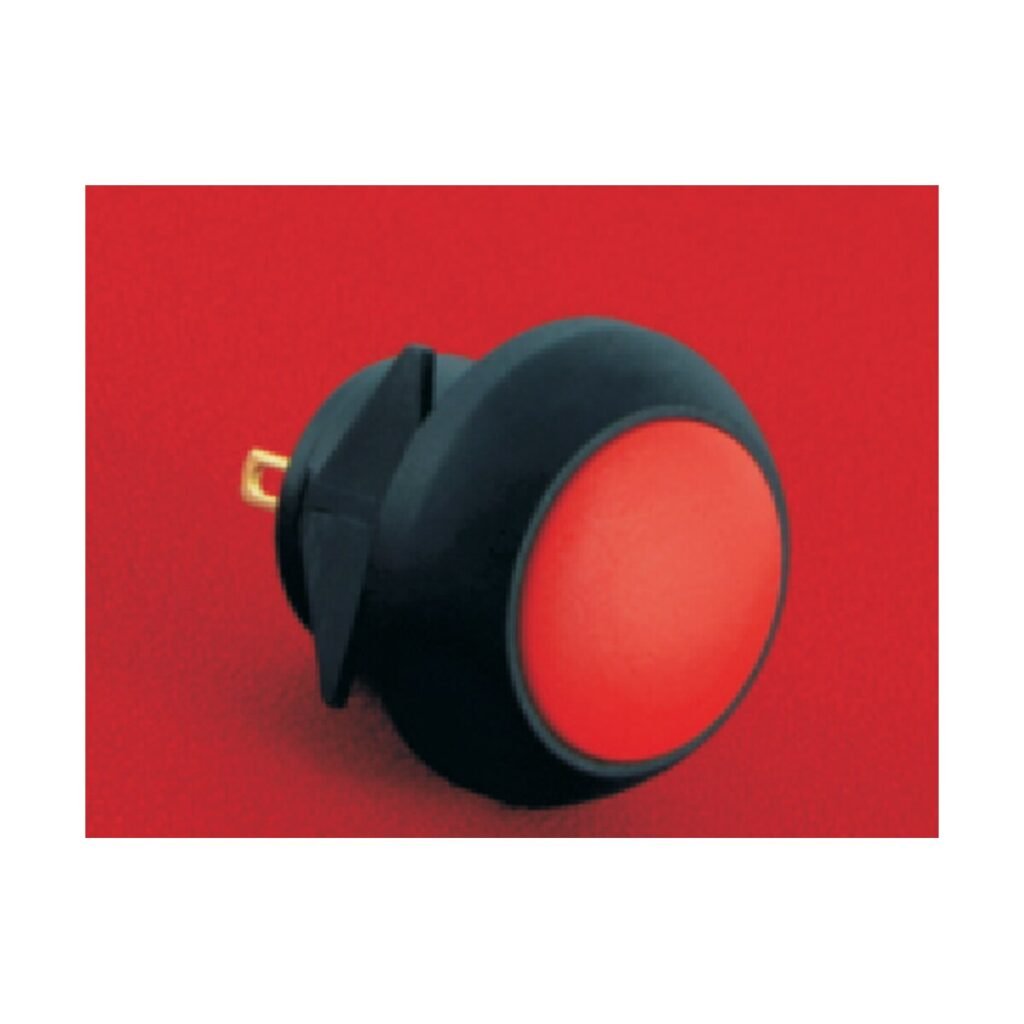

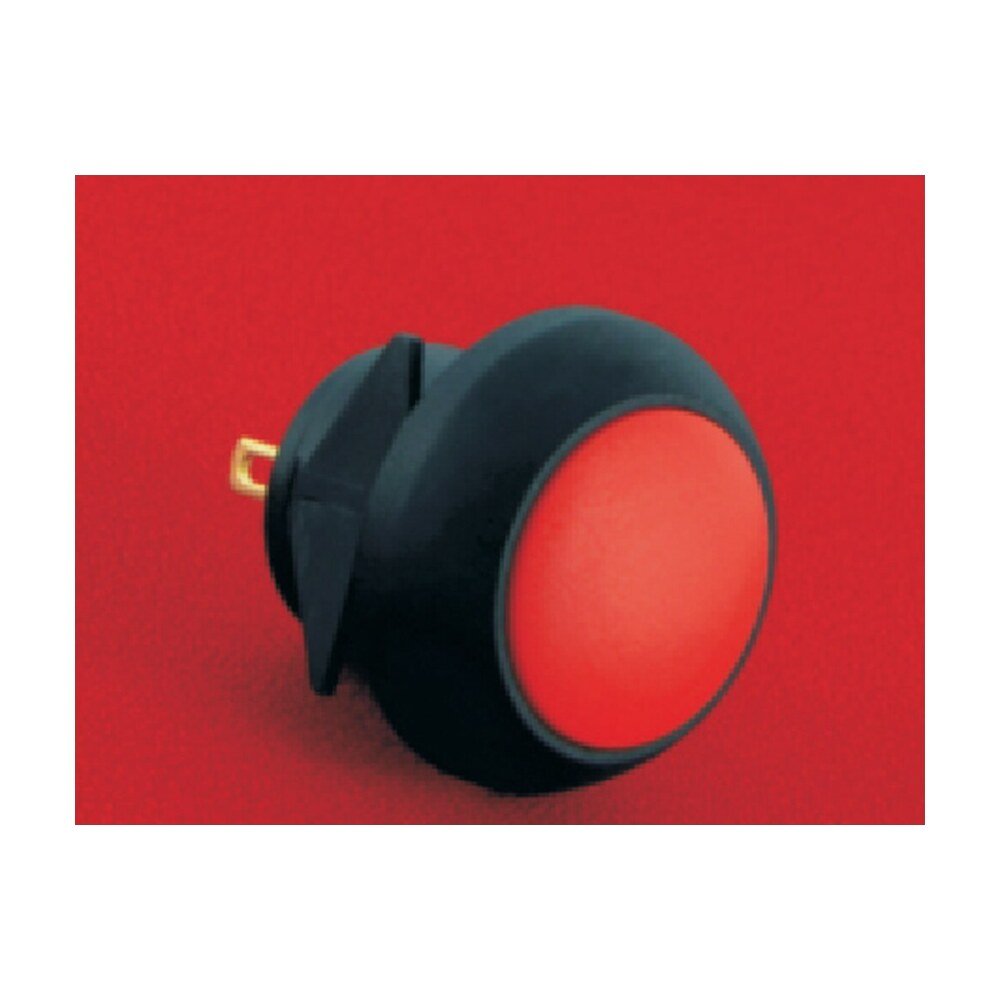

MR-GQ12B-10-J-PA - 12 mm push button, domed head, pin terminal, 2 × 0.5 mm.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-GQ12B-10-J-PA is a 12 mm push button with a domed head and pin terminal, 2 × 0.5 mm termination, in a pa plastic housing. It has a 1NO momentary contact rated 125 V, 3 A (AC-15 0.5 A). The drawing shows it fitted to a 1 mm panel.
Protection: IP40. Mechanical life 1,000,000 cycles, electrical life 50,000 cycles, operating temperature −25 °C to +55 °C.
Ordering. The ordering code is MR-GQ12B-10-J-X-PA: each X is replaced by the option you need - button cover (R = Red, G = Green, Y = Yellow, B = Blue, W = White). The part numbers built so far are listed below.
The panel cut-out is Ø12 mm. The non-illuminated version has 2 terminals; the illuminated version has 4.
Drawing C-GQ12B-10-J-PA rev A is available on this page.
Please call for stock check or lead-time.
| Part Number (SKU) | MR-GQ12B-10-J-PA |
|---|---|
| Also ordered as | GQ12B-10-J-PA |
| Category | Push Button Switches, Switches |
| Ordering code | MR-GQ12B-10-J-X-PA |
| Actuator | Domed head |
| Panel thickness | 1 mm |
| Bezel | Ø17.5 mm |
| Projection in front of panel | 7.1 mm |
| Depth behind panel | 12.7 mm |
| Termination | Pin terminal, 2 × 0.5 mm |
| Terminal spacing | 6.3 mm |
| Housing material | PA plastic |
| Button cover | R red, G green, Y yellow, B blue, W white |
| Series | GQ12 |
| Contact structure | 1NO, momentary |
| Contact material | Silver alloy |
| Mechanical life | 1,000,000 cycles min |
| Electrical life | 50,000 cycles min |
| Operating force | 3.5 N approx |
| Operating travel | 2 mm approx |
| Nut torque | 0.3 Nm approx |
| Rated insulation voltage Ui | 125 V |
| Rated voltage Ue | 125 V |
| Conventional heating current Ith | 3 A |
| AC-15 solenoid load | 0.5 A |
| Impulse withstand voltage Uimp | 1.5 kV |
| Contact resistance | 50 mΩ max, initial |
| Insulation resistance | 1000 MΩ min at 500 V DC |
| Withstand voltage | 1000 V AC, 50 Hz, 1 minute |
| Operating temperature | −25 °C to +55 °C, no icing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Vibration | 5 Hz to 50 Hz, amplitude 1.2 mm |
| Solder heat resistance | 320 °C for 3 s |
| Ingress protection | IP40 |
| Panel cut-out | Ø12 mm |
| Terminals | 2 (non-illuminated version); 4 (illuminated version) |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Parts we build to your requirement ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-GQ12B-10-J-PA is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-GQ12B-10-J-R-PA | Red cover |
| MR-GQ12B-10-J-G-PA | Green cover |
| MR-GQ12B-10-J-Y-PA | Yellow cover |
| MR-GQ12B-10-J-B-PA | Blue cover |
| MR-GQ12B-10-J-W-PA | White cover |
