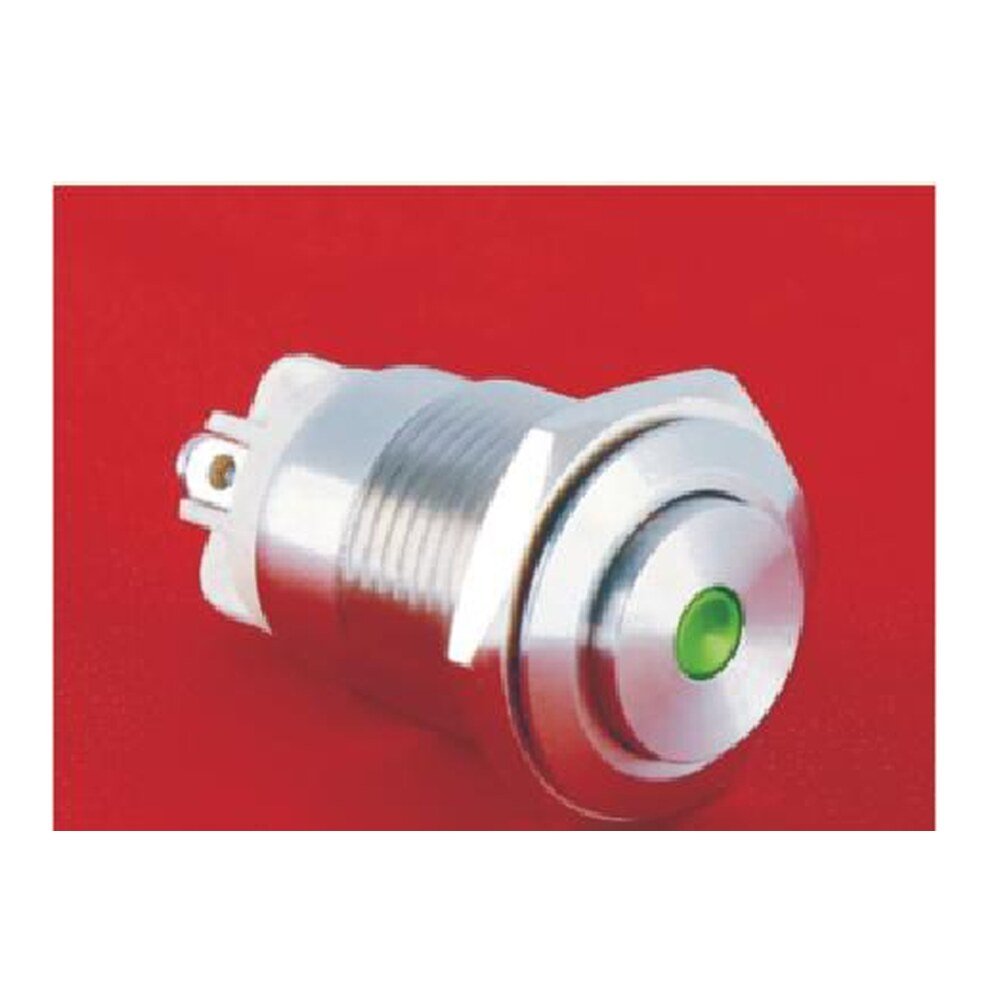

MR-GQ16H-10D - 16 mm Anti-Vandal Push Button - High Round Head, Dot Illuminated, 1NO, Screw Terminals.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-GQ16H-10D is the screw-terminal version of the illuminated 16 mm GQ16 anti-vandal push button: a single normally-open momentary contact rated 2 A at 36 V DC or 0.5 A at 220 V, an LED in red, green, yellow, blue or white at 6 V, 12 V, 24 V, 110 V or 220 V, sealed to IP65 with an IK08 impact rating.
Ordering. The ordering code is MR-GQ16H-10D-X-X-S: each X is replaced by the option you need - led colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 110V = 110 V, 220V = 220 V). The part numbers are listed below.
Still being confirmed. The terminal count and the operating travel (the catalogue prints 24 mm for this series, which reads like a misprint for 2.4 mm) are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-GQ16H-10D |
|---|---|
| Also ordered as | GQ16H-10D |
| Category | Push Button Switches, Switches |
| Ordering code | MR-GQ16H-10D-X-X-S |
| Series | GQ16 |
| Contact structure | 1NO |
| Operation type | Momentary |
| Switch rating | 2 A at 36 V DC, 0.5 A at 220 V |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Mechanical life | 1,000,000 cycles |
| Electrical life | 50,000 cycles |
| Operating force | 4 N approx |
| Nut torque | 0.6 Nm approx |
| Base material | PA (lit models) |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP65 (IP67 can be customised), IK08 |
| Standards | GB/T 14048.5-2017 CCC 2020970305003360, UL 508, UL/E254023, EN 61058-1:2018, CE UDEM/M.2021.206.C62197 |
| Panel cut-out | Ø16 mm |
| Mounting | M16 × 1 threaded bush |
| Bezel diameter | Ø18 mm |
| Bezel height | 6 mm max |
| Across flats | 21.8 mm |
| Termination | Screw terminals |
| Body length behind panel | 27.5 mm max |
| Housing material | Stainless steel |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less, about 2 mA at 110 V or more |
| LED voltage fluctuation | DC ±10 % |
| Head shape | H = high round |
| Illuminated type | D = dot illuminated |
| Lens diameter | Ø4 mm |
| Accessory | Sealing cover M12-16H |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-GQ16H-10D is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-GQ16H-10D-R-6V-S | Red led colour, 6 v led voltage |
| MR-GQ16H-10D-R-12V-S | Red led colour, 12 v led voltage |
| MR-GQ16H-10D-R-24V-S | Red led colour, 24 v led voltage |
| MR-GQ16H-10D-R-110V-S | Red led colour, 110 v led voltage |
| MR-GQ16H-10D-R-220V-S | Red led colour, 220 v led voltage |
| MR-GQ16H-10D-G-6V-S | Green led colour, 6 v led voltage |
| MR-GQ16H-10D-G-12V-S | Green led colour, 12 v led voltage |
| MR-GQ16H-10D-G-24V-S | Green led colour, 24 v led voltage |
| MR-GQ16H-10D-G-110V-S | Green led colour, 110 v led voltage |
| MR-GQ16H-10D-G-220V-S | Green led colour, 220 v led voltage |
| MR-GQ16H-10D-Y-6V-S | Yellow led colour, 6 v led voltage |
| MR-GQ16H-10D-Y-12V-S | Yellow led colour, 12 v led voltage |
| MR-GQ16H-10D-Y-24V-S | Yellow led colour, 24 v led voltage |
| MR-GQ16H-10D-Y-110V-S | Yellow led colour, 110 v led voltage |
| MR-GQ16H-10D-Y-220V-S | Yellow led colour, 220 v led voltage |
| MR-GQ16H-10D-B-6V-S | Blue led colour, 6 v led voltage |
| MR-GQ16H-10D-B-12V-S | Blue led colour, 12 v led voltage |
| MR-GQ16H-10D-B-24V-S | Blue led colour, 24 v led voltage |
| MR-GQ16H-10D-B-110V-S | Blue led colour, 110 v led voltage |
| MR-GQ16H-10D-B-220V-S | Blue led colour, 220 v led voltage |
| MR-GQ16H-10D-W-6V-S | White led colour, 6 v led voltage |
| MR-GQ16H-10D-W-12V-S | White led colour, 12 v led voltage |
| MR-GQ16H-10D-W-24V-S | White led colour, 24 v led voltage |
| MR-GQ16H-10D-W-110V-S | White led colour, 110 v led voltage |
| MR-GQ16H-10D-W-220V-S | White led colour, 220 v led voltage |
Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
