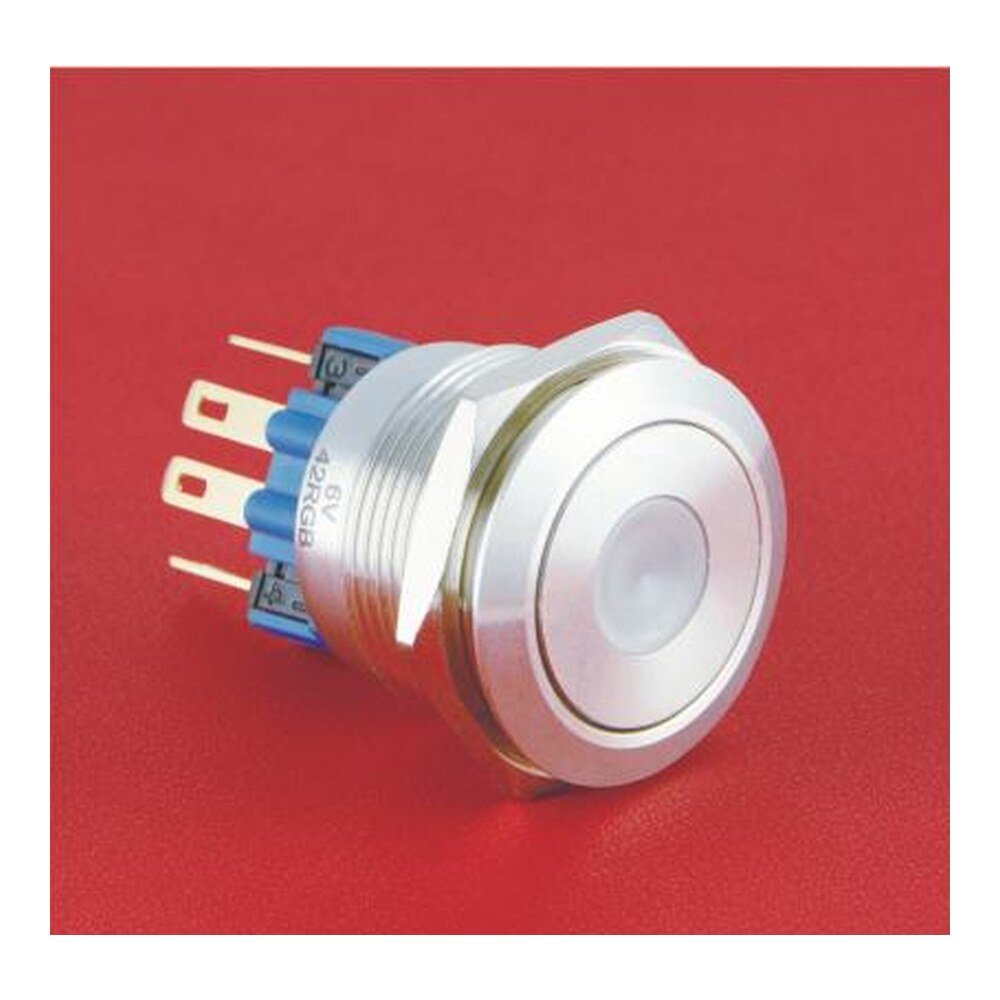

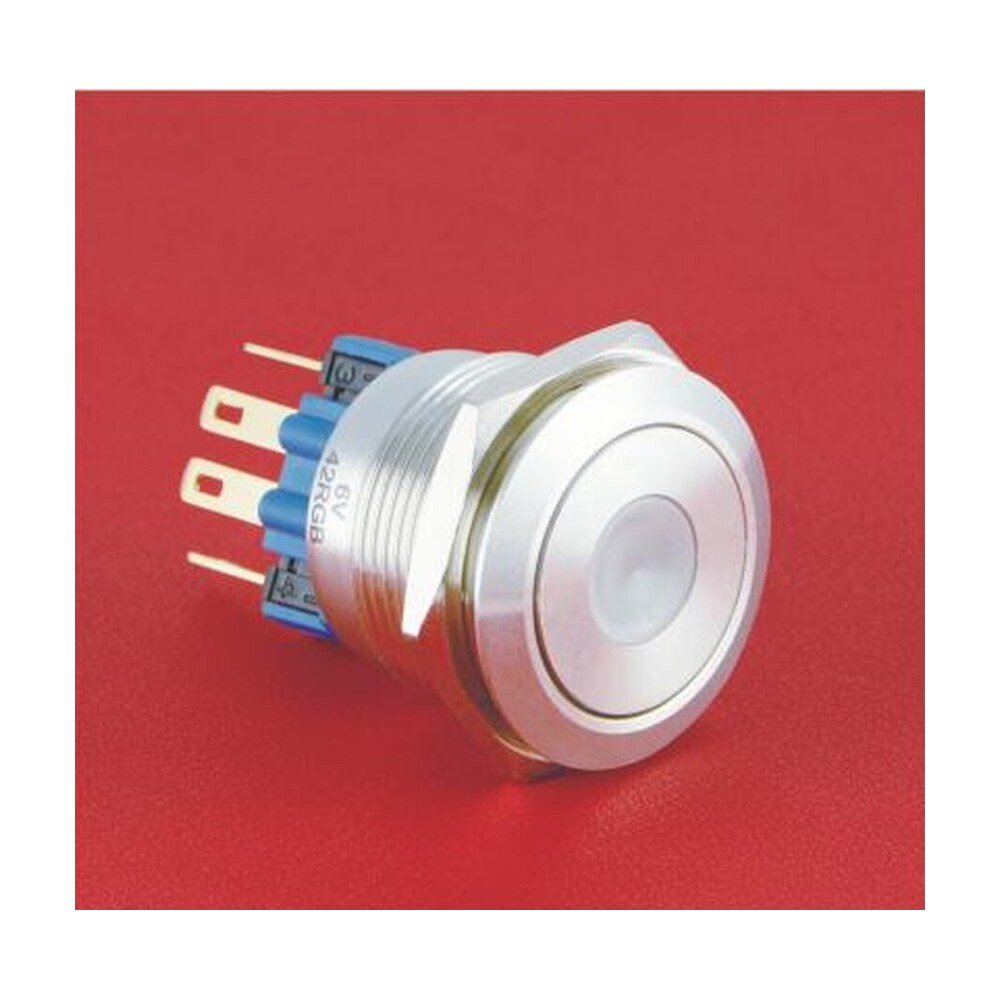

MR-GQ22-11D-RGB - 22 mm Tri-Colour Anti-Vandal Push Button - RGB Dot Illumination, 1NO1NC, IP65.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-GQ22-11D-RGB is a 22 mm stainless-steel anti-vandal push button with a lit dot in red, green or blue, momentary or latching, 1NO1NC, IP65 and IK10.
Ordering. The ordering code is MR-GQ22-11#D-#RGB-#-S: each X is replaced by the option you need - operation (none = Momentary, Z = Latching); led option (41 = Tri-colour, common cathode, 42 = Tri-colour, common anode); led voltage (DC6V = DC 6 V, DC12V = DC 12 V, DC24V = DC 24 V). The part numbers are listed below.
Still being confirmed. The actuation travel (the catalogue prints both 2.5 mm and 2 mm) and the part number for the dual-colour 3-pin version are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-GQ22-11D-RGB |
|---|---|
| Also ordered as | GQ22-11D/RGB |
| Category | Push Button Switches, Switches |
| Ordering code | MR-GQ22-11#D-#RGB-#-S |
| Type | Tri-colour push button, Ø9 mm dot illumination |
| Series | GQ22 tri-colour push buttons (anti-vandal metal) |
| Contact configuration | 1NO1NC |
| Switching | Double-break, fast-motion contact |
| Terminals | Solder lugs, 2.8 × 0.5 mm; lamp and switch are independent circuits |
| Rated insulation voltage Ui | 250 V |
| Thermal current Ith | 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 5 A resistive, 3 A inductive, 220 V: 3 A resistive, 2 A inductive |
| Rated operation current, DC | 12 V: 5 A resistive, 2 A inductive, 24 V: 5 A resistive, 2 A inductive, 110 V: 1 A resistive, 0.2 A inductive, 220 V: 0.5 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA (ref.) |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 1500 V RMS, 50 Hz, 1 min |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Mechanical life | 1,000,000 cycles |
| Electrical life | 50,000 cycles |
| Mounting hole | Ø22 mm |
| Thread | M22 × 1 |
| Panel thickness | 1 mm to 8 mm |
| Mounting nut torque | About 0.6 N·m |
| Actuation force | About 4 N |
| Actuator material | Stainless steel |
| Body material | Stainless steel |
| Base material | PA |
| Protection class | IP65 (momentary: IP67 to order) |
| Impact rating | IK10 |
| RoHS | RoHS version to order |
| Lamp type | DC tri-colour LED (red, green, blue) |
| LED life | 40,000 hours (ref.) |
| LED forward voltage without resistor | Red 1.8 V, green 2.8 V, blue 2.8 V |
| Rated current (LED) | 5 mA to 15 mA |
| Polarity | Observe anode and cathode; add external resistors to mix colours |
| Option | Dual-colour version with 3 pins available |
| Bezel | Ø25 mm; nut 28.5 mm |
| Head length | 1.8 mm |
| Body length behind panel | 35.8 mm momentary, 40.5 mm latching |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-GQ22-11D-RGB is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-GQ22-11D-41RGB-DC6V-S | Momentary operation, Tri-colour, common cathode led option, DC 6 V led voltage |
| MR-GQ22-11D-41RGB-DC12V-S | Momentary operation, Tri-colour, common cathode led option, DC 12 V led voltage |
| MR-GQ22-11D-41RGB-DC24V-S | Momentary operation, Tri-colour, common cathode led option, DC 24 V led voltage |
| MR-GQ22-11D-42RGB-DC6V-S | Momentary operation, Tri-colour, common anode led option, DC 6 V led voltage |
| MR-GQ22-11D-42RGB-DC12V-S | Momentary operation, Tri-colour, common anode led option, DC 12 V led voltage |
| MR-GQ22-11D-42RGB-DC24V-S | Momentary operation, Tri-colour, common anode led option, DC 24 V led voltage |
| MR-GQ22-11ZD-41RGB-DC6V-S | Latching operation, Tri-colour, common cathode led option, DC 6 V led voltage |
| MR-GQ22-11ZD-41RGB-DC12V-S | Latching operation, Tri-colour, common cathode led option, DC 12 V led voltage |
| MR-GQ22-11ZD-41RGB-DC24V-S | Latching operation, Tri-colour, common cathode led option, DC 24 V led voltage |
| MR-GQ22-11ZD-42RGB-DC6V-S | Latching operation, Tri-colour, common anode led option, DC 6 V led voltage |
| MR-GQ22-11ZD-42RGB-DC12V-S | Latching operation, Tri-colour, common anode led option, DC 12 V led voltage |
| MR-GQ22-11ZD-42RGB-DC24V-S | Latching operation, Tri-colour, common anode led option, DC 24 V led voltage |
Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
