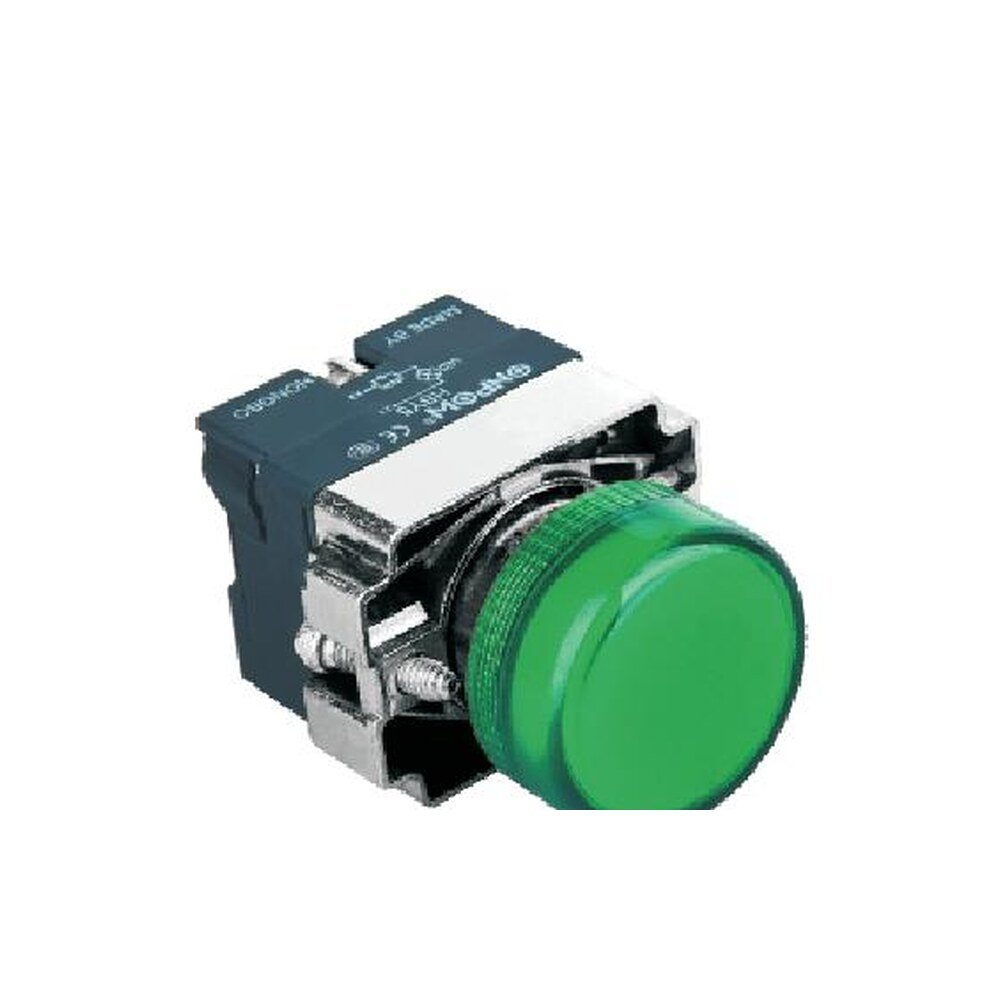

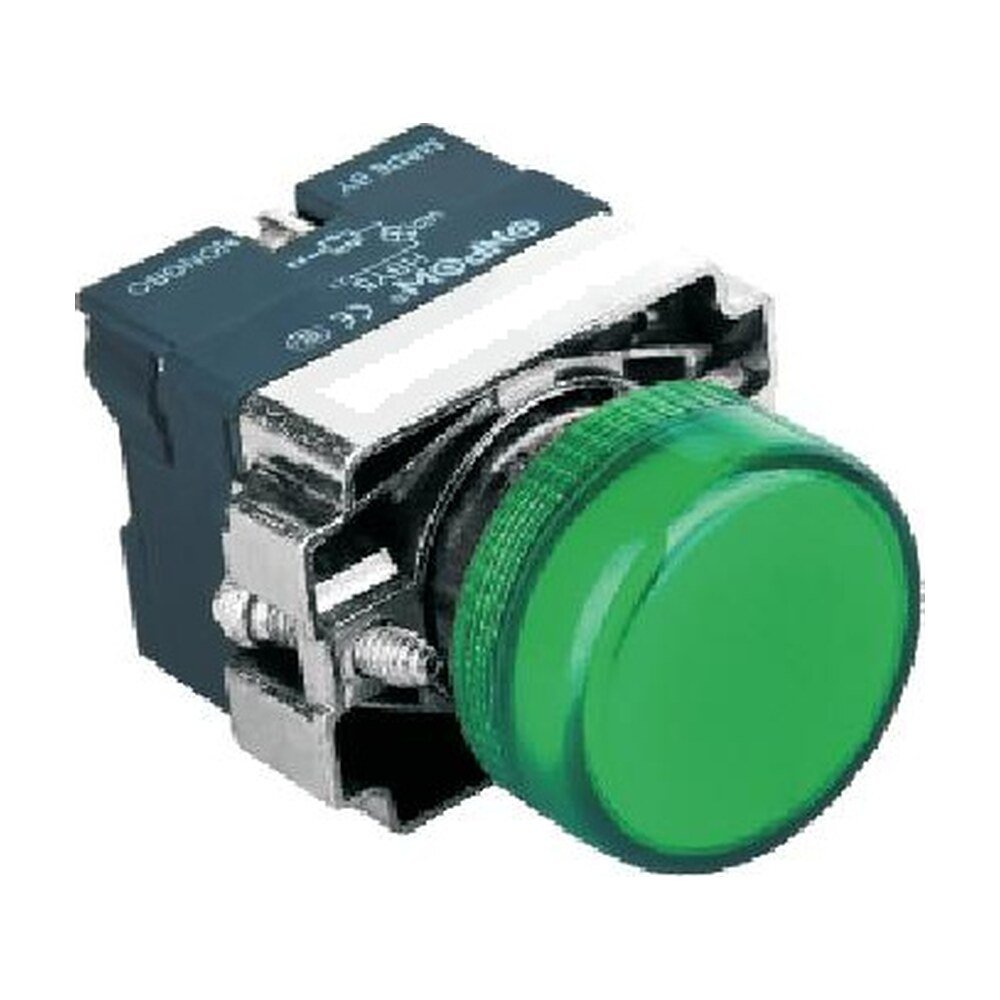

MR-HBY5-D - 22 mm Pilot Lamp - Metal Bezel, LED.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-HBY5-D is a 22 mm LED pilot lamp in a metal bezel, IP40.
Ordering. The ordering code is MR-HBY5-D-X-X: each X is replaced by the option you need - led colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 110V = 110 V, 220V = 220 V). The part numbers are listed below.
Please call for pricing and availability.
| Part Number (SKU) | MR-HBY5-D |
|---|---|
| Also ordered as | HBY5-D |
| Category | Indicator Lights, Switches |
| Ordering code | MR-HBY5-D-X-X |
| Series | HBY5 (22 mm, metal head) |
| Rated insulation voltage Ui | 660 V |
| Thermal current Ith | 10 A |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 3000 V AC, 50 Hz, 1 min |
| Vibration resistance | 50 Hz, amplitude 1.0 mm |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Connection | Screw terminals: min 1 × 0.5 mm²; max 2 × 1.5 mm² with connecting link, 1 × 2.5 mm² without |
| Standards | IEC 60947-5-1, GB/T 14048.5 |
| Altitude | 2000 m max |
| Pollution degree | 3 |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less, about 2 mA at 110 V or more |
| LED voltage fluctuation | DC ±10 %, AC ±20 % |
| Lamp note | Internal protection resistor, no polarity |
| Panel cut-out | Ø22.5 mm |
| Panel thickness | 0.5 mm to 5 mm |
| Type | Pilot lamp, LED |
| Protection class | IP40 |
| Bezel | 30 × 40 mm |
| Head types | Metal head as standard; simple plastic type E1 to order |
| Head length | 14 mm |
| Body length behind panel | 18 mm up to 60 V, 23 mm above 60 V |
| Accessories | Sign frame T04, Protective cover T17 |
| Availability | Please call for pricing and availability |
