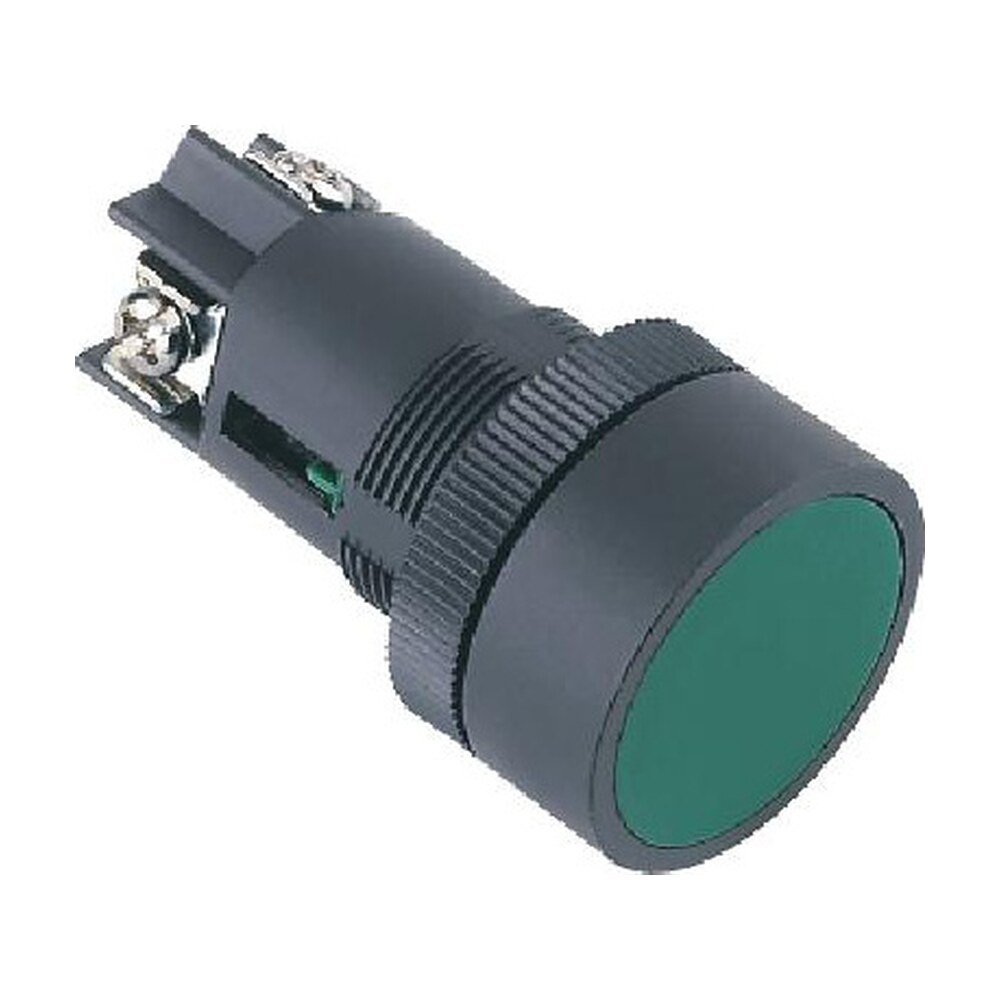

MR-HBY5E1 - 22 mm Economy Push Button - Ø30 mm Plastic Head.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-HBY5E1 is a 22 mm economy push button with a Ø30 mm plastic head, rated 0.3 A at 220 V AC-14, IP40.
Ordering. The ordering code is MR-HBY5E1-#-#: each X is replaced by the option you need - contact (11 = 1NO1NC, 10 = 1NO, 01 = 1NC); colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White, N = Black). The part numbers are listed below.
Still being confirmed. Whether it is momentary or latching and the mechanical life are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-HBY5E1 |
|---|---|
| Also ordered as | HBY5E1 |
| Category | Push Button Switches, Switches |
| Ordering code | MR-HBY5E1-#-# |
| Series | HBY5E1 (22 mm, economy plastic type) |
| Type | Economy push button |
| Switch rating | Ue 220 V, Ie 0.3 A, AC-14 |
| Protection class | IP40 |
| Panel cut-out | Ø22 mm |
| Panel thickness | 0.5 mm to 5 mm |
| Head | Ø30 mm |
| Head length | 11 mm |
| Body length behind panel | 41.8 mm |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-HBY5E1 is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-HBY5E1-11-R | 1NO1NC contact, Red colour |
| MR-HBY5E1-11-G | 1NO1NC contact, Green colour |
| MR-HBY5E1-11-Y | 1NO1NC contact, Yellow colour |
| MR-HBY5E1-11-B | 1NO1NC contact, Blue colour |
| MR-HBY5E1-11-W | 1NO1NC contact, White colour |
| MR-HBY5E1-11-N | 1NO1NC contact, Black colour |
| MR-HBY5E1-10-R | 1NO contact, Red colour |
| MR-HBY5E1-10-G | 1NO contact, Green colour |
| MR-HBY5E1-10-Y | 1NO contact, Yellow colour |
| MR-HBY5E1-10-B | 1NO contact, Blue colour |
| MR-HBY5E1-10-W | 1NO contact, White colour |
| MR-HBY5E1-10-N | 1NO contact, Black colour |
| MR-HBY5E1-01-R | 1NC contact, Red colour |
| MR-HBY5E1-01-G | 1NC contact, Green colour |
| MR-HBY5E1-01-Y | 1NC contact, Yellow colour |
| MR-HBY5E1-01-B | 1NC contact, Blue colour |
| MR-HBY5E1-01-W | 1NC contact, White colour |
| MR-HBY5E1-01-N | 1NC contact, Black colour |
Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
