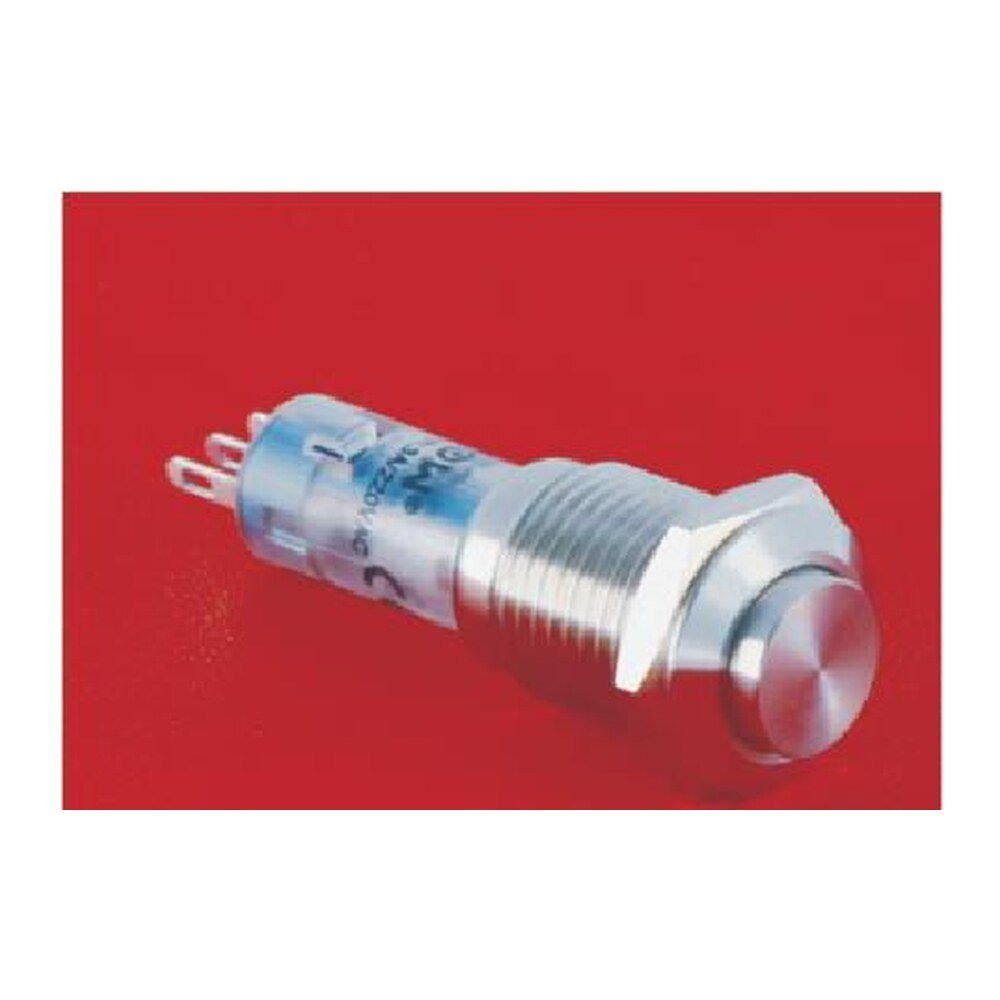

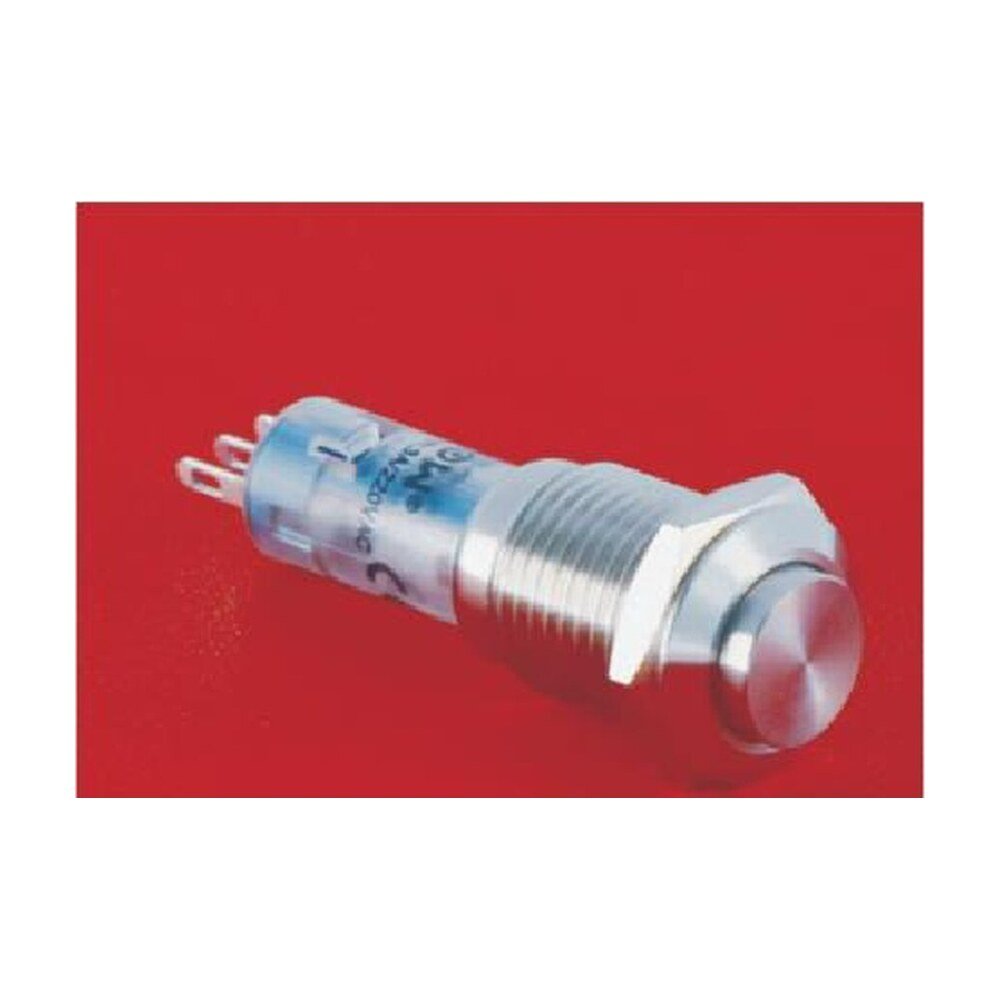

MR-LAS4GQH-11 - 12 mm Metal Push Button - 1NO1NC, Stainless Steel, Solder Tab.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS4GQH-11 is a 12 mm stainless-steel push button with a 1NO1NC contact, built as a momentary action or as a latching action, wired through solder tabs of 1.8 × 0.4 mm. It fits a Ø12 mm panel hole on an M12 × 1 thread, stands 36.2 mm behind the panel and is rated 250 V, 3 A.
Ordering. The ordering code is MR-LAS4GQH-11X-S: each X is replaced by the option you need - operation (none = Momentary, Z = Latching). The part numbers are listed below.
Still being confirmed. The IK impact rating is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS4GQH-11 |
|---|---|
| Also ordered as | LAS4GQH-11 |
| Category | Push Button Switches, Switches |
| Ordering code | MR-LAS4GQH-11X-S |
| Series | LAS4GQ |
| Contact structure | 1NO1NC |
| Contact material | Silver alloy |
| Rated insulation voltage Ui | 250 V |
| Thermal current Ith | 3 A |
| Rated operation current, AC 50/60 Hz | 110 V: 1 A resistive, 0.7 A inductive, 220 V: 0.5 A resistive, 0.5 A inductive |
| Rated operation current, DC | 12 V: 1 A resistive, 0.7 A inductive, 24 V: 1 A resistive, 0.7 A inductive, 110 V: 0.2 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA (reference) |
| Mechanical life | Momentary 200,000 cycles min, Latching 100,000 cycles min |
| Electrical life | 50,000 cycles |
| Operation travel | 2.5 mm approx |
| Torque | 1.4 N approx |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1000 V AC |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Panel cut-out | Ø12 mm (+0.2 / −0) |
| Minimum hole spacing | 16 mm |
| Mounting | M12 × 1 threaded bush |
| Bezel diameter | Ø14 mm |
| Housing material | Stainless steel |
| Protection class | IP40 (IP67 can be customised) |
| Termination | Solder tab (wiring patch) 1.8 × 0.4 mm |
| Operation type | Z = latching, no letter = momentary |
| Body length behind panel | 36.2 mm |
| Illumination | None |
| Availability | Please call for pricing and availability |
