Home/Products/Switches/Push Button Switches/MR-HBY5S 22 mm Illuminated Double-Head Push Button – Green I / Red O, Metal Bezel
Part No. MR-HBY5S

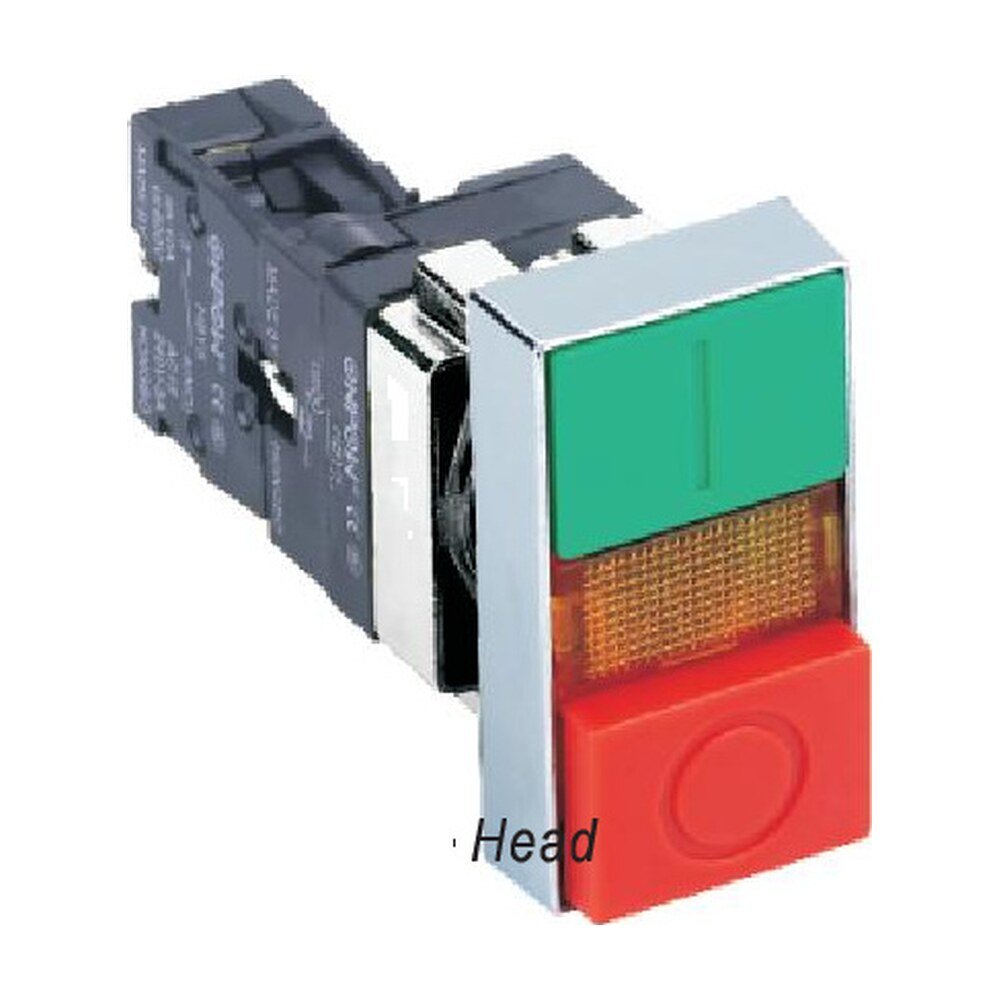

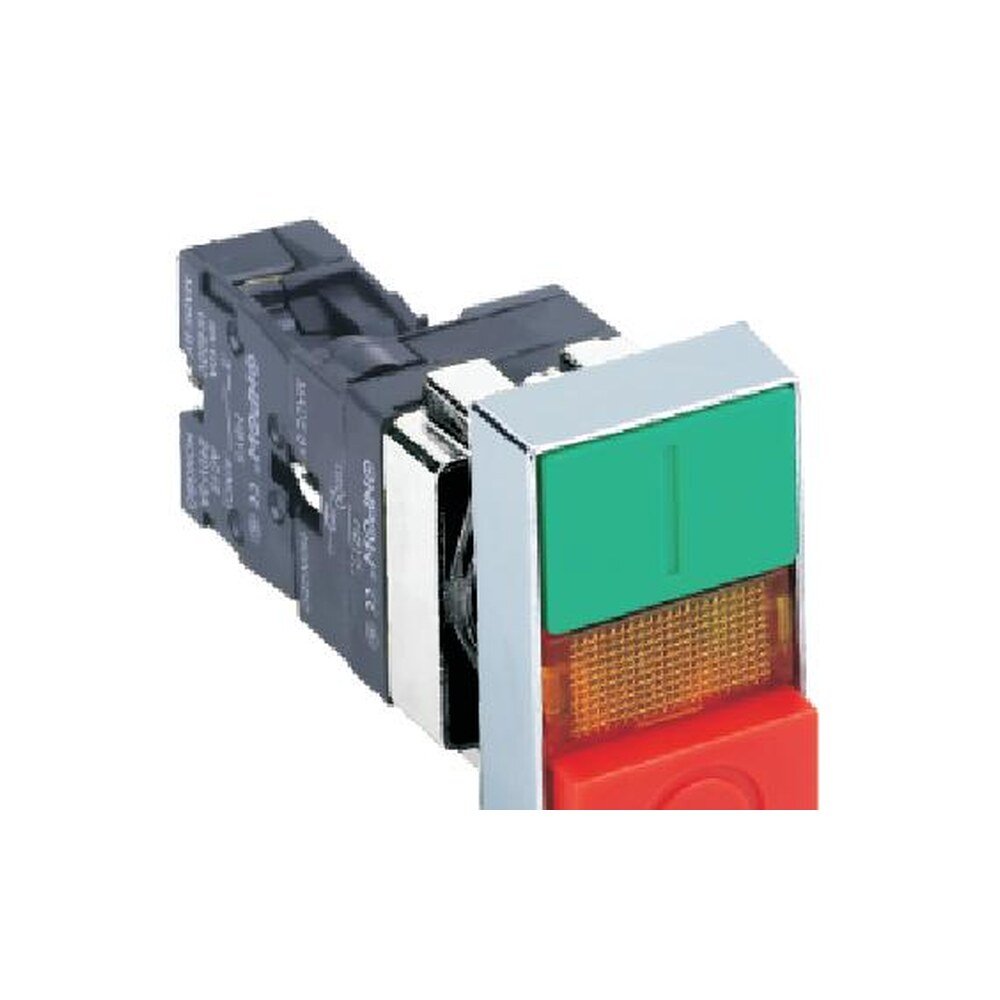

MR-HBY5S 22 mm Illuminated Double-Head Push Button - Green I / Red O, Metal Bezel

Please call for pricing and availability

MR-HBY5S - 22 mm Illuminated Double-Head Push Button - Green I / Red O, Metal Bezel.

MR-HBY5S 22 mm Illuminated Double-Head Push Button - Green I / Red O, Metal Bezel
MR-HBY5S 22 mm Illuminated Double-Head Push Button - Green I / Red O, Metal Bezel
Request a quote
Call for Pricing
Value added

Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.

Request a Quote

Send us the quantity you need and we will come back with pricing and a firm lead time.

Stocked items ship on receipt of order. Made-to-order items ship after production.
Need volume, a custom length, or a cross-reference? Talk to our sales account representative.

The MR-HBY5S is a 22 mm double-head push button with green I and red O buttons and a centre lamp, in a metal bezel, with slow-break switch units rated 10 A thermal current and 660 V insulation voltage. IP40.

Ordering. The ordering code is MR-HBY5S-#D-#: each X is replaced by the option you need - contact (11 = 1NO1NC, 10 = 1NO, 01 = 1NC, 20 = 2NO, 02 = 2NC, 22 = 2NO2NC, 40 = 4NO, 04 = 4NC, 31 = 3NO1NC, 13 = 1NO3NC, 30 = 3NO, 03 = 3NC, 21 = 2NO1NC, 12 = 1NO2NC); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 110V = 110 V, 220V = 220 V). The part numbers are listed below.

Still being confirmed. Which contacts each of the two buttons operates, the lamp colour, the LED voltages (taken from the series code table) and part numbers for three or more contact groups are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.

Please call for pricing and availability.

Part Number (SKU)MR-HBY5S
Also ordered asHBY5S-D
CategoryPush Button Switches, Switches
Ordering codeMR-HBY5S-#D-#
SeriesHBY5 (22 mm, metal head)
Rated insulation voltage Ui660 V
Thermal current Ith10 A
Rated operation current, AC-1224 V: 10 A, 110 V: 10 A, 220 V: 6 A
Rated operation current, AC-1524 V: 10 A, 110 V: 6 A, 220 V: 3 A, 380 V: 1.8 A, 500 V: 1.4 A
Rated operation current, DC-1224 V: 8 A, 48 V: 4 A, 110 V: 2.2 A, 220 V: 1.1 A
Rated operation current, DC-1324 V: 4 A, 48 V: 2 A, 110 V: 1.1 A, 220 V: 0.6 A
Minimum load3 V AC/DC, 5 mA
Contact materialSilver alloy
Contact resistance50 mΩ max
Insulation resistance100 MΩ min at 500 V DC
Dielectric strength3000 V AC, 50 Hz, 1 min
Vibration resistance50 Hz, amplitude 1.0 mm
Operating temperature−25 °C to +55 °C, non-freezing
Operating humidity45 % to 85 % RH, non-condensing
ConnectionScrew terminals: min 1 × 0.5 mm²; max 2 × 1.5 mm² with connecting link, 1 × 2.5 mm² without
Contact structureModular slow-break switch units, self-cleaning; 1 to 8 units
StandardsIEC 60947-5-1, GB/T 14048.5
Altitude2000 m max
Pollution degree3
LED life40,000 hours min
LED currentAbout 15 mA at 24 V or less, about 2 mA at 110 V or more
LED voltage fluctuationDC ±10 %, AC ±20 %
Lamp noteInternal protection resistor, no polarity
Panel cut-outØ22.5 mm
Panel thickness0.5 mm to 5 mm
TypeDouble-head push button with centre lamp, green I and red O
Protection classIP40
Mechanical lifeMomentary 1,000,000, Latching 500,000 operations min
Electrical life50,000 operations min
Operating forceAbout 8 N (1NO1NC), about 14 N (2NO2NC)
Operation travelAbout 5.5 mm
Bezel30 × 55 mm
Head typesMetal head as standard; simple plastic type E1 to order
Head length11 mm (15 mm to the top of the raised button)
Body length behind panel42 mm plus lamp block (18 mm AC/DC, 23 mm AC)
AvailabilityPlease call for pricing and availability

Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray

Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.

Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.

Contact Micro-Ray Sales

Related Products

MR-LAS4GQH-11E 12 mm Illuminated Metal Push Button - 1NO1NC, Ring LED, Stainless Steel
MR-LAS4GQH-11E 12 mm Illuminated Metal Push Button - 1NO1NC, Ring LED, Stainless Steel
MR-LAS4GQH-11E

MR-LAS4GQH-11E 12 mm Illuminated Metal Push Button - 1NO1NC, Ring LED, Stainless Steel

Call for Pricing
Details
MR-GQ12-AH-10E 12 mm Anti-Vandal Push Button - High Round Head, Ring Illuminated, 1NO
MR-GQ12-AH-10E 12 mm Anti-Vandal Push Button - High Round Head, Ring Illuminated, 1NO
MR-GQ12-AH-10E

MR-GQ12-AH-10E 12 mm Anti-Vandal Push Button - High Round Head, Ring Illuminated, 1NO

Call for Pricing
Details
MR-GQ12B-10-J-AL 12 mm Anti-Vandal Push Button - Domed Head, Pin Terminal 2 × 0.5 mm, Black Anodised Aluminium Alloy
MR-GQ12B-10-J-AL 12 mm Anti-Vandal Push Button - Domed Head, Pin Terminal 2 × 0.5 mm, Black Anodised Aluminium Alloy
MR-GQ12B-10-J-AL

MR-GQ12B-10-J-AL 12 mm Anti-Vandal Push Button - Domed Head, Pin Terminal 2 × 0.5 mm, Black Anodised Aluminium Alloy

Call for Pricing
Details

Part numbers in this family

MR-HBY5S is the family. Order by the part number for the option you need.

Part NumberDescription
MR-HBY5S-11D-6V1NO1NC contact, 6 V led voltage
MR-HBY5S-11D-12V1NO1NC contact, 12 V led voltage
MR-HBY5S-11D-24V1NO1NC contact, 24 V led voltage
MR-HBY5S-11D-110V1NO1NC contact, 110 V led voltage
MR-HBY5S-11D-220V1NO1NC contact, 220 V led voltage
MR-HBY5S-10D-6V1NO contact, 6 V led voltage
MR-HBY5S-10D-12V1NO contact, 12 V led voltage
MR-HBY5S-10D-24V1NO contact, 24 V led voltage
MR-HBY5S-10D-110V1NO contact, 110 V led voltage
MR-HBY5S-10D-220V1NO contact, 220 V led voltage
MR-HBY5S-01D-6V1NC contact, 6 V led voltage
MR-HBY5S-01D-12V1NC contact, 12 V led voltage
MR-HBY5S-01D-24V1NC contact, 24 V led voltage
MR-HBY5S-01D-110V1NC contact, 110 V led voltage
MR-HBY5S-01D-220V1NC contact, 220 V led voltage
MR-HBY5S-20D-6V2NO contact, 6 V led voltage
MR-HBY5S-20D-12V2NO contact, 12 V led voltage
MR-HBY5S-20D-24V2NO contact, 24 V led voltage
MR-HBY5S-20D-110V2NO contact, 110 V led voltage
MR-HBY5S-20D-220V2NO contact, 220 V led voltage
MR-HBY5S-02D-6V2NC contact, 6 V led voltage
MR-HBY5S-02D-12V2NC contact, 12 V led voltage
MR-HBY5S-02D-24V2NC contact, 24 V led voltage
MR-HBY5S-02D-110V2NC contact, 110 V led voltage
MR-HBY5S-02D-220V2NC contact, 220 V led voltage
MR-HBY5S-22D-6V2NO2NC contact, 6 V led voltage
MR-HBY5S-22D-12V2NO2NC contact, 12 V led voltage
MR-HBY5S-22D-24V2NO2NC contact, 24 V led voltage
MR-HBY5S-22D-110V2NO2NC contact, 110 V led voltage
MR-HBY5S-22D-220V2NO2NC contact, 220 V led voltage
MR-HBY5S-40D-6V4NO contact, 6 V led voltage
MR-HBY5S-40D-12V4NO contact, 12 V led voltage
MR-HBY5S-40D-24V4NO contact, 24 V led voltage
MR-HBY5S-40D-110V4NO contact, 110 V led voltage
MR-HBY5S-40D-220V4NO contact, 220 V led voltage
MR-HBY5S-04D-6V4NC contact, 6 V led voltage
MR-HBY5S-04D-12V4NC contact, 12 V led voltage
MR-HBY5S-04D-24V4NC contact, 24 V led voltage
MR-HBY5S-04D-110V4NC contact, 110 V led voltage
MR-HBY5S-04D-220V4NC contact, 220 V led voltage
MR-HBY5S-31D-6V3NO1NC contact, 6 V led voltage
MR-HBY5S-31D-12V3NO1NC contact, 12 V led voltage
MR-HBY5S-31D-24V3NO1NC contact, 24 V led voltage
MR-HBY5S-31D-110V3NO1NC contact, 110 V led voltage
MR-HBY5S-31D-220V3NO1NC contact, 220 V led voltage
MR-HBY5S-13D-6V1NO3NC contact, 6 V led voltage
MR-HBY5S-13D-12V1NO3NC contact, 12 V led voltage
MR-HBY5S-13D-24V1NO3NC contact, 24 V led voltage
MR-HBY5S-13D-110V1NO3NC contact, 110 V led voltage
MR-HBY5S-13D-220V1NO3NC contact, 220 V led voltage
MR-HBY5S-30D-6V3NO contact, 6 V led voltage
MR-HBY5S-30D-12V3NO contact, 12 V led voltage
MR-HBY5S-30D-24V3NO contact, 24 V led voltage
MR-HBY5S-30D-110V3NO contact, 110 V led voltage
MR-HBY5S-30D-220V3NO contact, 220 V led voltage
MR-HBY5S-03D-6V3NC contact, 6 V led voltage
MR-HBY5S-03D-12V3NC contact, 12 V led voltage
MR-HBY5S-03D-24V3NC contact, 24 V led voltage
MR-HBY5S-03D-110V3NC contact, 110 V led voltage
MR-HBY5S-03D-220V3NC contact, 220 V led voltage
MR-HBY5S-21D-6V2NO1NC contact, 6 V led voltage
MR-HBY5S-21D-12V2NO1NC contact, 12 V led voltage
MR-HBY5S-21D-24V2NO1NC contact, 24 V led voltage
MR-HBY5S-21D-110V2NO1NC contact, 110 V led voltage
MR-HBY5S-21D-220V2NO1NC contact, 220 V led voltage
MR-HBY5S-12D-6V1NO2NC contact, 6 V led voltage
MR-HBY5S-12D-12V1NO2NC contact, 12 V led voltage
MR-HBY5S-12D-24V1NO2NC contact, 24 V led voltage
MR-HBY5S-12D-110V1NO2NC contact, 110 V led voltage
MR-HBY5S-12D-220V1NO2NC contact, 220 V led voltage

Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
