MR-LAS0-K-C4 - 22 mm Rocker Switch - 4 Position, IP67.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

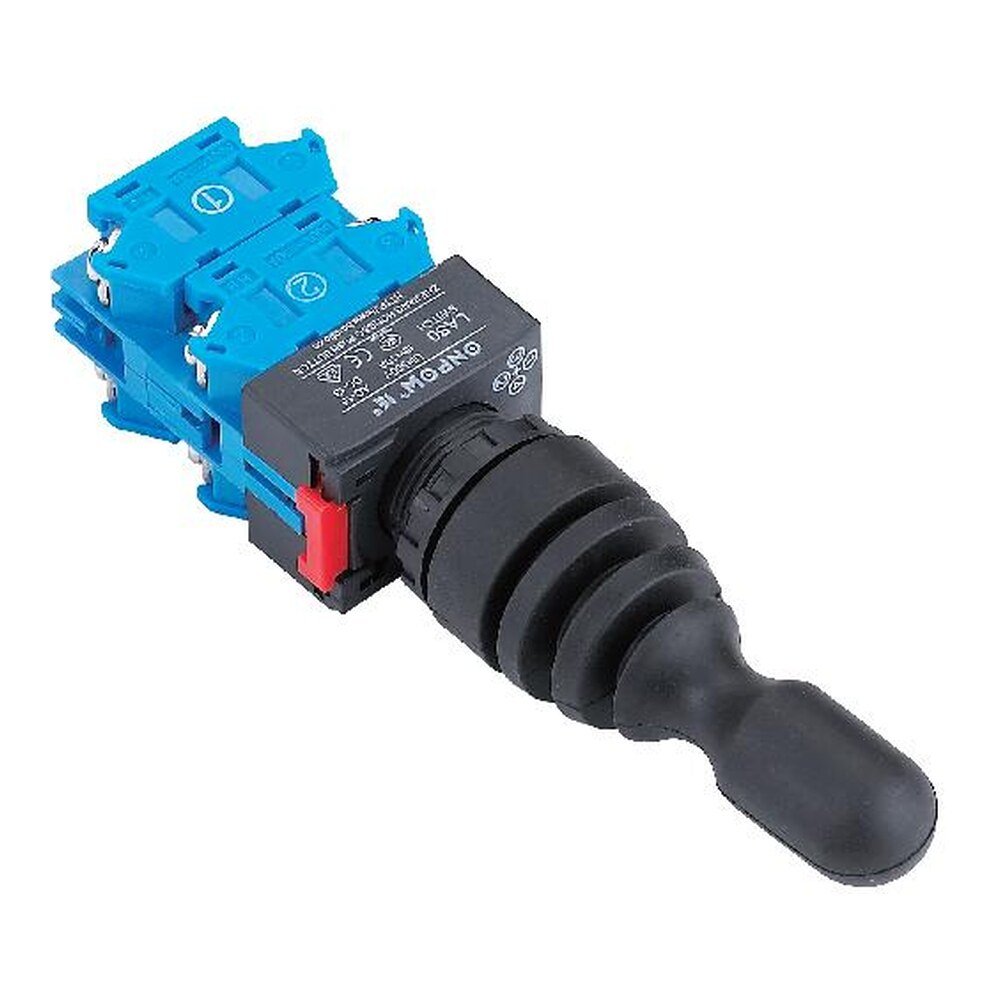

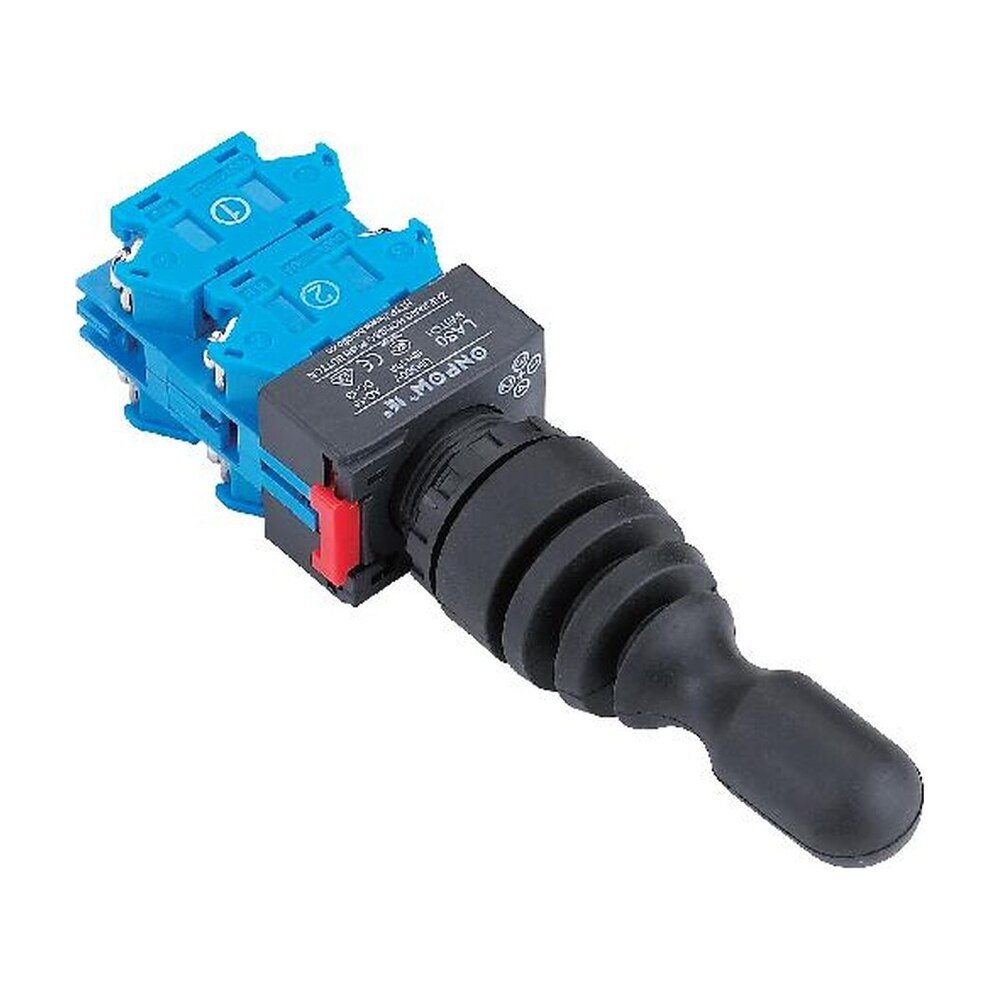

The MR-LAS0-K-C4 is a 22 mm four-position rocker (joystick) switch sealed to IP67, maintained or self-return, with 4NO contacts.
Ordering. The ordering code is MR-LAS0-K-40C4#: each X is replaced by the option you need - action (1 = Maintained, 3 = Self-return). The part numbers are listed below.
Still being confirmed. The mechanical life is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS0-K-C4 |
|---|---|
| Also ordered as | LAS0-K-40C4 |
| Category | Selector Switches, Switches |
| Ordering code | MR-LAS0-K-40C4# |
| Series | LAS0-K (22 mm) |
| Rated insulation voltage Ui | 500 V |
| Thermal current Ith | 10 A |
| Rated operation current, AC-12 | 24 V: 10 A, 110 V: 10 A, 220 V: 6 A |
| Rated operation current, AC-15 | 24 V: 10 A, 110 V: 6 A, 220 V: 3 A, 380 V: 1.8 A, 500 V: 1.4 A |
| Rated operation current, DC-12 | 24 V: 8 A, 48 V: 4 A, 110 V: 2.2 A, 220 V: 1.1 A |
| Rated operation current, DC-13 | 24 V: 4 A, 48 V: 2 A, 110 V: 1.1 A, 220 V: 0.6 A |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 3000 V AC, 50 Hz, 1 min |
| Vibration resistance | 50 Hz, amplitude 1.0 mm |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Connection | Screw terminals, wire up to 2 × 1.5 mm², Pin terminal 6.3 × 0.8 mm |
| Contact structure | 4NO |
| Standards | IEC 60947-5-1, GB/T 14048.5 |
| Type | Rocker (joystick) switch |
| Contact note | Normally open contacts; the contact for each numbered position closes when the lever is moved to it |
| Protection class | IP67 |
| Panel thickness | 0.5 mm to 5 mm |
| Lever length | 70 mm |
| Bezel | 30 × 40 mm |
| Positions | 4 |
| Body length behind panel | 72.5 mm |
| Accessories | Indicator ring T18-4, Protective cover T35 |
| Availability | Please call for pricing and availability |
