MR-LAS0-KA-XB - 22 mm B-Type Lever Selector Switch - Black Aluminium K-Type Head, Coloured Lever.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

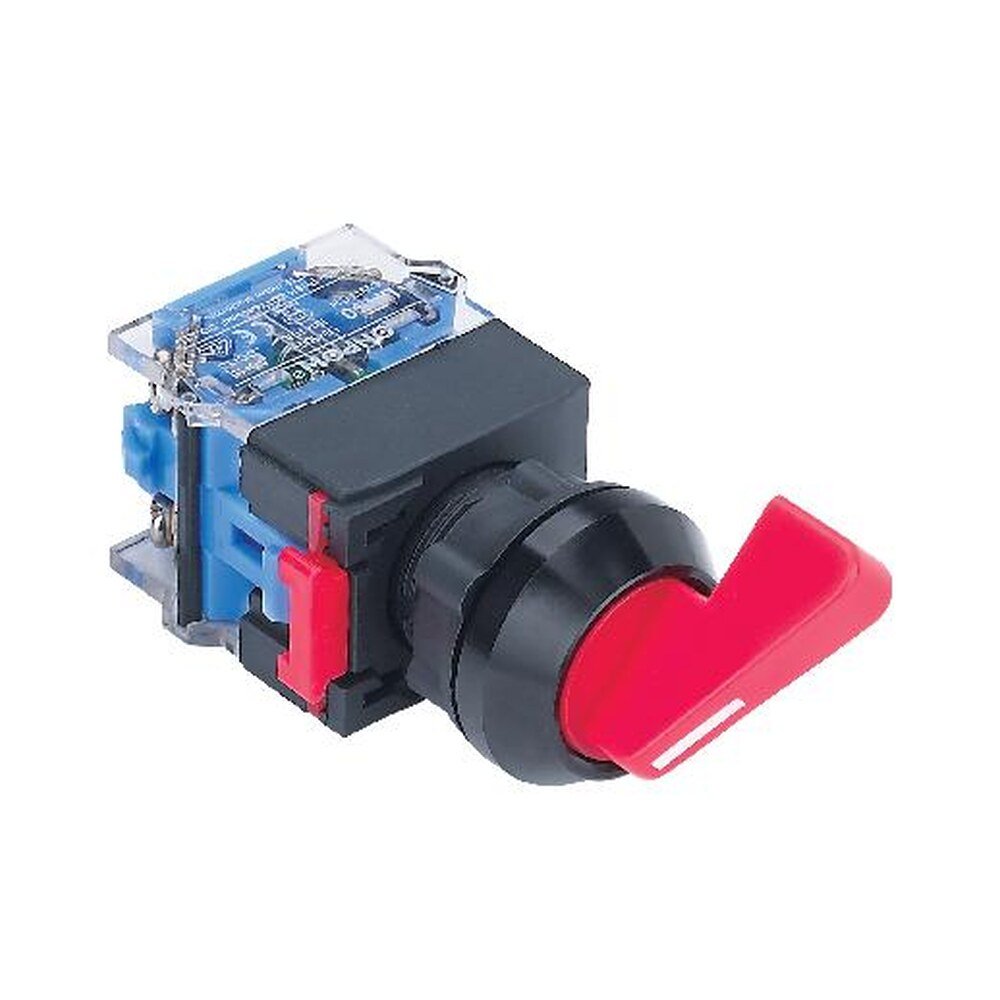

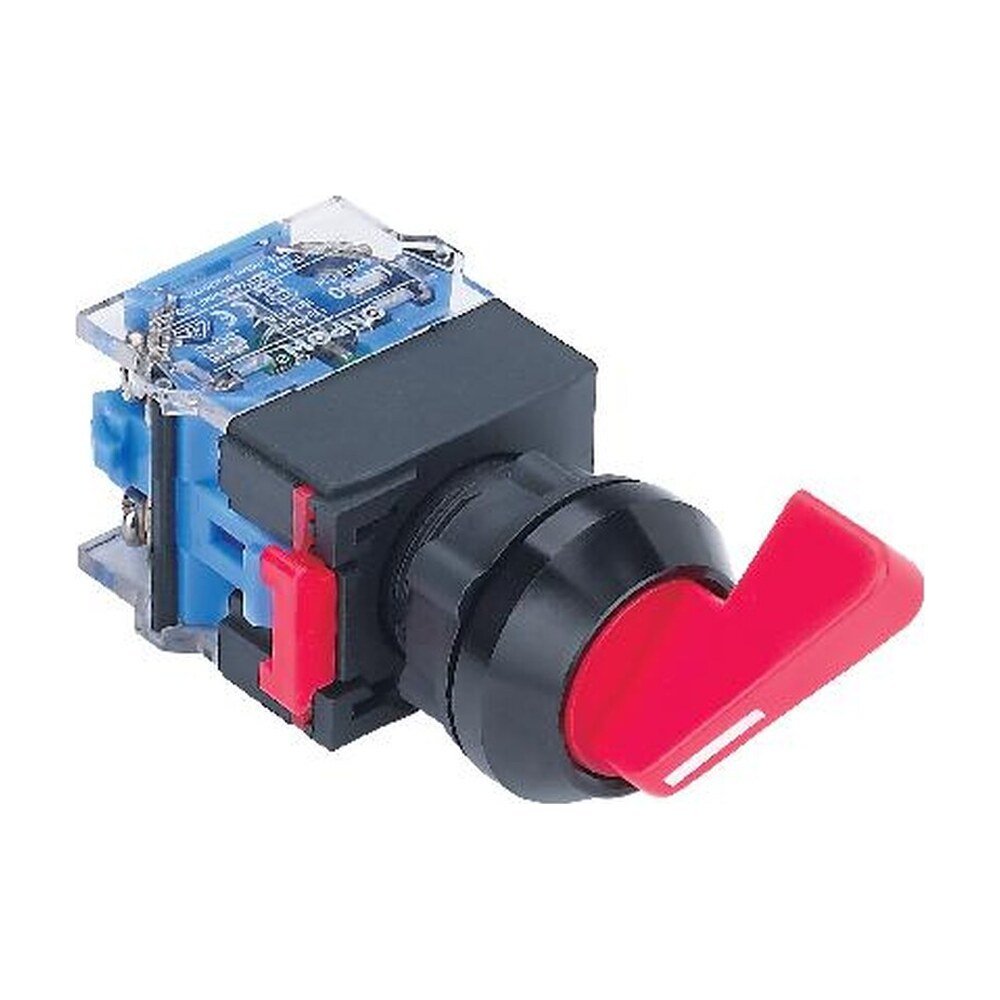

The MR-LAS0-KA-XB is a 22 mm modular selector switch with a B-type lever in a choice of colours, in a black-plated aluminium K-type head, 2 or 3 positions, maintained or self-return, with up to three groups of screw-terminal contact blocks rated 10 A at 500 V.
Ordering. The ordering code is MR-LAS0-KA-#XB-#-#-#: each X is replaced by the option you need - contact (11 = 1NO1NC, 02 = 2NC, 20 = 2NO, 22 = 2NO2NC, 13 = 1NO3NC, 31 = 3NO1NC, 04 = 4NC, 40 = 4NO, 42 = 4NO2NC, 24 = 2NO4NC, 06 = 6NC, 60 = 6NO, 33 = 3NO3NC, 15 = 1NO5NC, 51 = 5NO1NC); position (21 = 2 position, maintained, 23 = 2 position, self-return, 31 = 3 position, maintained, 32 = 3 position, self-return from right, 33 = 3 position, self-return from both sides); colour (R = Red, G = Green, Y = Yellow, N = Black); protection (none = IP40, P = IP65). The part numbers are listed below.
Still being confirmed. The dimensions and the lever colour options (taken from the series code table: red, green, yellow, black) are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS0-KA-XB |
|---|---|
| Also ordered as | LAS0-KA-XB |
| Category | Selector Switches, Switches |
| Ordering code | MR-LAS0-KA-#XB-#-#-# |
| Series | LAS0-KA (22 mm, black-plated aluminium K-type head) |
| Rated insulation voltage Ui | 500 V |
| Thermal current Ith | 10 A |
| Rated operation current, AC-12 | 24 V: 10 A, 110 V: 10 A, 220 V: 6 A |
| Rated operation current, AC-15 | 24 V: 10 A, 110 V: 6 A, 220 V: 3 A, 380 V: 1.8 A, 500 V: 1.4 A |
| Rated operation current, DC-12 | 24 V: 8 A, 48 V: 4 A, 110 V: 2.2 A, 220 V: 1.1 A |
| Rated operation current, DC-13 | 24 V: 4 A, 48 V: 2 A, 110 V: 1.1 A, 220 V: 0.6 A |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 3000 V AC, 50 Hz, 1 min |
| Vibration resistance | 50 Hz, amplitude 1.0 mm |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Connection | Screw terminals, wire up to 2 × 1.5 mm², Pin terminal 6.3 × 0.8 mm |
| Contact structure | Modular switch blocks, fast-acting or slow-acting, self-cleaning; 2 elements per block, up to 8 elements |
| Standards | IEC 60947-5-1, GB/T 14048.5 |
| Panel cut-out | Ø22.5 mm |
| Panel thickness | 0.5 mm to 5 mm |
| Type | Lever selector switch, B type, coloured lever |
| Protection class | IP40 standard, IP65 to order (P) |
| Mechanical life | 500,000 operations min |
| Electrical life | 50,000 operations min |
| Return option | Position 32 returns from the right as standard; return from the left can be made to order |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-LAS0-KA-XB is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-LAS0-KA-11XB-21-R | 1NO1NC contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-11XB-21-R-P | 1NO1NC contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-11XB-21-G | 1NO1NC contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-11XB-21-G-P | 1NO1NC contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-11XB-21-Y | 1NO1NC contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-11XB-21-Y-P | 1NO1NC contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-11XB-21-N | 1NO1NC contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-11XB-21-N-P | 1NO1NC contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-11XB-23-R | 1NO1NC contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-11XB-23-R-P | 1NO1NC contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-11XB-23-G | 1NO1NC contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-11XB-23-G-P | 1NO1NC contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-11XB-23-Y | 1NO1NC contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-11XB-23-Y-P | 1NO1NC contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-11XB-23-N | 1NO1NC contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-11XB-23-N-P | 1NO1NC contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-11XB-31-R | 1NO1NC contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-11XB-31-R-P | 1NO1NC contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-11XB-31-G | 1NO1NC contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-11XB-31-G-P | 1NO1NC contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-11XB-31-Y | 1NO1NC contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-11XB-31-Y-P | 1NO1NC contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-11XB-31-N | 1NO1NC contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-11XB-31-N-P | 1NO1NC contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-11XB-32-R | 1NO1NC contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-11XB-32-R-P | 1NO1NC contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-11XB-32-G | 1NO1NC contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-11XB-32-G-P | 1NO1NC contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-11XB-32-Y | 1NO1NC contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-11XB-32-Y-P | 1NO1NC contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-11XB-32-N | 1NO1NC contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-11XB-32-N-P | 1NO1NC contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-11XB-33-R | 1NO1NC contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-11XB-33-R-P | 1NO1NC contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-11XB-33-G | 1NO1NC contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-11XB-33-G-P | 1NO1NC contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-11XB-33-Y | 1NO1NC contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-11XB-33-Y-P | 1NO1NC contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-11XB-33-N | 1NO1NC contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-11XB-33-N-P | 1NO1NC contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
| MR-LAS0-KA-02XB-21-R | 2NC contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-02XB-21-R-P | 2NC contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-02XB-21-G | 2NC contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-02XB-21-G-P | 2NC contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-02XB-21-Y | 2NC contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-02XB-21-Y-P | 2NC contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-02XB-21-N | 2NC contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-02XB-21-N-P | 2NC contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-02XB-23-R | 2NC contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-02XB-23-R-P | 2NC contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-02XB-23-G | 2NC contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-02XB-23-G-P | 2NC contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-02XB-23-Y | 2NC contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-02XB-23-Y-P | 2NC contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-02XB-23-N | 2NC contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-02XB-23-N-P | 2NC contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-02XB-31-R | 2NC contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-02XB-31-R-P | 2NC contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-02XB-31-G | 2NC contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-02XB-31-G-P | 2NC contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-02XB-31-Y | 2NC contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-02XB-31-Y-P | 2NC contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-02XB-31-N | 2NC contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-02XB-31-N-P | 2NC contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-02XB-32-R | 2NC contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-02XB-32-R-P | 2NC contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-02XB-32-G | 2NC contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-02XB-32-G-P | 2NC contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-02XB-32-Y | 2NC contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-02XB-32-Y-P | 2NC contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-02XB-32-N | 2NC contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-02XB-32-N-P | 2NC contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-02XB-33-R | 2NC contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-02XB-33-R-P | 2NC contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-02XB-33-G | 2NC contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-02XB-33-G-P | 2NC contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-02XB-33-Y | 2NC contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-02XB-33-Y-P | 2NC contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-02XB-33-N | 2NC contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-02XB-33-N-P | 2NC contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
| MR-LAS0-KA-20XB-21-R | 2NO contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-20XB-21-R-P | 2NO contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-20XB-21-G | 2NO contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-20XB-21-G-P | 2NO contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-20XB-21-Y | 2NO contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-20XB-21-Y-P | 2NO contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-20XB-21-N | 2NO contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-20XB-21-N-P | 2NO contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-20XB-23-R | 2NO contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-20XB-23-R-P | 2NO contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-20XB-23-G | 2NO contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-20XB-23-G-P | 2NO contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-20XB-23-Y | 2NO contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-20XB-23-Y-P | 2NO contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-20XB-23-N | 2NO contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-20XB-23-N-P | 2NO contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-20XB-31-R | 2NO contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-20XB-31-R-P | 2NO contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-20XB-31-G | 2NO contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-20XB-31-G-P | 2NO contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-20XB-31-Y | 2NO contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-20XB-31-Y-P | 2NO contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-20XB-31-N | 2NO contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-20XB-31-N-P | 2NO contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-20XB-32-R | 2NO contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-20XB-32-R-P | 2NO contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-20XB-32-G | 2NO contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-20XB-32-G-P | 2NO contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-20XB-32-Y | 2NO contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-20XB-32-Y-P | 2NO contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-20XB-32-N | 2NO contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-20XB-32-N-P | 2NO contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-20XB-33-R | 2NO contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-20XB-33-R-P | 2NO contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-20XB-33-G | 2NO contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-20XB-33-G-P | 2NO contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-20XB-33-Y | 2NO contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-20XB-33-Y-P | 2NO contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-20XB-33-N | 2NO contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-20XB-33-N-P | 2NO contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
| MR-LAS0-KA-22XB-21-R | 2NO2NC contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-22XB-21-R-P | 2NO2NC contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-22XB-21-G | 2NO2NC contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-22XB-21-G-P | 2NO2NC contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-22XB-21-Y | 2NO2NC contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-22XB-21-Y-P | 2NO2NC contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-22XB-21-N | 2NO2NC contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-22XB-21-N-P | 2NO2NC contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-22XB-23-R | 2NO2NC contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-22XB-23-R-P | 2NO2NC contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-22XB-23-G | 2NO2NC contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-22XB-23-G-P | 2NO2NC contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-22XB-23-Y | 2NO2NC contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-22XB-23-Y-P | 2NO2NC contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-22XB-23-N | 2NO2NC contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-22XB-23-N-P | 2NO2NC contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-22XB-31-R | 2NO2NC contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-22XB-31-R-P | 2NO2NC contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-22XB-31-G | 2NO2NC contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-22XB-31-G-P | 2NO2NC contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-22XB-31-Y | 2NO2NC contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-22XB-31-Y-P | 2NO2NC contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-22XB-31-N | 2NO2NC contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-22XB-31-N-P | 2NO2NC contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-22XB-32-R | 2NO2NC contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-22XB-32-R-P | 2NO2NC contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-22XB-32-G | 2NO2NC contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-22XB-32-G-P | 2NO2NC contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-22XB-32-Y | 2NO2NC contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-22XB-32-Y-P | 2NO2NC contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-22XB-32-N | 2NO2NC contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-22XB-32-N-P | 2NO2NC contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-22XB-33-R | 2NO2NC contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-22XB-33-R-P | 2NO2NC contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-22XB-33-G | 2NO2NC contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-22XB-33-G-P | 2NO2NC contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-22XB-33-Y | 2NO2NC contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-22XB-33-Y-P | 2NO2NC contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-22XB-33-N | 2NO2NC contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-22XB-33-N-P | 2NO2NC contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
| MR-LAS0-KA-13XB-21-R | 1NO3NC contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-13XB-21-R-P | 1NO3NC contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-13XB-21-G | 1NO3NC contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-13XB-21-G-P | 1NO3NC contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-13XB-21-Y | 1NO3NC contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-13XB-21-Y-P | 1NO3NC contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-13XB-21-N | 1NO3NC contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-13XB-21-N-P | 1NO3NC contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-13XB-23-R | 1NO3NC contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-13XB-23-R-P | 1NO3NC contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-13XB-23-G | 1NO3NC contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-13XB-23-G-P | 1NO3NC contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-13XB-23-Y | 1NO3NC contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-13XB-23-Y-P | 1NO3NC contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-13XB-23-N | 1NO3NC contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-13XB-23-N-P | 1NO3NC contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-13XB-31-R | 1NO3NC contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-13XB-31-R-P | 1NO3NC contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-13XB-31-G | 1NO3NC contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-13XB-31-G-P | 1NO3NC contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-13XB-31-Y | 1NO3NC contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-13XB-31-Y-P | 1NO3NC contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-13XB-31-N | 1NO3NC contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-13XB-31-N-P | 1NO3NC contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-13XB-32-R | 1NO3NC contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-13XB-32-R-P | 1NO3NC contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-13XB-32-G | 1NO3NC contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-13XB-32-G-P | 1NO3NC contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-13XB-32-Y | 1NO3NC contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-13XB-32-Y-P | 1NO3NC contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-13XB-32-N | 1NO3NC contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-13XB-32-N-P | 1NO3NC contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-13XB-33-R | 1NO3NC contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-13XB-33-R-P | 1NO3NC contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-13XB-33-G | 1NO3NC contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-13XB-33-G-P | 1NO3NC contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-13XB-33-Y | 1NO3NC contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-13XB-33-Y-P | 1NO3NC contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-13XB-33-N | 1NO3NC contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-13XB-33-N-P | 1NO3NC contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
| MR-LAS0-KA-31XB-21-R | 3NO1NC contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-31XB-21-R-P | 3NO1NC contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-31XB-21-G | 3NO1NC contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-31XB-21-G-P | 3NO1NC contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-31XB-21-Y | 3NO1NC contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-31XB-21-Y-P | 3NO1NC contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-31XB-21-N | 3NO1NC contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-31XB-21-N-P | 3NO1NC contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-31XB-23-R | 3NO1NC contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-31XB-23-R-P | 3NO1NC contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-31XB-23-G | 3NO1NC contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-31XB-23-G-P | 3NO1NC contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-31XB-23-Y | 3NO1NC contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-31XB-23-Y-P | 3NO1NC contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-31XB-23-N | 3NO1NC contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-31XB-23-N-P | 3NO1NC contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-31XB-31-R | 3NO1NC contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-31XB-31-R-P | 3NO1NC contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-31XB-31-G | 3NO1NC contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-31XB-31-G-P | 3NO1NC contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-31XB-31-Y | 3NO1NC contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-31XB-31-Y-P | 3NO1NC contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-31XB-31-N | 3NO1NC contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-31XB-31-N-P | 3NO1NC contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-31XB-32-R | 3NO1NC contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-31XB-32-R-P | 3NO1NC contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-31XB-32-G | 3NO1NC contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-31XB-32-G-P | 3NO1NC contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-31XB-32-Y | 3NO1NC contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-31XB-32-Y-P | 3NO1NC contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-31XB-32-N | 3NO1NC contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-31XB-32-N-P | 3NO1NC contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-31XB-33-R | 3NO1NC contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-31XB-33-R-P | 3NO1NC contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-31XB-33-G | 3NO1NC contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-31XB-33-G-P | 3NO1NC contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-31XB-33-Y | 3NO1NC contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-31XB-33-Y-P | 3NO1NC contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-31XB-33-N | 3NO1NC contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-31XB-33-N-P | 3NO1NC contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
| MR-LAS0-KA-04XB-21-R | 4NC contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-04XB-21-R-P | 4NC contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-04XB-21-G | 4NC contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-04XB-21-G-P | 4NC contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-04XB-21-Y | 4NC contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-04XB-21-Y-P | 4NC contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-04XB-21-N | 4NC contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-04XB-21-N-P | 4NC contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-04XB-23-R | 4NC contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-04XB-23-R-P | 4NC contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-04XB-23-G | 4NC contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-04XB-23-G-P | 4NC contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-04XB-23-Y | 4NC contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-04XB-23-Y-P | 4NC contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-04XB-23-N | 4NC contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-04XB-23-N-P | 4NC contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-04XB-31-R | 4NC contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-04XB-31-R-P | 4NC contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-04XB-31-G | 4NC contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-04XB-31-G-P | 4NC contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-04XB-31-Y | 4NC contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-04XB-31-Y-P | 4NC contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-04XB-31-N | 4NC contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-04XB-31-N-P | 4NC contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-04XB-32-R | 4NC contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-04XB-32-R-P | 4NC contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-04XB-32-G | 4NC contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-04XB-32-G-P | 4NC contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-04XB-32-Y | 4NC contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-04XB-32-Y-P | 4NC contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-04XB-32-N | 4NC contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-04XB-32-N-P | 4NC contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-04XB-33-R | 4NC contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-04XB-33-R-P | 4NC contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-04XB-33-G | 4NC contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-04XB-33-G-P | 4NC contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-04XB-33-Y | 4NC contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-04XB-33-Y-P | 4NC contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-04XB-33-N | 4NC contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-04XB-33-N-P | 4NC contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
| MR-LAS0-KA-40XB-21-R | 4NO contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-40XB-21-R-P | 4NO contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-40XB-21-G | 4NO contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-40XB-21-G-P | 4NO contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-40XB-21-Y | 4NO contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-40XB-21-Y-P | 4NO contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-40XB-21-N | 4NO contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-40XB-21-N-P | 4NO contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-40XB-23-R | 4NO contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-40XB-23-R-P | 4NO contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-40XB-23-G | 4NO contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-40XB-23-G-P | 4NO contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-40XB-23-Y | 4NO contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-40XB-23-Y-P | 4NO contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-40XB-23-N | 4NO contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-40XB-23-N-P | 4NO contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-40XB-31-R | 4NO contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-40XB-31-R-P | 4NO contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-40XB-31-G | 4NO contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-40XB-31-G-P | 4NO contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-40XB-31-Y | 4NO contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-40XB-31-Y-P | 4NO contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-40XB-31-N | 4NO contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-40XB-31-N-P | 4NO contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-40XB-32-R | 4NO contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-40XB-32-R-P | 4NO contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-40XB-32-G | 4NO contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-40XB-32-G-P | 4NO contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-40XB-32-Y | 4NO contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-40XB-32-Y-P | 4NO contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-40XB-32-N | 4NO contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-40XB-32-N-P | 4NO contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-40XB-33-R | 4NO contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-40XB-33-R-P | 4NO contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-40XB-33-G | 4NO contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-40XB-33-G-P | 4NO contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-40XB-33-Y | 4NO contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-40XB-33-Y-P | 4NO contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-40XB-33-N | 4NO contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-40XB-33-N-P | 4NO contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
| MR-LAS0-KA-42XB-21-R | 4NO2NC contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-42XB-21-R-P | 4NO2NC contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-42XB-21-G | 4NO2NC contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-42XB-21-G-P | 4NO2NC contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-42XB-21-Y | 4NO2NC contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-42XB-21-Y-P | 4NO2NC contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-42XB-21-N | 4NO2NC contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-42XB-21-N-P | 4NO2NC contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-42XB-23-R | 4NO2NC contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-42XB-23-R-P | 4NO2NC contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-42XB-23-G | 4NO2NC contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-42XB-23-G-P | 4NO2NC contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-42XB-23-Y | 4NO2NC contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-42XB-23-Y-P | 4NO2NC contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-42XB-23-N | 4NO2NC contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-42XB-23-N-P | 4NO2NC contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-42XB-31-R | 4NO2NC contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-42XB-31-R-P | 4NO2NC contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-42XB-31-G | 4NO2NC contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-42XB-31-G-P | 4NO2NC contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-42XB-31-Y | 4NO2NC contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-42XB-31-Y-P | 4NO2NC contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-42XB-31-N | 4NO2NC contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-42XB-31-N-P | 4NO2NC contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-42XB-32-R | 4NO2NC contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-42XB-32-R-P | 4NO2NC contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-42XB-32-G | 4NO2NC contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-42XB-32-G-P | 4NO2NC contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-42XB-32-Y | 4NO2NC contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-42XB-32-Y-P | 4NO2NC contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-42XB-32-N | 4NO2NC contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-42XB-32-N-P | 4NO2NC contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-42XB-33-R | 4NO2NC contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-42XB-33-R-P | 4NO2NC contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-42XB-33-G | 4NO2NC contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-42XB-33-G-P | 4NO2NC contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-42XB-33-Y | 4NO2NC contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-42XB-33-Y-P | 4NO2NC contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-42XB-33-N | 4NO2NC contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-42XB-33-N-P | 4NO2NC contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
| MR-LAS0-KA-24XB-21-R | 2NO4NC contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-24XB-21-R-P | 2NO4NC contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-24XB-21-G | 2NO4NC contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-24XB-21-G-P | 2NO4NC contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-24XB-21-Y | 2NO4NC contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-24XB-21-Y-P | 2NO4NC contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-24XB-21-N | 2NO4NC contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-24XB-21-N-P | 2NO4NC contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-24XB-23-R | 2NO4NC contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-24XB-23-R-P | 2NO4NC contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-24XB-23-G | 2NO4NC contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-24XB-23-G-P | 2NO4NC contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-24XB-23-Y | 2NO4NC contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-24XB-23-Y-P | 2NO4NC contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-24XB-23-N | 2NO4NC contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-24XB-23-N-P | 2NO4NC contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-24XB-31-R | 2NO4NC contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-24XB-31-R-P | 2NO4NC contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-24XB-31-G | 2NO4NC contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-24XB-31-G-P | 2NO4NC contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-24XB-31-Y | 2NO4NC contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-24XB-31-Y-P | 2NO4NC contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-24XB-31-N | 2NO4NC contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-24XB-31-N-P | 2NO4NC contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-24XB-32-R | 2NO4NC contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-24XB-32-R-P | 2NO4NC contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-24XB-32-G | 2NO4NC contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-24XB-32-G-P | 2NO4NC contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-24XB-32-Y | 2NO4NC contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-24XB-32-Y-P | 2NO4NC contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-24XB-32-N | 2NO4NC contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-24XB-32-N-P | 2NO4NC contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-24XB-33-R | 2NO4NC contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-24XB-33-R-P | 2NO4NC contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-24XB-33-G | 2NO4NC contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-24XB-33-G-P | 2NO4NC contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-24XB-33-Y | 2NO4NC contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-24XB-33-Y-P | 2NO4NC contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-24XB-33-N | 2NO4NC contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-24XB-33-N-P | 2NO4NC contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
| MR-LAS0-KA-06XB-21-R | 6NC contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-06XB-21-R-P | 6NC contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-06XB-21-G | 6NC contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-06XB-21-G-P | 6NC contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-06XB-21-Y | 6NC contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-06XB-21-Y-P | 6NC contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-06XB-21-N | 6NC contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-06XB-21-N-P | 6NC contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-06XB-23-R | 6NC contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-06XB-23-R-P | 6NC contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-06XB-23-G | 6NC contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-06XB-23-G-P | 6NC contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-06XB-23-Y | 6NC contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-06XB-23-Y-P | 6NC contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-06XB-23-N | 6NC contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-06XB-23-N-P | 6NC contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-06XB-31-R | 6NC contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-06XB-31-R-P | 6NC contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-06XB-31-G | 6NC contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-06XB-31-G-P | 6NC contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-06XB-31-Y | 6NC contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-06XB-31-Y-P | 6NC contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-06XB-31-N | 6NC contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-06XB-31-N-P | 6NC contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-06XB-32-R | 6NC contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-06XB-32-R-P | 6NC contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-06XB-32-G | 6NC contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-06XB-32-G-P | 6NC contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-06XB-32-Y | 6NC contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-06XB-32-Y-P | 6NC contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-06XB-32-N | 6NC contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-06XB-32-N-P | 6NC contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-06XB-33-R | 6NC contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-06XB-33-R-P | 6NC contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-06XB-33-G | 6NC contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-06XB-33-G-P | 6NC contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-06XB-33-Y | 6NC contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-06XB-33-Y-P | 6NC contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-06XB-33-N | 6NC contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-06XB-33-N-P | 6NC contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
| MR-LAS0-KA-60XB-21-R | 6NO contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-60XB-21-R-P | 6NO contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-60XB-21-G | 6NO contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-60XB-21-G-P | 6NO contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-60XB-21-Y | 6NO contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-60XB-21-Y-P | 6NO contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-60XB-21-N | 6NO contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-60XB-21-N-P | 6NO contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-60XB-23-R | 6NO contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-60XB-23-R-P | 6NO contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-60XB-23-G | 6NO contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-60XB-23-G-P | 6NO contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-60XB-23-Y | 6NO contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-60XB-23-Y-P | 6NO contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-60XB-23-N | 6NO contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-60XB-23-N-P | 6NO contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-60XB-31-R | 6NO contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-60XB-31-R-P | 6NO contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-60XB-31-G | 6NO contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-60XB-31-G-P | 6NO contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-60XB-31-Y | 6NO contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-60XB-31-Y-P | 6NO contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-60XB-31-N | 6NO contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-60XB-31-N-P | 6NO contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-60XB-32-R | 6NO contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-60XB-32-R-P | 6NO contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-60XB-32-G | 6NO contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-60XB-32-G-P | 6NO contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-60XB-32-Y | 6NO contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-60XB-32-Y-P | 6NO contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-60XB-32-N | 6NO contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-60XB-32-N-P | 6NO contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-60XB-33-R | 6NO contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-60XB-33-R-P | 6NO contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-60XB-33-G | 6NO contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-60XB-33-G-P | 6NO contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-60XB-33-Y | 6NO contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-60XB-33-Y-P | 6NO contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-60XB-33-N | 6NO contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-60XB-33-N-P | 6NO contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
| MR-LAS0-KA-33XB-21-R | 3NO3NC contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-33XB-21-R-P | 3NO3NC contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-33XB-21-G | 3NO3NC contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-33XB-21-G-P | 3NO3NC contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-33XB-21-Y | 3NO3NC contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-33XB-21-Y-P | 3NO3NC contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-33XB-21-N | 3NO3NC contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-33XB-21-N-P | 3NO3NC contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-33XB-23-R | 3NO3NC contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-33XB-23-R-P | 3NO3NC contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-33XB-23-G | 3NO3NC contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-33XB-23-G-P | 3NO3NC contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-33XB-23-Y | 3NO3NC contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-33XB-23-Y-P | 3NO3NC contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-33XB-23-N | 3NO3NC contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-33XB-23-N-P | 3NO3NC contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-33XB-31-R | 3NO3NC contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-33XB-31-R-P | 3NO3NC contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-33XB-31-G | 3NO3NC contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-33XB-31-G-P | 3NO3NC contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-33XB-31-Y | 3NO3NC contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-33XB-31-Y-P | 3NO3NC contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-33XB-31-N | 3NO3NC contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-33XB-31-N-P | 3NO3NC contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-33XB-32-R | 3NO3NC contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-33XB-32-R-P | 3NO3NC contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-33XB-32-G | 3NO3NC contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-33XB-32-G-P | 3NO3NC contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-33XB-32-Y | 3NO3NC contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-33XB-32-Y-P | 3NO3NC contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-33XB-32-N | 3NO3NC contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-33XB-32-N-P | 3NO3NC contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-33XB-33-R | 3NO3NC contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-33XB-33-R-P | 3NO3NC contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-33XB-33-G | 3NO3NC contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-33XB-33-G-P | 3NO3NC contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-33XB-33-Y | 3NO3NC contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-33XB-33-Y-P | 3NO3NC contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-33XB-33-N | 3NO3NC contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-33XB-33-N-P | 3NO3NC contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
| MR-LAS0-KA-15XB-21-R | 1NO5NC contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-15XB-21-R-P | 1NO5NC contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-15XB-21-G | 1NO5NC contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-15XB-21-G-P | 1NO5NC contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-15XB-21-Y | 1NO5NC contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-15XB-21-Y-P | 1NO5NC contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-15XB-21-N | 1NO5NC contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-15XB-21-N-P | 1NO5NC contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-15XB-23-R | 1NO5NC contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-15XB-23-R-P | 1NO5NC contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-15XB-23-G | 1NO5NC contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-15XB-23-G-P | 1NO5NC contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-15XB-23-Y | 1NO5NC contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-15XB-23-Y-P | 1NO5NC contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-15XB-23-N | 1NO5NC contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-15XB-23-N-P | 1NO5NC contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-15XB-31-R | 1NO5NC contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-15XB-31-R-P | 1NO5NC contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-15XB-31-G | 1NO5NC contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-15XB-31-G-P | 1NO5NC contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-15XB-31-Y | 1NO5NC contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-15XB-31-Y-P | 1NO5NC contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-15XB-31-N | 1NO5NC contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-15XB-31-N-P | 1NO5NC contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-15XB-32-R | 1NO5NC contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-15XB-32-R-P | 1NO5NC contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-15XB-32-G | 1NO5NC contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-15XB-32-G-P | 1NO5NC contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-15XB-32-Y | 1NO5NC contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-15XB-32-Y-P | 1NO5NC contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-15XB-32-N | 1NO5NC contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-15XB-32-N-P | 1NO5NC contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-15XB-33-R | 1NO5NC contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-15XB-33-R-P | 1NO5NC contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-15XB-33-G | 1NO5NC contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-15XB-33-G-P | 1NO5NC contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-15XB-33-Y | 1NO5NC contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-15XB-33-Y-P | 1NO5NC contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-15XB-33-N | 1NO5NC contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-15XB-33-N-P | 1NO5NC contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
| MR-LAS0-KA-51XB-21-R | 5NO1NC contact, 2 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-51XB-21-R-P | 5NO1NC contact, 2 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-51XB-21-G | 5NO1NC contact, 2 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-51XB-21-G-P | 5NO1NC contact, 2 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-51XB-21-Y | 5NO1NC contact, 2 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-51XB-21-Y-P | 5NO1NC contact, 2 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-51XB-21-N | 5NO1NC contact, 2 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-51XB-21-N-P | 5NO1NC contact, 2 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-51XB-23-R | 5NO1NC contact, 2 position, self-return position, Red colour, IP40 protection |
| MR-LAS0-KA-51XB-23-R-P | 5NO1NC contact, 2 position, self-return position, Red colour, IP65 protection |
| MR-LAS0-KA-51XB-23-G | 5NO1NC contact, 2 position, self-return position, Green colour, IP40 protection |
| MR-LAS0-KA-51XB-23-G-P | 5NO1NC contact, 2 position, self-return position, Green colour, IP65 protection |
| MR-LAS0-KA-51XB-23-Y | 5NO1NC contact, 2 position, self-return position, Yellow colour, IP40 protection |
| MR-LAS0-KA-51XB-23-Y-P | 5NO1NC contact, 2 position, self-return position, Yellow colour, IP65 protection |
| MR-LAS0-KA-51XB-23-N | 5NO1NC contact, 2 position, self-return position, Black colour, IP40 protection |
| MR-LAS0-KA-51XB-23-N-P | 5NO1NC contact, 2 position, self-return position, Black colour, IP65 protection |
| MR-LAS0-KA-51XB-31-R | 5NO1NC contact, 3 position, maintained position, Red colour, IP40 protection |
| MR-LAS0-KA-51XB-31-R-P | 5NO1NC contact, 3 position, maintained position, Red colour, IP65 protection |
| MR-LAS0-KA-51XB-31-G | 5NO1NC contact, 3 position, maintained position, Green colour, IP40 protection |
| MR-LAS0-KA-51XB-31-G-P | 5NO1NC contact, 3 position, maintained position, Green colour, IP65 protection |
| MR-LAS0-KA-51XB-31-Y | 5NO1NC contact, 3 position, maintained position, Yellow colour, IP40 protection |
| MR-LAS0-KA-51XB-31-Y-P | 5NO1NC contact, 3 position, maintained position, Yellow colour, IP65 protection |
| MR-LAS0-KA-51XB-31-N | 5NO1NC contact, 3 position, maintained position, Black colour, IP40 protection |
| MR-LAS0-KA-51XB-31-N-P | 5NO1NC contact, 3 position, maintained position, Black colour, IP65 protection |
| MR-LAS0-KA-51XB-32-R | 5NO1NC contact, 3 position, self-return from right position, Red colour, IP40 protection |
| MR-LAS0-KA-51XB-32-R-P | 5NO1NC contact, 3 position, self-return from right position, Red colour, IP65 protection |
| MR-LAS0-KA-51XB-32-G | 5NO1NC contact, 3 position, self-return from right position, Green colour, IP40 protection |
| MR-LAS0-KA-51XB-32-G-P | 5NO1NC contact, 3 position, self-return from right position, Green colour, IP65 protection |
| MR-LAS0-KA-51XB-32-Y | 5NO1NC contact, 3 position, self-return from right position, Yellow colour, IP40 protection |
| MR-LAS0-KA-51XB-32-Y-P | 5NO1NC contact, 3 position, self-return from right position, Yellow colour, IP65 protection |
| MR-LAS0-KA-51XB-32-N | 5NO1NC contact, 3 position, self-return from right position, Black colour, IP40 protection |
| MR-LAS0-KA-51XB-32-N-P | 5NO1NC contact, 3 position, self-return from right position, Black colour, IP65 protection |
| MR-LAS0-KA-51XB-33-R | 5NO1NC contact, 3 position, self-return from both sides position, Red colour, IP40 protection |
| MR-LAS0-KA-51XB-33-R-P | 5NO1NC contact, 3 position, self-return from both sides position, Red colour, IP65 protection |
| MR-LAS0-KA-51XB-33-G | 5NO1NC contact, 3 position, self-return from both sides position, Green colour, IP40 protection |
| MR-LAS0-KA-51XB-33-G-P | 5NO1NC contact, 3 position, self-return from both sides position, Green colour, IP65 protection |
| MR-LAS0-KA-51XB-33-Y | 5NO1NC contact, 3 position, self-return from both sides position, Yellow colour, IP40 protection |
| MR-LAS0-KA-51XB-33-Y-P | 5NO1NC contact, 3 position, self-return from both sides position, Yellow colour, IP65 protection |
| MR-LAS0-KA-51XB-33-N | 5NO1NC contact, 3 position, self-return from both sides position, Black colour, IP40 protection |
| MR-LAS0-KA-51XB-33-N-P | 5NO1NC contact, 3 position, self-return from both sides position, Black colour, IP65 protection |
Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
Send us your part number, drawing, or a description of what you need. A real person on our team will get back to you.
